Год начала выпуска: 1979
TECHNICAL DATA
Track System: 4 track, 2 channel stereo system
Tape: Philips type cassette
Tape Speed: 4.76 cm/s ±1% (1-7/8 ips ±1% )
Wow & Flutter: Less than 0.05% WRMS,
0.14% (DIN 45500)
Frequency Response:
35 to 14,000 Hz +3 dB using LN tape
35 to 14,000 Hz ±3 dB using LH tape
35 to 15,000 Hz ±3 dB using Cr02 (SA) tape
35 to 15,000 Hz ±3 dB using FeCr tape
Distortion (1,000 Hz 0 VU):
Less than 1.3% using LN tape
Less than 1.3% using LH tape
Less than 2.0% using Cr02 (SA) tape
Less than 2.0% using FeCr tape
Signal to Noise Ratio:
Better than 54 dB using LN tape
Better than 54 dB using LH tape
Better than 56 dB using Cr02 (SA) tape
Better than 56 dB using FeCr tape
(measured via tape with peak recording level)
Dolby NR switch ON: Improves up to 10 dB above 5 kHz
Erase Ratio: Better than 65 dB
Bias Frequency: 85 kHz
Heads: (2): One GX recording/playback head, one erase head
Motor: (1): Electronically speed controlled D.C. motor
Fast Forward and Rewind Time: 120 sec. using a C-60 cassette
tape Output Jacks: Line: 410 mV (0 VU).
Required load impedance: More than 20 kohms
Phone: 100 mV/8 ohms
Input Jacks: Microphone: 0.25 mV (Input impedance 5.0
kohms). Required microphone impedance: 600 ohms
Line: 70 mV (Input impedance 100 kohms)
DIN Jack: Input: 0.25 mV (Input impedance 2.2 kohms)
Output: 410 mV.
Required load impedance:
More than 20 kohms
Power Requirements: 120V/60 Hz for U.S.A. & Canada
220V/50 Hz for European Countries except U.K.
240V/50 Hz for U.K. & Australia
110/120/220/240V (Switchable), 50/60 Hz for the other countries
Dimensions:
380(W) x 150(H) x 295(D) mm
(15.0 x 5.9 x 11.6")
Weight: 5.2 kg (11.4 lbs)
6.1 kg (13.5 lbs) U.S.A. Model only
* For improvement purposes, specifications and design are subject to change without notice.
* "Dolby" and the Double D symbol are trademarks of Dolby Laboratories (Manufactured under license from Dolby Laboratories).
STANDARD ACCESSORIES
Connection Cord..................................1

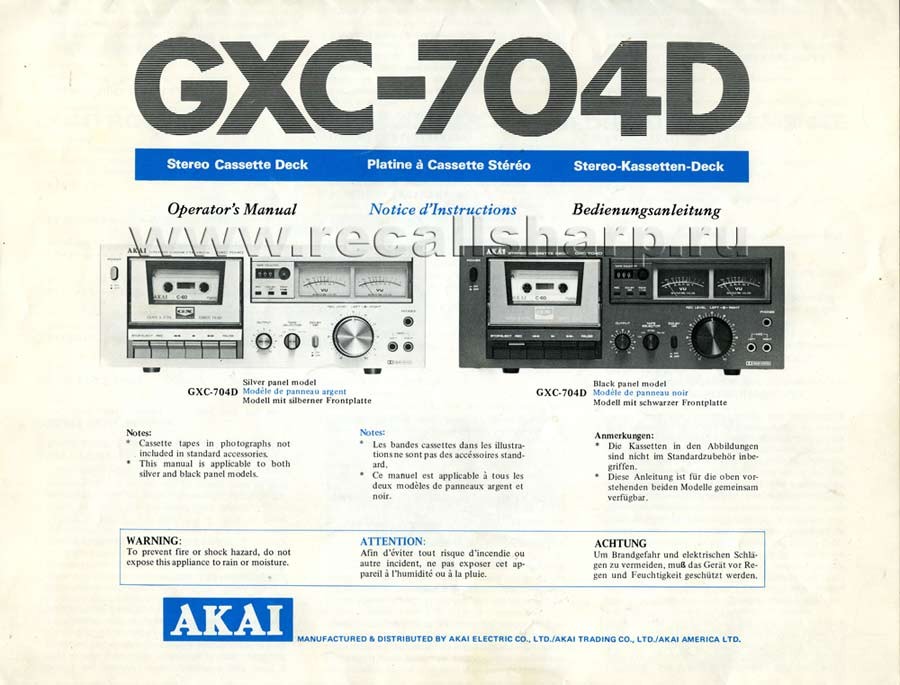

Operator's Manual.................................1
|
