Год начала выпуска: 1980
Регион: Великобритания

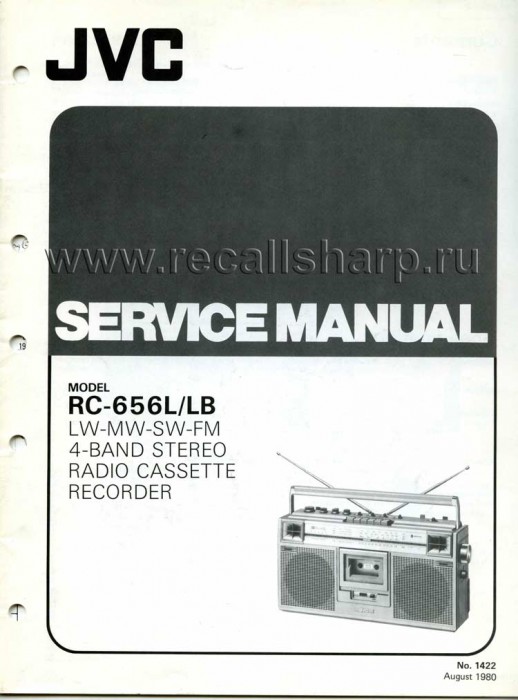

SPECIFICATIONS (JVC RC656LB)
Semiconductors: 9 ICs (including 2 for the microphone, 1 for the motor), 33 transistors & 1 FET
Speakers: 16 cm (3.2 Ω) x 2
5cm (4 Ω) x 2
TUNER SECTION
Frequency ranges: FM 88-108 MHz;
SW 6-18 MHz;
MW 540-1600 kHz;
LW 150-350 kHz
Antennas: Telescopic antenna for SW & FM Ferrite core antenna for MW & LW
TAPE RECORDER SECTION
Track system: 4-Track 2-channel stereo
Frequency response:
30-15,000 Hz (with chrome tape)
30- 14,000 Hz (with normal tape)
Wow & flutter: 0.12 % (WRMS)
S/N ratio: 50 dB, The S/N ratio is improved by 5 dB at 1 kHz and 10 dB at 5 kHz or above with DOLBY N.R. switch ON.
Rewind time: Within 110 sec. (C-60 cassette)
Fast forward time: Within 110 sec. (C-60 cassette)
AMPLIFIER SECTION
Power output:
Max. 12 W (6 W + 6 W) at 3.2 .
Input jacks: Mic И 2 (0.8 mV, low impedance)
Output jacks: Ext. speaker И 2 (load impedance 4 . 8 .) Headphones И 1
Input/output jack: DIN jack
Power supply: DC 12 V (8 "R20 (U2)" batteries) Car battery (DC 12V) AC 240/220/110V, 50/60 Hz
Power consumption:19W
Dimensions: 469(W) x 247(H) x 124(D) mm
Weight: 5.2 kg (without batteries) 5.9 kg (with batteries)
|
