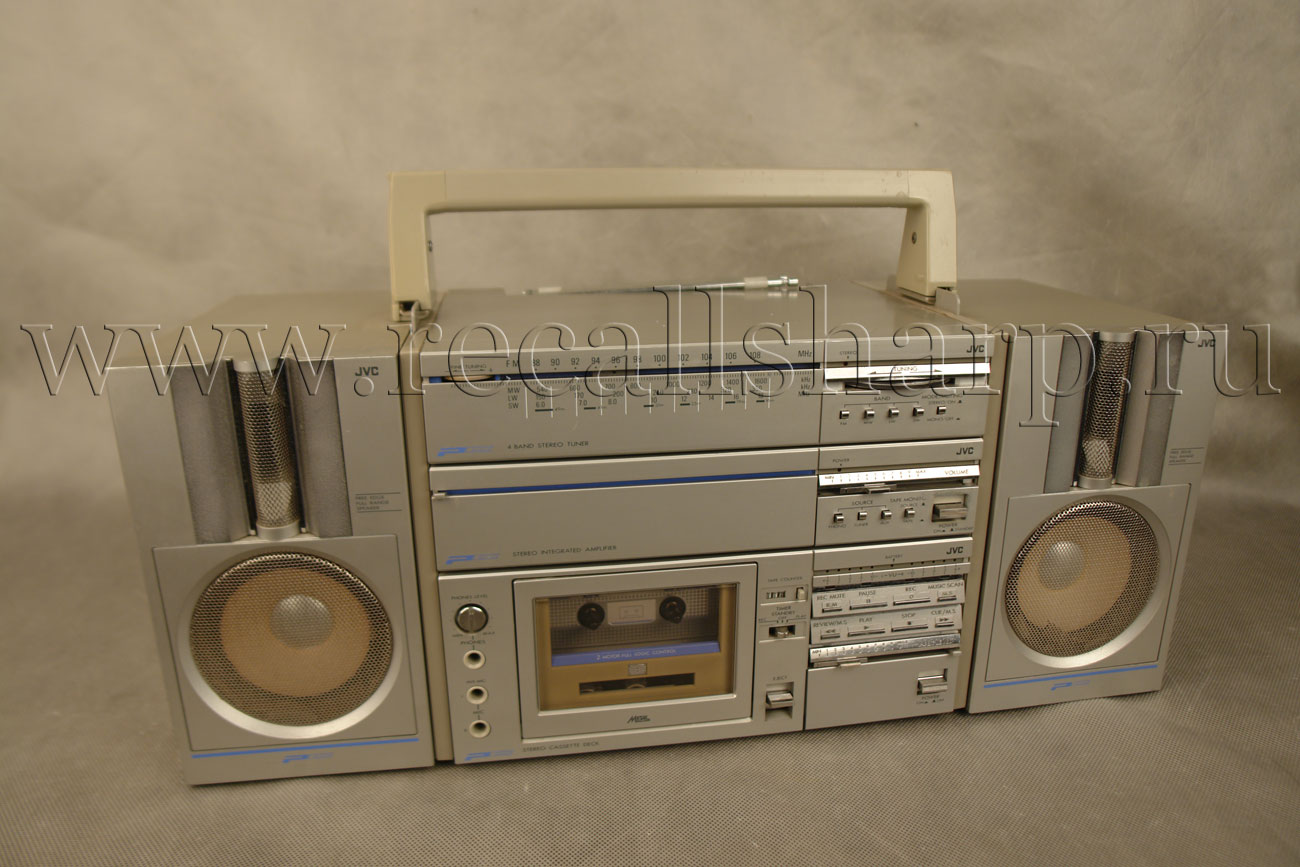

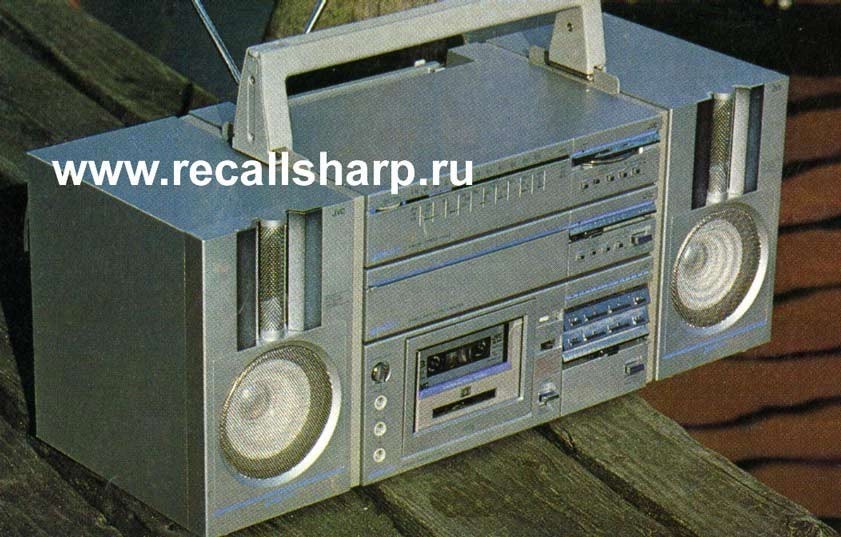

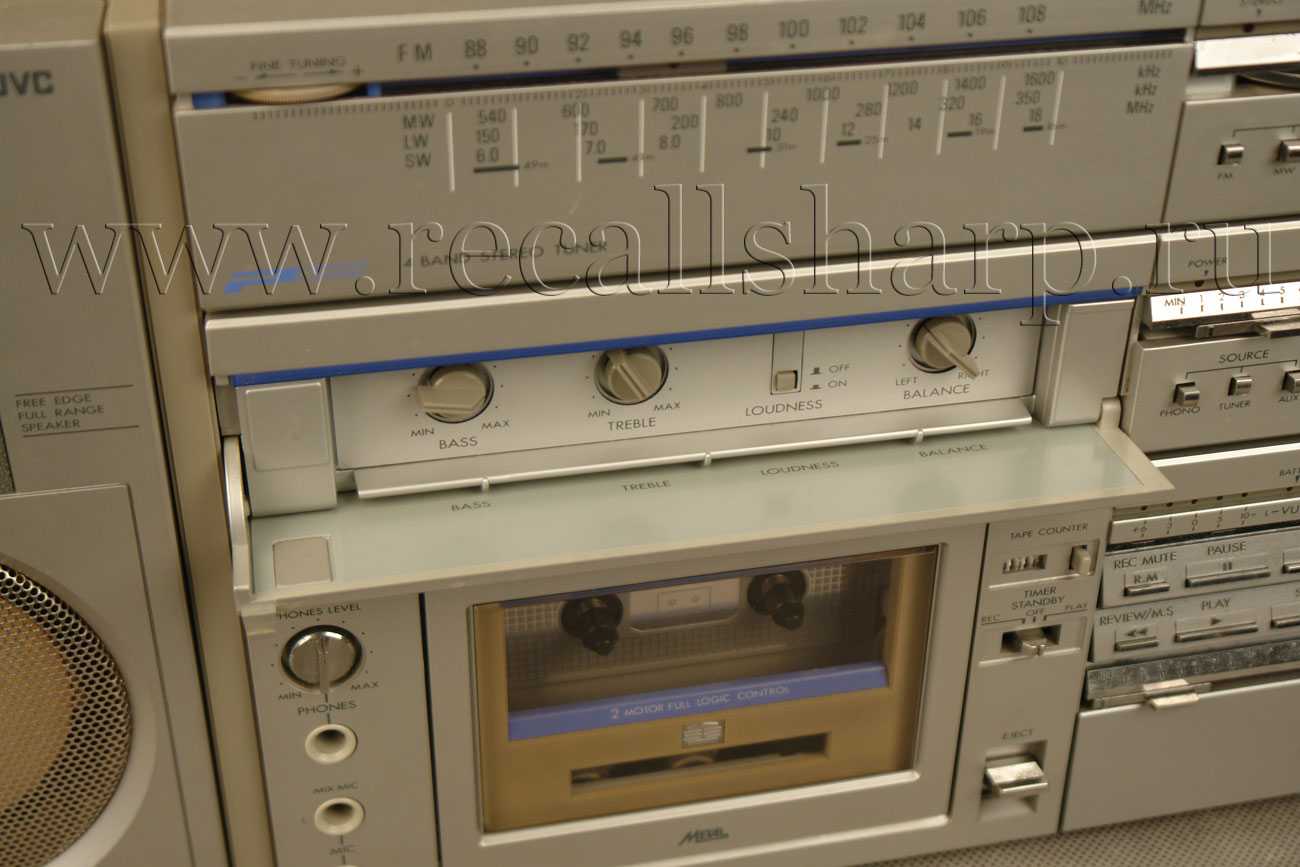

JVC PC-5 L P- Compo



: 1980


SPECIFICATIONS

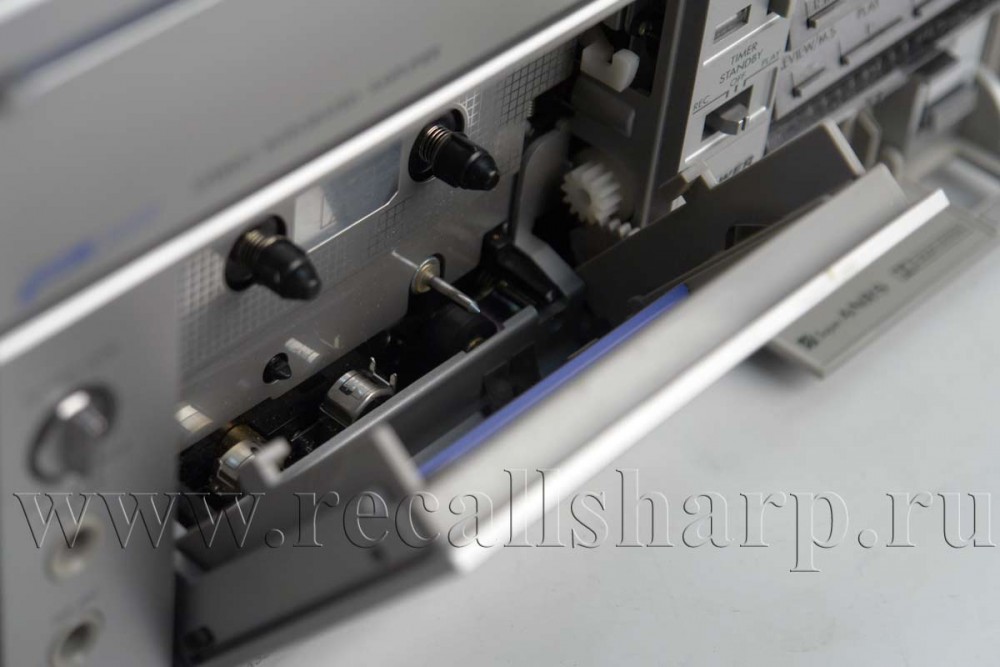

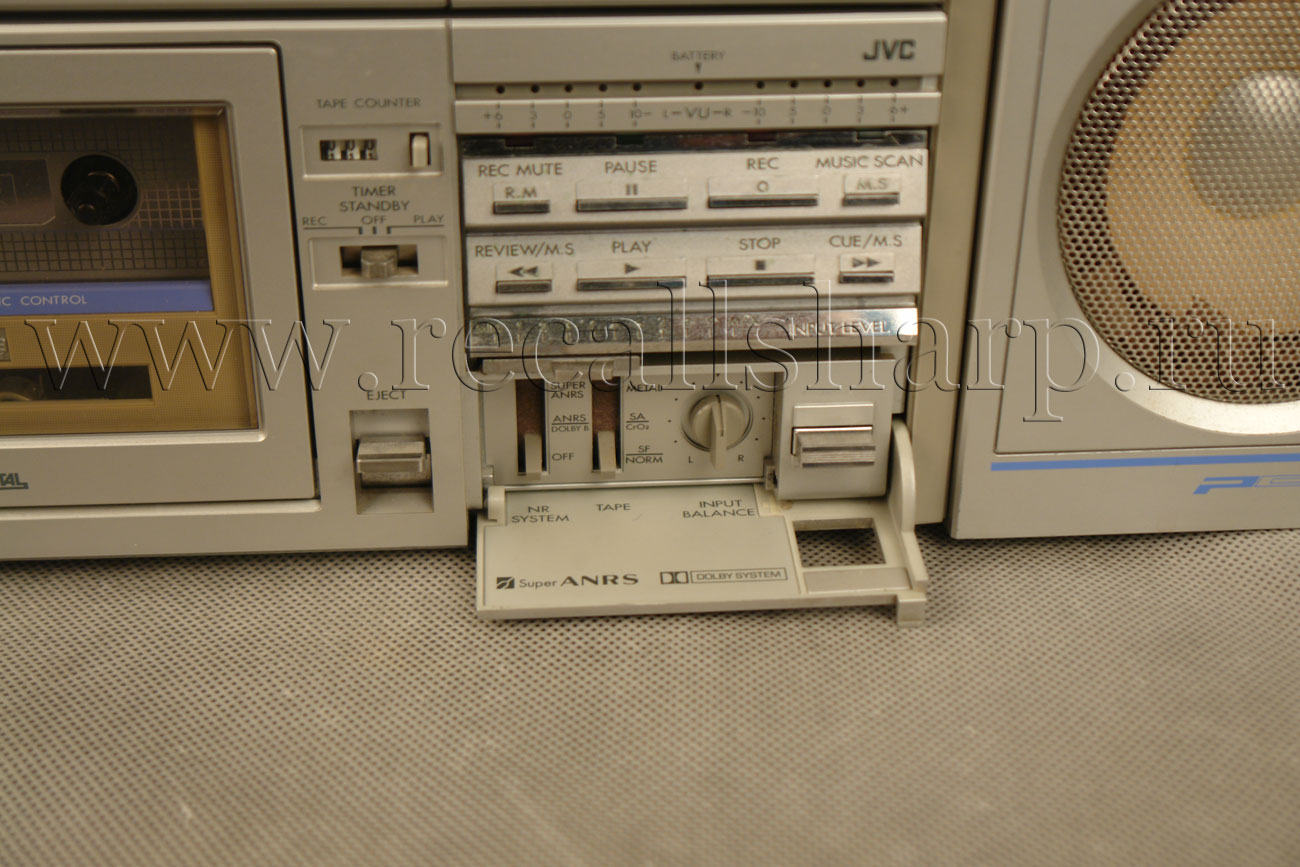

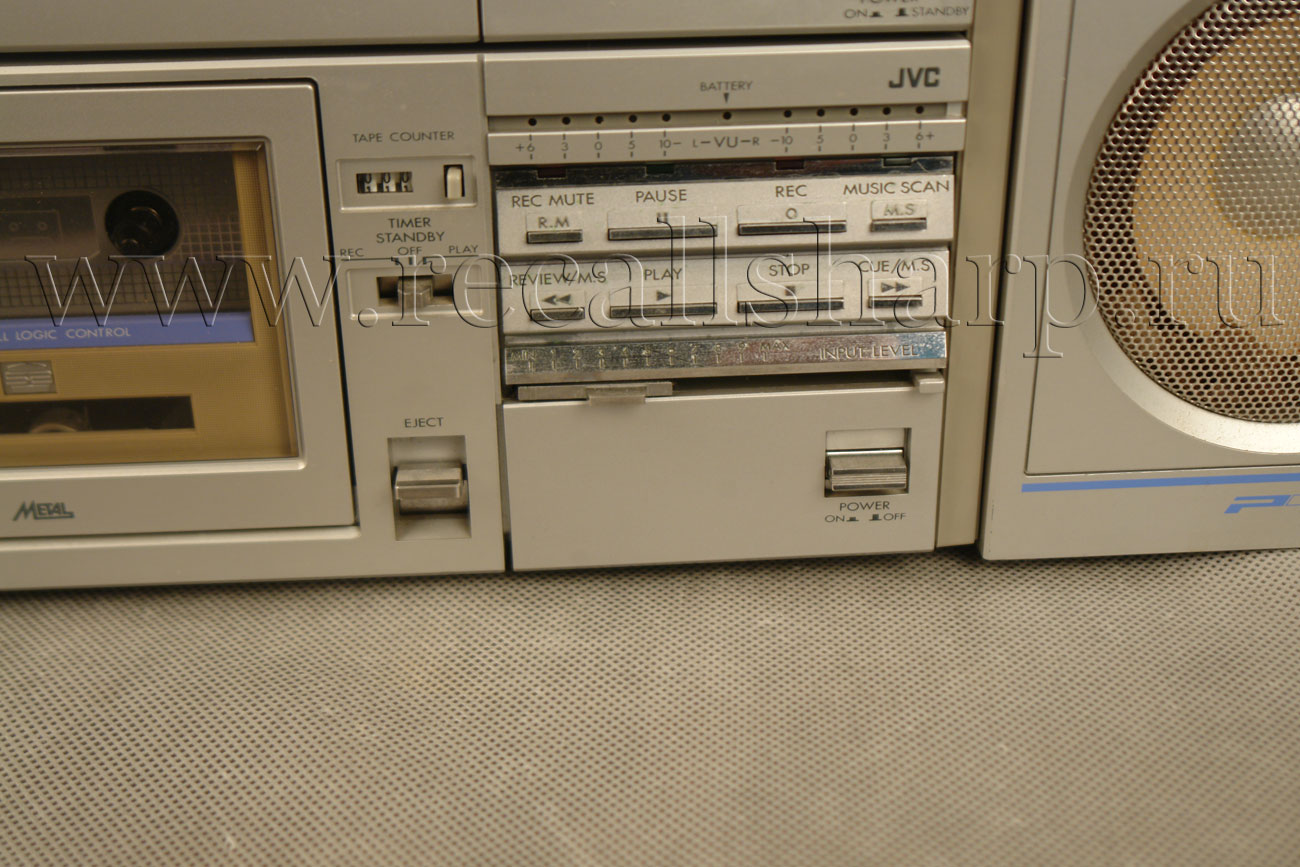

Cassette Deck PC-D5

Track system : 4-track 2-channel stereo

Motors : Electronic governor DC

motor for capstan; DC motor for reel

Heads : SEN ALLOY head for recording/playback;

2-Gap SEN ALLOY head for erasure


Frequency response : 30 — 17,000 Hz (with metal tape)

30 - 16,000 Hz (with chrome tape)

30 - 15,000 Hz (with normal tape)

Signal-to-noise ratio : 58 dB (weighted, at 1 kHz,

3 %THD with metal tape, with ANRS/DOLBY B NR OFF)

Improved by 5 dB at 1 kHz and by 10 dB at 5 kHz

or more with ANRS/DOLBY B NR ON

Effect of Super ANRS (normal tape)

Improvement of : The same as with AN RS/

S/N DOLBY B NR

Improvement of : 0 VU recording; 6 dB at frequency response 10 kHz

+5 VU recording; 12 dB at 10 kHz

Improvement of : 0 VU recording; 3 % or less distortion at 10 kHz

+5 VU recording; 3 % or less at 10 kHz

Channel separation : 40 dB (1 kHz)

Crosstalk : 65dB(1kHz)

Third harmonic distortion : 0.5 % (metal tape, at 1 kHz)

Wow and flutter : 0.05 % (WRMS)

Fast forward time : Within 95 sec (C-60 cassette)

Rewind time : Within 95 sec (C-60 cassette)

Bias system : AC bias

Input terminals : MIC x 2 (Maximum

sensitivity: 0.3 mV/-68 dBs,

Matching impedance: 200Ω- 2 kΩ), LINE IN x 2 (Minimum input level: 100 mV/-18 dBs, Input impedance: 47 kΩ)


Output terminals : LINE OUT x 2 (Output level: 300 mV, Output impedance: 5 k!2),

PHONES x 1 (Output level: 0-0.3 mW/8 12, Matching impedance: 8Ω 1 kΩ),

DC OUT x 1 (12 V)

DIN socket : Min. input level: 0.1 mV/kΩ

Input impedance: 10kΩ

Output level: 300 mV

Output impedance: 5 kΩ

Matching impedance: 50 kΩor more

Remote control : 8-pin DIN connector terminal

(Rewind, fast forward, play, record, stop, pause, record muting are remote controlled with optional R-15E unit.)

Semiconductors : 15 ICs, 47 transistors

Power sources : DC 12 V ("R20" x 8, optional BP-12K rechargeable battery pack),

EXT DC (car battery via optional CN-333K car adapter)

Dimensions : 270(W) x110(H)x209(D)mm

(10-11/16"x 4-3/8"x 8-1/4") including pads and knobs

Weight : 3.9 kg (8.6 lbs) with batteries

3.2 kg (7.1 lbs) without batteries

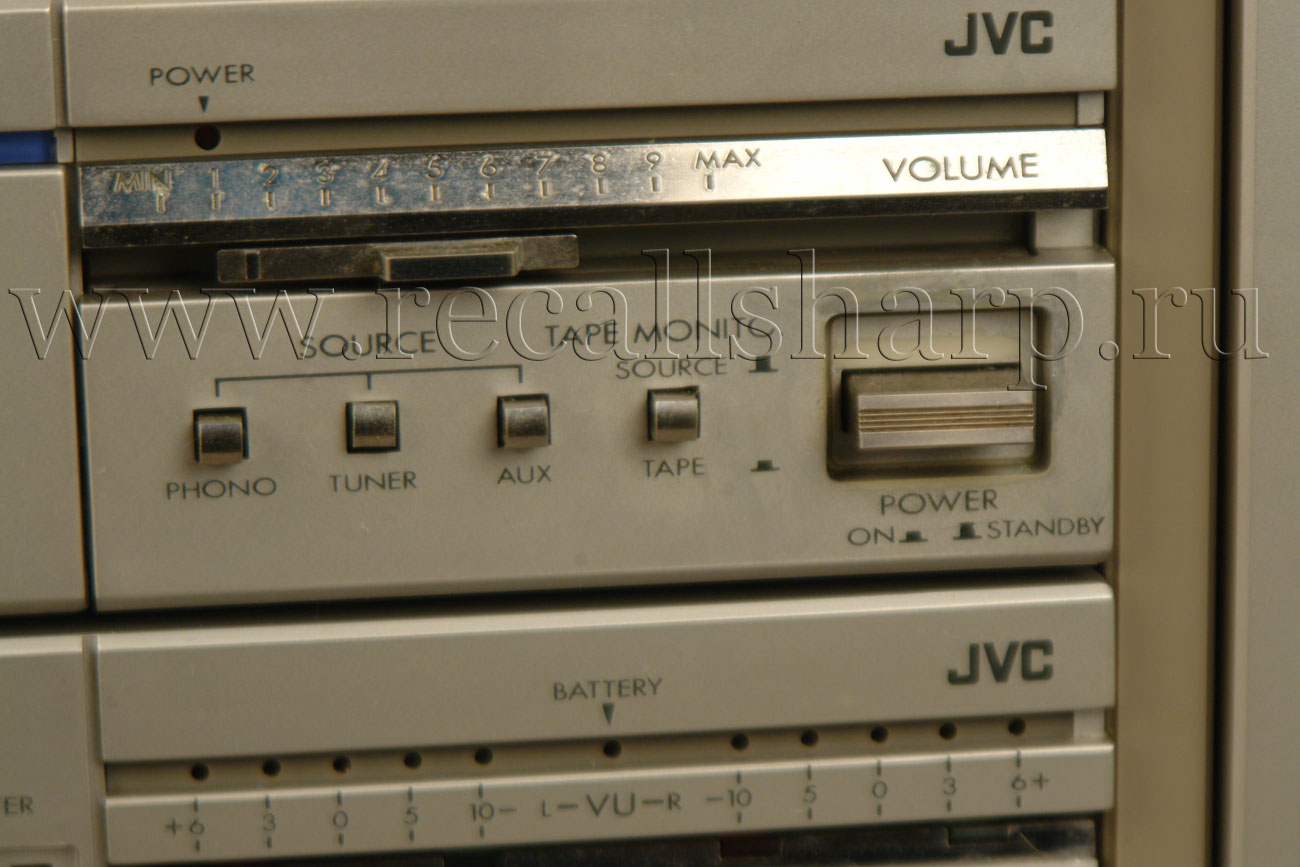

Amplifier PC-A5

Circuitry : BTL-connected SEPP circuit

Power output: Max. 40 W (20W + 20W)

Frequency response: 30 Hz to 30,000 Hz (±3 dB)

Signal-to-noise ratio: 80 dB (new IHF)

Tone control: Bass 8 dB (100 Hz),

Treble 8 dB (10 kHz)

Input terminals: PHONO x 2 (3 mV/47 kΩ),

TUNER x 2 (300 mV/68 kΩ),

AUX x 2 (300 mV/68 kΩ),

TAPE PLAY x 2 (300 mV/68 kΩ)

Output terminals: TAPE REC x 2 (300 mV/ 10 kΩ),

SPEAKER x2 (load impedance 6 8Ω)

DC OUT x 2 (12 V, switched)

Semiconductors: 3 ICs, 10 transistors

Power sources: AC 240/220/110 V, 50/60 Hz,

DC 12 V (supplied from the deck; car battery via optional CN-333K car adapter)

Dimensions: 270(W) x 56(H) x 218(D)mm (10-11/16" x 2-1/4" x 8-5/8")

including pads and knobs

Weight: 2.5 kg(5.6 lbs)

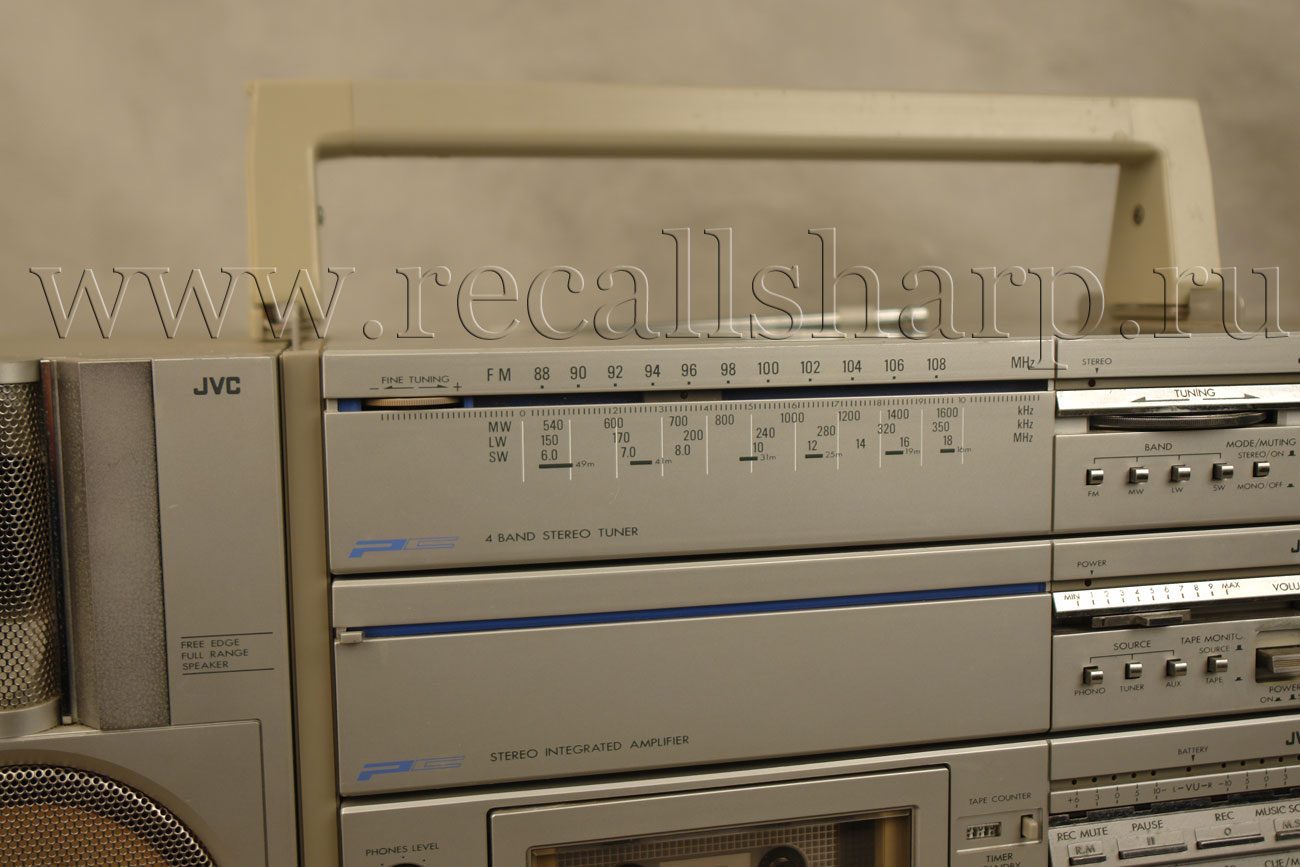

Tuner PC-T5

Frequency ranges FM 88- 108 MHz

MW 540 - 1600 kHz

LW 150-350 kHz

SW 6-18 MHz

FM tuner section



Usable sensitivity2.8μV/75Ω


Signal-to-noise ratio60 dB (MONO)


Total harmonic distortion0.35 % (1 kHz)


Capture ratio Selectivity2.0 dB


Stereo separation40 dB (1 kHz)


Frequency response25 - 15,000 Hz



AntennasTelescopic antenna x 2 Ext. antenna terminal (300Ω)


AM tuner section

Sensitivity MW250μV/m (IEC)


LW398μV/m (IEC)


SW28μV (IEC)


Total harmonic distortion0.6 %


Signal-to-noise ratio 50 dB


Selectivity 30 dB


Antenna Telescopic antenna (SW)

Ferrite core antenna (MW, LW)

Output terminals OUTPUT x 2 (300 mV)

Semiconductors 2 ICs, 22 transistors

Power source DC 12 V (supplied from the amplifier)

Dimensions 270(W)x 56(H) x 210(D)mm (10-11/16" x 2-1/4" x 8-5/16")

including pads and knobs


Weight 1.4 kg(3.1 lbs)

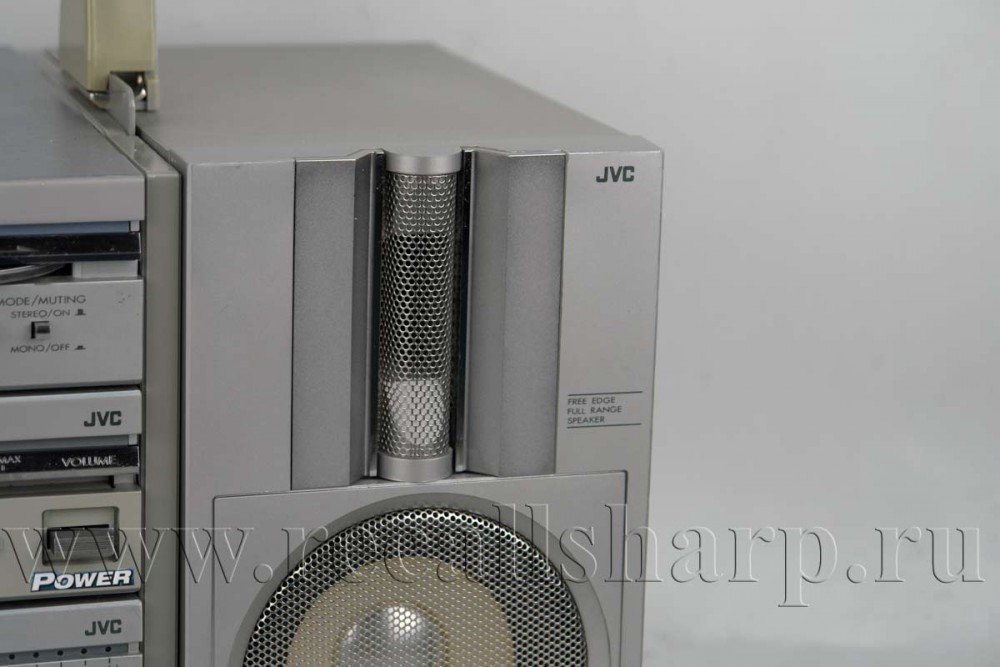

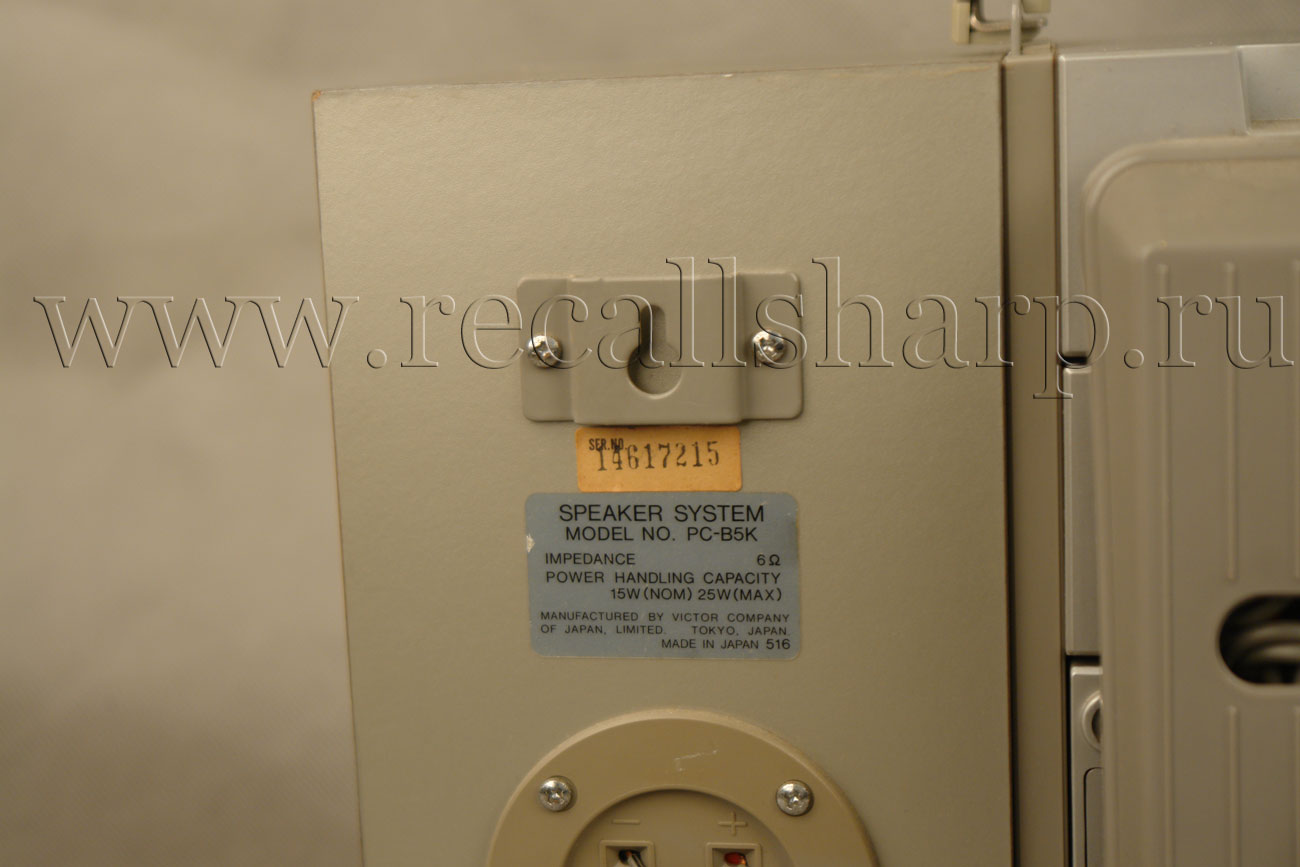

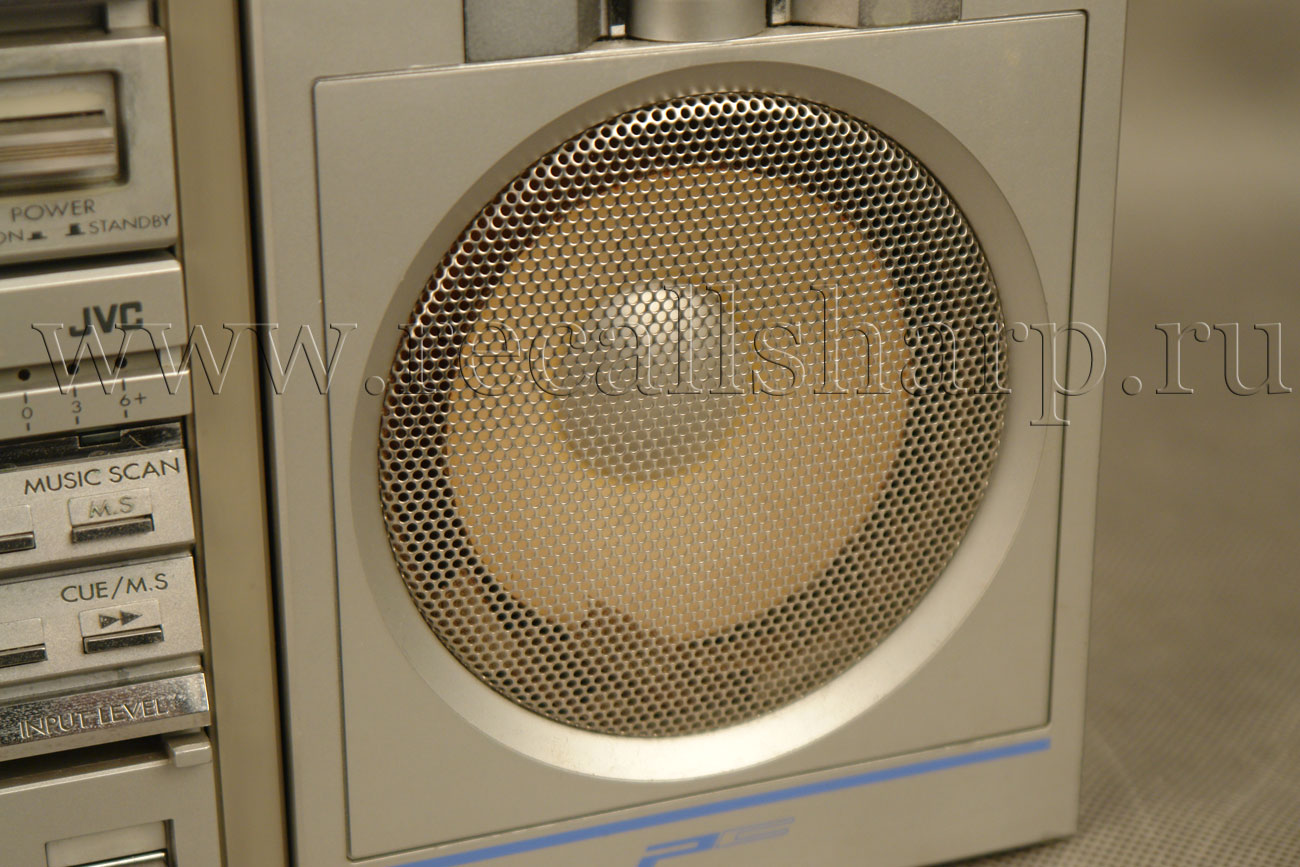

Speaker PC-B5


Type Full-range bass reflex system (book-shelf type)


Speaker units10 cm(4") cone


Impedance 6Ω


Playback frequency response75 - 17,000 Hz


Output sound pressure level 90 dB


Rated input 15 watts

Maximum input 25 watts

Dimensions 124(W)x 218(H) x206(D)mm (4-15/16" x 8-5/8" x 8-1/8") including pads

Weight 1.9 kg(4.2 lbs)

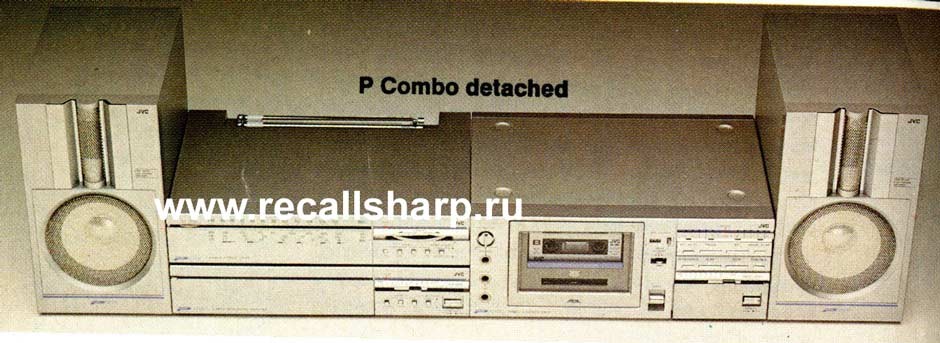

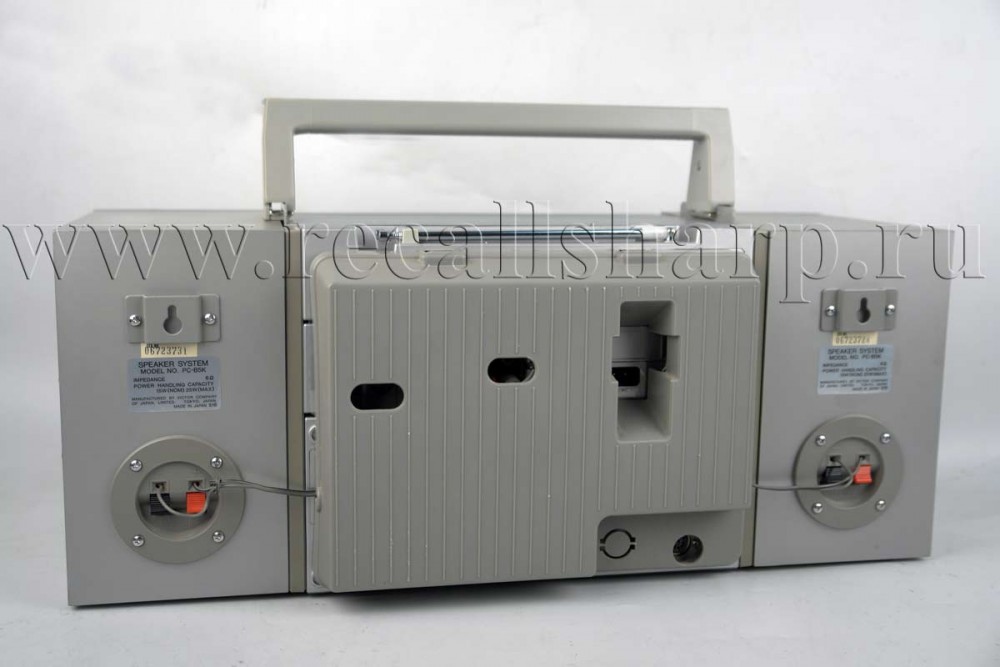

System PC-5

Power sources AC 240/220/110 V, 50/60 Hz

Dry batteries DC 12 V ("R20" x 8)

Rechargeable battery pack DC 12 V (optional BP-12K)

Car battery DC 12 V via optional CN-333K car adapter

Power consumption 85 watts (AC)

Dimensions : 538(W) x 294(H) x 243(D)mm

(21-3/16"x11-5/8"x 9-5/8") including pads, knobs,

handle with all components joined with provided fixtures


Weight : 12.9 kg(28.5 lbs) (including

fixtures and batteries)

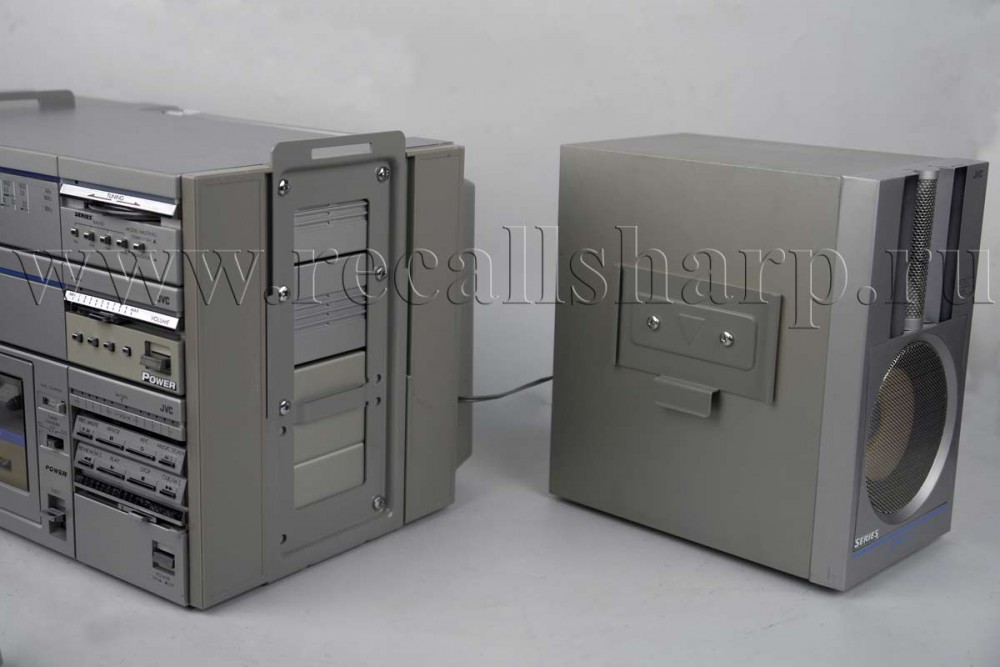

Accessories Provided : A set of joint fixtures for the center control section

3 pin-plug cords (30 cm/1-7/8")

3 DC power supply cords A set of joint fixtures (including 4 screws) for speakers

2 speaker cords (1 m/3.24ft)

Carrying handle

AC power cord

Head cleaner

Cable protector cover

Demo tape

Design and specifications are subject to change without

notice.


OPTIONAL ACCESSORIES

Remote control R-15E

Stereo microphone M-201 (600Ω)

Headphones H-M11 (3212)

Rechargeable battery pack BP-12K

Charger/AC adapter AA-12L (for PC-5L)


AA-12LB (for PC-5LB)

Exclusive car adapter CN-333K


Shoulder belt CB-85K


Speakers RB-95K


Carrying case CL-5K
