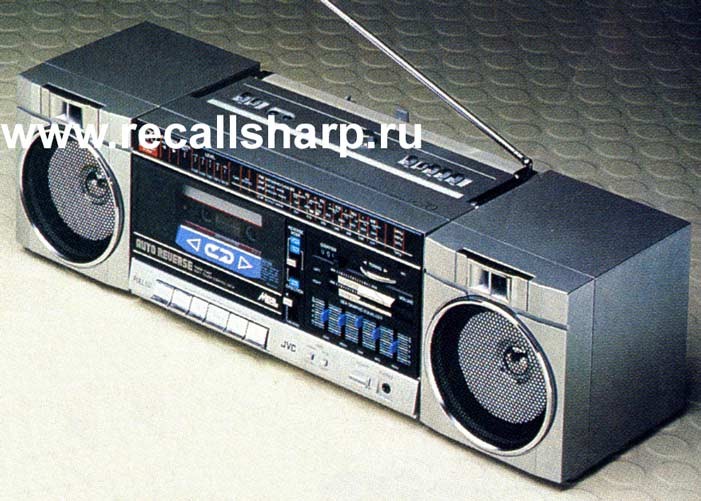

JVC PC-70 L



: 1984


SPECIFICATIONS
Speakers : 10 cm x 2,

Frequency ranges : FM 88 - 108 MHz (L/LB/LD)

MW 540-1600 kHz
LW 150-350 kHz
SW 6-18 MHz
Antennas : Telescopic antenna for FM&SW
Ferrite core antenna for MW& LW
Ext. antenna terminal (75
Ω) (L/LB/LE)
Track system : 4-track 2-channel stereo
Motors : Electronic governor DC
motor for capstan & reel
Heads :
METAPERM head for recording/ playback, 2-gap ferrite head for erasure
Tape speed : At normal speed;
4.8 cm/sec (1-7/8 inch/sec)


Frequency response : 60 - 14,000 Hz (with metal tape)

60 - 13,000 Hz (with normal tape)
Signal-to-noise ratio : 45 dB
Wow and flutter : 0.08 % (WRMS), 0.18 % (DIN 45 500)

S.E.A characteristics

Center frequencies : 63 Hz/250 Hz/1 kHz/ 4kHz/16 kHz

Control range :±12 dB

Fast forward time : Approx. 110 sec. (C-60 cassette)
Rewind time : Approx. 110 sec.(C-60 cassette)
I nput terminals : MIC x 2 (Min. input level:0.7 mV(-63dBV)

Matching impedance: 200Ω- 2 kΩ)

PHONOx2(2.5mV/47 kΩ)

AUX x 2 (300 mV/47 kΩ)
Output jacks :

SPEAKER x 2 (matching impedance 3/2 — 8 Ohm,

PHONES x 1 (Output level: 0~3mW/8Ω, Matching impedance: 8Ω 32Ω)

Power output : Total output of 10 W (5 W + 5 W) Max. (6
Ω, AC),

Power source : AC 240/220/110 V, 50/60 Hz,

DC 12 V ("R20"x8),Ext. DC (car battery via optional car adapter)
Power consumption : 16 watts
Dimensions : 502(W)x149(H)x184(D)mm
including knobs
Weight : Approx. 4.9 kg with batteries

Approx. 4.4 kg without batteries


:
