SPECIFICATIONS

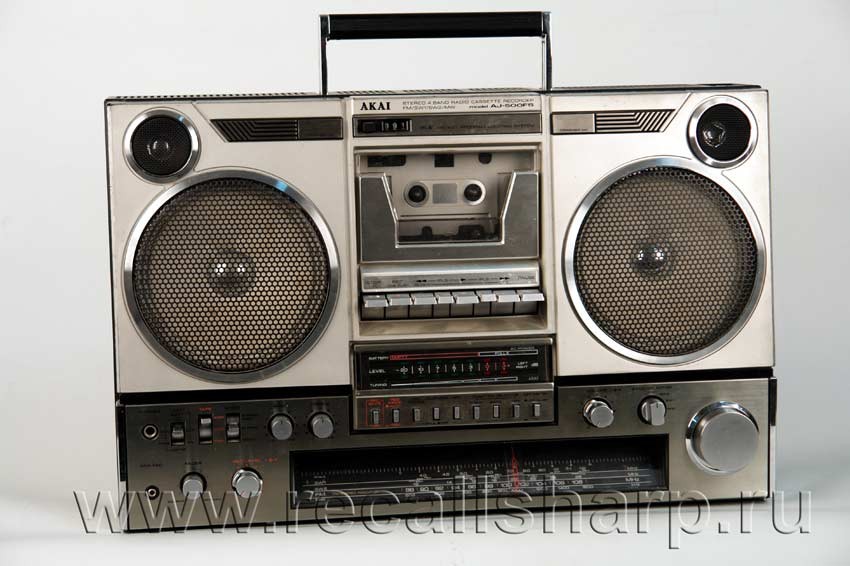

Type: 4 Band Stereo Radio Cassette Recorder
Frequency Ranges
AJ-500FS: FM: 87.6-108 MHz
MW: 525-1,605 kHz
SW1: 3.9-12 MHz
SW2: 12-26 MHz
AJ-500FL: FM: 87.6-107 MHz
LW: 150-290 kHz
MW: 525-1,605 kHz
SW: 4.9-12 MHz
Antennas: Rod Antenna for FM, SW and SW2,
Bands, Built-in Bar Antena for LW, MW
and SW1, Bands
External Antenna Terminal for all Bands
Speaker: 2 Way 4 speaker
Woofer: 16cm x 2
Tweeter: 5cm x 2
Max. Power Output: 6 W x 2
Tape: Philips Type Cassette Tape
Track System: 4 Track 2 Channel Stereo System
Monitor System: Variable Monitor System
F. F. & Rewind Time Within 120 sec. (Using a C-60 Cassette Tape)
Wow & Flutter: 0.09% (WRMS)
Frequency Response: FeCr: 50 to 14,000 Hz
CrO2 50 to 13,000 Hz
Normal: 50 to 12,000 Hz
Distortion: Less than 1.5% (FeCr)
Signal to Noise Ratio: FeCr: 53 dB
CrO2 52 dB
Normal: 50 dB
Power Requirements: 120V/60 Hz for Canada
220V/50 Hz for Europe except U.K.
240V/50 Hz for U.K. & Australia
110-120V/220-240V, 50/60 Hz for Other Countries
DC 12V 8 "D" size batteries
Power consumption 40W
Dimensions: 500 x 323 x 162 mm
(W) x (H) x (D) Weight: 6.5 kg
Standard Accessories:
Demonstration Tape 1
Erase Plug 2
AC Cord 1
Operator's Manual 1
* For improvement purposes, specifications and design are subject to change without notice.
* "Dolby" and the Double D system are trademarks of Dolby Laboratories.
(Manufactured under license from Dolby Laboratories).
