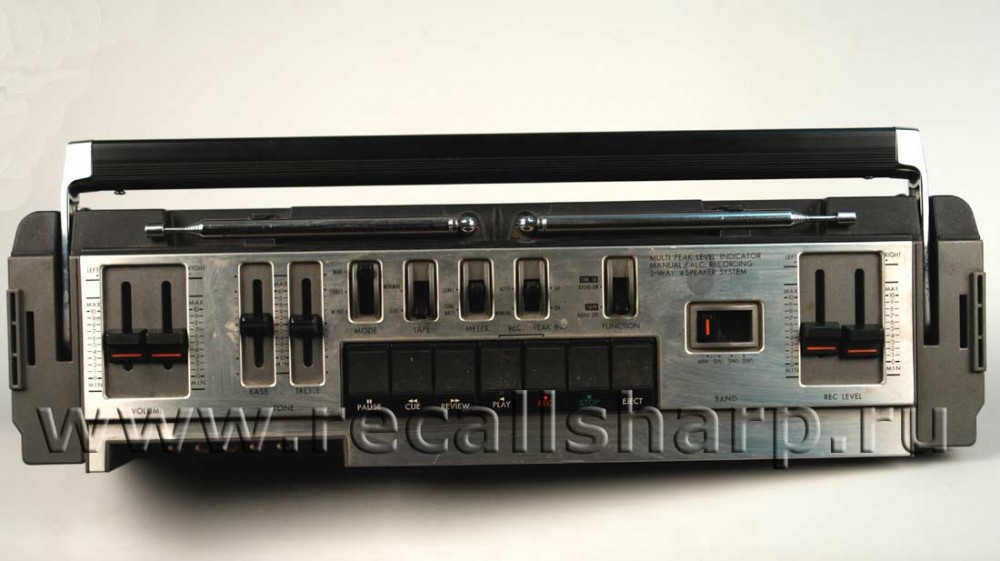

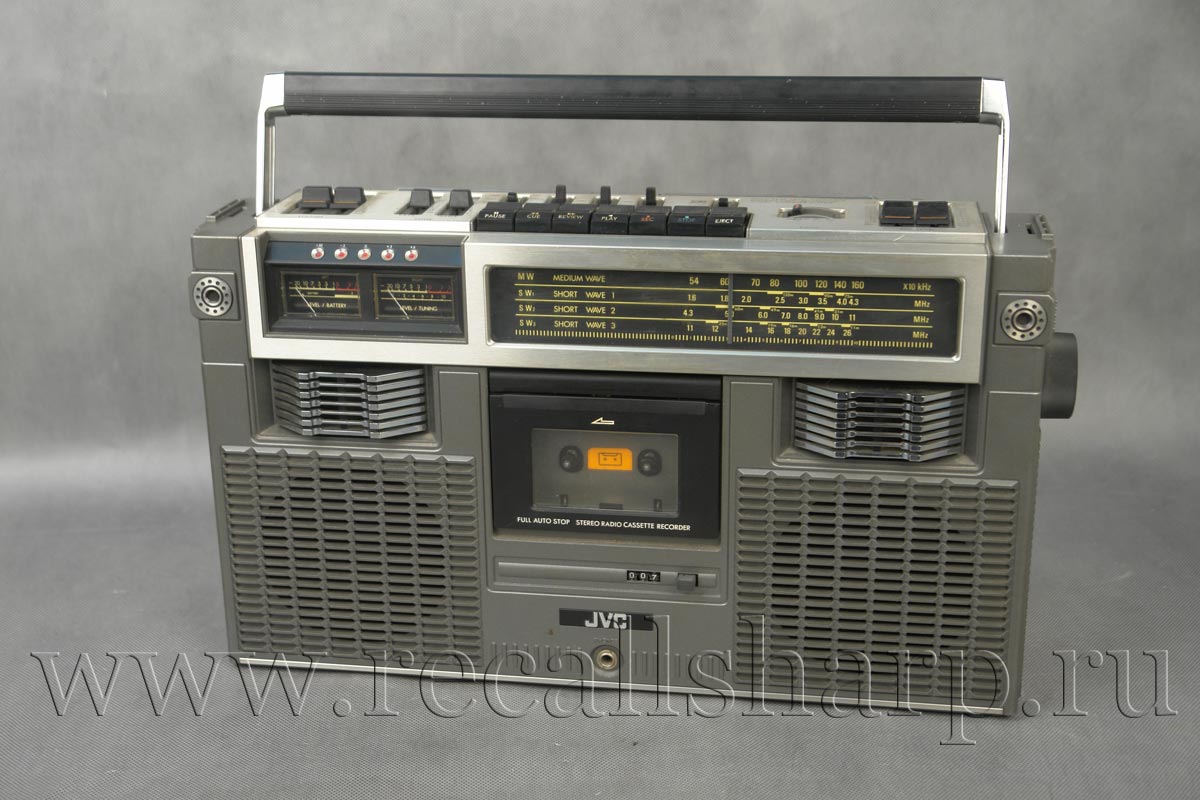

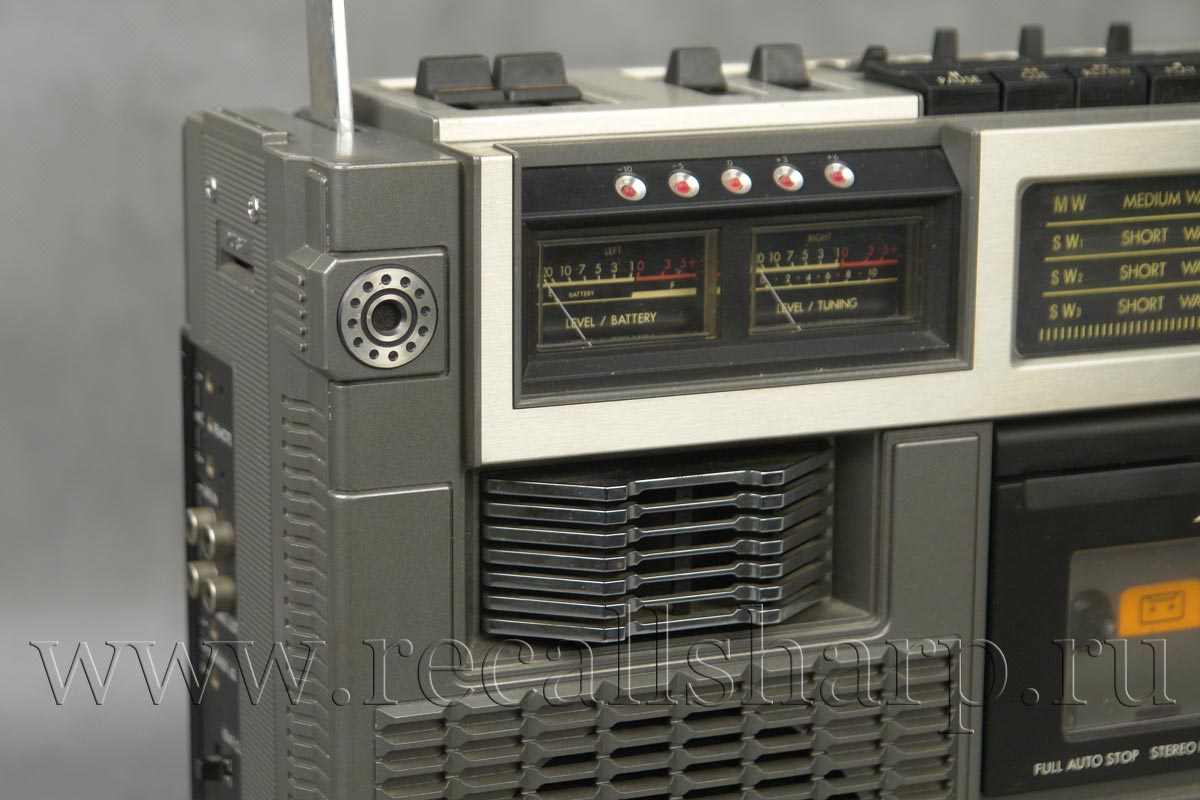

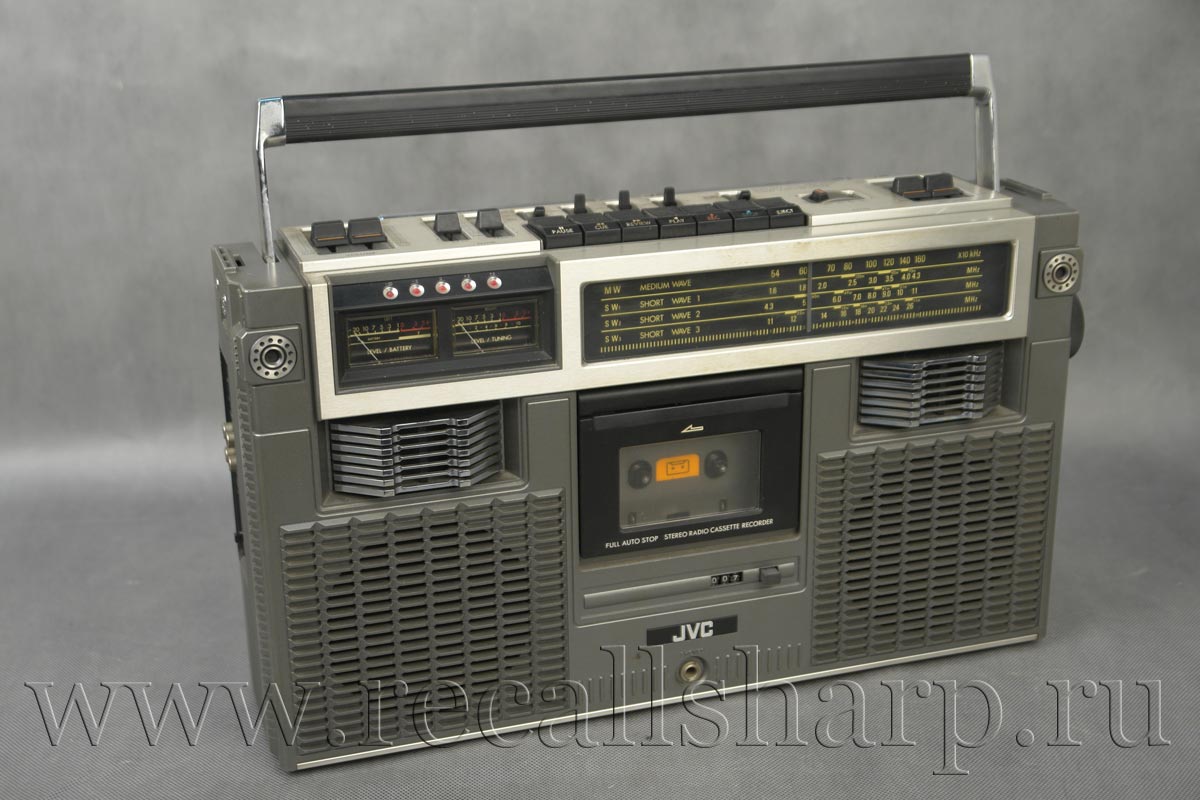

JVC RC-727 S
В мою коллекцию    Сравнить

Speakers : 12cm x 2,

5cm (2") x 2

Tuner section

Frequency ranges :

MW 540-1600kHz

SW1 1.6-4.3MHz

SW2 4.3-11MHz

SW3 11-18.5MHz

Antennas :

Telescopic antennas for SW& FM

Ferrite core antenna for MW &SW1Tape recorder section

Track system : 4-Track 2-channel stereo

Power output :

Max. 7W    (3.5 + 3.5W)

DC   5.6W (2,8 + 2,8W) 10% DHT

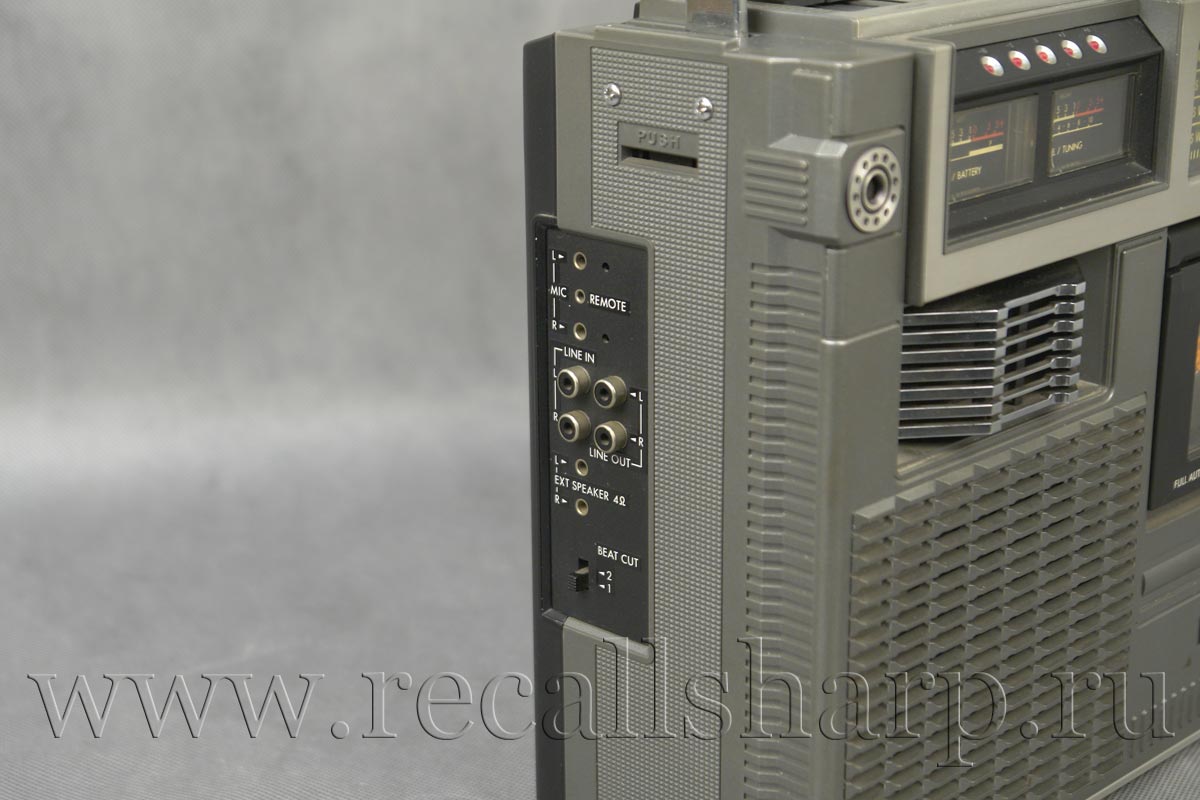

Input jacks : Mic x 2 (low impedance)

Line in x 2 (input level 130mV min., impedance; more than 100kOmh) DC in x 1

Output jacks : Ext. speaker x 2 (load impe-

dance 6Omh)

Headphones (load impedance 8Omh)

Line out x 2 (300mV, impedance; less than 10kOmh)

AC-240/220/110V 50/60 Hz

Power supply : DC 12V (8 "R20" batteries)

Power consumption : 15W

Dimensions : 446(W) x 260(H) x 124(D)mm

Weight : Approx. 5.7kg

(with batteries)
