CP-55W
Audio section
Power output Min RMS both channels driven from 100-15000Hz with no more than 10%
total harmonics distortions 2 x 8 Watts 4 ohms
Frequency response (at 1 watt) 80Hz-15kHz + 1dB, - 3dB

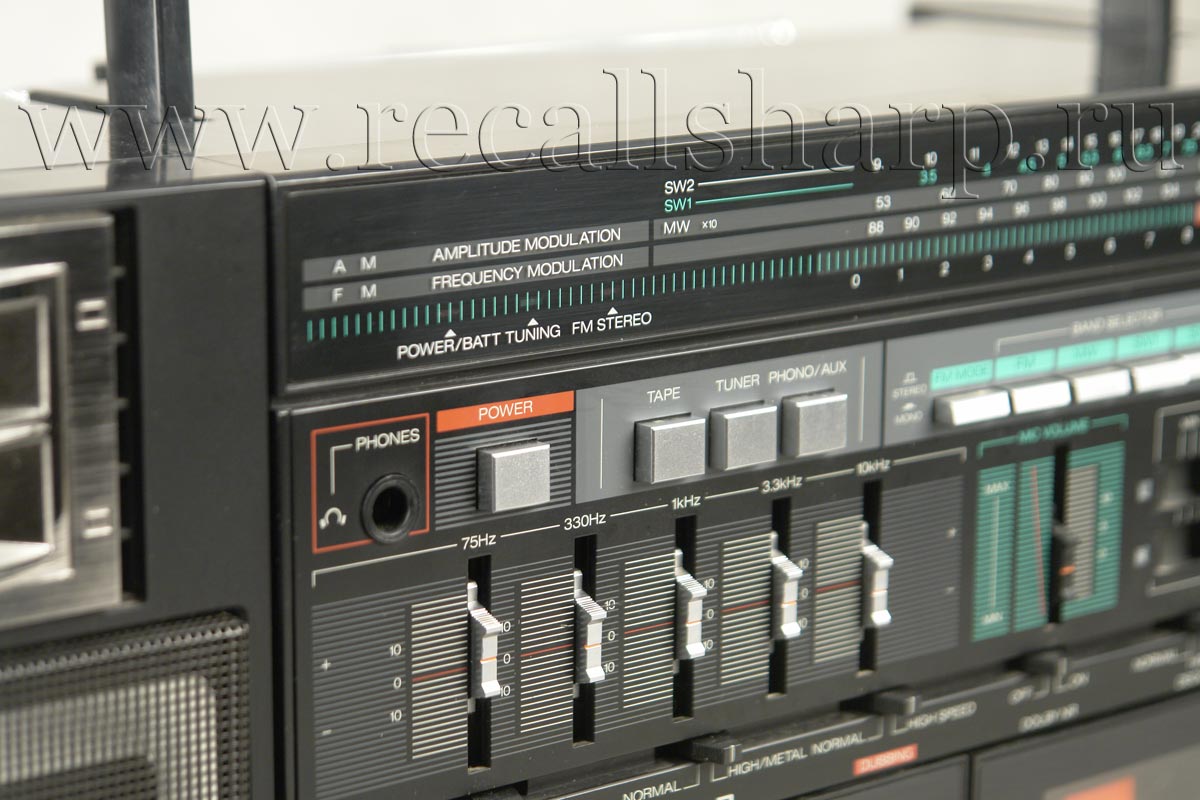

Equalizer Frequency 75Hz, 330Hz,
1kHz, 3.3kHz,10kHz
Level variation range + 10dB
FM section
Tuning range 88- 108MHz
MW section
Tuning range 530- 1600kHz
SW1 section
Tuning range 3.2-9 MHz
SW2 section
Tuning range 9 -22 MHz
Signal to noise ratio: Phono: 60dB
(short circuit A-network) AUX: 64dB

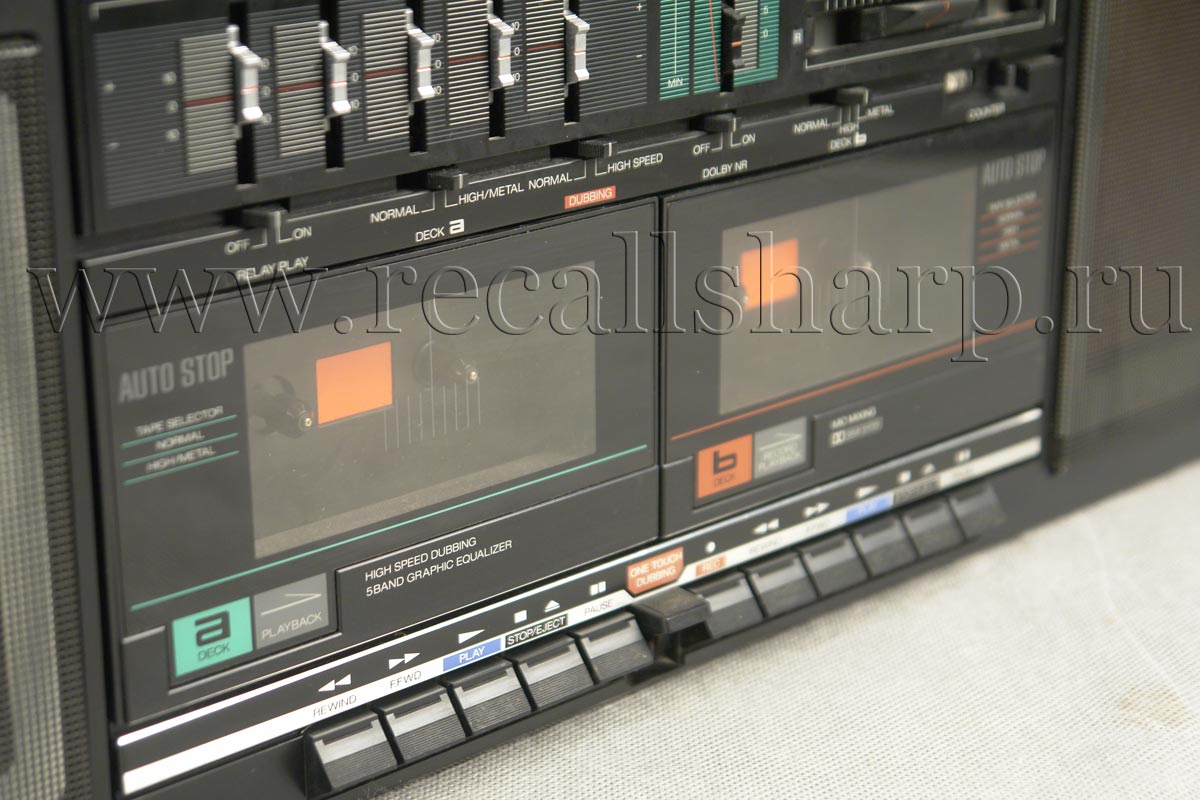

Tape section
Track format 4 Track /2 channel system
Frequency response (-20VU recording/playback)
Metal tape: 80-15,000 Hz
Wow and flutter 0.2% (WRMS)
Signal to noise ratio (recording/playback with metal tape)
DOLBY NR on Better than 55dB(above 5 kHz)
LOUDSPEAKERS CP-S55
Speakers 2-way 2 speaker type
Woofer 120 mm Cone type
Tweeter 25 mm Ceramic type
Impedance 3 Ohms
Max Input Power 15W
Frequency response 150Hz-17000Hz(in normal listening room)
Power sources: 110/240 V, 50/60 Hz 93w or batteries
For USA& Canada 120V(60Hz)
Power consumption: 58W
WxHxD: 580 x 226 x 117 mm.
Nett Weight: 7.5 kg
