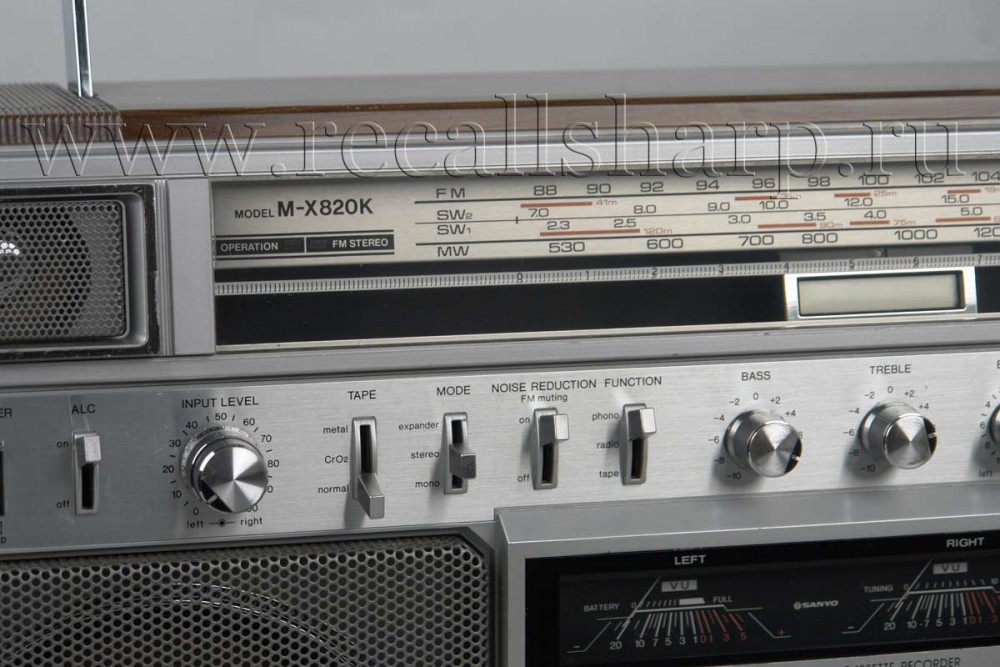

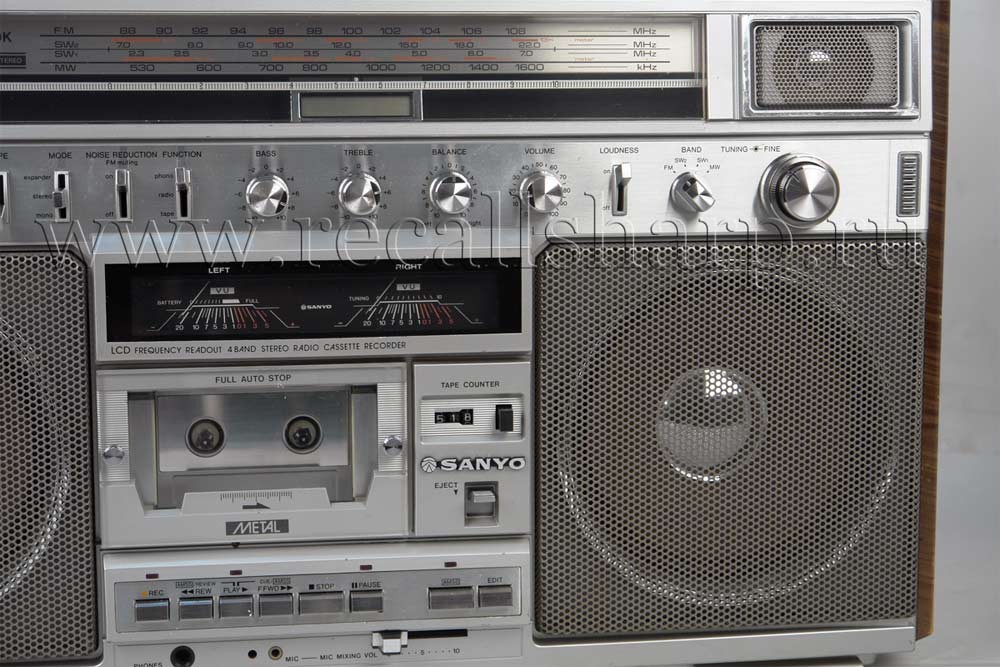

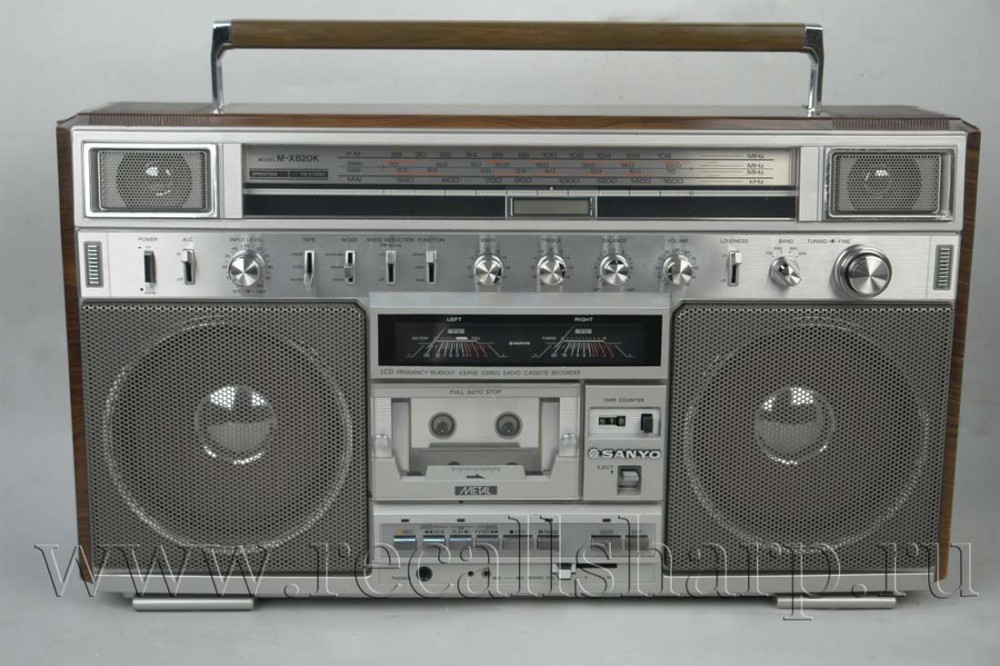

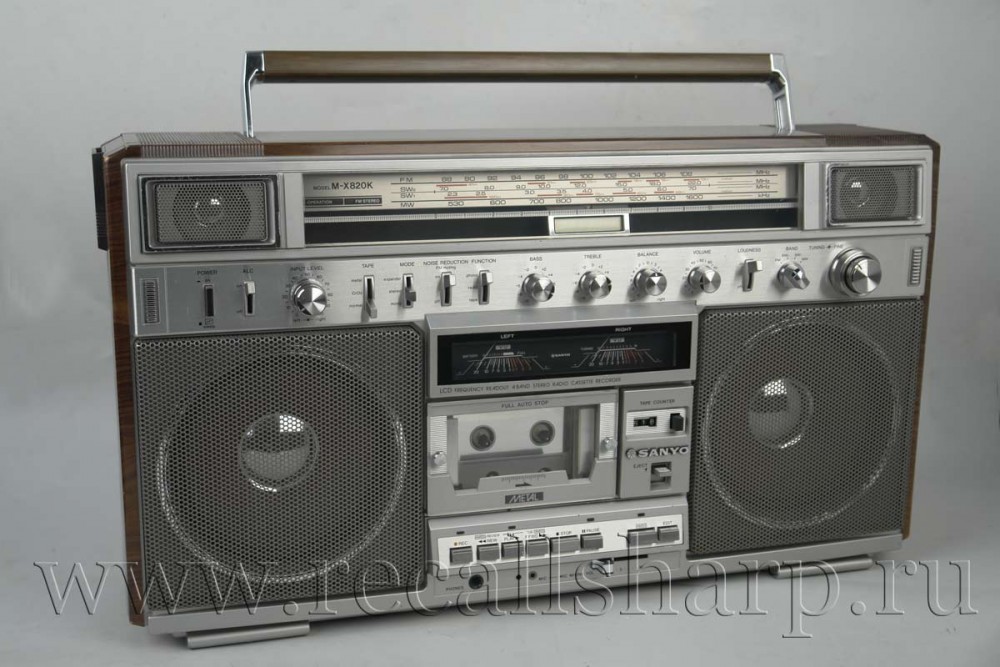

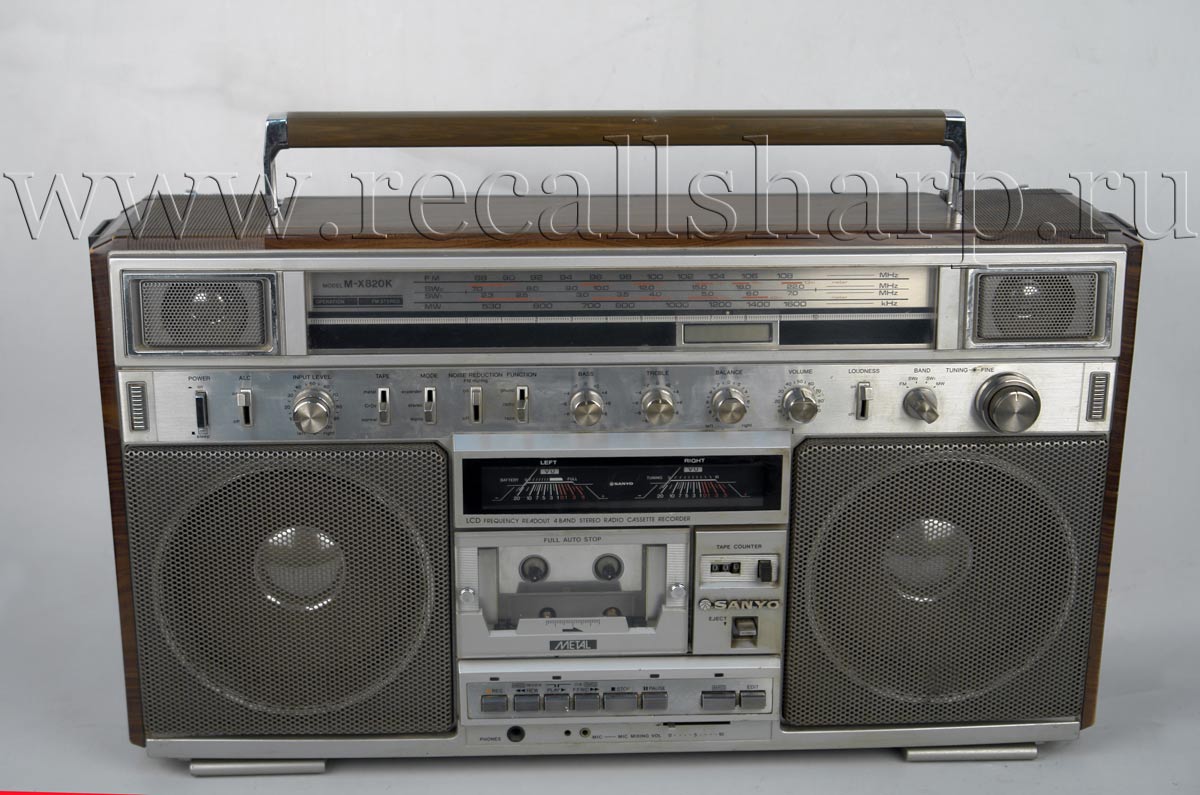

Sanyo M-X 820 K



: 1981


Specifications Sanyo M-X820K

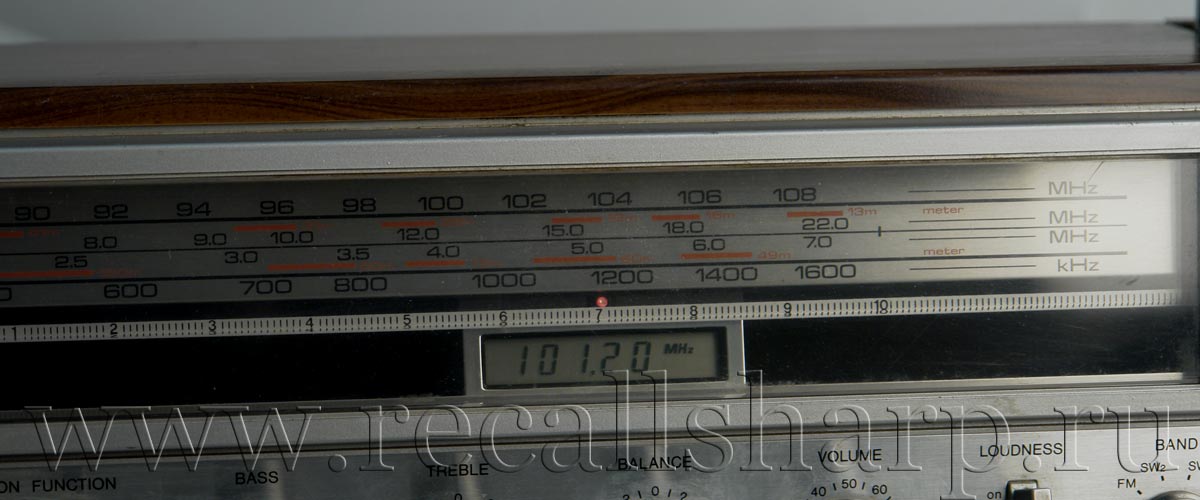

Tuning ranges MW 530-1.605 kHz

SW1 2.3-7.0MHZ

SW2 7.0-22MHZ

FM 87.5-108MHZ

Sensitivity MW 65mV/m

SW1 90mV/m

SW2 12mV/m

FM 8mV/m

Antennas Ferrite bar and telescopic antennas

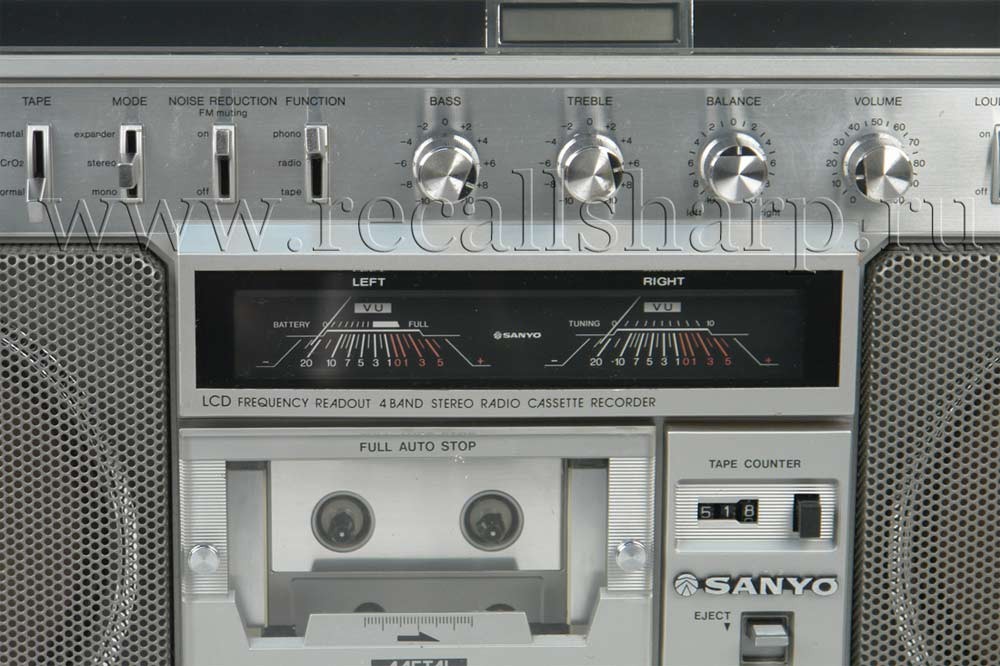

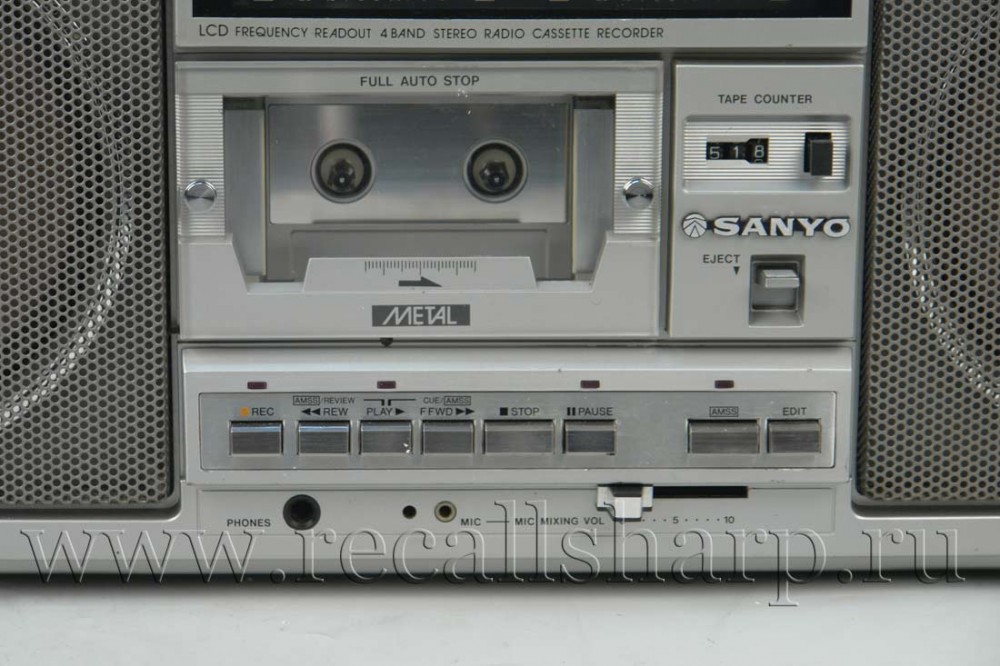

Cassette Section

Recording system AC bias. 4-track

Erasing system AC erase

Tape speed 17/8 ips (4. 75cm/sec )

F.forward 120 sec (C-60 tape)

Wow& flutter 0.055% WRMS

Frequency response

40- 16.000HZ (Metal tape)

40-15,000Hz(CrO2 tape)

40- 13.000Hz (Normal tape)

Signal-to-noise ratio

50dB (Metal 40- 16.000HZ)

General

Output power 50W (P.M.P.O)

36W(max music power)

Power source AC 120/200/240V, 50/60HZ

DC 15V(DX10)

Loudspeakers : 16cm wooferx2, 3 ohms impedance

5cm tweeter x 2. 4 ohms impedance

Terminals Inputs MIX MIC 4 ohms

Phono 50 Kohms

Ext MIC 10 Kohms

Line In 80 Kohms

Outputs Phones 8 ohms

Ext speaker 2 5-8 ohms

Line Out 10 Kohms

Semiconductors Amplilier Tuner

ICs 6 4

Transistors 48 18

Diodes 58 19

Dimensions 22 7/6"(W)X 125/8(H)X65/16"(D) (570X322X161mm)

Weight 18 lbs 11 ozs (8 5 kg) approx.

Accessories Demo tape, AC cord, hand mic x 2


:
