JVC 1927 . : ,

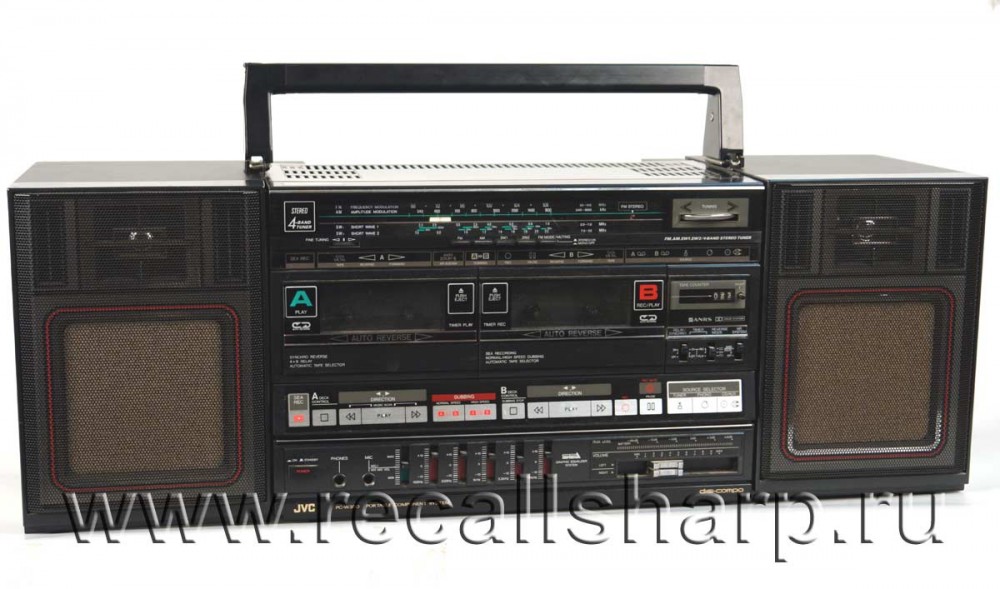

JVC PC-W 350 U



: 1986


SPECIFICATIONS

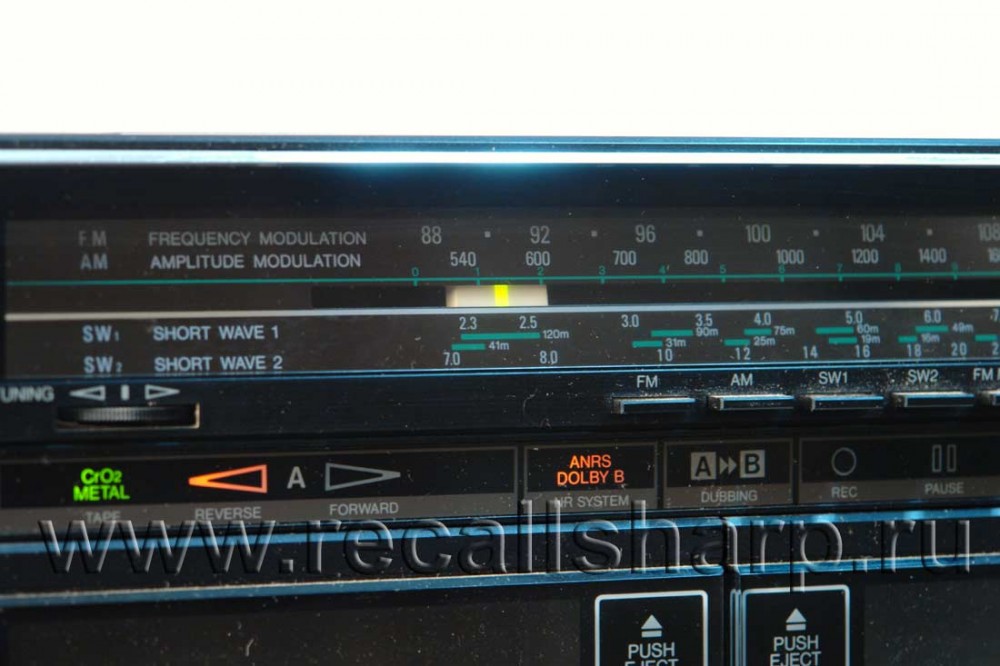

Radio section
Frequency ranges : FM 88- 108 MHz
AM 540- 1600 kHz
SW1 2.3 - 7 MHz
SW2 7- 22 MHz
Antennas : Telescopic antenna for FM
&SW
Ferrite core antenna for AM & SW1
Ext. antenna terminal (75 )
Tape recorder section
Track system : 4-track 2-channel stereo
Motors : Electronic governor DC
motor for capstan/reel x 1 (for deck A & B)
DC motor for fast -forward/ rewind x 2
DC motor for mechanism drive x 2
Heads : Deck A; METAPERM
head for playback x 1 Deck B; METAPERM
head for recording/
playback x 1, 2-gap ferrite head for erasure x 1
Combination x 1
Tape speed : At normal speed;
4.8 cm/sec (1-7/8 inch/sec)
At double speed; 9.5 cm/sec (3-3/4 inch/sec)
Frequency response ; 20 - 18,000 Hz (with metal tape)
20 - 17,000 Hz (with chrome tape)
20-16,000 Hz (with normal tape)
Signal-to-noise ratio : 50 dB (weighted, at 1 kHz,
3 % THD with metal tape
during ALC recording)
Improved by 5 dB at 1 kHz
and by 10 dB at 5 kHz
or more with ANRS/DOLBY NR ON
Wow and flutter : 0.07 % (WRMS)
Fast wind time : Approx. 95 sec.(C-60 cassette)
Speaker section (each unit)
Speaker : 12 cm (5") x 1,
5 cm (2") x 1
Impedance : 8 Ohm
Dimensions : 164(W) x 236(H) x 210(D)
mm
(6-1/2" x 9-3/8" x 8-3/8") (PC-W350)
210(W) x 369(H) x 210(D) mm
(18-3/8"x14-5/8"x8-3/8") (PC-X30)
Weight : Approx. 1.9 kg (4.2 lbs.)
(PC-W350)
Approx. 3.3 kg (7.3 lbs.) (PC-X30)
General

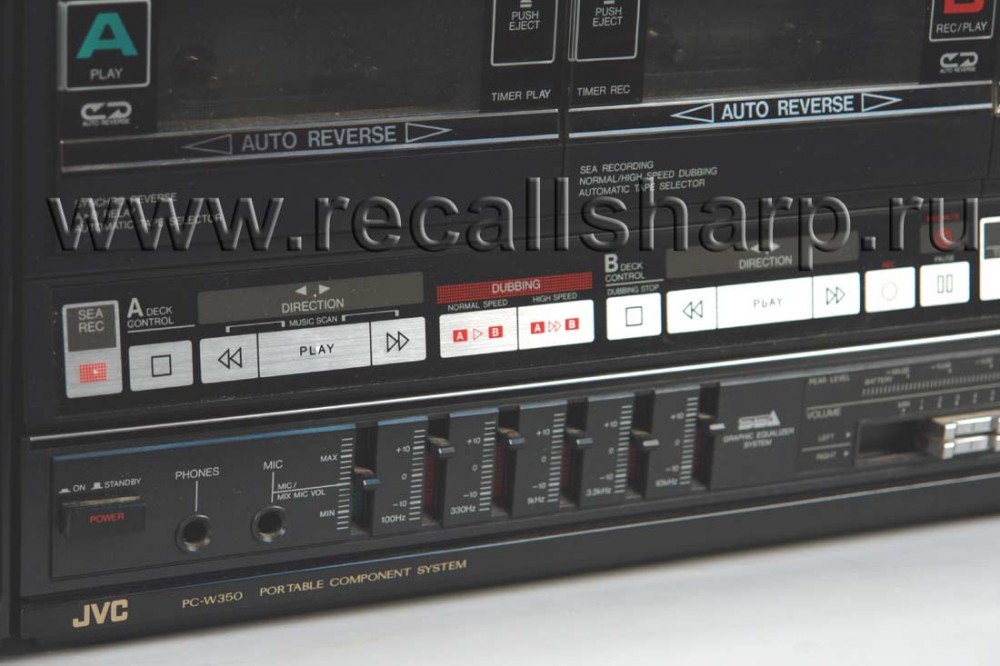

S.E.A characteristics
Center frequencies: 100 Hz/330 Hz/1 kHz/
3.3 kHz/10 kHz
Control range : ±10 dB
Input jacks : MIC x 1 (Min. input level:
0.7 mV(-63dBV)
Matching impedance: 200 Ohm - 2kOhm) PHONO x 2 (2mV/,47kOhm CD/AUX IN x2 (300 mV/ 47 kOhm)
Output jacks : LINE OUT x 2 (300 mV/
4.7 kOhm), SPEAKER x 4, (matching impedance 8- 16Ohm).
PHONES x 1 (Output level: 0~ 5 mW/8 Ohm, Matching impedance: 8 Ohm — 1 kOhm)
SYNCHRO : 02.5 mini x 1,
03.5 mini x 1
Power output : Peak music power 300 W
(150 W+ 150 W) (8Ohm)
Power sources : AC 220 - 240/127/110 V,
50/60 Hz
DC 12 V("R20"x 8),
Ext. DC (car battery via optional CN-332 car adapter)
Power consumption : 105 watts (with power switc on)
3.5 watt (with power switch off)
Dimensions : 669(W) x 313(H) x 218(D) mm
(26-3/8" x 12-3/8" x 8-5/8"
including speakers connectec with joint fixtures, pads, knc and handle (PC-W350)
760(W)x 369(H) x 218(D) (30" x 14-5/8" x 8-5/8") (PC-X30)
Weight : Approx. 10.5 kg (23.1 lbs.)
(PC-W350) without batteries Approx. 13.2 kg (29.0 lbs.) (PC-X30) without batteries
Accessories provided: 2 speaker cords
Carrying handle (PC-W350) AC power cord Siemens plug
Design and specifications are subject to change without notice.
OPTIONAL ACCESSORY
Exclusive car adapter CN-332
