Год начала выпуска: 1980
SPECIFICATIONS
Semiconductors : 9 ICs (including 2 for the microphone), 23 transistors (including 2 for the motor)
Speakers : 12cm(5") x 2

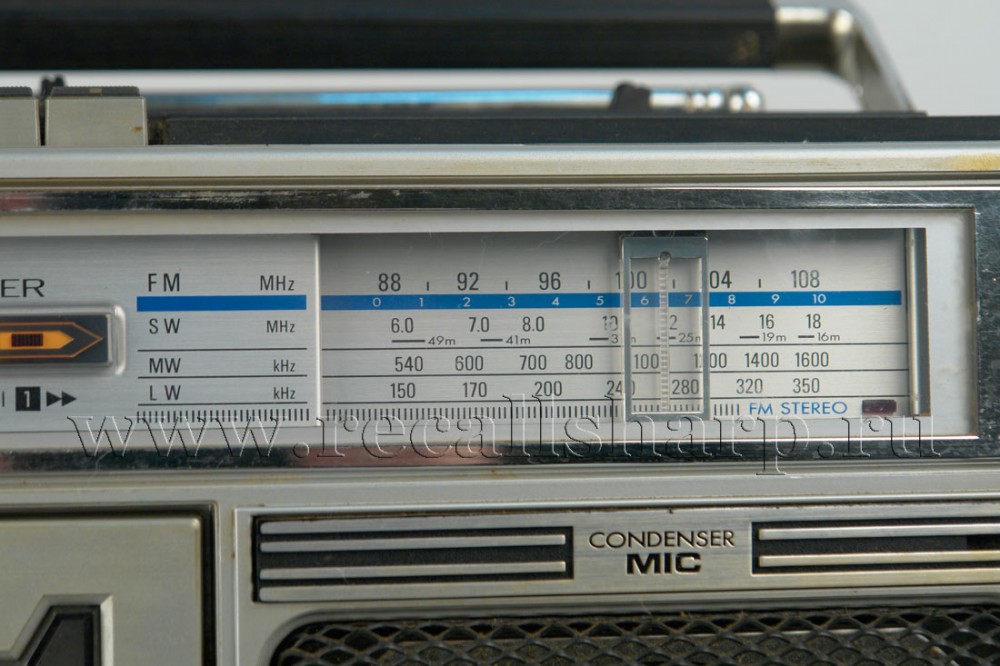

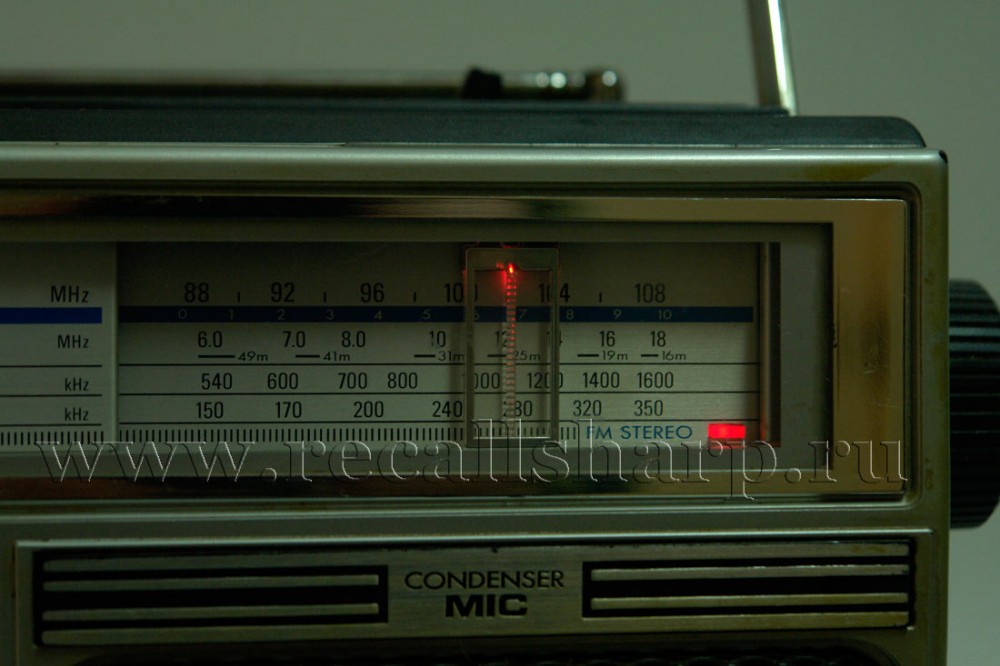

Tuner section
Frequency ranges : FM 88- 108MHz
SW 6 - 18MHz
MW 540 1600kHz
LW 150 -350kHz
Antennas : Telescopic antenna for SW &
FM
Ferrite core antenna for MW & LW
Tape recorder section
Tape : Philips type cassette
Track system : 4-Track 2-channel stereo
Frequency response : 60—
10,000Hz
Wow & flutter : 0.09% (WRMS)
S/N ratio : 40dB
Rewind time : Within 100 sec. (C-60 cassette)
Fast forward time : Within 100 sec. (C-60 cassette)
Amplifier section
Power output : Max. 5.4W (2.7W + 2.7W)(DC)
4W (2W + 2W) (DC) at 10% THD
Input jacks : Mic x 2 (0.8mV, low impedance)
Output jacks : Ext. speaker x 2 (load impedance
3.2~8 Ohm), Headphones x 1
Input/output jack : DIN jack
Power supply : DC 9V (6 "R20 (=U2)" batteries)
Car battery (DC 9V) AC 240/220/110V, 50/60Hz
Power consumption : 1 2W (RC-646L) 9.5W (RC-646LB)
Dimensions : 424(W) x 241(H) x 121(D)mm
(16-3/4" x 9-1/2" x 4-3/4")
Weight : 4.4kg (9.7lbs.) (without batteries)
5.0kg (11lbs.)(with batteries)
|
