Год начала выпуска: 1981
Регион: Европа
Power Supply: AC: 110V to 127V, 200 to 220V, 230 to 250V, 50/60 Hz
DC: 12V-15V ["C" cell (IEC R14) x 10 or equivalent Car: Use 12V car battery adaptor
Power (mains) consumption: 25W

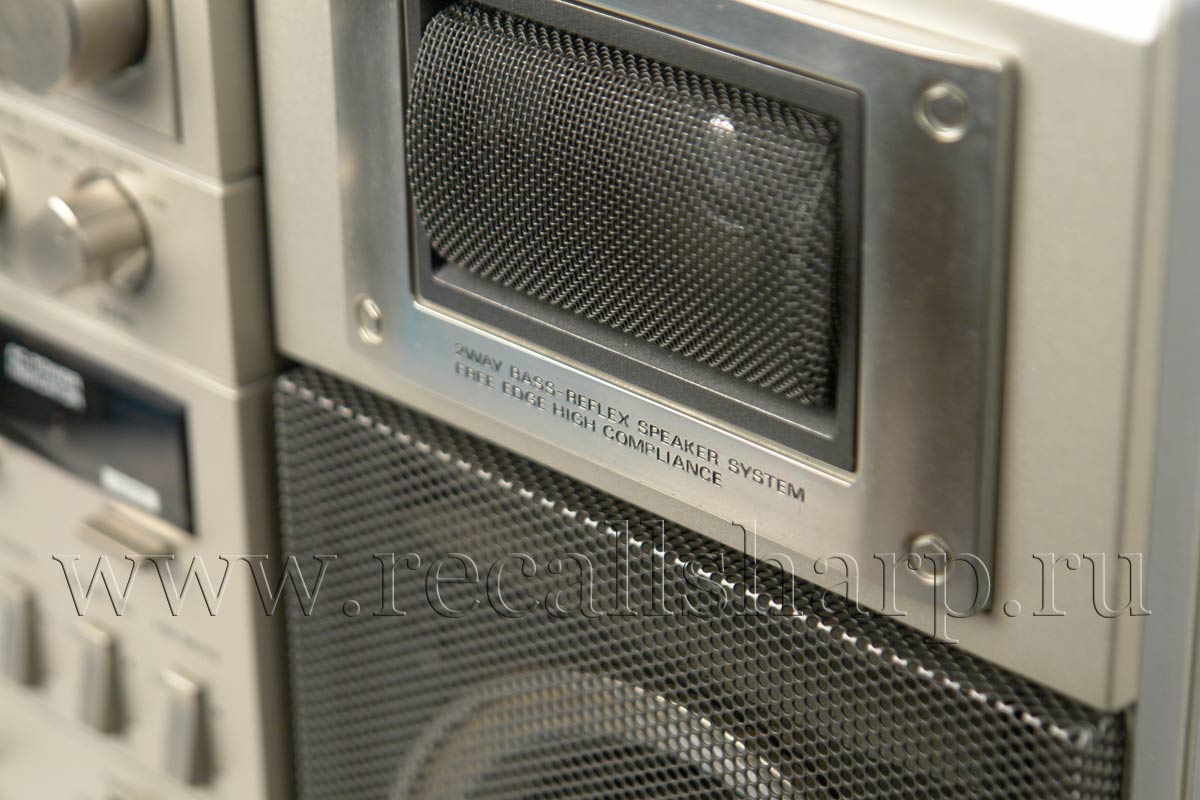

Speakers: 12cm x 2, 2x5 cm
Output: 2x25W RMS (AC operation)
5 W/CH (10% THD DC)
Dimensions: 300(H) x 582(W) x 233(D) mm
Weights: 13.3 kg (with batteries)
RADIO SECTIONS
Circuit System: FM/MW/SW/LW 4-band superheterodyne
TAPE RECORDER SECTION
Tape: Cassette tape
Tape Speed: 4.75 cm/s
Playback Frequency Range:
20 to 15,000 Hz (Normal tape)
20 to 16,000 Hz (Chrome tape)
20 to 17,000 Hz (Metal tape)
Input Sensitivity and Impedance: External microphone: 2 mV, 10 kohms
Line in: 400 mV, 50 kohms Output Level and Load Impedance: Headphones: 8 to 100 ohms
External speaker: 2.8 to 8 ohms
|
