Ãîä íà÷àëà âûïóñêà: 1980
Ðåãèîí: Åâðîïà
TECHNICAL DATA
TRACK SYSTEM 4 Track, 2 channel stereo system
TAPE Philips type cassette tape
TAPE SPEED 4.76 cm/sec +/-0.5%( 1-7/8 ips )
WOW & FLUTTER Less than 0.03% WRMS. 0.08% (DIN45500)
FREQUENCY RESPONSE
25 to 15,000 Hz ±3 dB (-20 VU) LN tape
25 to 17,000 Hz ±3 dB (-20 VU)LH tape
25 to 17,500 Hz +3 dB (-20 VU) CrO2,(SA) tape
25 to 9,000 Hz +3 dB ( 0 VU) CrO2,(SA) tape
25 to 21,000 Hz ±3 dB (-20 VU) Metal tape
25 to 13,000 Hz ±3 dB ( 0 VU) Metal tape
DISTORTION(1000Hz "0" VU ) Less than 0.8% using LN tape
Less than 0.8% using LH tape
Less than 0.7% using CrO2,(SA) tape
Less than 0.6% using Metal tape
SIGNAL TO NOISE RATIO
Better than 58dB using LN tape
Better than 60dB using LH tape
Better than 61dB using CrO2,(SA) tape
Better than 62dB using Metal tape
Dolby NR switch ON: Improves up to 10 dB above 5 kHz
ERASE RATIO Better than 70 dB
BIAS FREQUENCY 100 kHz

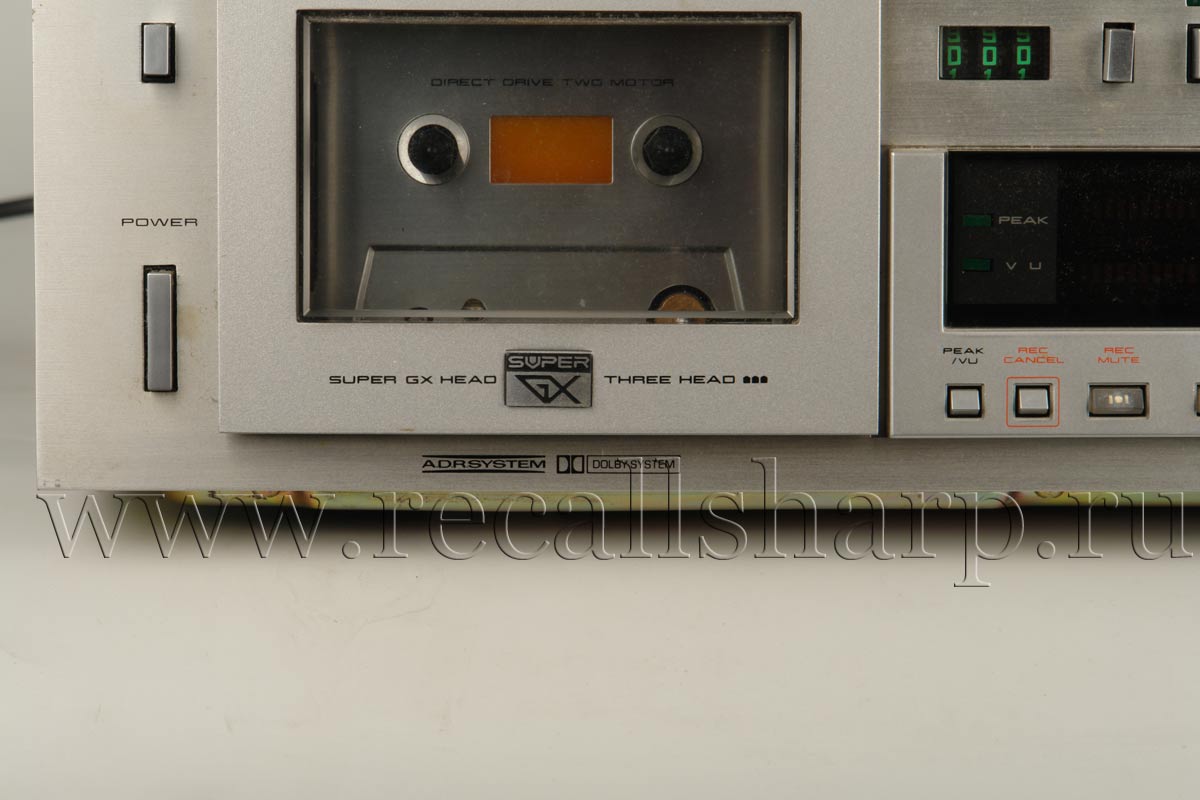

HEADS 3 head system ( Super GX recording head, Super GX playback head and one erase head)
MOTORS 2 motor system (one DC FG servo motor for capstan drive(Direct drive) and one DC motors for reel drive)
F.F. & REWIND TIME 60 sec, using a C-60 Tape

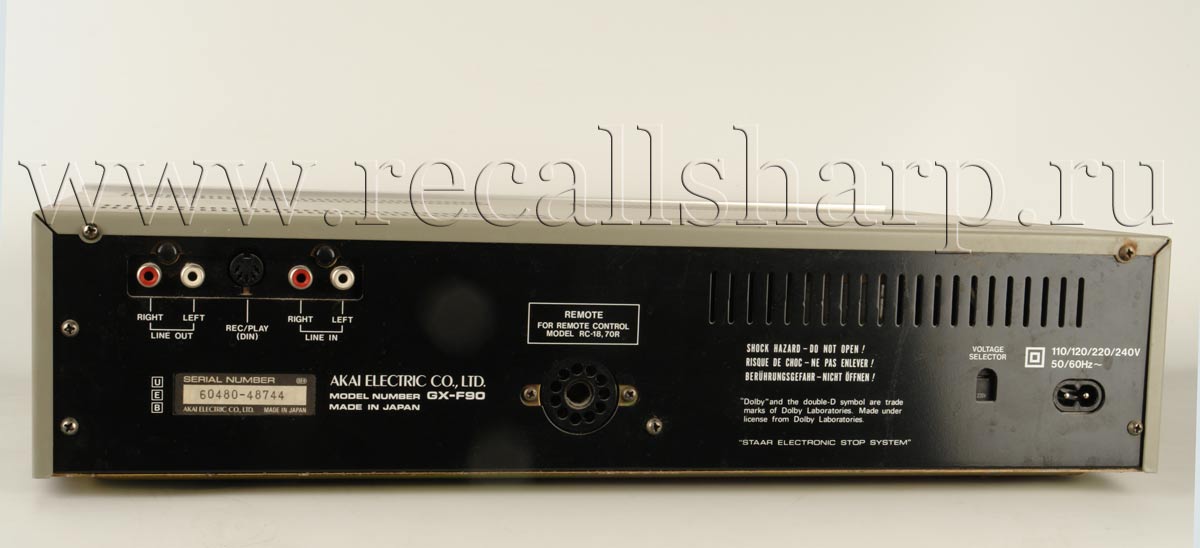

OUTPUT JACKS
Line (2): 0.410 V(0 VU)
Required load impedance: more than 20 kohms
Phone (1): 100 mV/8 ohms
INPUT JACKS Microphone (2): 0.25 mV (input impedance 4.7 kohms)
Required microphone impedance: 600 ohms
Line (2): 70 mV (input impedance 100 kohms)
DIN JACK Input: 2mV (input impedance 10 kohms)
Output: 0.3mV Required load impedance: more than 20 kohms
POWER REQUIREMENTS
120V/60 Hz for U.S.A. & Canada
240V/50 Hz for Australia,
100V, 50/60 Hz for Japan
110-120V/220-240V, 50/60 Hz for other countries
DIMENSIONS 440(W) x 370(D) x 105(H) mm (17.3 x 14.6 x 4.1) inches
WEIGHT 9.8 kg (21.6 lbs)
|
