Год начала выпуска: 1981
Регион: Европа
Specifications
Semiconductors : 21 ICs, 81 transistors & 1 FET
Speakers : 20 cm x 2, 6.5 cm x 2
Tuner section
Frequency ranges :
FM 88-108 MHz
MW 540-1600 kHz
LW 150-350 kHz
SW1 1.6-3.5 MHz
SW2 3.5 - 6.0 MHz
SW3 5.95-6.2 MHz
SW4 6.0-11.0 MHz
SW5 11.0- 26.0 MHz (RC-M90L/LB)
11.0-25.0 MHz (RC-M90LD)
Antennas : Telescopic antennas for FM & SW
Ferrite core antenna for MW & LW
External antenna terminal (for FM & SW) provided
Tape recorder section
Track system : 4-track, 2-channel stereo
Frequency response :
30 - 17,000 Hz (with metal tapel
30 - 16,000 Hz (with chrome tape)
30 - 15,000 Hz (with normal tape)
Wow & flutter : 0.05% (WRMS)
S-'N ratio : 54 dB (Metal)
Rewind time : Within 95 sec. (C-60 cassette)
Fast forward time : Within 95 sec. (C-60 cassette)
Amplifier section
Power output : Max. 40W (20W + 20W)
Input jacks : Mic x 2 (0.45 mV, 1.3 kOhm)
Mix Mic x 2 (0.8 mV, 1.6 kOhm)
Phono in x 2 (input level 3 mV min., impedance;47 kOhm)

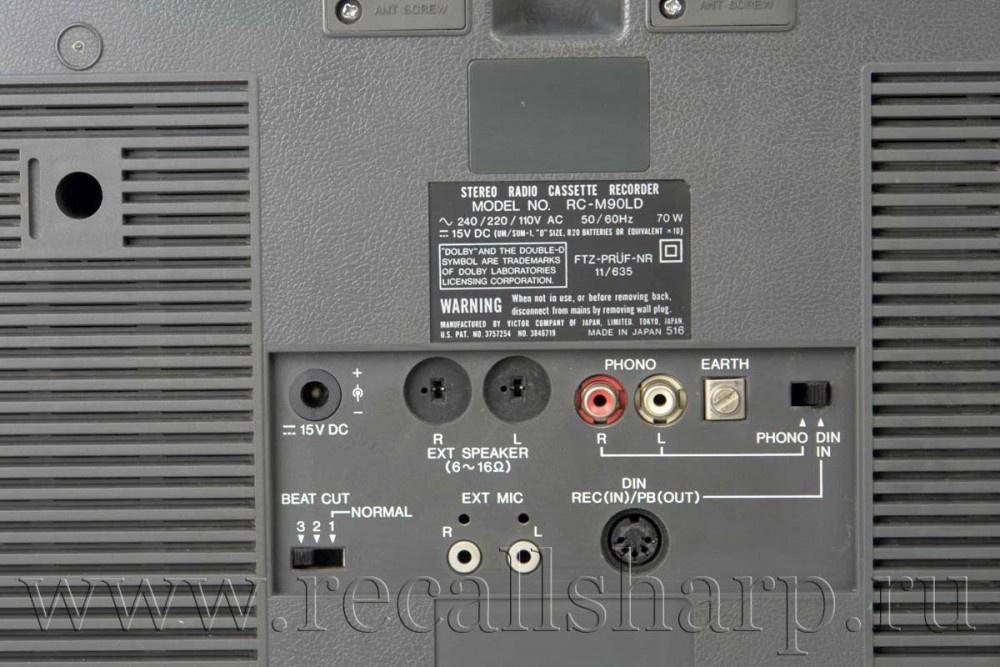

Remote control jack x 1 (8-pin)
DC in x 1
Output jacks : Ext. speaker x 2 (load impedance;
6~ 16 Ohm)
Headphones (2 mW/8 Ohm, load impedance; 8 — 32 Ohm)
Input/output jack : DIN jack
Power supply : DC 15 V (10 "R20" cells) Car battery
through a car battery adapter
AC 240/220/110 V, 50/60 Hz
Power consumption :
70 W (RC-M90L)
61 W (RC-M90LB)
Dimensions : 668(W) x 350(H) x 177(D) mm
Weight : Approx. 10.0 kg (without batteries)
Approx. 11.1 kg (with batteries)
|
|
|
|
| |
|
