Specification
Power(Mains) Supply: AC:110- 127/200-220/230-250V. 50/60Hz 25W
DC:12V(IEC R20x8)
Car: Use car battery adaptor
Stereo cassette player
Power source: DC 3V ( 2 SUM-3 or "AA" or IEC R6
Power (Mains) Consumption: 25 W
Dimensions: 565 x210 x165mm
Weight: 7.5kg
Power output: 15W/CH (PMPO)
Speaker: 12 cm, 3.2 ohms x 2
3 cm, 4 ohms x 2

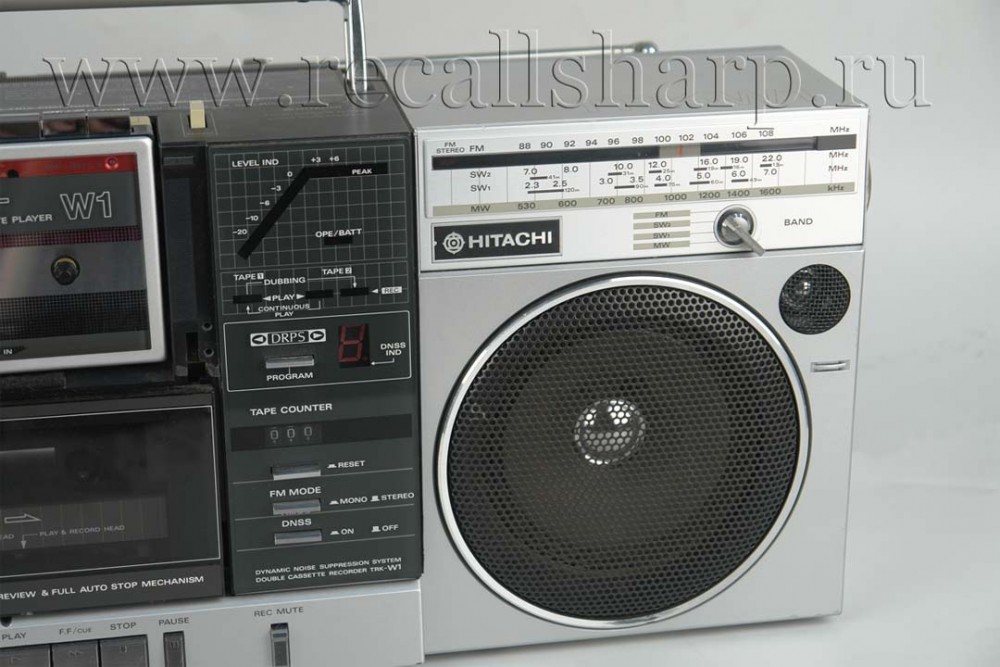

TUNER SECTION
Circuit System: 4-band superheterodyne
Tuning Range: FM: 88 - 108 MHz
SW1: 2.3 - 7.0MHz
SW2: 7.0 -22.0MHz
MW: 530 - 1605 kHz
Telescopic antenna or
External antenna MW/LW: Ferrite-core antenna

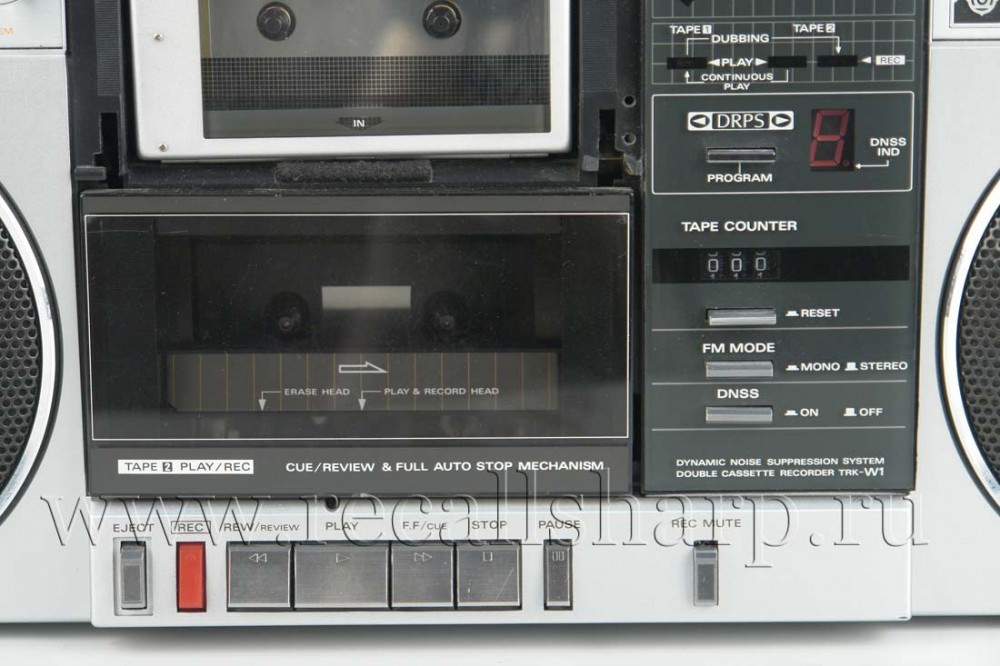

TAPE RECORDER
Tape: Cassette tape (C-30, 60, 90)
Tape Speed: 4.75 cm/s
Recording System: AC bias, 57 kHz
Erasing System: AC erasing
Frequency Response: Normal: 40 ~ 14,000 Hz
Cr02: 40 ~ 15,000 Hz
Metal 40 - 16,000 Hz
Fast Forward or
Rewinding Time: 100 sec (Using C-60)
Distortion: 0.08%WRMS
S/N(Signal to Noise Ratio): 50 dB (Dolby NR OFF)
60 dB (Dolby NR ON)
Cross Talk: 50 dB
Erase Ratio: 65 dB
