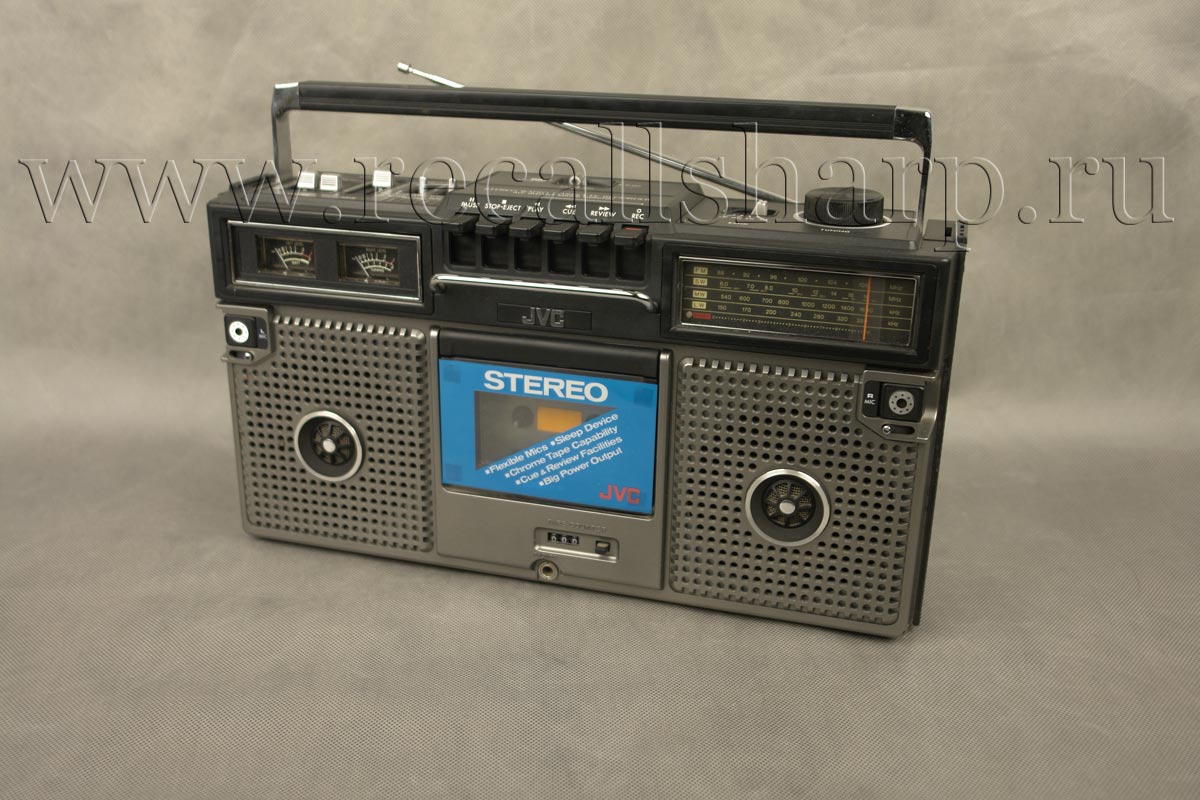

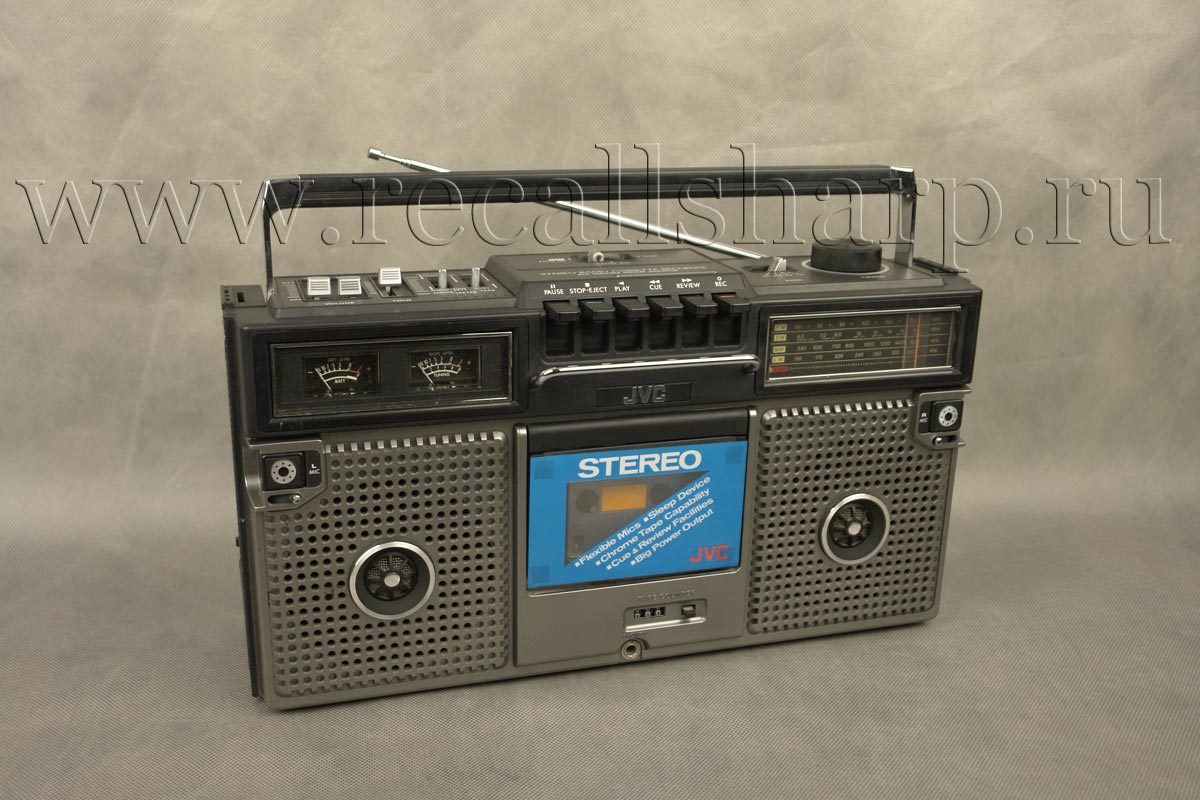

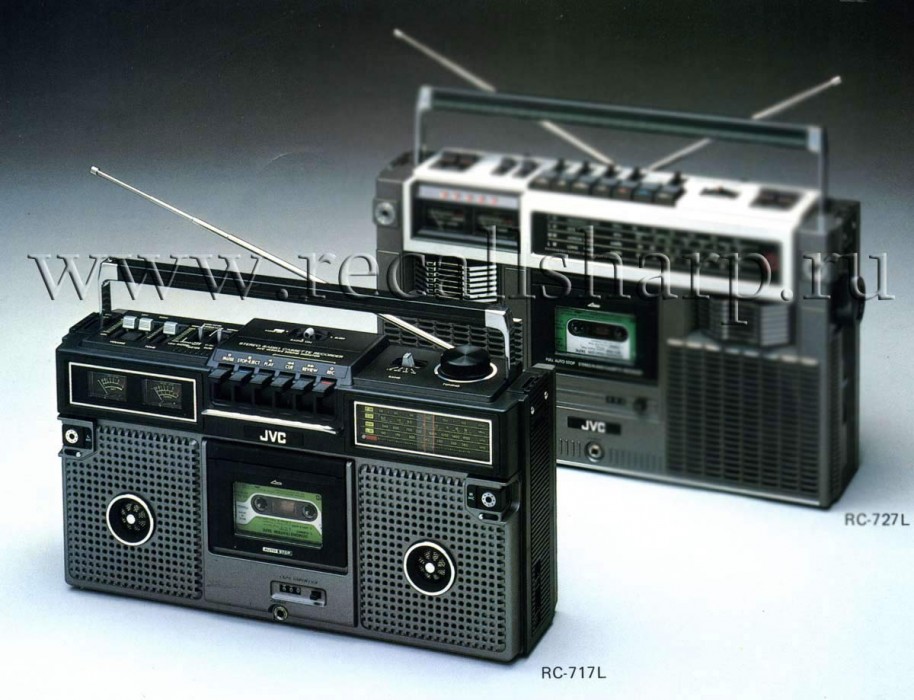

Type: 4-Band stereo radio cassette recorder

Speakers: 12cm  Dual cone speaker (4om) x 2

Tuner section

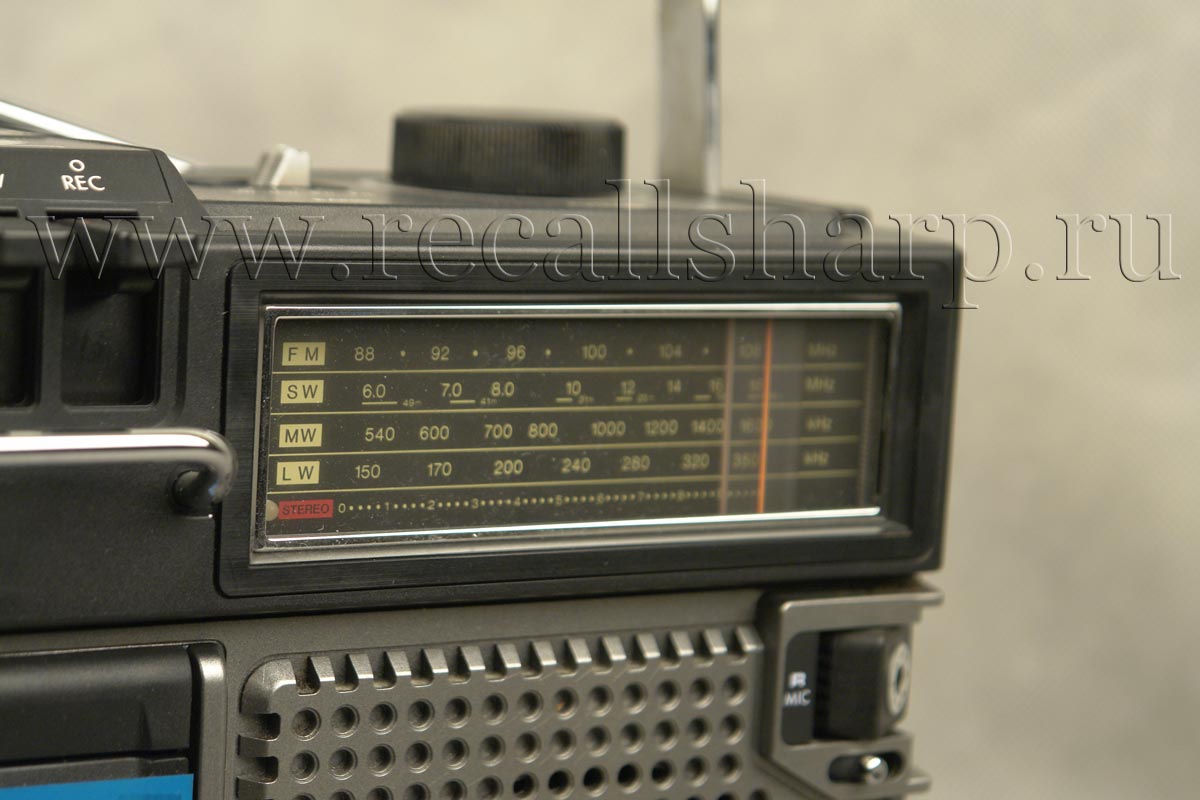

Frequency ranges:

FM 88~108MHz

MW 540~1600kHz

SW1 2.3~6MHz

SW2 6~ 18MHz

Intermediate

frequency : FM 10.7MHz

SW & MW 455kHz

Antennas: Telescopic antennas for FM & SW

Ferrite core antenna for MW & SW1

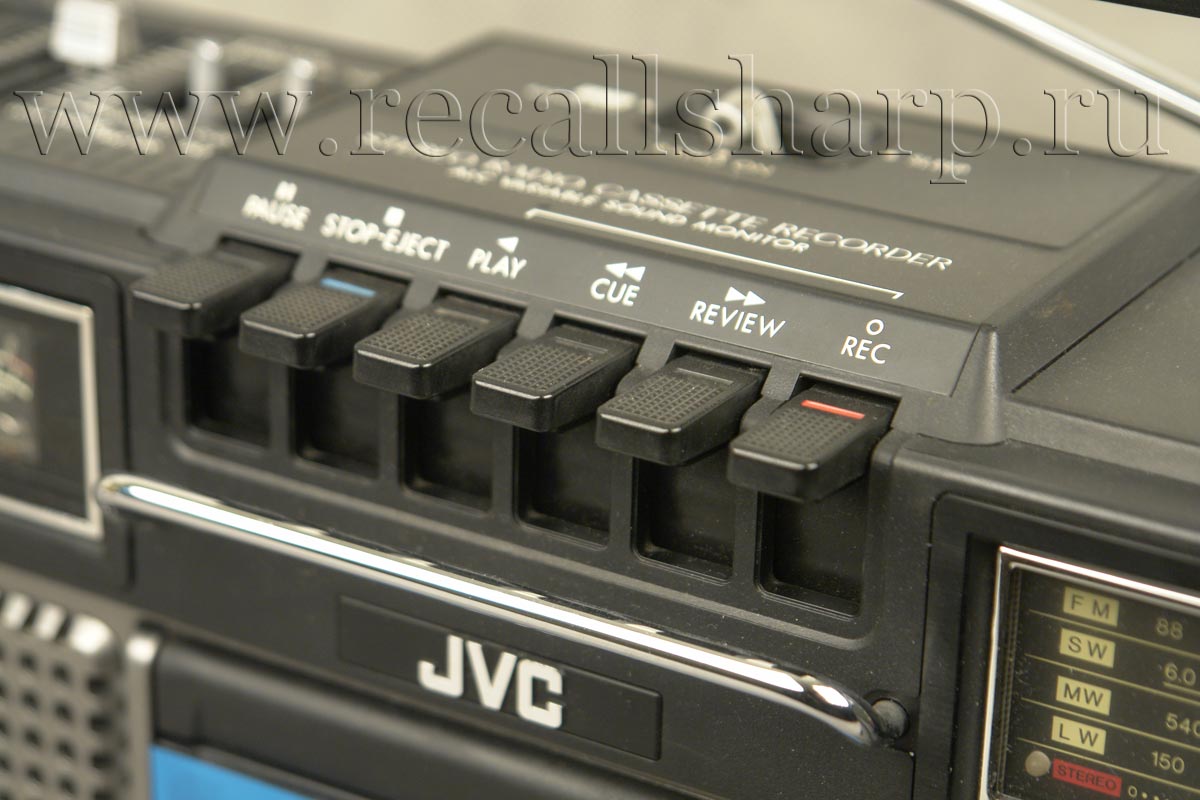

Tape recorder section

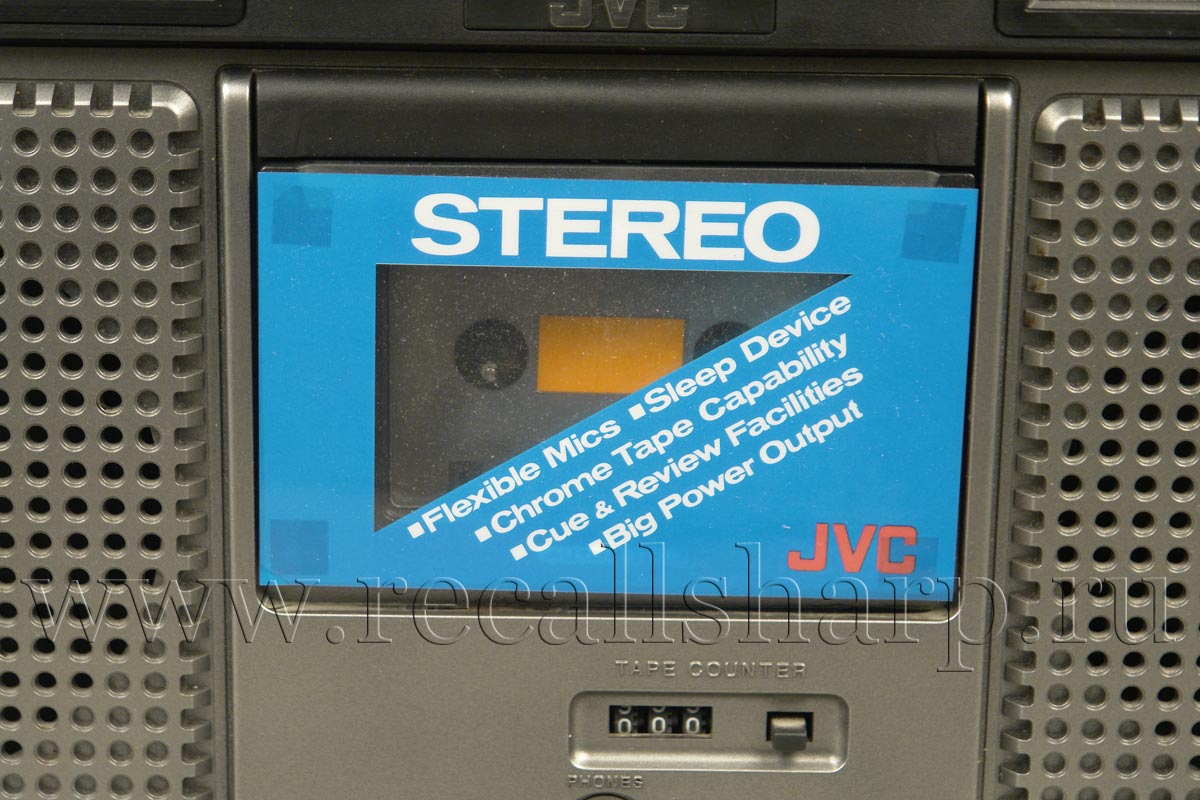

Tape: Philips type cassette

Track system: 4-Track 2-channel stereo

Amplifier section

Power output: 5W max. (2.5W per channel) (RMS)

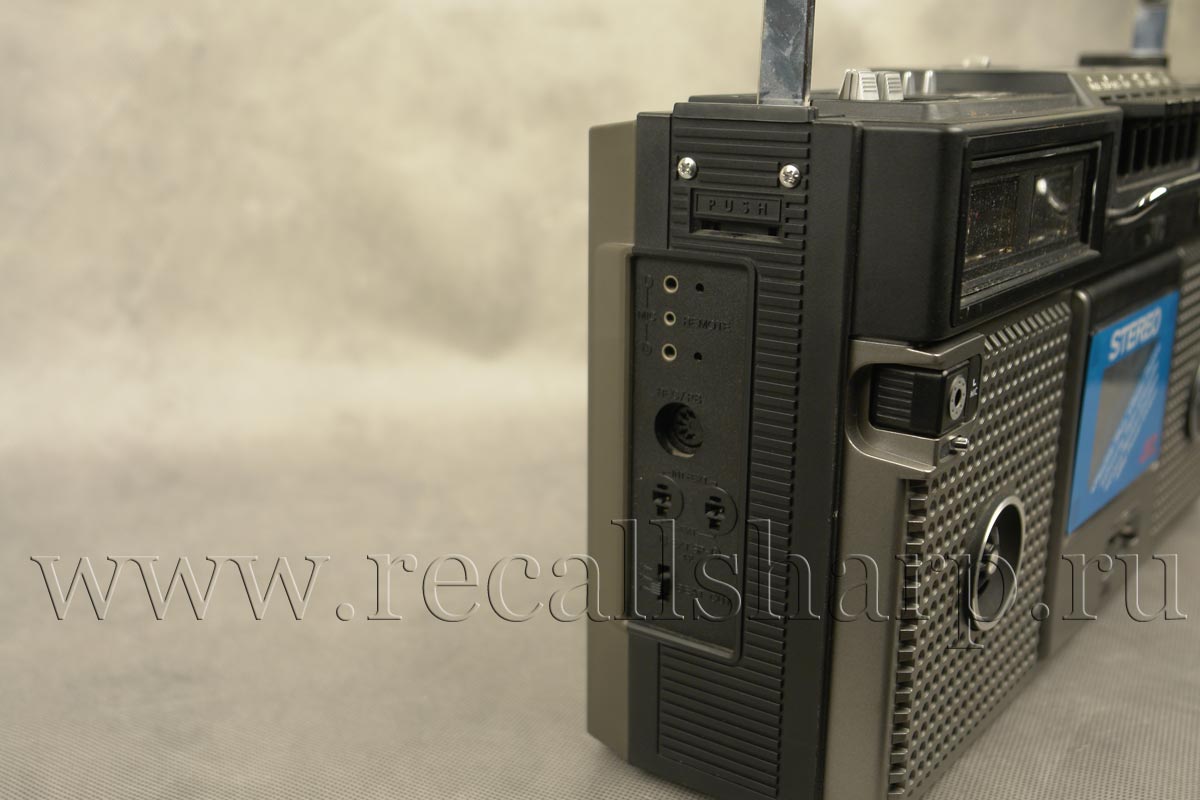

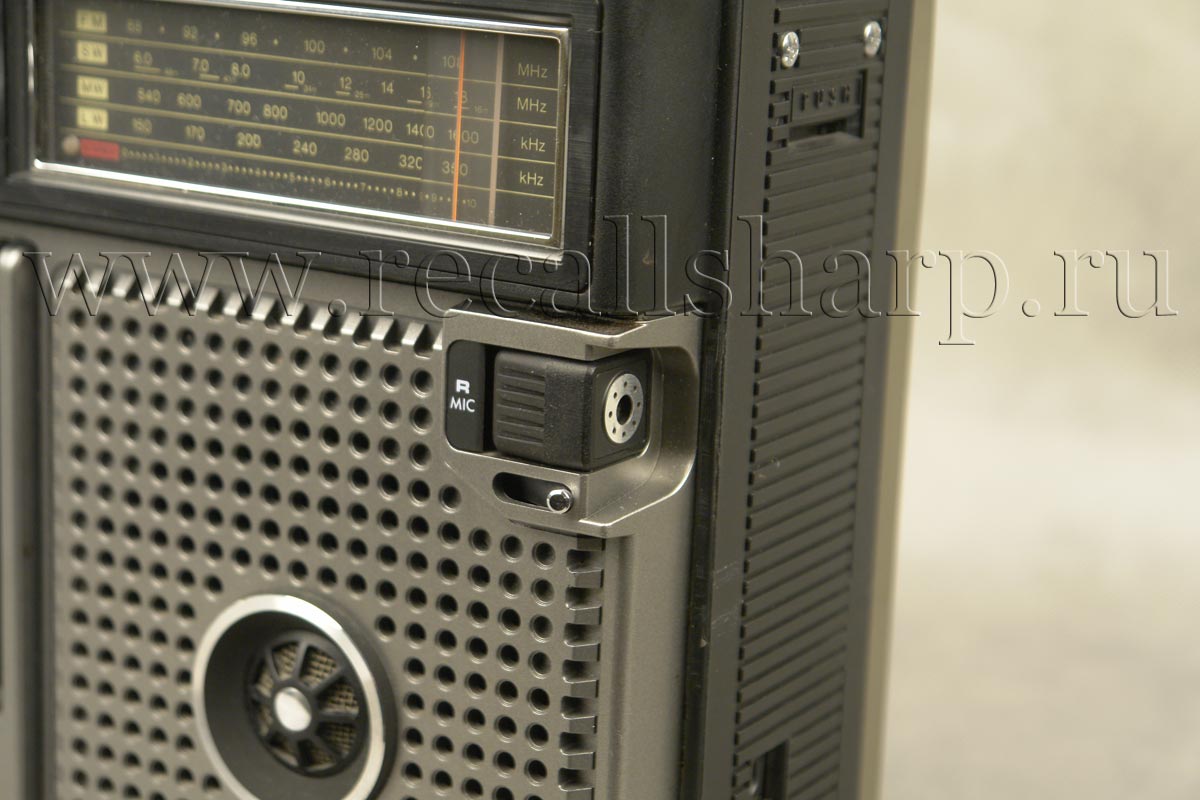

Input jacks: Mic x 2 (1mV, low impedance)

Line in x2 (100mV, 350kOm ) Output jacks: Line out x 2 (0.2V, load impedance 3.3kOm)

Power supply: DC 9V (6 "UM-1" batteries)

Car battery through a car battery adapter

AC 110/220/240V, 50/60Hz

Power consumption: 11W max., RMS output power

Dimensions: 220(H) x 410(W) x 114(D)cm

Weight: Approx. 4.7kg  (with batteries)
