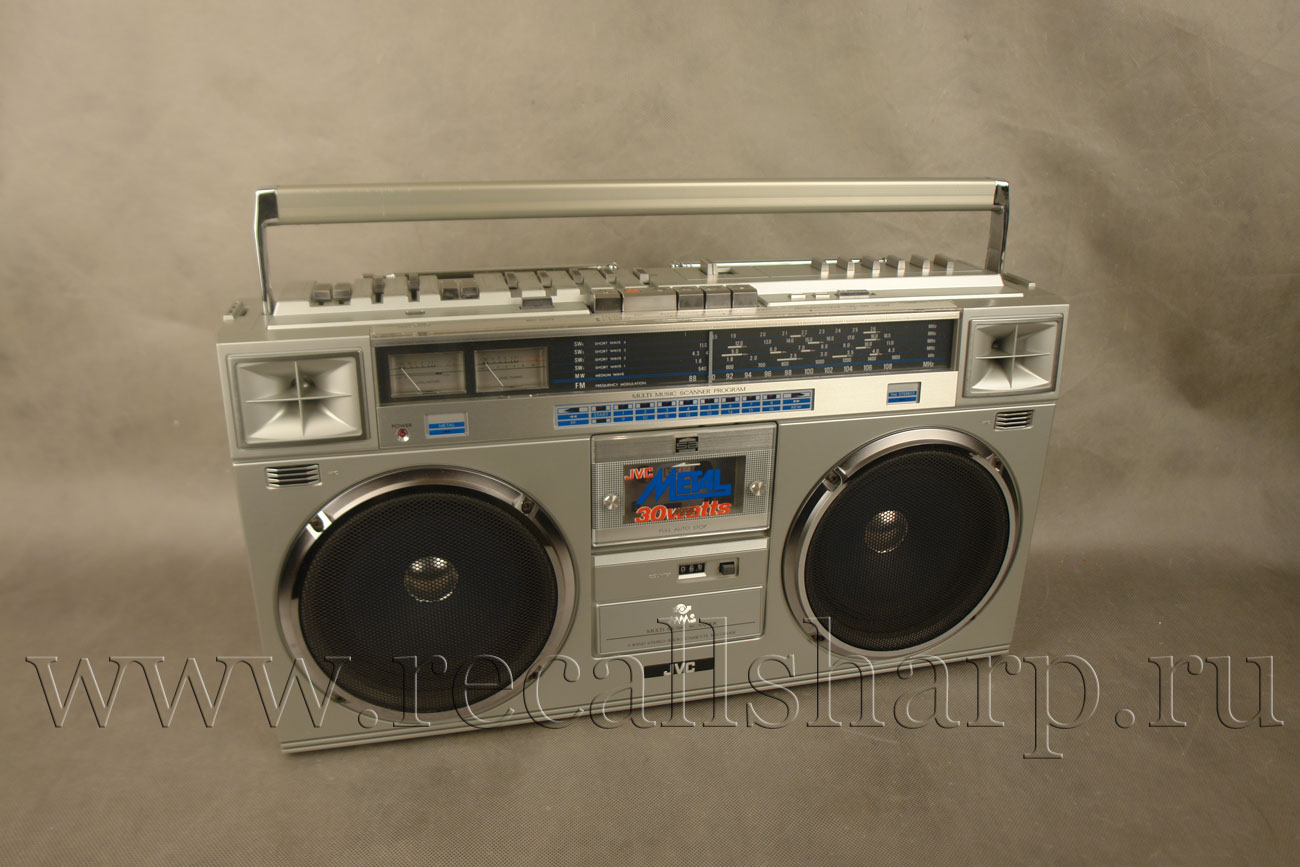

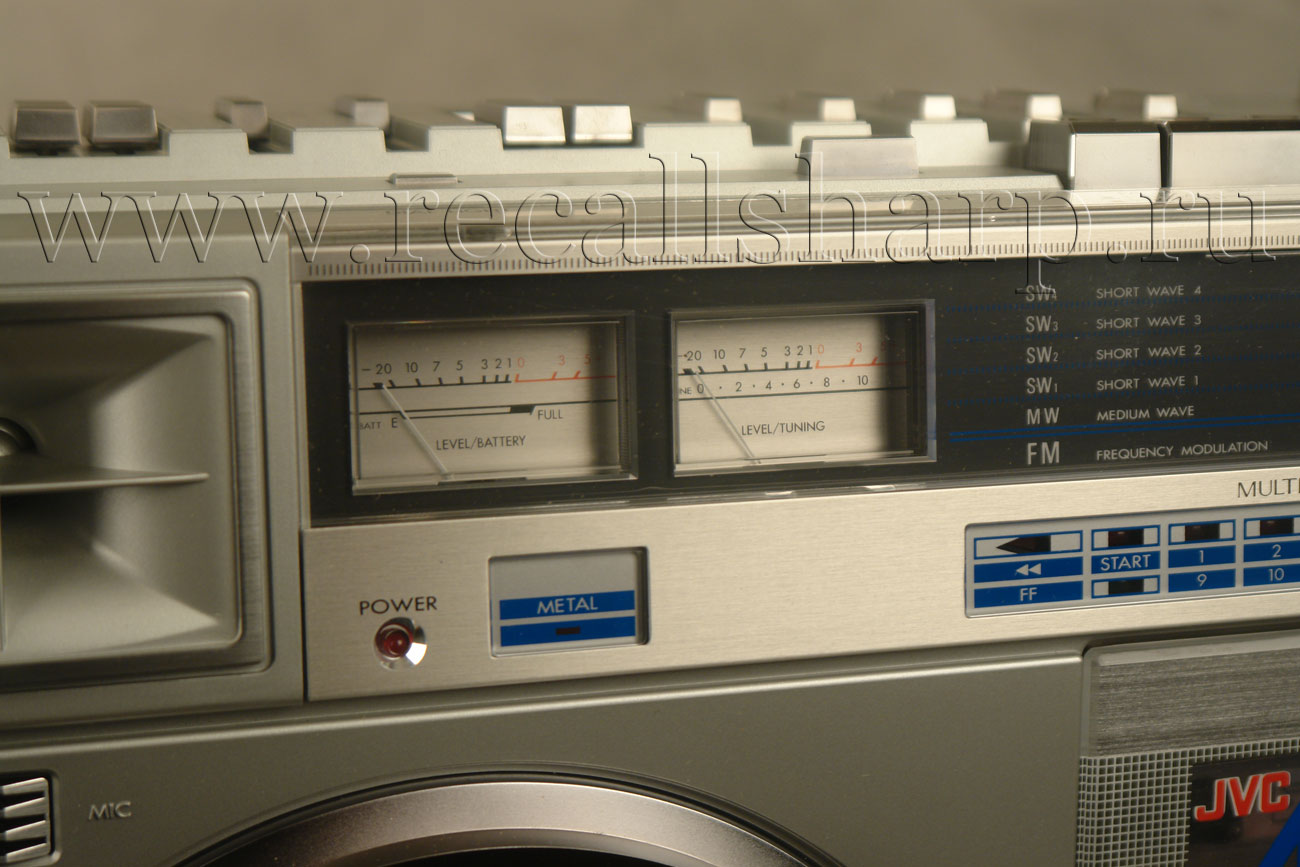

JVC RC-M70 W



: 1980


Specifications (JVC RC-M70W)

DIMENSIONS: 55.4 cm(W) x 30.3 cm(H) x 15.1 cm(D)

WEIGHT: Approx. 9.0 kg (with batteries)

TUNER SECTION

Frequency Ranges : FM 88 - 108 MHz

MW 540 -1600 kHz

SW1 1.6- 4.3 MHz

SW2 4.3 -11.0 MHz

SW3 11.0 - 18.5 MHz

SW4 18.5 - 26.0 MHz

Tape recorder section

Track system : 4-Track 2-channel stereo

Frequency response : 30-16,000Hz (with metal tape)

30-15,000Hz (with chrome tape)

30-14,000Hz (with normal tape)

Wow & flutter : 0.065% (WRMS)

S/N ratio : 50dB

Rewind time : Within 110sec. (C-60 cassette)

Fast forward time : Within 110sec. (C-60 cassette)

Speakers: 16 cm (6-1/2") x 2, 5 cm (2")

AMPLIFIER SECTION

PowerOutput : Max. 30W (15W + 15W)

Input Jacks:x 2 (3 mV, 47 kOhms)

Phono

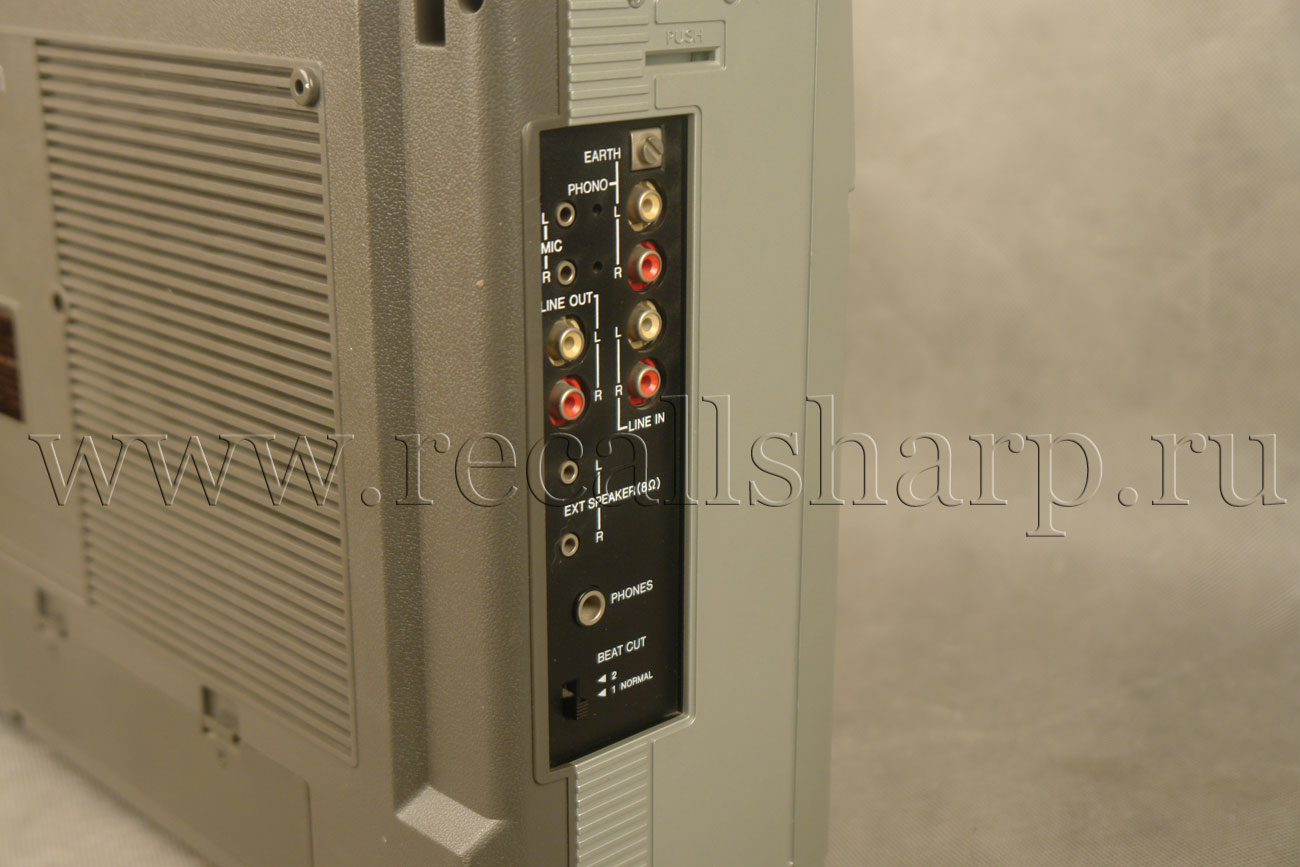

Output Jacks:

Headphones (8 - 32 Ohms)

Ext. Speaker x 2 (8 Ohms)

POWER CONSUMPTION: 47 W

SEMICONDUCTORS

Transistors : 49 (includes motor governor)

Diodes : 64

ICs : 12 (includes microphones)

POWER SOURCE

DC : 15 V, 10 "D", "R20"cells orequivalent

AC : 240/220/110V. 50/60Hz



:
JVC RC-M70 C
JVC RC-M70 L
Victor RC-M70
JVC RC-M 71 JW
JVC RC-M70 LB
Victor RC-M70 GX
JVC RC -M70 JW
