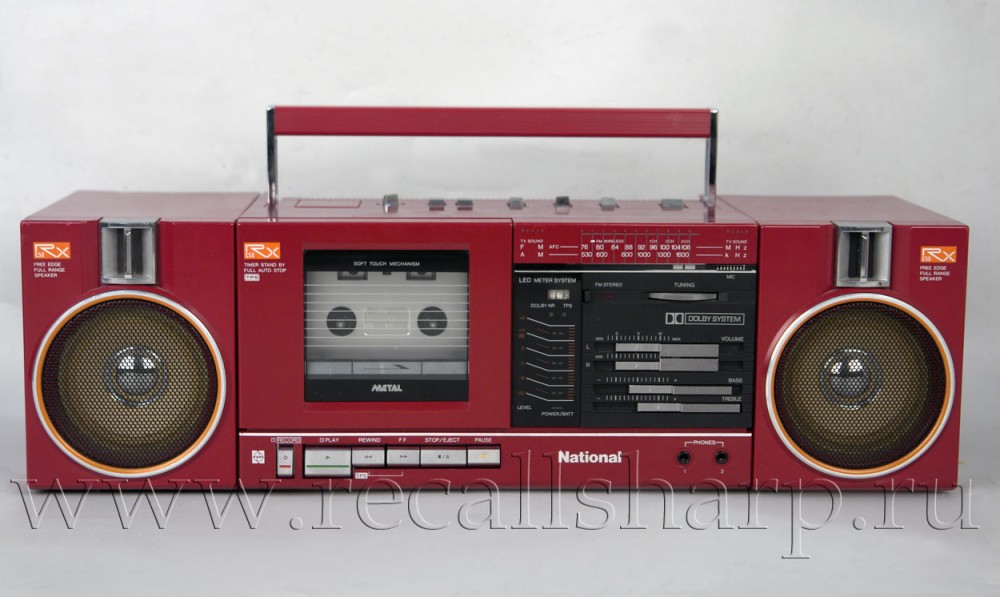

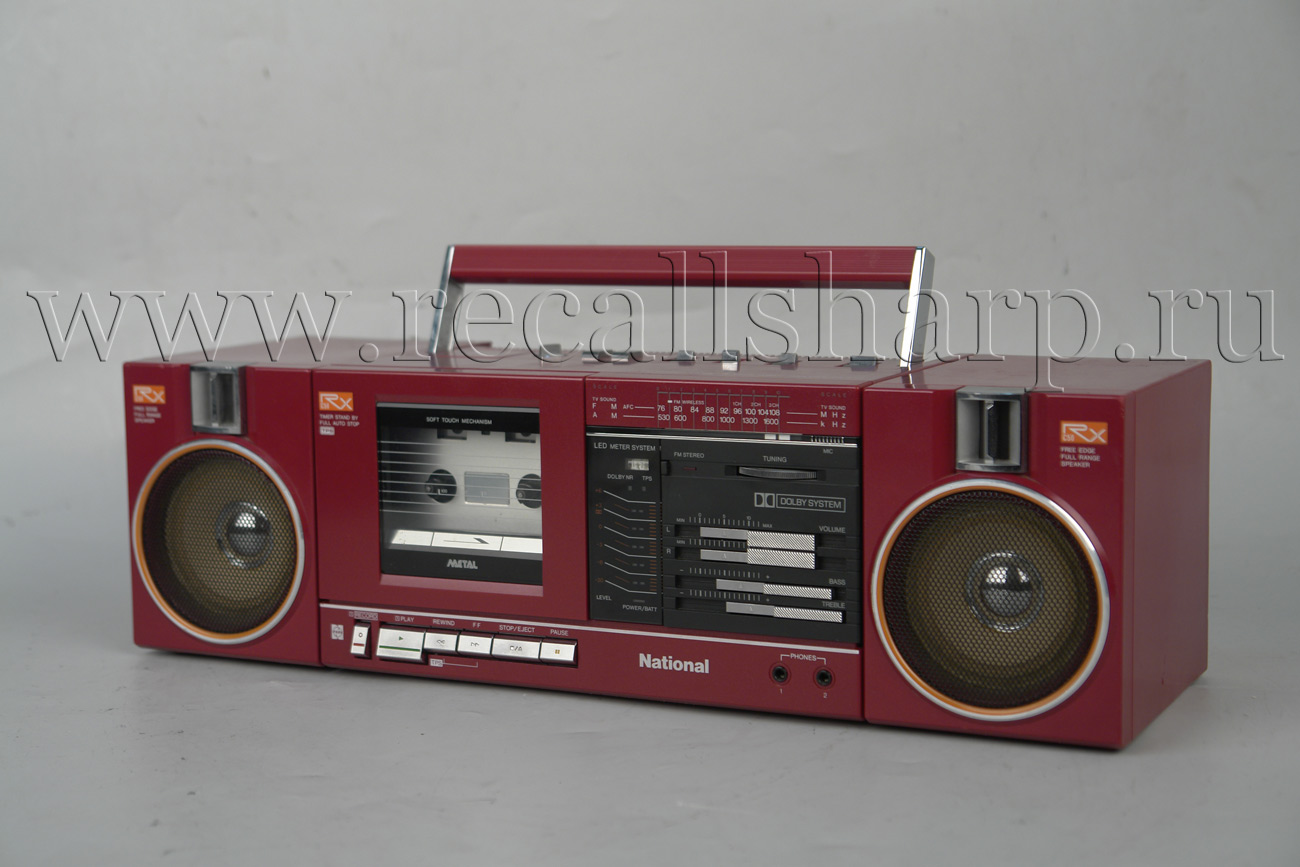

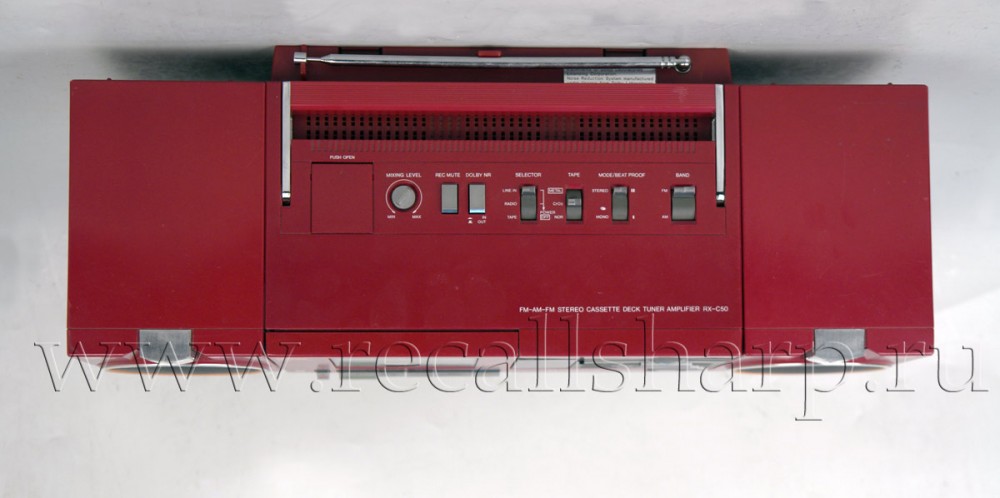

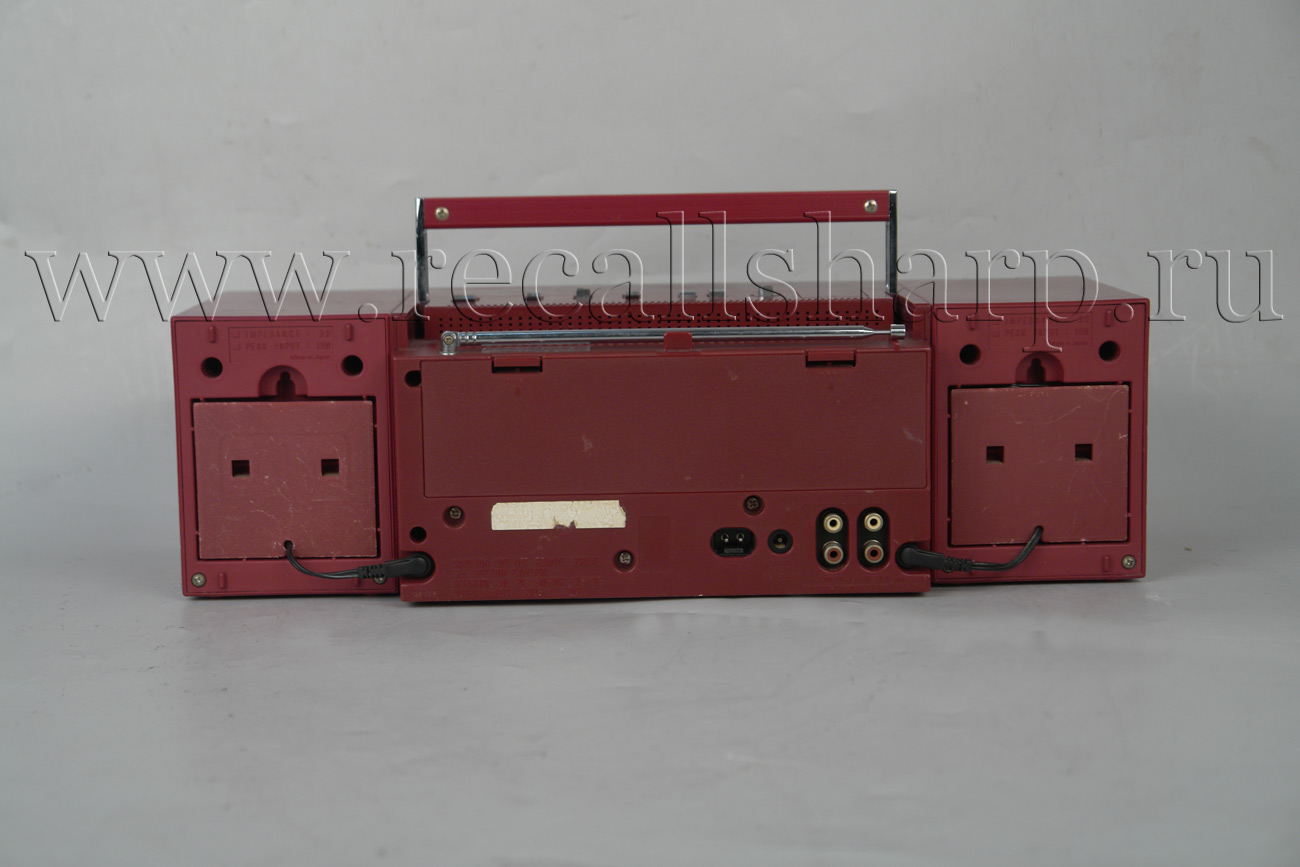

National RX-C50

: 1982

Power requirement: AC;100V, 50/60Hz

Battery; 12V (eight- "D" size Flashlight batteries)
Panasonic UM-1 or equivalent
Car battery; with optional car adaptor RP-952
Power consumption; 14 W (AC only)
Power output: 12W (6Wx2) ... RMS (max)

Speakers: Full Range 8cm(3") dynamic speaker (3Ω)

Input: MIC; sensitivity 0.25mV/applicable microphone
impedance 200-600Ω
LINE IN; sensitivity 200mV/50kΩ
Output: LINE OUT;sensitivity 360mV/4,7kΩ under Speaker


Dimensions: Total size
432mm(W) x 133mm(H) x 166mm(D)
Main unit
243mm(W) x 133mm(H) x 166mm(D)
Speaker box
96mm(W) x 128mm(H) x 143mm(D)
Weight: 4.5kg (without batteries)

Radio section

Radio frequency range: FM; 76MHz ~ 108MHz

AM; 525-1605kHz

Intermediate Frequency (IF): FM 10.7MHz
AM 455kHz

Sensitivity: FM 2.5μV /50mW output

M W 71μV/m/50mW output

Tape Deck Section
Frequency responce:
40-12,000 Hz(with normal tape)
40-14,000 Hz(with CrO2 tape)
40-15,000Hz (with Metal tape)

Recording system; AC bias, AC erase

Tape speed: 4.8cm/s
Wow&Flutter 0.07%(WRMS)
Program time: 1 hour with C-60 cassette tape

Track system: 4-track stereo recording and playback
Panasonic RX-C50
National RX-C50 F
Anatoliy : 25.03.2011 15:47:46
Normal 40-12,000Hz
CrO2   40-14,000Hz
Metal  40-15,000Hz

; 0.07%{WRMS}
