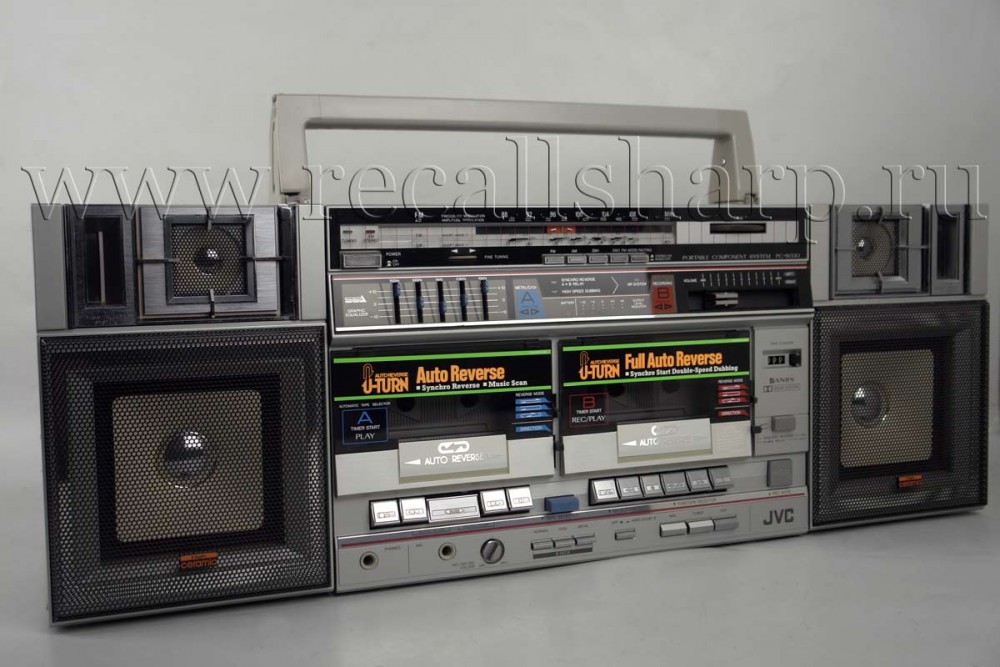

JVC PC-W330 W



: 1985


SPECIFICATIONS

Radio section

Frequency ranges : FM 88—108 MHz

AM 540-1600 kHz

SW1 2.3-7 MHz

SW2 7-22 MHz

Antennas : Telescopic antenna for FM&SW

Ferrite core antenna for AM & SW1

Ext. antenna terminal (75 Om

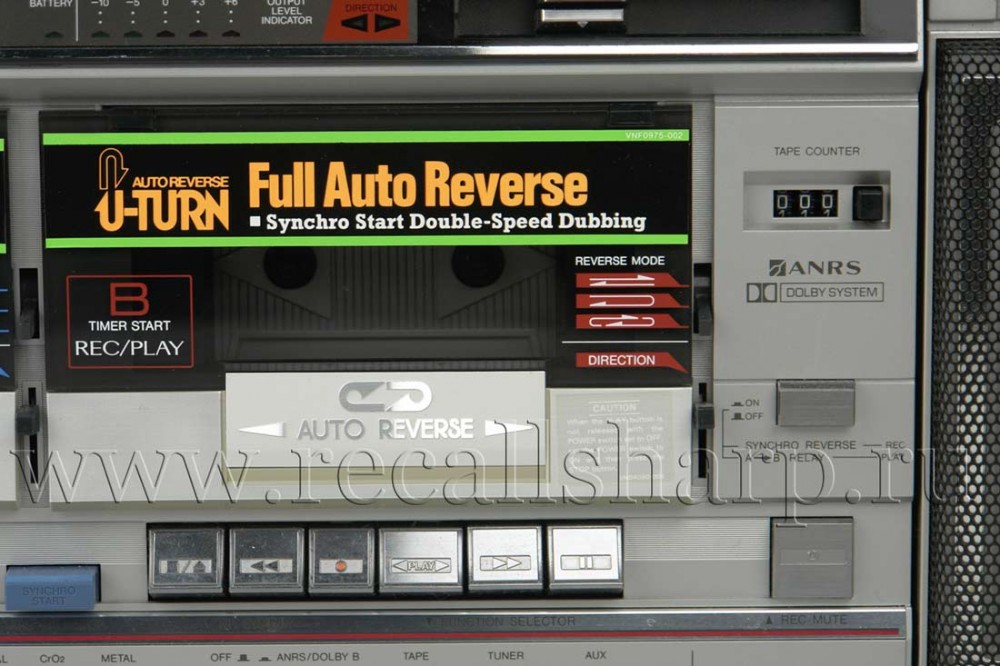

Tape recorder section

Track system : 4-track 2-channel stereo

Motors : Electronic governor DC

motor for capstan/reel x 2 (for Deck A & B)

Heads : Deck A; METAPERM

head for playback Deck B; METAPERM head for recording/ playback,

2-gap ferrite head for erasure

Tape speed :

At normal speed; 4.8 cm/sec (1-7/8 inch/sec)

At double speed; 9.5 cm/sec (3-3/4 inch/sec)

Frequency response : 30-17,000 Hz (with metal tape )

30- 16,000 Hz (with chrome tape)

30- 15,000 Hz (with normal tape)

Signal-to-noise ratio : 50 dB (weighted, at 1 kHz

with metal tape during ALC recording)

Improved by 5 dB at 1 kHz

and by 10 dB at 5 kHz or more with ANRS/DOLBY B NR ON

Wow and flutter : 0.09 % (WRMS)

Fast wind time : Approx. 110 sec.

(C-60 cassette)

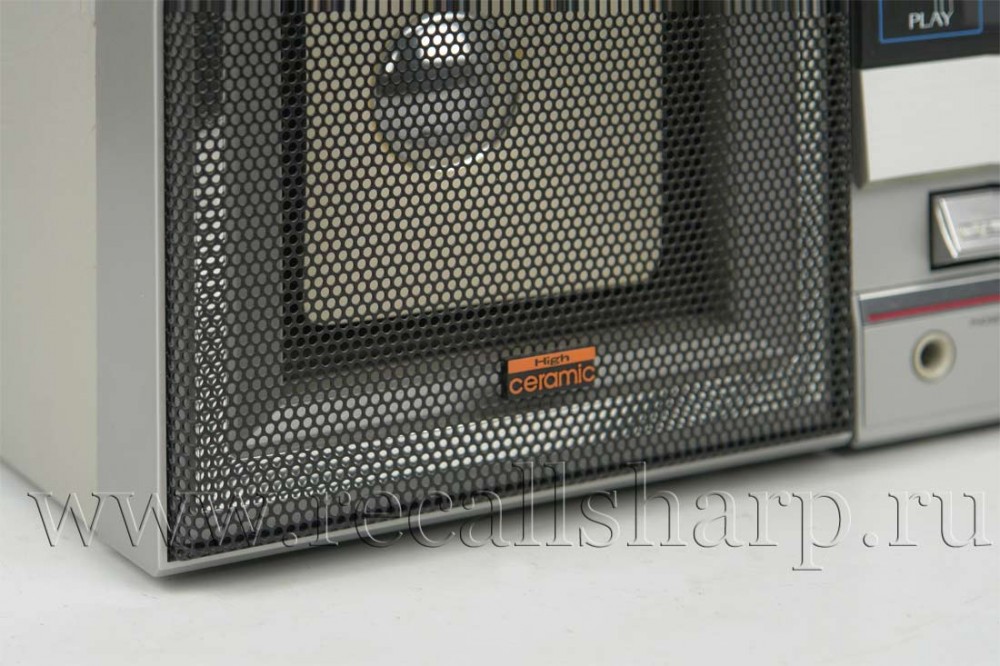

Speaker section (each unit)

Speakers : 12 cm (5") square wooferx 1,

5 cm (2") tweeter x 1

Impedance : 6Ω

10dB 200 Ω - 2 kΩ)8 Ω),

Dimensions : 162(W) x 237(H) x 216(D)

mm (6-1/2" x 9-3/8" x 8-5/8")

Weight : Approx. 2.0 kg

General S.E.A characteristics

Center frequencies :


Control range : ±100 Hz/330 Hz/1 kHz/ 3.3 kHz/10 kHz

Input terminals : MIC x 1 (Min. input level: 0.7 mV(-63dBV) Matching impedance:

AUX INx2 (300 mV/ 47kOm)

Output jacks : LINE OUT x -2 (300 mV/4.7 kΩ),

SPEAKER x2 (matching impedance 6

PHONES x 1 (Output level: 0~ 5 mW/8 Ω. Matching impedance: 8 Ω 1 kΩ)

Power output : 9 watts per channel, min.

RMS, at 6 ohms from 70 Hz to 15 kHz,

with no more than 10 % total harmonic distortion (PC-W330W)

Max. 30 W (15W + 15W) (6 Ω, AC)

Power sources : AC 230/127/110 V,

50/60 Hz (PC-W330W), DC12V ("D"x8or optional BP-12K),

Ext. DC (car battery via optional CN-332J car adapter)

Power consumption : 65 watts (with power switch on)

0.7 watt (with power switch off)

Dimensions : 663(W)x312(H)x224(D)mm

(23-1/2"x10-3/8"x7-5/8")

including speakers connected with joint fixtures, pads, knobs and handle

Weight . : Approx. 10.9 kg (24.0 lbs) with batteries

Approx. 10.1 kg (22.2 lbs) without batteries

Accessories provided: 2 speaker cords (1 m/3.28 ft)

Carrying handle AC power cord

Design and specifications are subject to change without notice.


:
