Год начала выпуска: 1981
Регион: Америка
SPECIFICATIONS

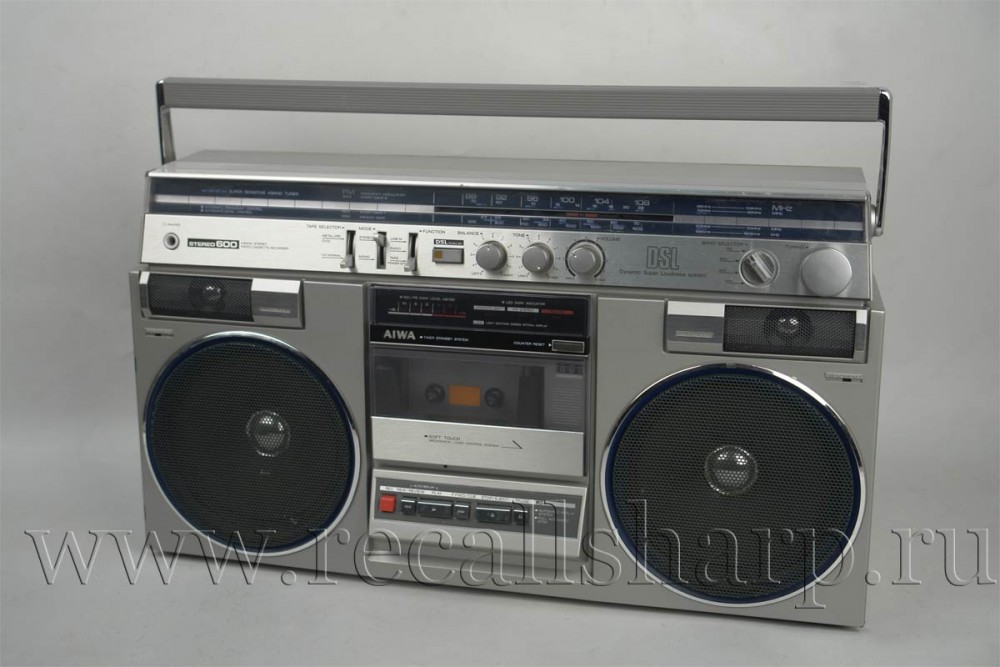

Type Stereo multiband radio
cassette recorder
Power source AC∼120/220-240 V 50/60Hz
Batteries, DC13.5V (UM-1X9)
Output 14W maximum (7W + 7W)
Speakers 4
Tape Recorder Section
Built-in microphone Electret condenser microphone x2
Tape speed 4.8 cm/sec (1-7/8 ips)
Recording system AC bias
Erasing system AC erase
Frequency response LH tape: 40—12,500 Hz
METAL tape: 35—16,000 Hz
Signal-to noise ratio ≥53 dB
Wow and flutter ≤0.05% (WRMS)
≤0.09%(DIN)
Head Superpermalloy
Radio Section
Frequency ranges FM: 88 — 108 MHz
MW: 525 —1,605 kHz
SW2: 7.0 — 22 MHz
SW1: 2.3 - 7.0MHz
Antennas Whip antenna for FM and SW
Ferrite bar antenna for MW
Dimensions (WXHXD) 520X180X330 (mm)
Weight 5.7 kg
Accessories AC adaptor X 1
The specifications and external appearance of this set are subject to change without prior notice.
|
