Silver Shin-Shirasuno Electric Corporation. . 100 .

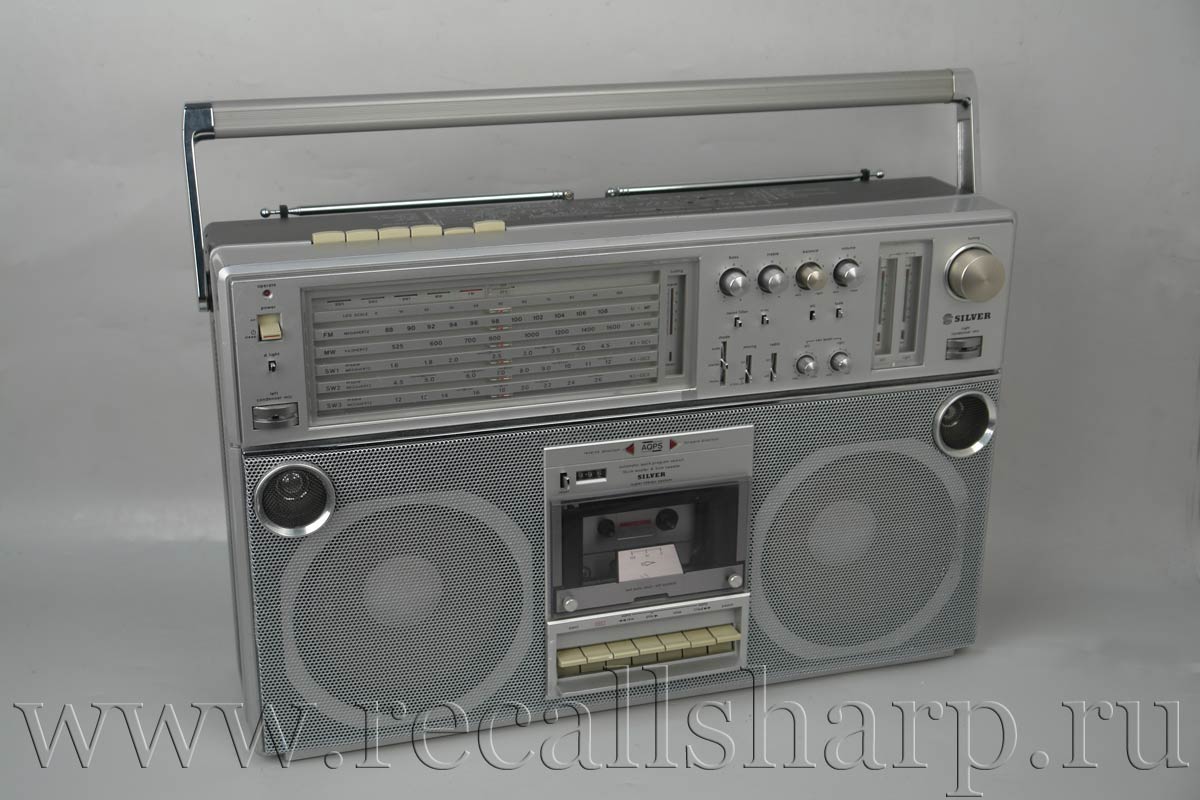

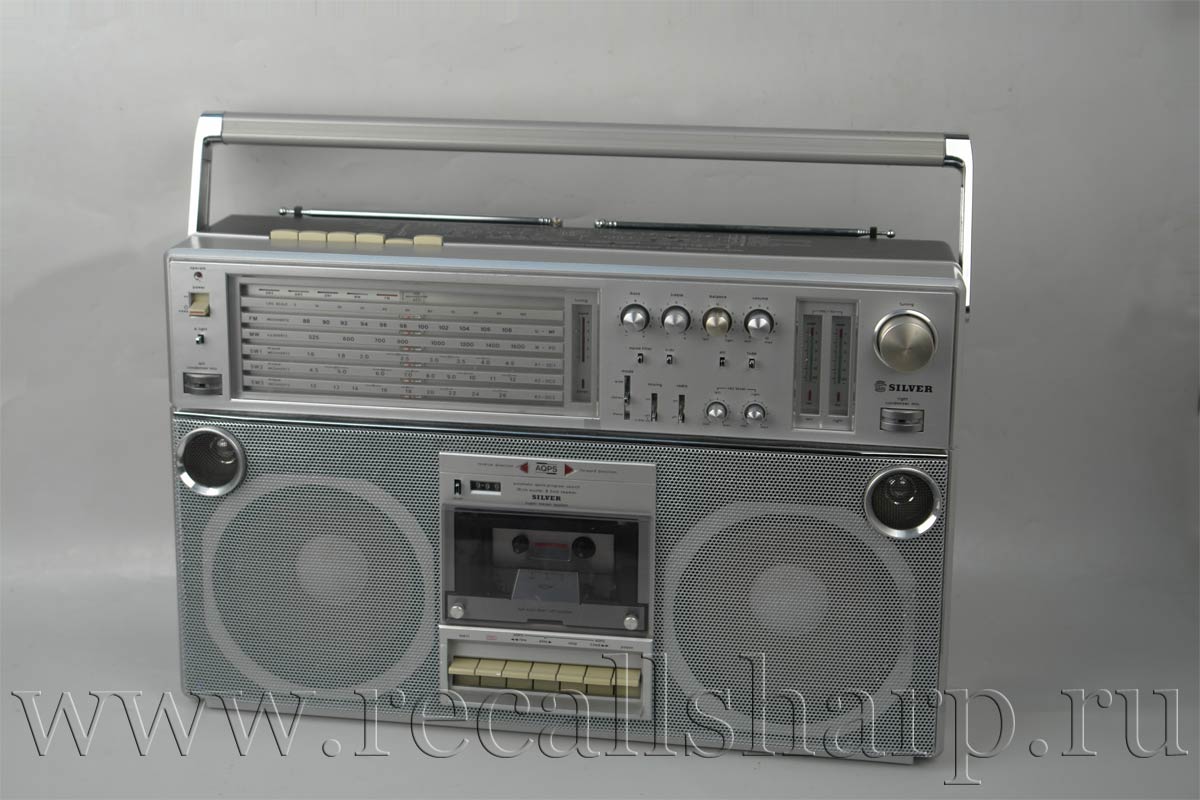

Silver ST858



: 1978


SPECIFICATIONS
Tape Recorder
Type: 4-track, 2-channel, stereo or monaural
Tape Speed: 4.75 cm/sec.
Frequency Response: Normal: 60 ~ 15,000 Hz
Cr02: 60 ~ 16,000 Hz
Wow and Flutter: 0.1% R.M.S. weighted
Rewind Time: 95 seconds (approx.) with C60 cassette tape
Recording and Erase System: AC bias and AC erase
Radio
Tuning Range: FM: 87.5 ~ 108 MHz
MW: 525 ~ 1605kHz
SW1: 1.6 ~ 4.5 MHz (187.5 ~ 66.7 m)
SW2: 4.5 ~ 12 MHz (66.7 ~ 25 m)
SW3: 12-26.5 MHz (25- 11.3 m)

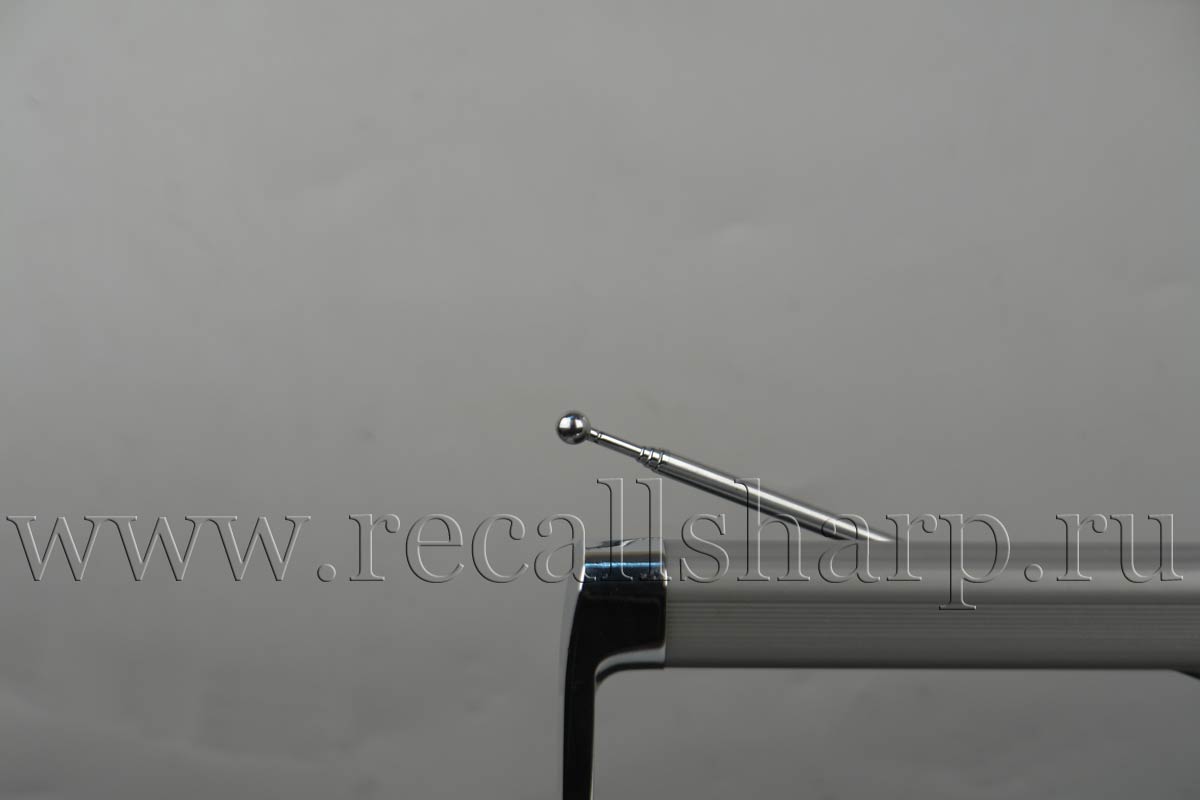

Antennas: FM: telescopic antenna or external antenna
SW2, SW3: telescopic antenna
MW, SW1: high-gain ferrite-rod type
FM Stereo Separation: 35dB (at 1 kHz)
Jacks
External Mic. (right/left): Input sensitivity: 0.2 mV
Input impedance: 1.8 kilohms
Remote: To start and stop tape travel during recording
and playback
Auxiliary Input: 90 mV at 680 kilohms
Tape Output: 200 mV at 7 kilohms
DIN jack: Input sensitivity: 500 mV/22 kilohms
Output sensitivity: 200 mV/7 kilohms
External Speaker: 4 ~ 8 ohms
Headphones: 8 ohms
Power Supply: Mains: AC 110 ~ 127V/220 ~ 240V
(switchable), 50/60 Hz
Batteries: DC 13.5V, 1.5-volt "D" size or
UM-1 (A) flashlight batteries (9)
External power: DC 12 ~ 14V
Power Consumption: 40W maximum
Power Output: 14000 mW maximum (total)
Speakers: Woofers: 160 mm, 4 ohms, dynamic (2)
Tweeters: 50 mm, 8 ohms, dynamic (2)
Dimensions: 522 (W) x 147 (D) x 331 (H) mm
Weight: 8.6 kg (with batteries)
Specifications may be changed without notice.
