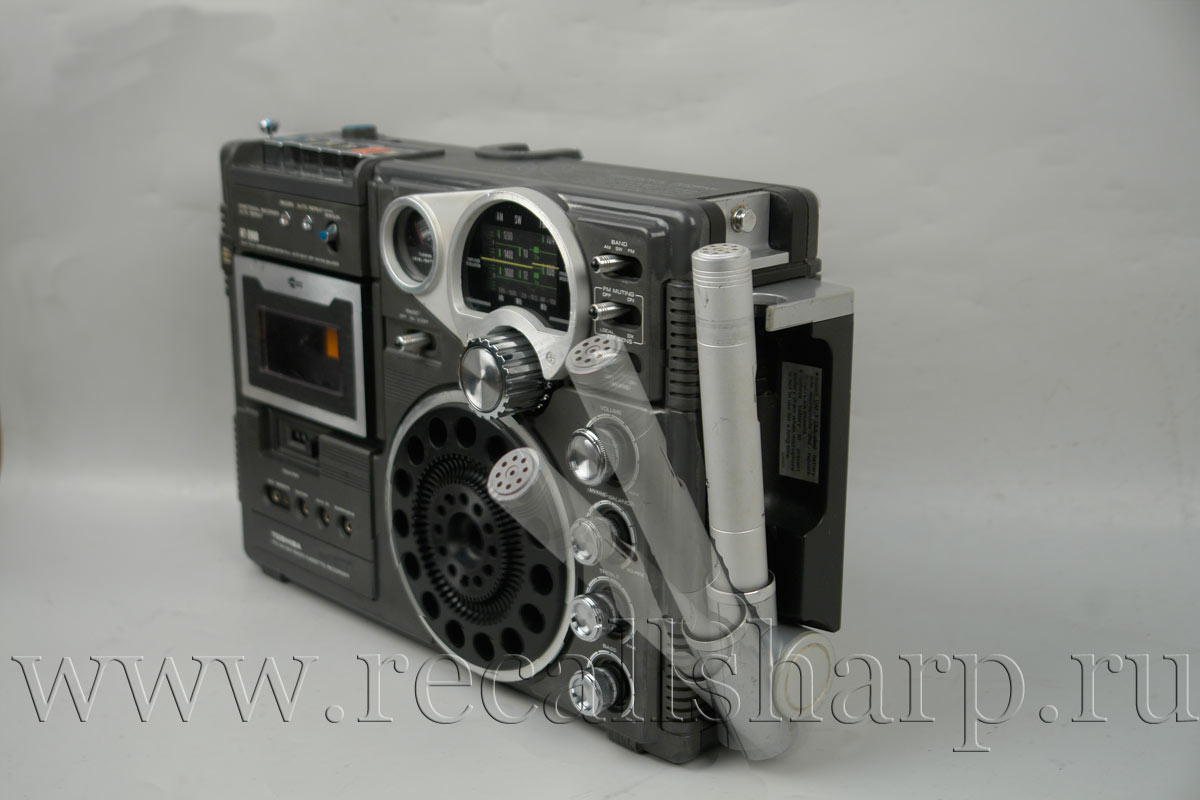

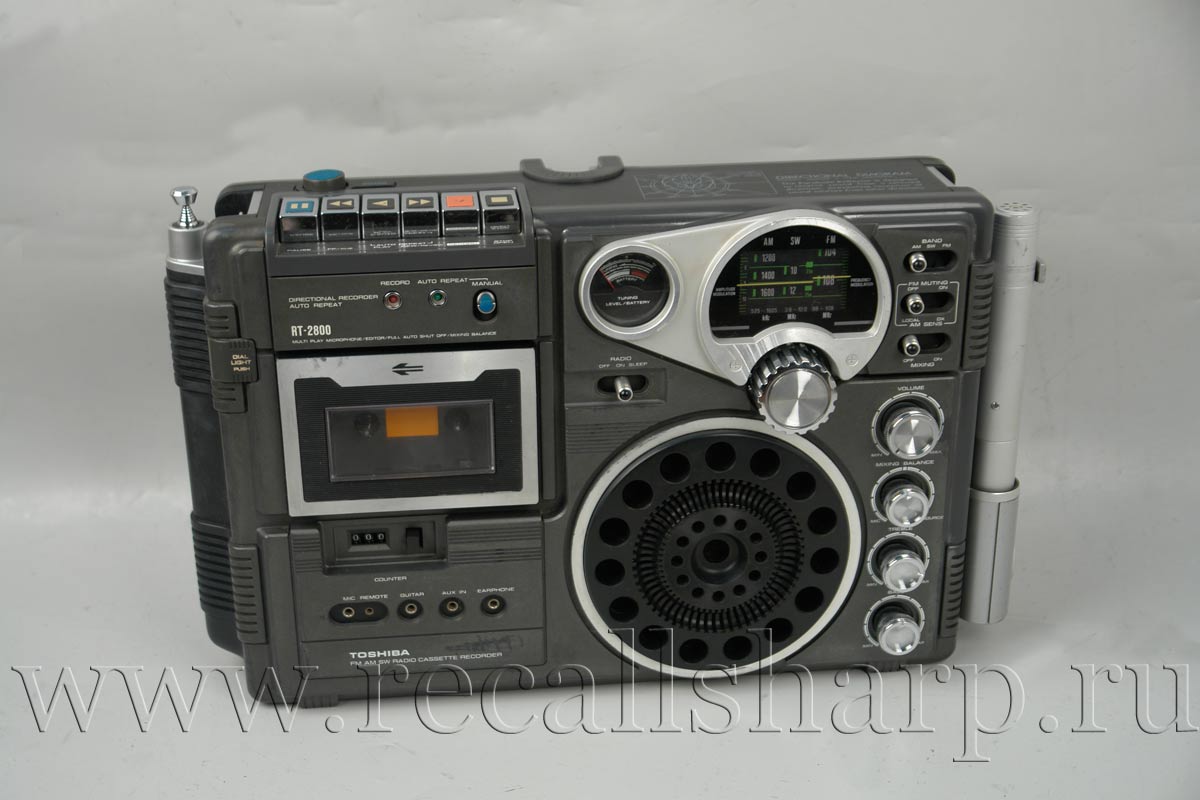

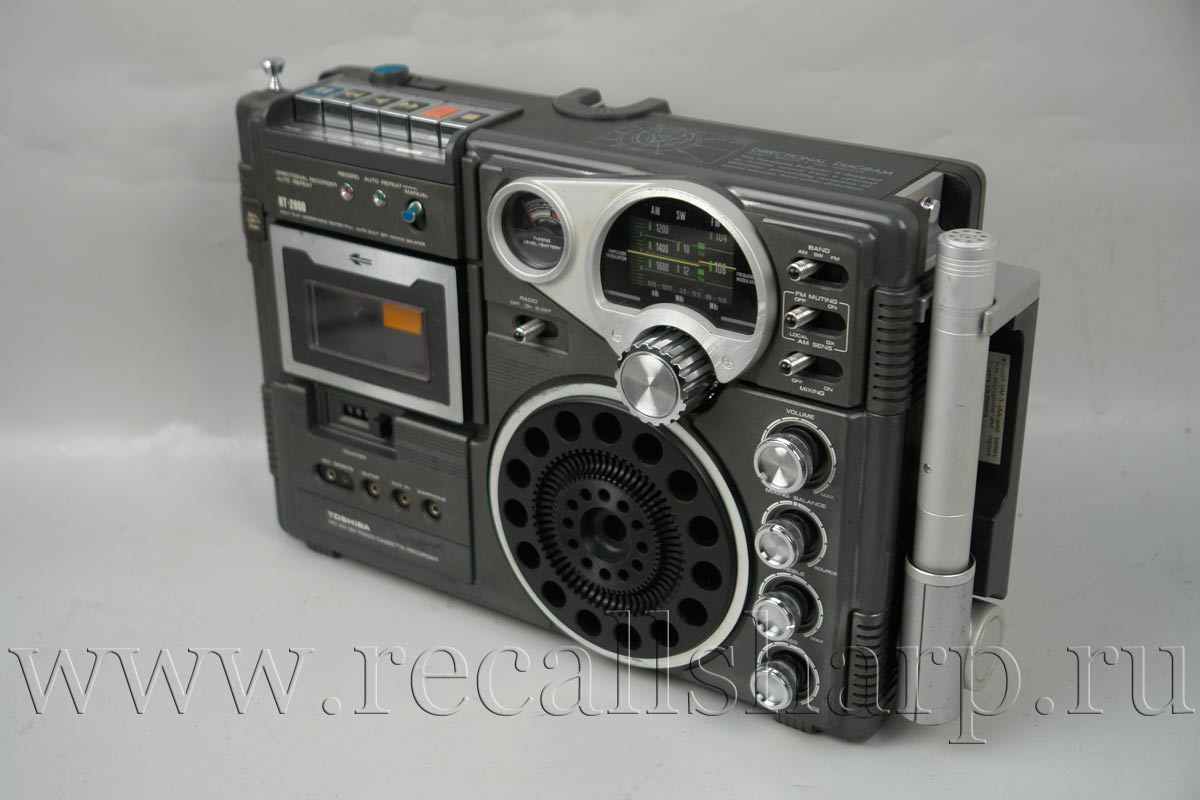

Toshiba RT-2800



: 1978


Specifications
Cassette Tape Used C-30, C-60, C-90, C-120
Tape Speed 4.8 cm/sec.
Track System 2-track, 1-channel Monophonic
Recording System AC bias (35 kHz)
Erasing System Multipolar magnet erasing
Frequency Response 50 Hz to 13 kHz
Receiving Frequency FM: 88 MHz to 108 MHz
SW: 3.2 MHz to 12 MHz
AM: 525 kHz to1605kHz
Intermediate Frequency FM: 10.7 MHz
SW&AM: 455 kHz
Antenna FM,SW: telescopic
antenna AM: ferrite-core antenna
Output power 3W
Speakers 140 mm (dia.) dynamic

Jacks [MIC] External Microphone Jack jack Impedance 2k ohm
[PHONES] jack x1
[AUX IN] Impedance 100k ohm
[GUITAR] Guitar JackImpedance 10k ohm

Power Supply AC 120 V 60 Hz
DC 9 V [SUM-1 (R20) "D" cellx6]
Power Consumption 12 W
Dimensions (W) 418 mm x (H) 251 mm x(D) 112 mm
Weight 5.1 kg (with batteries)
Specifications are subject to change for improvement.


:
