Ãîä íà÷àëà âûïóñêà: 1984
Ðåãèîí: ßïîíèÿ
SPECIFICATIONS

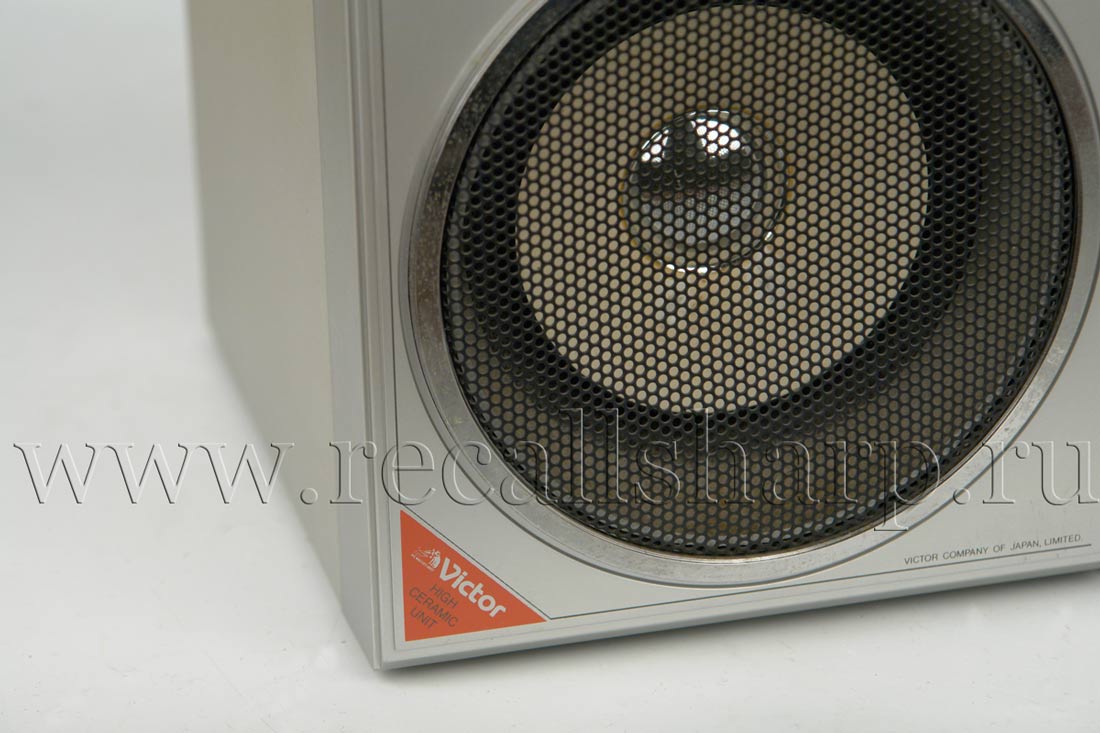

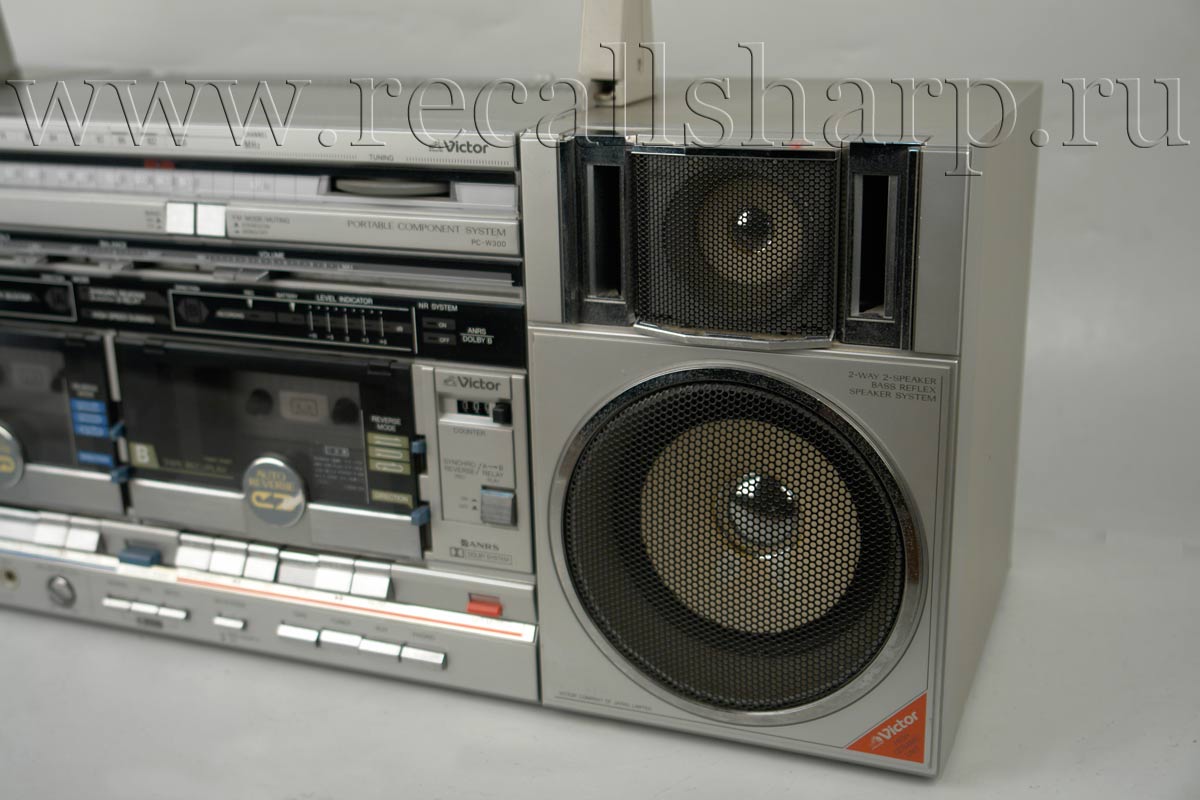

Speakers : 12 cm (5") x 2,
5 cm (2") x 2
Frequency ranges : FM 76 - 108 MHz
AM 530-1605 kHz
Antennas : Telescopic antenna for FM
Ferrite core antenna for AM
Track system : 4-track 2-channel stereo
Motors : Electronic governor DC
motor for capstan x 2 (for Deck A & B)

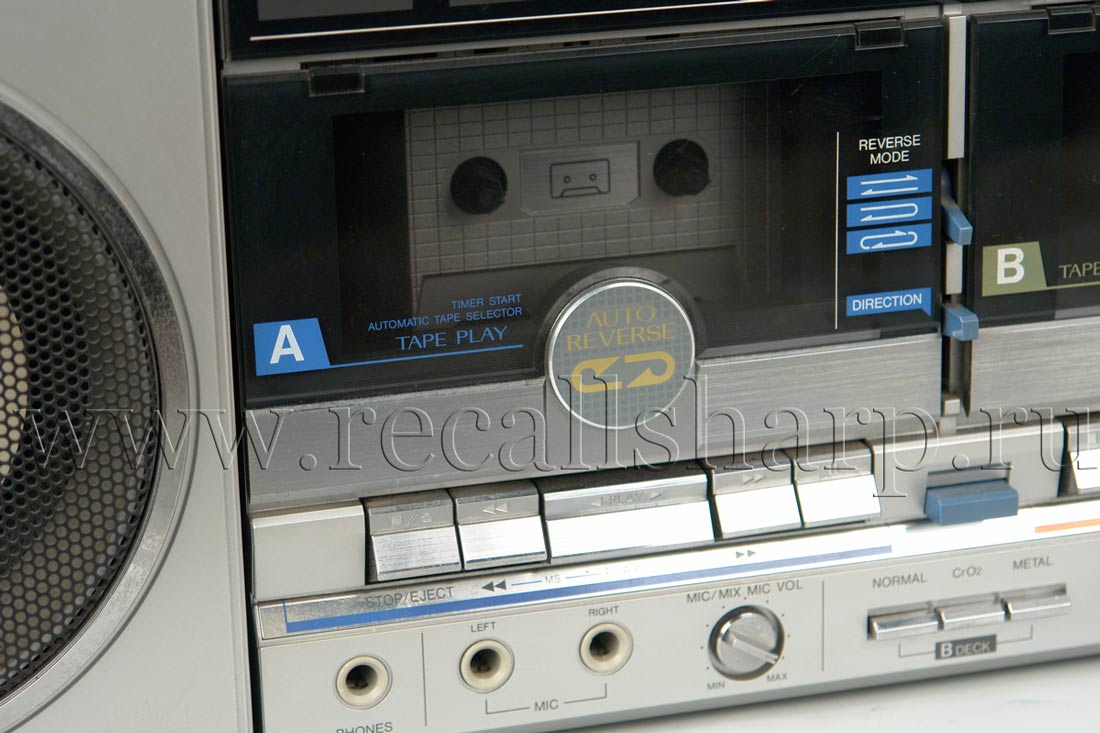

Heads : Deck A; METAPERM head for playback
Deck B; METAPERM head for recording/ playback, 2-gap ferrite head for erasure
Tape speed : At normal speed;
4.8 cm/sec (1-7/8 inch/sec)
At double speed;
9.5 cm/sec (3-3/4 inch/sec)
Frequency response : 30 - 17,000 Hz (with metal (at normal speed) tape)
30 - 16,000 Hz (with chrome tape)
30 - 12,000 Hz (with normal tape)
Signal-to-noise ratio : 54 dB (weighted, at 1 kHz, 3 % THD with metal tape) Improved by 5 dB at 1 kHz and by 10 dB at 5 kHz or more with ANRS/DOLBY B NRON
Wow and flutter : 0.09 % (WRMS), 0.15 % (DIN 45 500)
Fast forward time : Approx. 110 sec. (C-60 cassette)
Rewind time : Approx. 110 sec. (C-60 cassette)

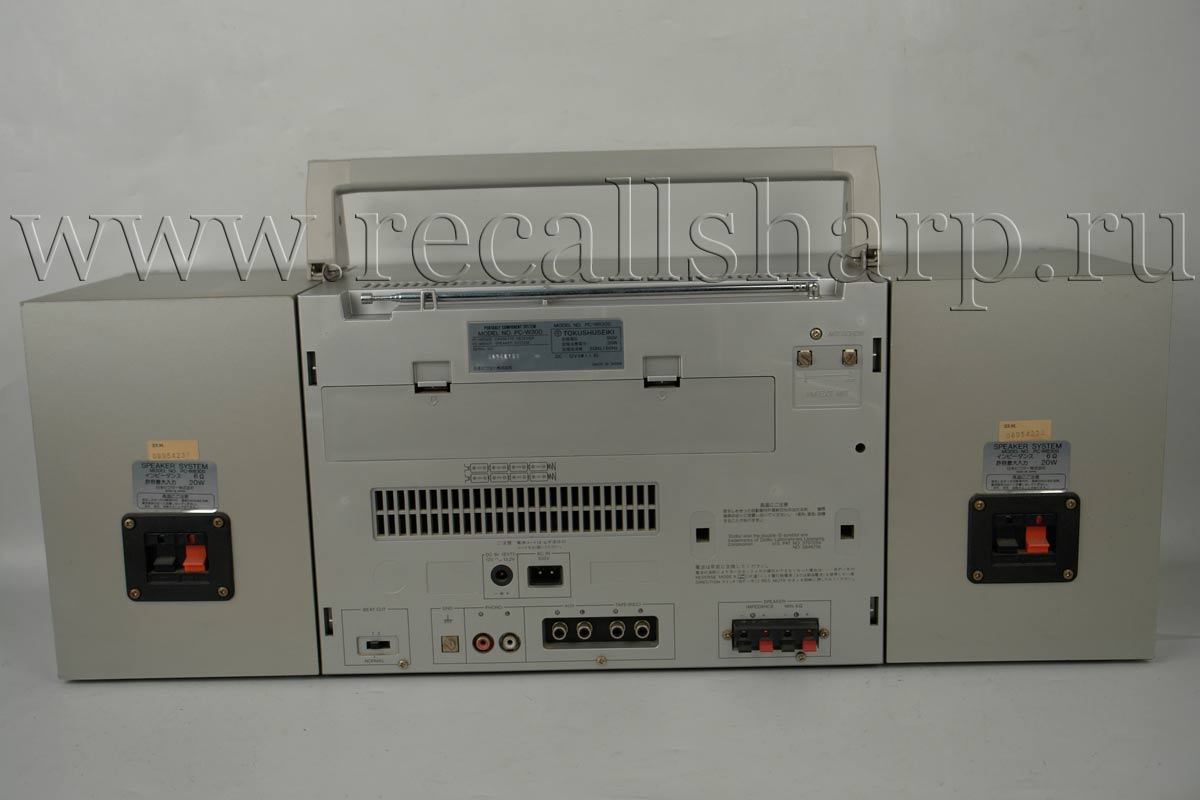

I nput terminals : MIC x 2 (Min. input level:
0.7 mV(-63dBV) Matching impedance: 200 Ω - 2 kΩ)
PHONOx2(2.5mV/47 kΩ) AUX x 2 (300 mV/47 kΩ)
Output jacks : TAPE RECx2 (300 mV/4.7 kΩ),
SPEAKER x 2 (matching impedance 6 Ohm,
PHONES x 1 (Output level: 0~3mW/8Ω, Matching impedance: 8 Ω — 1 kΩ)
DIN socket :
Min. input level:0.6 mV/kΩ
Input impedance: 10 kΩ
Output level: 300mV/-8dBs
Output impedance: 6.6 kΩ
Power output : Total output of 30 W (15 W + 15 W) Max. (6 Ω, AC),
10 W per channel at 10% THD (6 Ω, DC)
Power source : AC 100 V, 50/60 Hz,
DC 12 V ("R20"x8),Ext. DC (car battery via optional CN-332 car adapter)
Power consumption : 39 watts (with power switch on)
0.7 watt (with power switch off)
Dimensions : 663(W)x312(H)x224(D)mm
(23-1/2"x10-3/8"x 7-5/8") including speakers connected with joint fixtures, pads, knobs and handle
Weight : Approx. 11.2 kg (24.6 lbs)with batteries
Approx. 10.4 kg (22.9 lbs) without batteries
Accessories provided: 2 speaker cords (50 cm/ 1.64 ft)
Carrying handle
AC power cord
Demo cassette (LE only)
Design and specifications are subject to change without notice.
|
