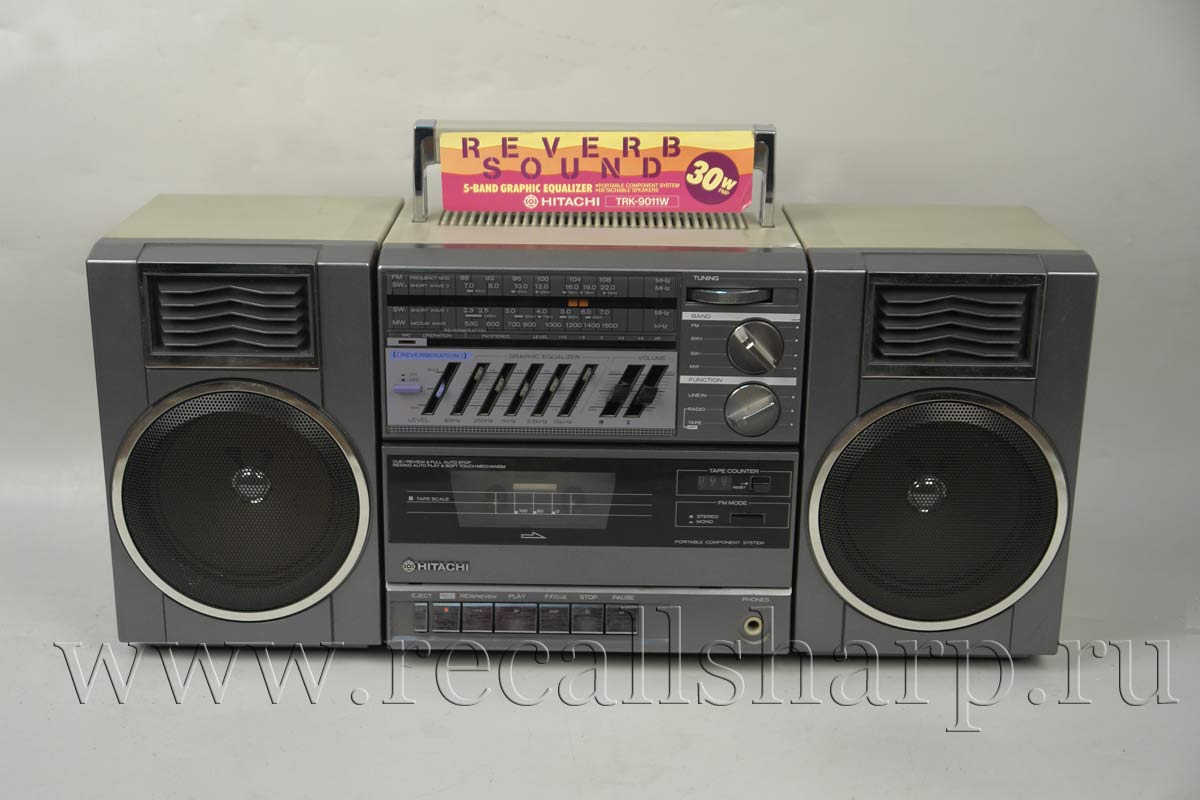

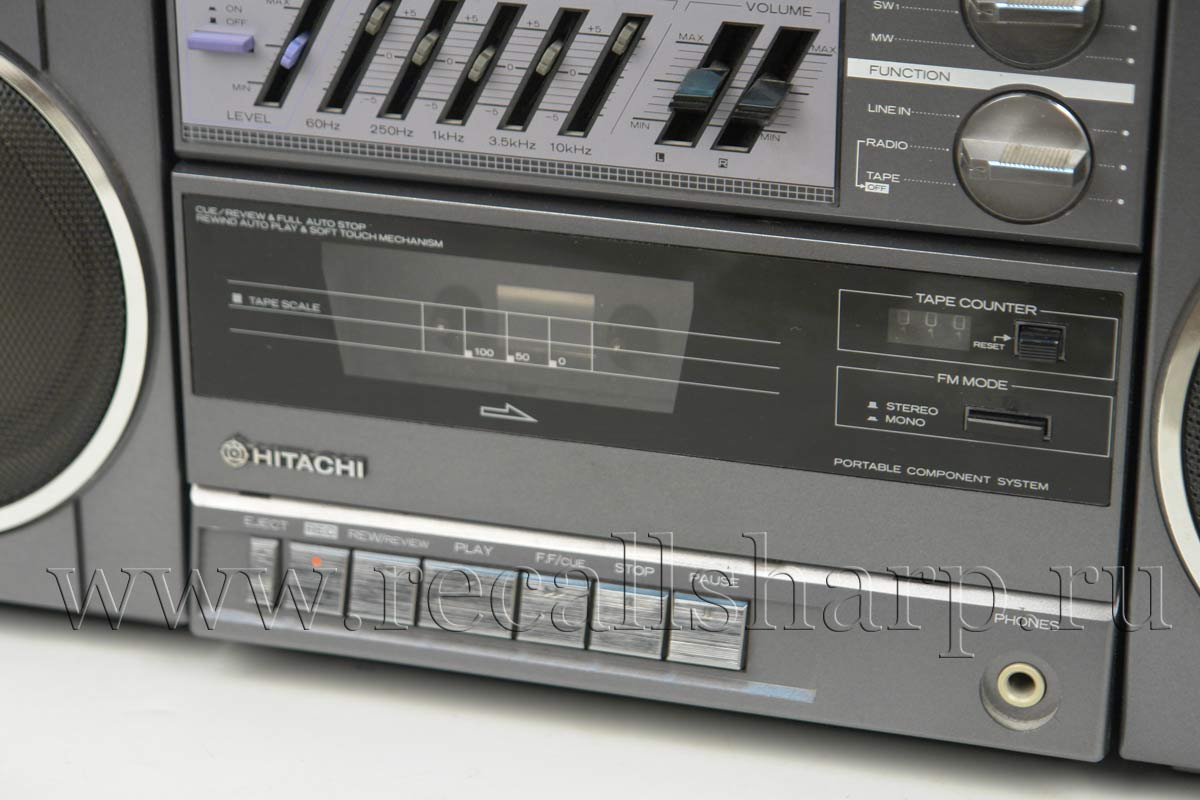

Hitachi TRK-9011 W



: 1984


SPECIFICATIONS
GENERAL SPECIFICATIONS
Power Supply: AC: 110V to 127V, 200 to 220V, 230 to 250V, 50/60 Hz
DC: 12V ["D" cell (IEC R20) x 8 or equivalent] Car: Use 12V car battery adaptor
Power (mains) consumption: 23W
Speakers:
12cm, 2.8 ohms x 2
2 cm, 500 ohms x 2
Output: 30W P.M.P. (AC operation)
5W/CH (10% THD DC)
Dimensions: 232(H) x 514(W) x 204(D) mm
Weights: 6 kg (with batteries)
RADIO SECTIONS
Circuit System: FM/SW2/SW1/MW 4-band superheterodyne
Tuning Range:
FM: 88 to 108 MHz
SW2: 7.0 to 22.0 MHz
SW1: 2.3 to 7.0 MHz
MW: 530 to 1605 kHz Antenna (Aerials): FM/SW2: Telescopic antenna (aerial)
SW1/MW: Built-in ferrite-core antenna (aerial)
TAPE RECORDER SECTION
Tape: Cassette tape
Tape Speed: 4.75 cm/s
Recording System: AC bias
Erasing System: AC erase
Playback Frequency Range: 40 to 12,000 Hz (Normal tape)
Input Sensitivity and Impedance: External microphone: 4 mV, 600 ohms
Line in: 400 mV, 47 kohms Output Level and Load Impedance: Line out: 775 mV, 1 kohm
Headphones: 8 ohms to 300 ohms
External speaker: 2.8 to 8 ohms
Specifications are subject to change for performance improvement without notice.


:
Hitachi TRK-9011 E
Talbot : 28.01.2016 01:35:12
Mrs,
Mr.

I would change the belts of hifi Hitachi TRK-9011E chain (1984). Could you give me the dimensions of the belts?

Thank you in advance for your answer.

Sincerely,

Régis Talbot
talbotregis@hotmail.fr
from Belgium :)
