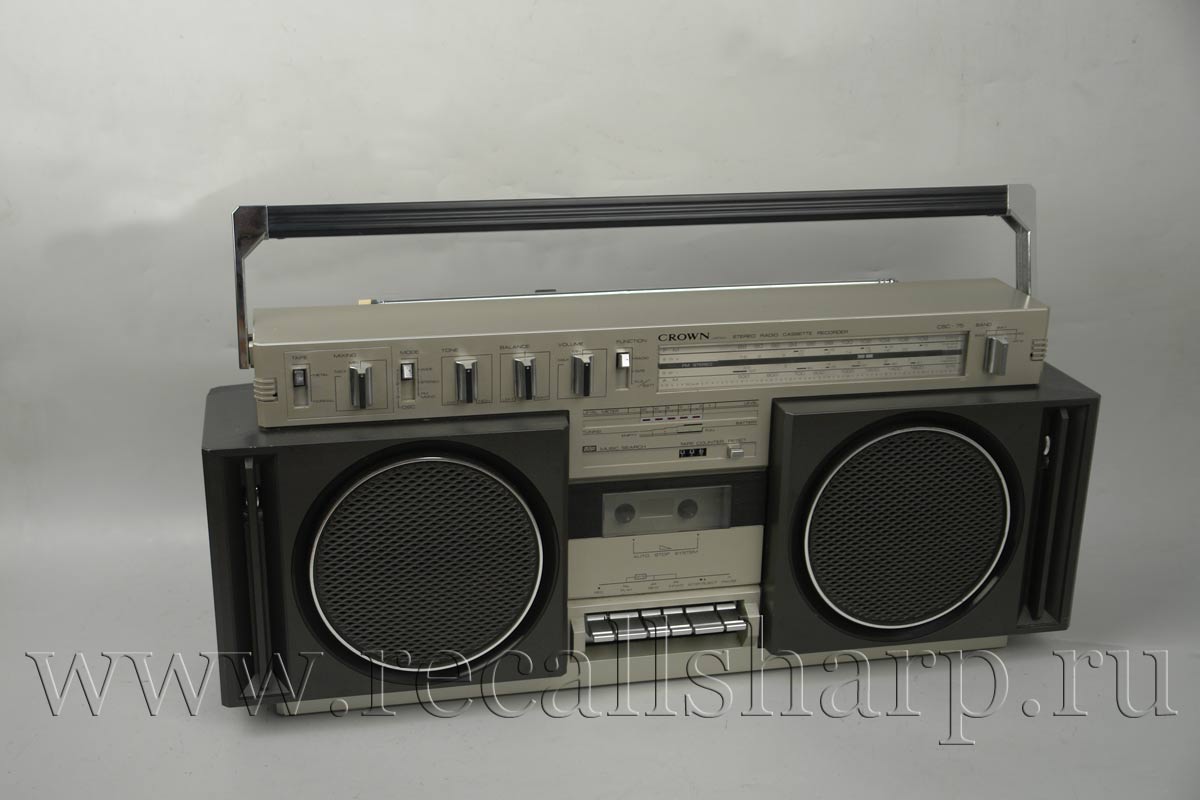

CROWN CSC-75 F



: 1981


Specifications (Catalog specifications for sales)
RADIO SECTION
Frequency Range:
FM; 88-108MHz
MW; 520-1605kHz
SW1;2.5-7.5MHz
SW2;7.5-21.5MHz
Usable Sensitivity FM; 6μV
MW; 650μV/m
SW1; 650μV/m
SW2; 50μV
IF AM 455kHz
FM: 10.7MHz
MPX Separation FM: 18dB
Frequency Response: … FM: 250 Hz-8kHz±6 dB
MW: 250 Hz-2.2kHz 8 dB


TAPE RECORDER SECTION:

Recording system; AC bias,4-track 2-channel,Stereo
Erase system AC erase

Tape speed: 4.75cm/sec +3/-2%

Wow&flutter : 0.3%(Play,JIS,WRMS)
Power output: 3.4W x2 ... (10%THD)DC
OTHER SECTION
Power requirement: AC;120/220V, 50/60Hz
Battery; 12V (eight- R20 size dry batteries)

Dimensions: 567mm(W) x 248mm(H) x 120mm(D)
Weight: 5.1kg
