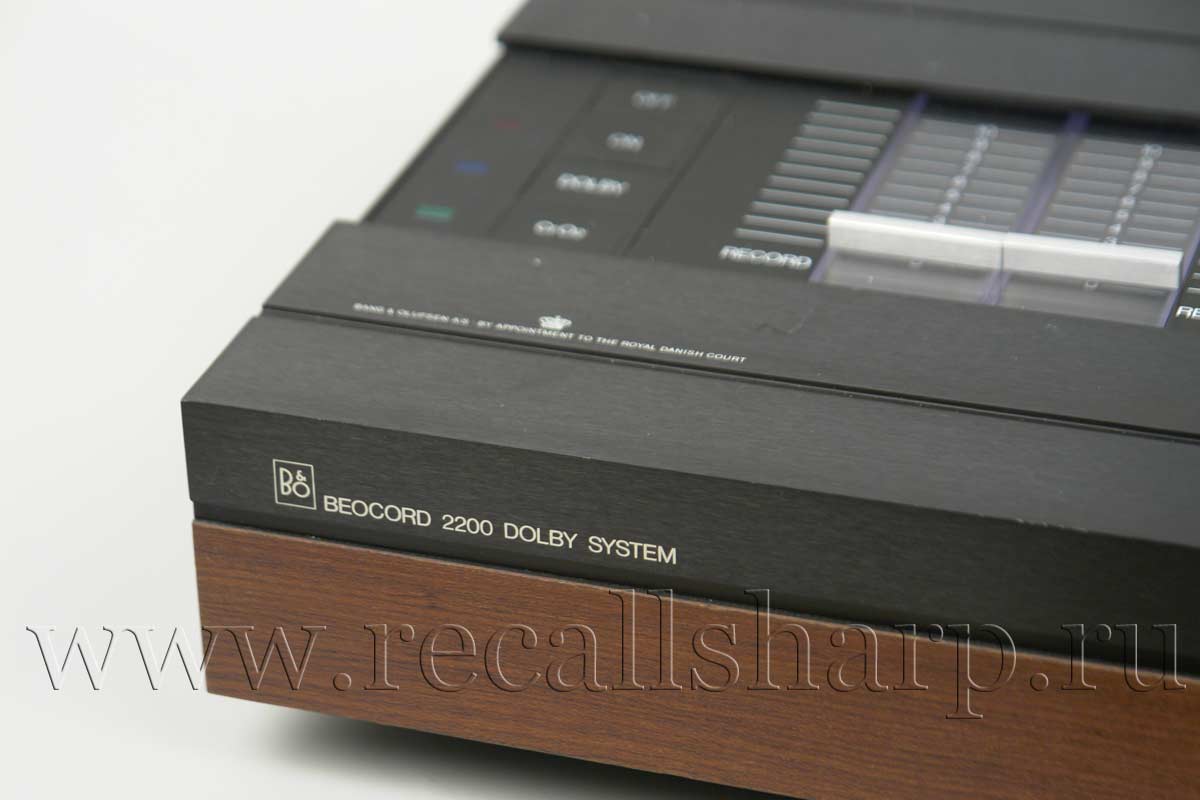

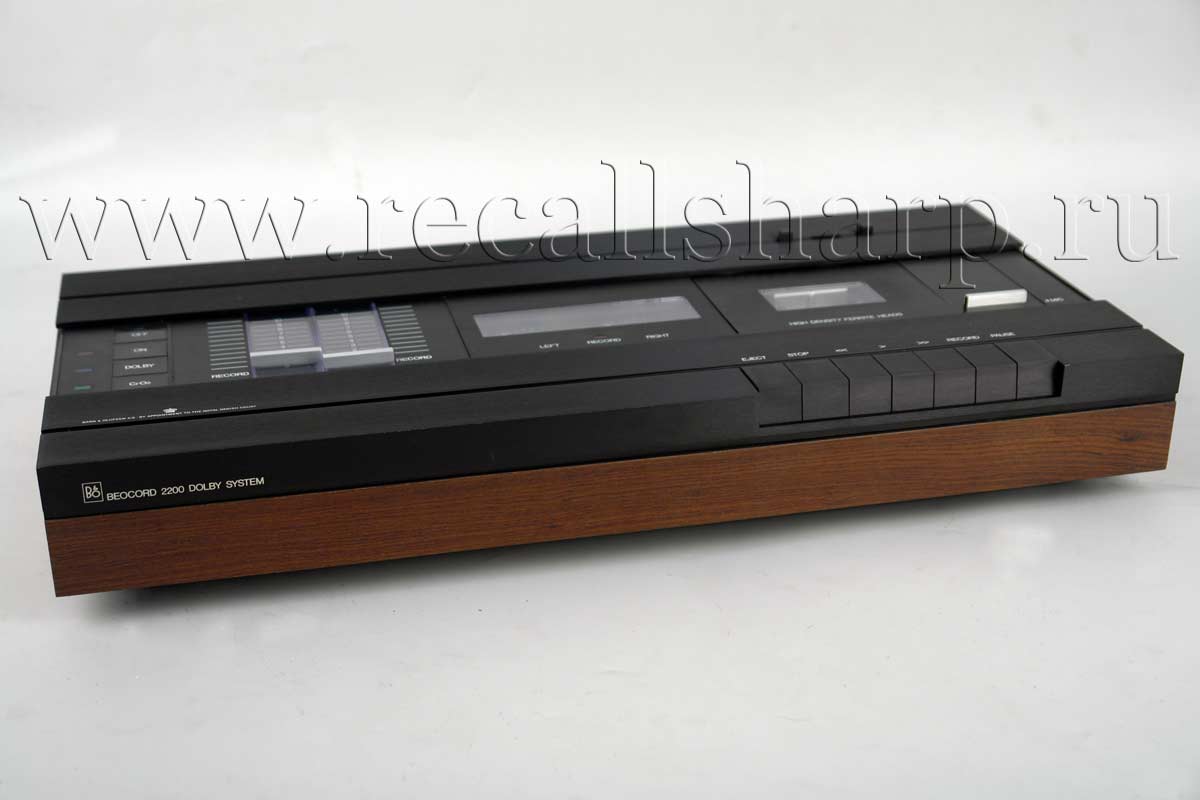

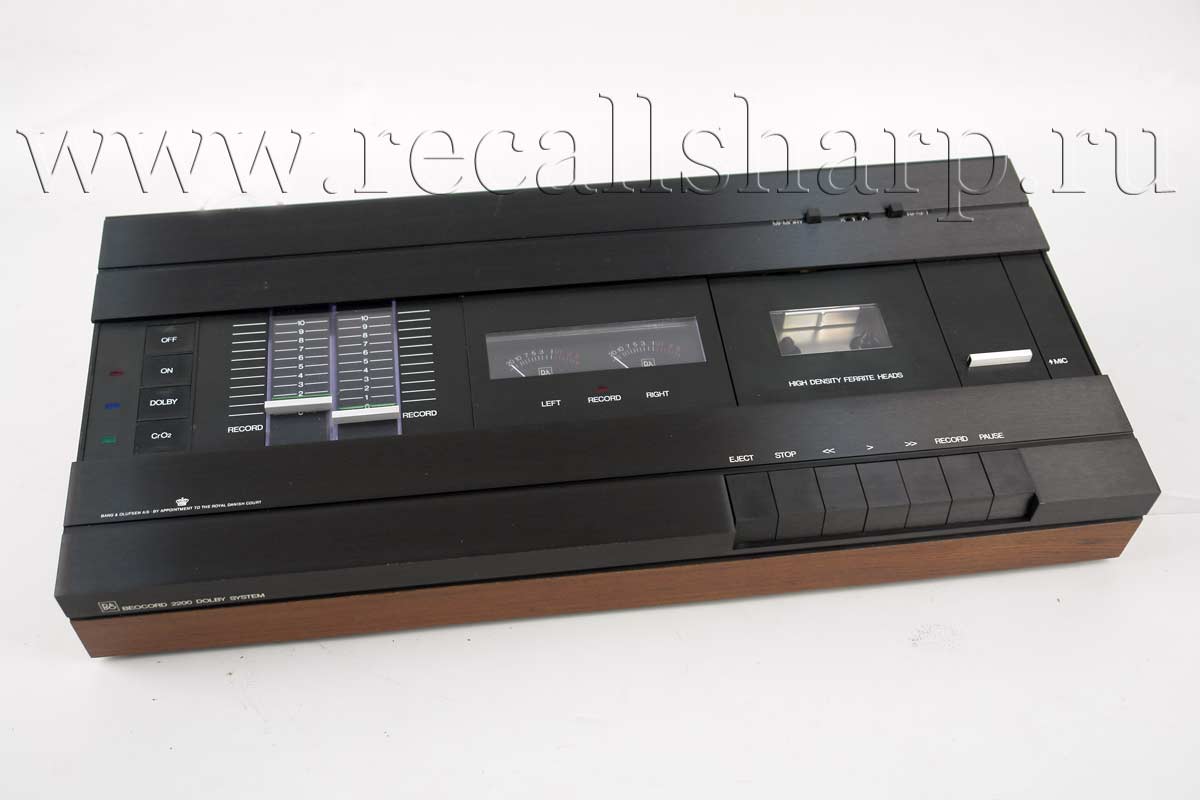

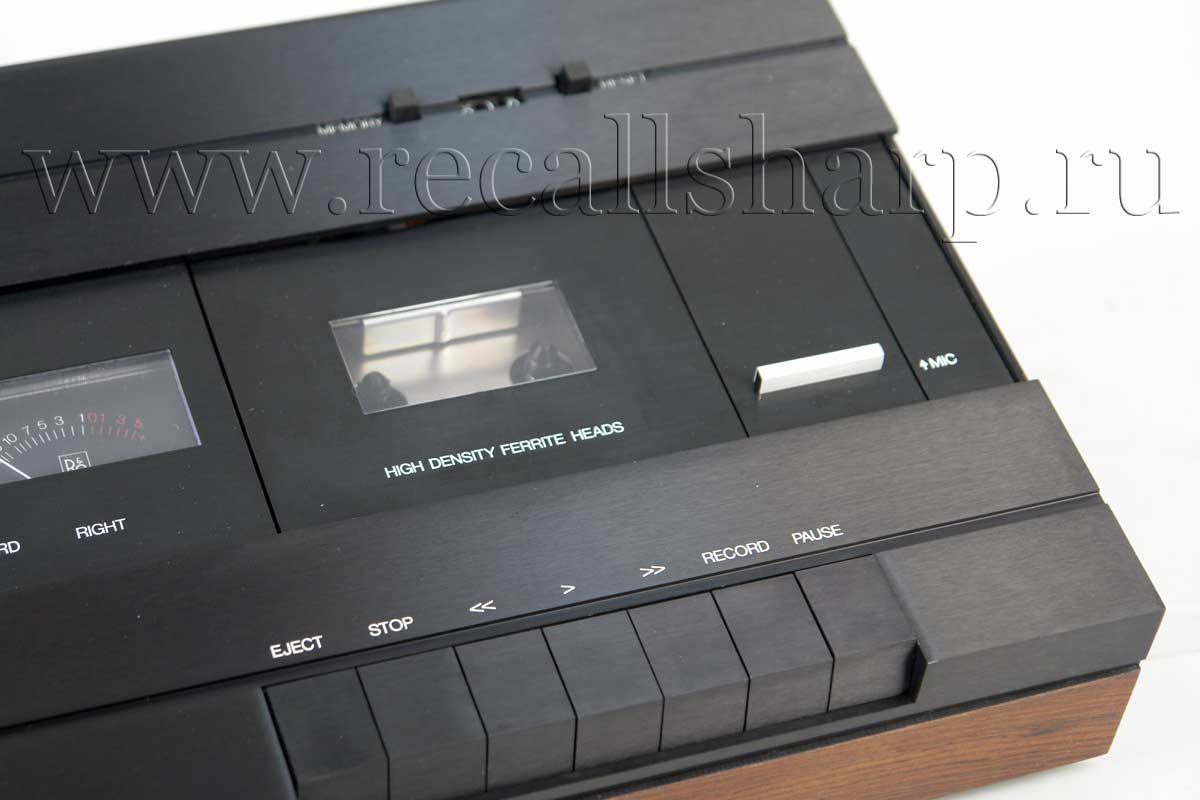

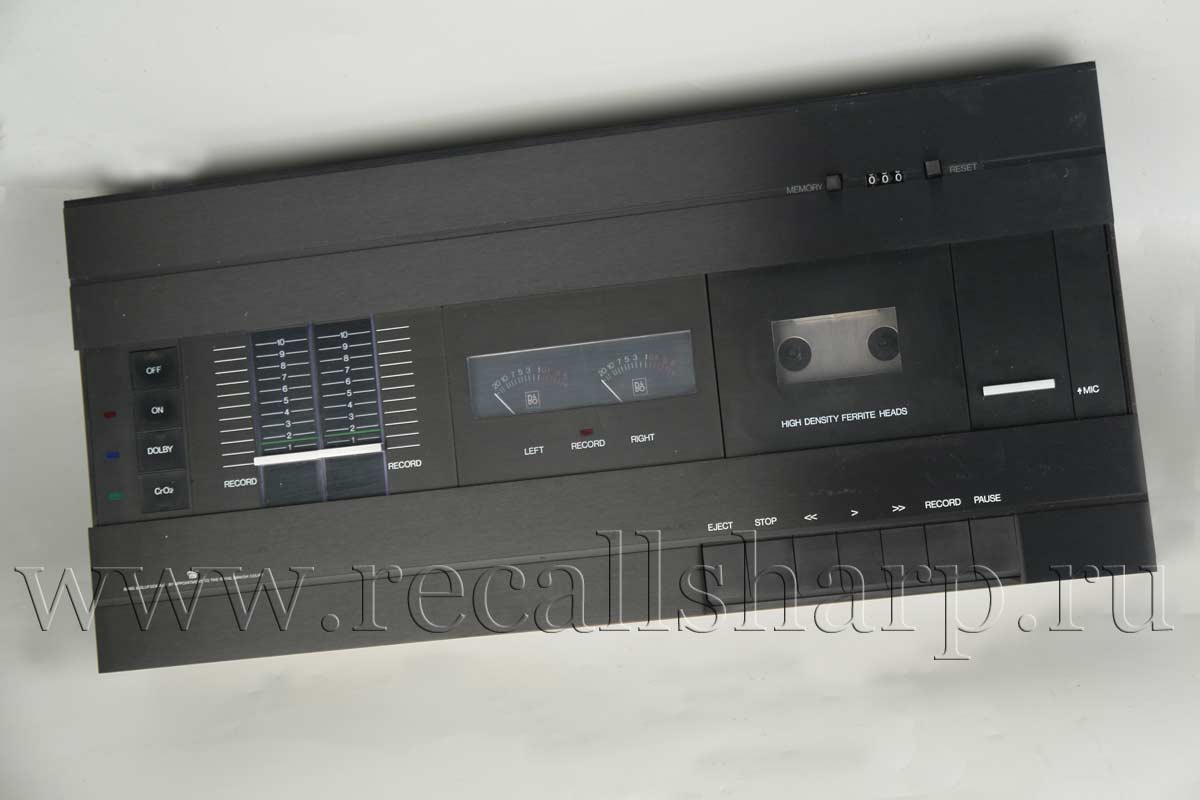

BEOCORD 2200



: 1973


TECHNICAL DATA
BEOCORD 2200
Dolby Type 4601
Tape system Compact Cassette C 60 - C 90
Tape type Low noise Yes
Chromium dioxide, Cr02 Yes
Dolby system Built-in or prepared Built-in
Tape head Type Ferrite
Recording control Left and right channels Separate
VU meter Indicator system Two VU meters
Automatic stop Stop at end of tape Yes
Counter Number of digits Three digits
Memory Automatic stop at 000 Yes
Microphone Mono/stereo socket Yes
AUX Socket for copying Yes
Headphones Jack socket Yes
Wow and flutter DIN 45 500 < ±0,2%
JIS < ±0,12%
Speed Deviation DIN 45 500 < ±1.5%
Fast Forward and Rewind C 60 70 sec.
Frequency Range DIN 45 500 30-14,500 Hz
Signal - to noise Ratio DIN 45 500, Chromium dioxide >52dB
Dolby, Chromium dioxide >61 dB
Erasure DIN 45 500 >70dB
Erase Frequency 80 kHz
Inputs Sensitivity, VU 0 dB, 1000 Hz 4 - 400 mV/47 kohm
Microphone 0.1 - 1 mV/1 kohm
AUX 0.2 - 20 V/2.2 Mohm
Outputs Signal voltage, 1000 Hz 660 mV/6.3 kohm
Headphones 0.5 - 0.8 mW
Dimensions H X W X D 7.5 X 50 X 23 cm
