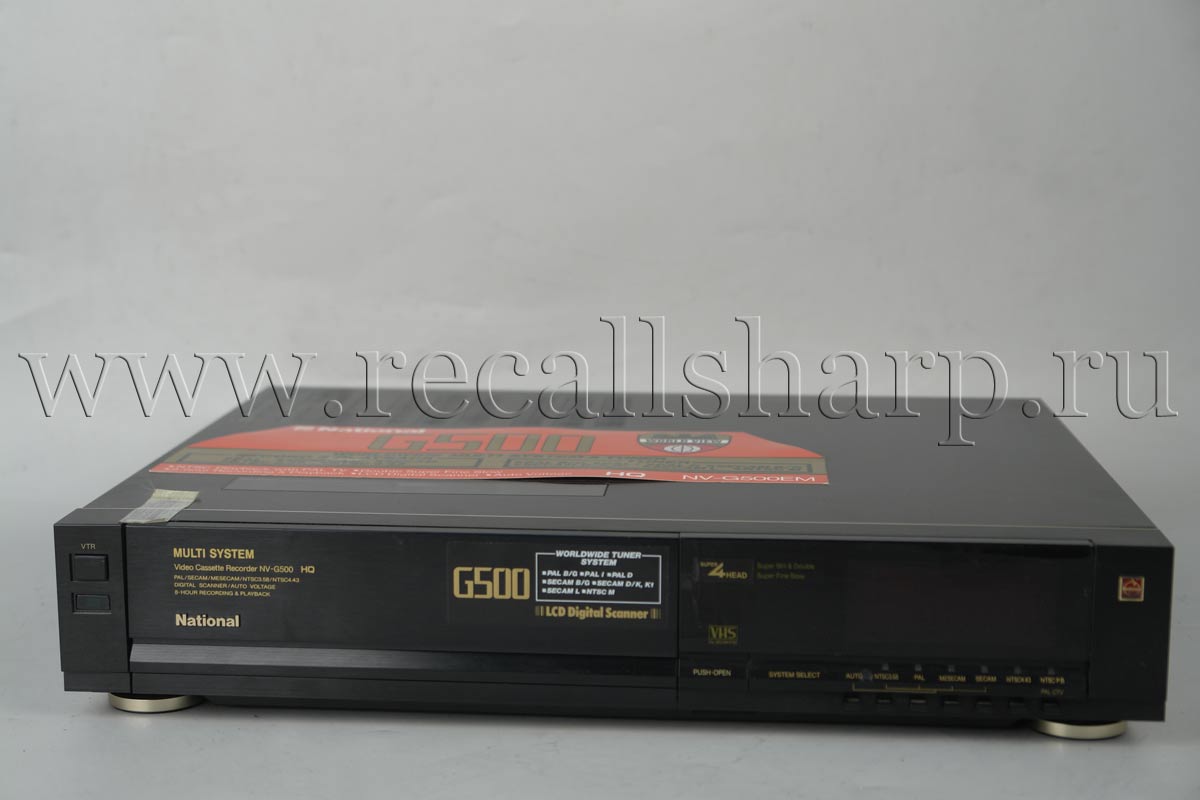

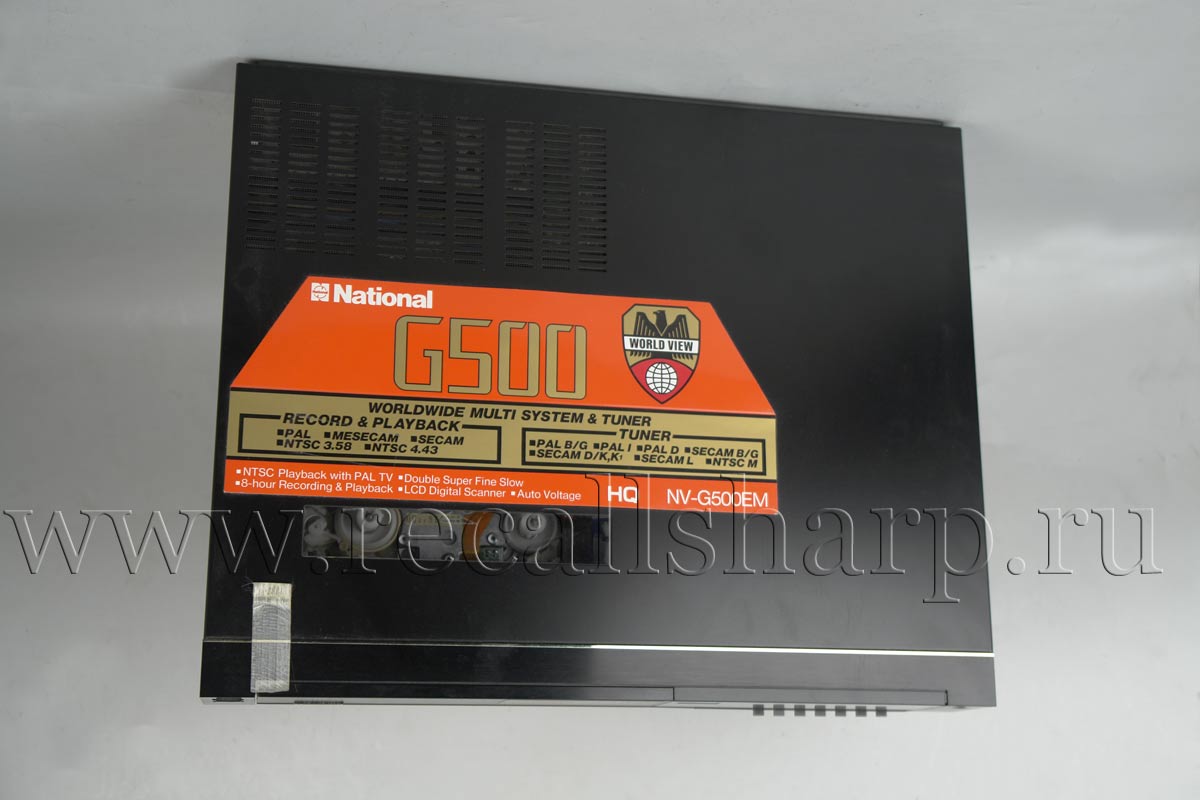

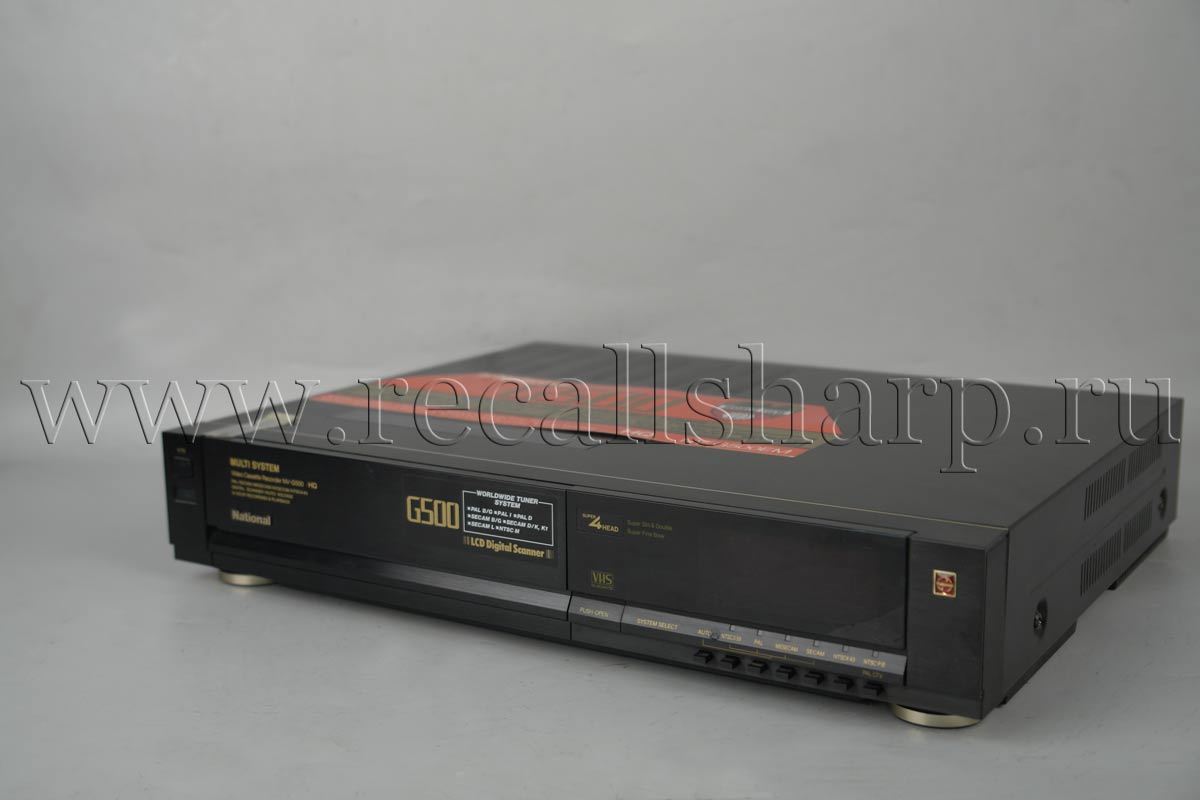

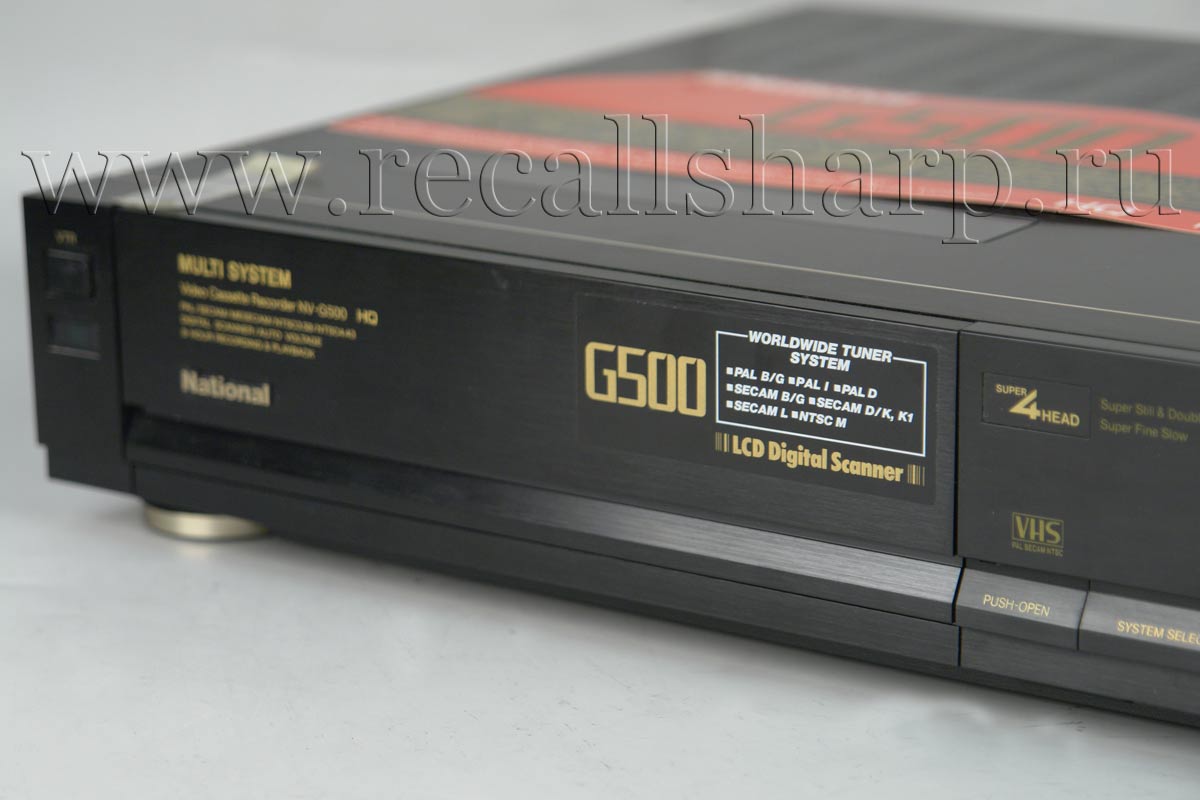

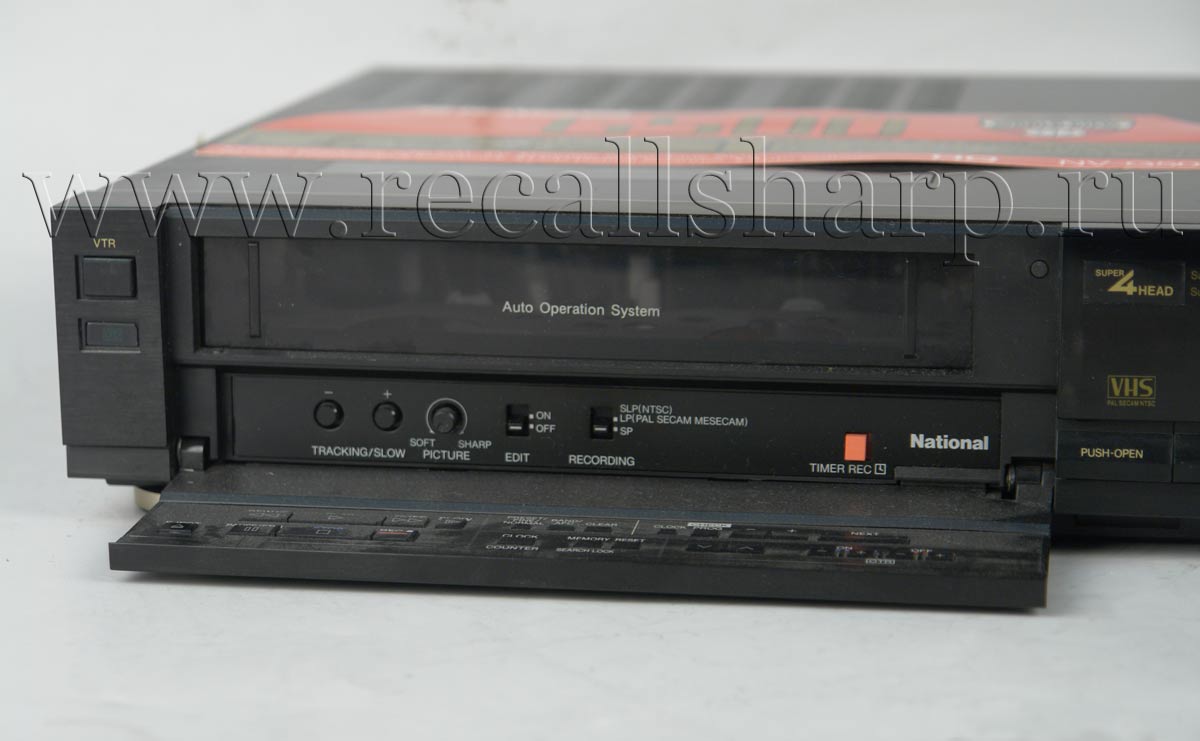

National NV-G500EM



: 1989


Specifications
NV-G500EM
Power Source: 110-240 V(autovoltage)AC 50-60 Hz
Power Consumption: Approx. 27 watts
Video Recording System: 2 rotary heads, helical scanning system
Tape Speed: SP 23.39 mm/sec. (PAL/SECAM) 33.33mm/sec(NTCS)
LP 11.965mm/sec
(PAL/SECAM)
SLP 11.1 mm/sec(NTCS)
Tape Format: VHS tape
Record/Playback Time: SP 240 min. with NV-E240
(PAL/SECAM) 160min with NV-T160(NTCS)
LP 480 min with NV-E240 (PAL/SECAM)
SLP480 min with NV-T160(NTCS)
FF/REW Time: Less than 5.5 min. with NV-E180
VIDEO Television System: CCIR; 625 lines, 50 fields, PAL/SECAM
colour signal
EIA: Standart(525 lines,60 fields) NTCS colour signal
Modulation System: Luminance; FM azimuth recording
Colour signal; converted subcarrier phase shift recording

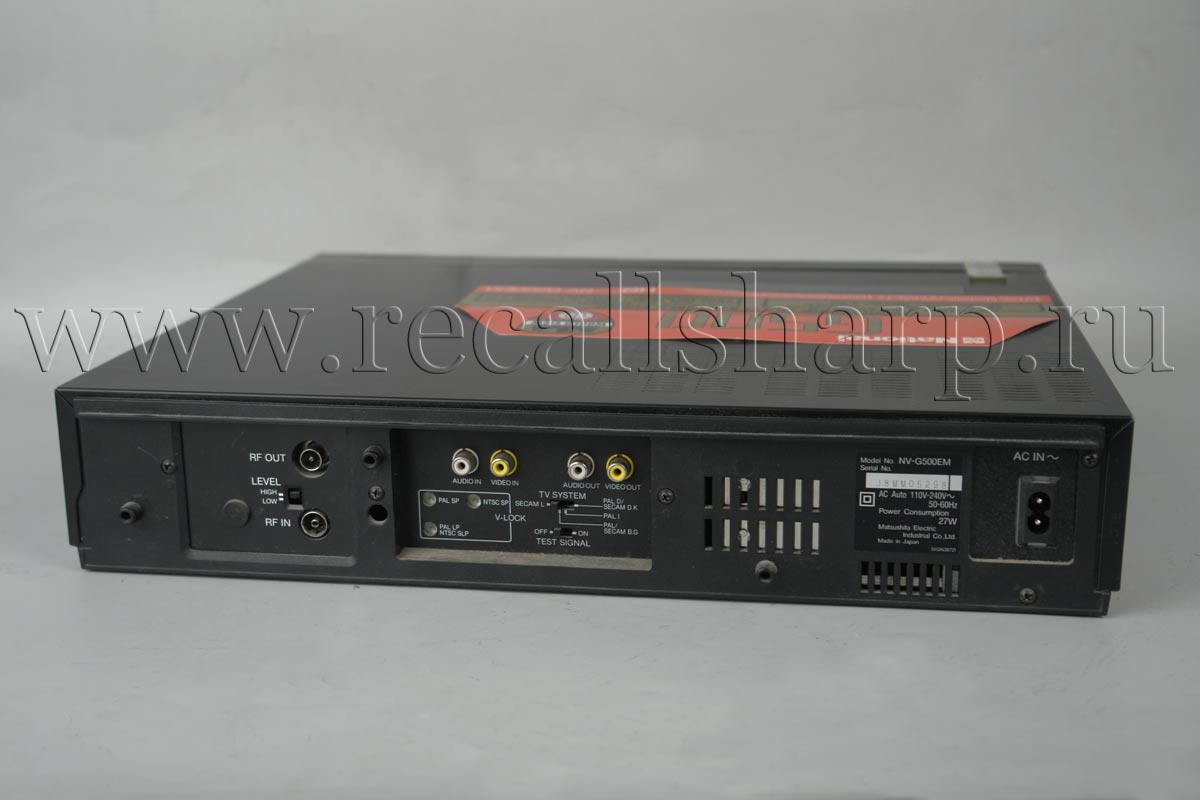

Input Level: VIDEO IN (PHONO); 1.0Vp-p, 75 ohm, unbalanced
Output Level: VIDEO OUT (PHONO); 1.0Vp-p, 75 ohm, unbalanced
RF Modulated; UHF channel 36 (±4), 75 ohm, unbalanced
AUDIO Input Level: AUDIO IN (PHONO); -10 dB, more than 50 kohm, unbalanced
Output Level: AUDIO OUT (PHONO); -8dB, less than 1 kohm, unbalanced
Audio Track: 1 track (Normal-mono only)
Video Horizontal Resolution: Colour; more than 240 lines
Signal-to-Noise Ratio: Video; more than 43 dB
Audio; more than 43 dB
Audio Frequency Response: 80 Hz-10 kHz (SP)
Operating Temperature: 5°C-40°C
Operating Humidity: 35%-80%
Weight: 6.0 kg
Dimensions: 430 (W) x 82 (H) x 370 (D) mm
Standard Accessories: 1 pc. DIN-DIN Coaxial Cable
1 pc. Infra-red Remote Controller
2 pcs. "R6" size batteries
1 pc Digital scanner(With programming Sheet)
4 pcs
"R03" size batteries (For Digital Scanner)
1 pc. AC Mains Lead
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.

:
