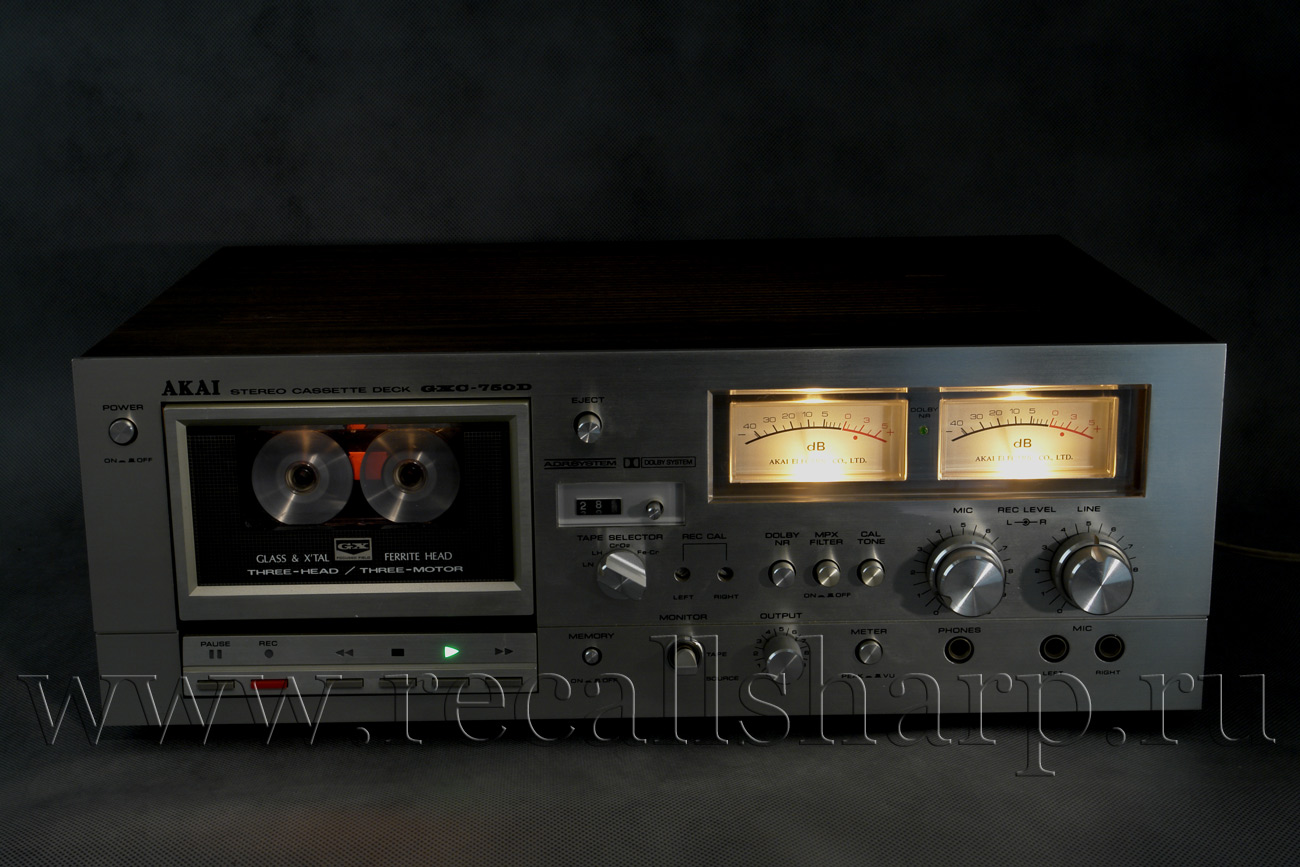

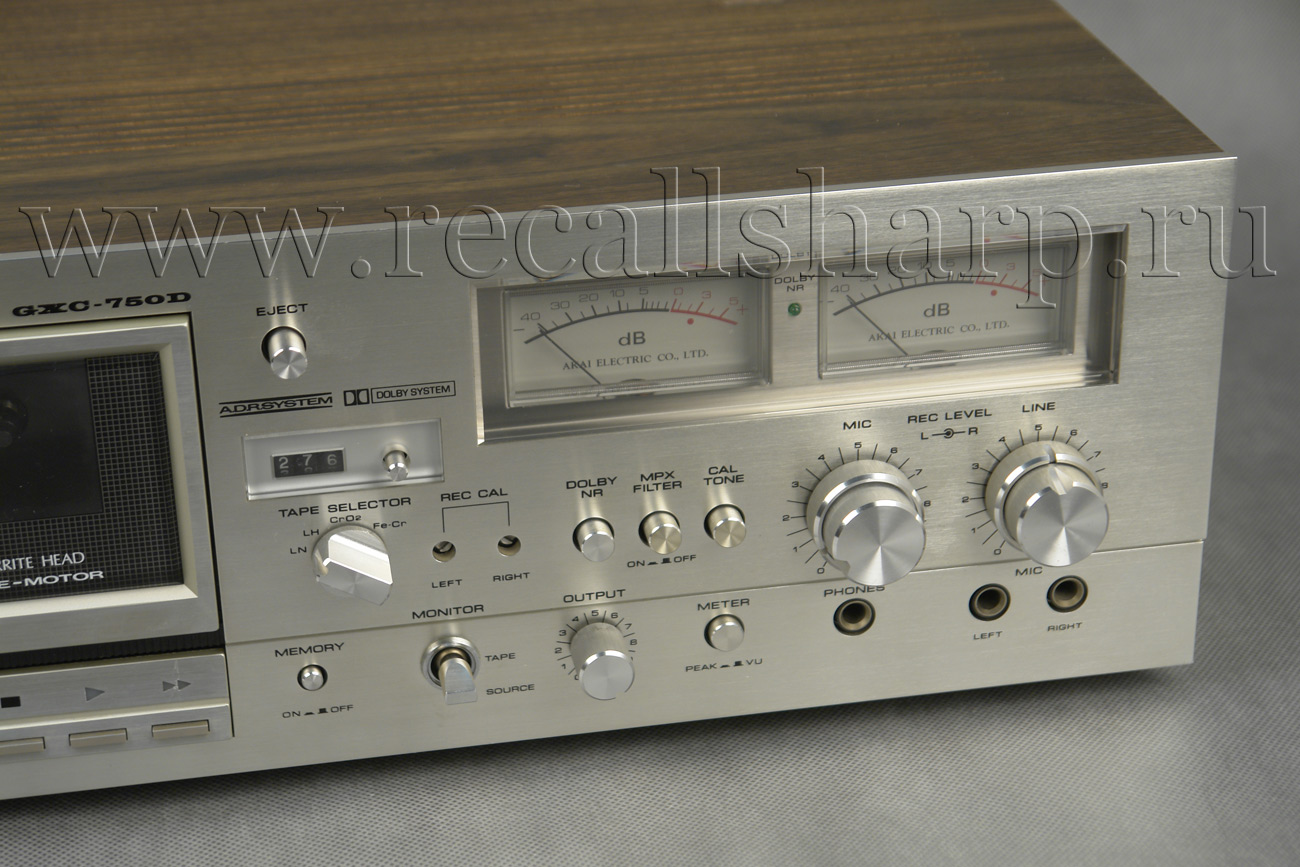

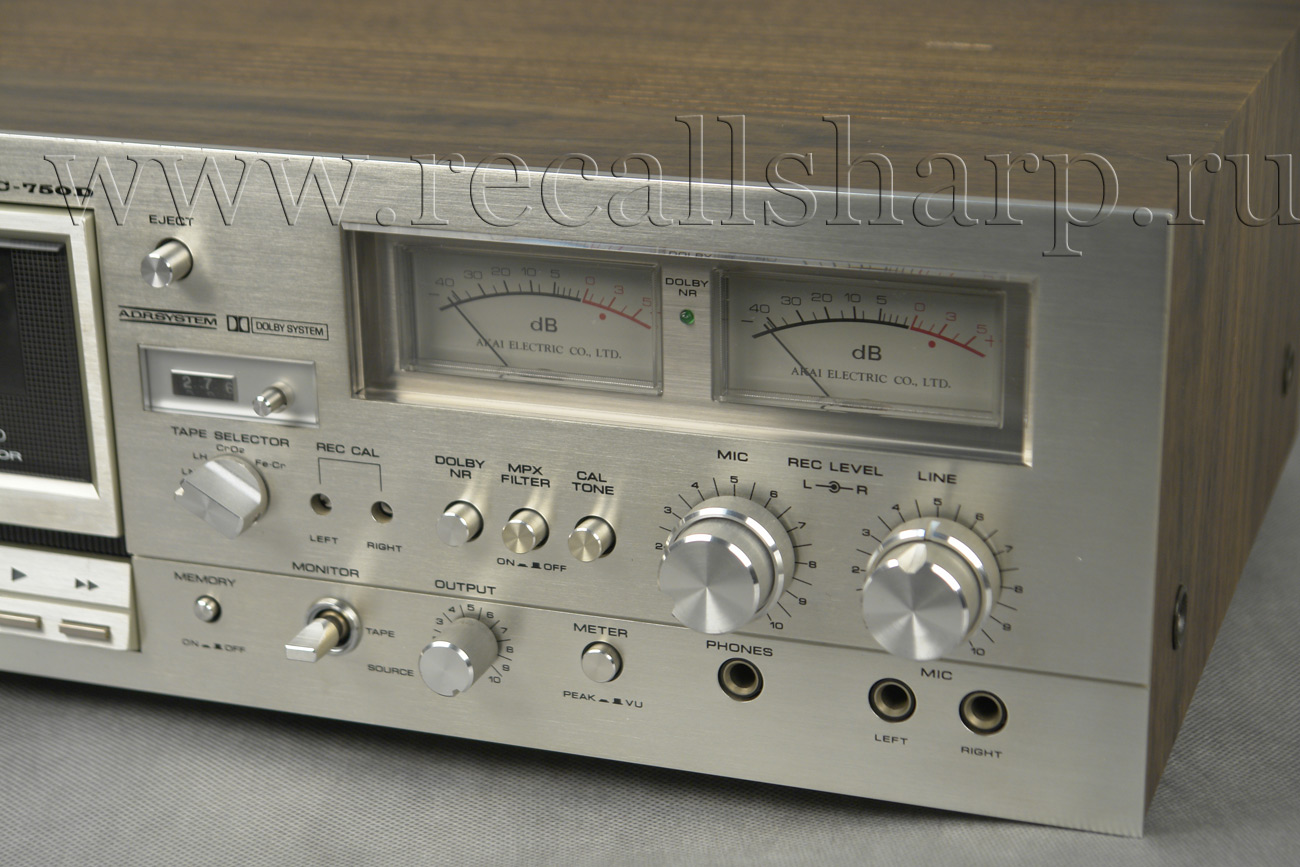

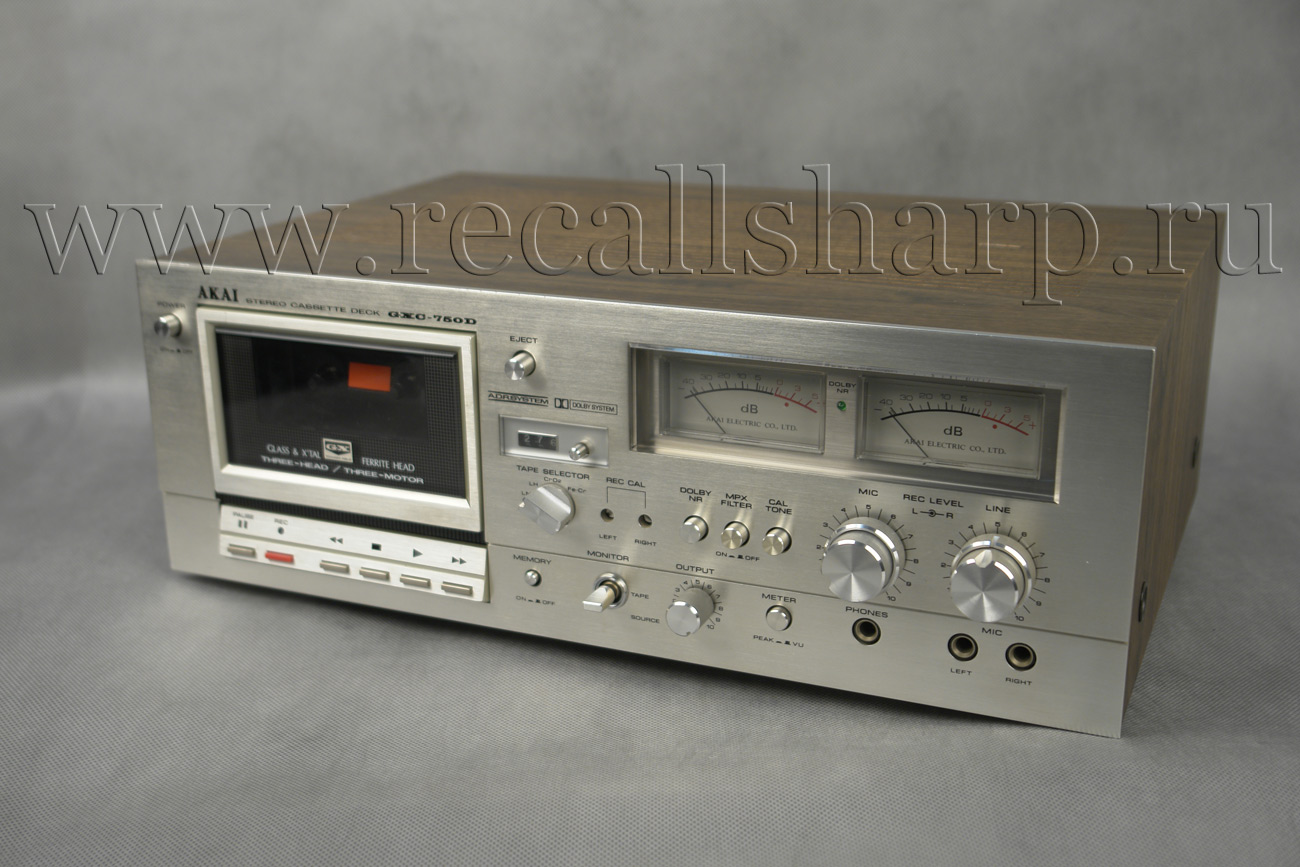

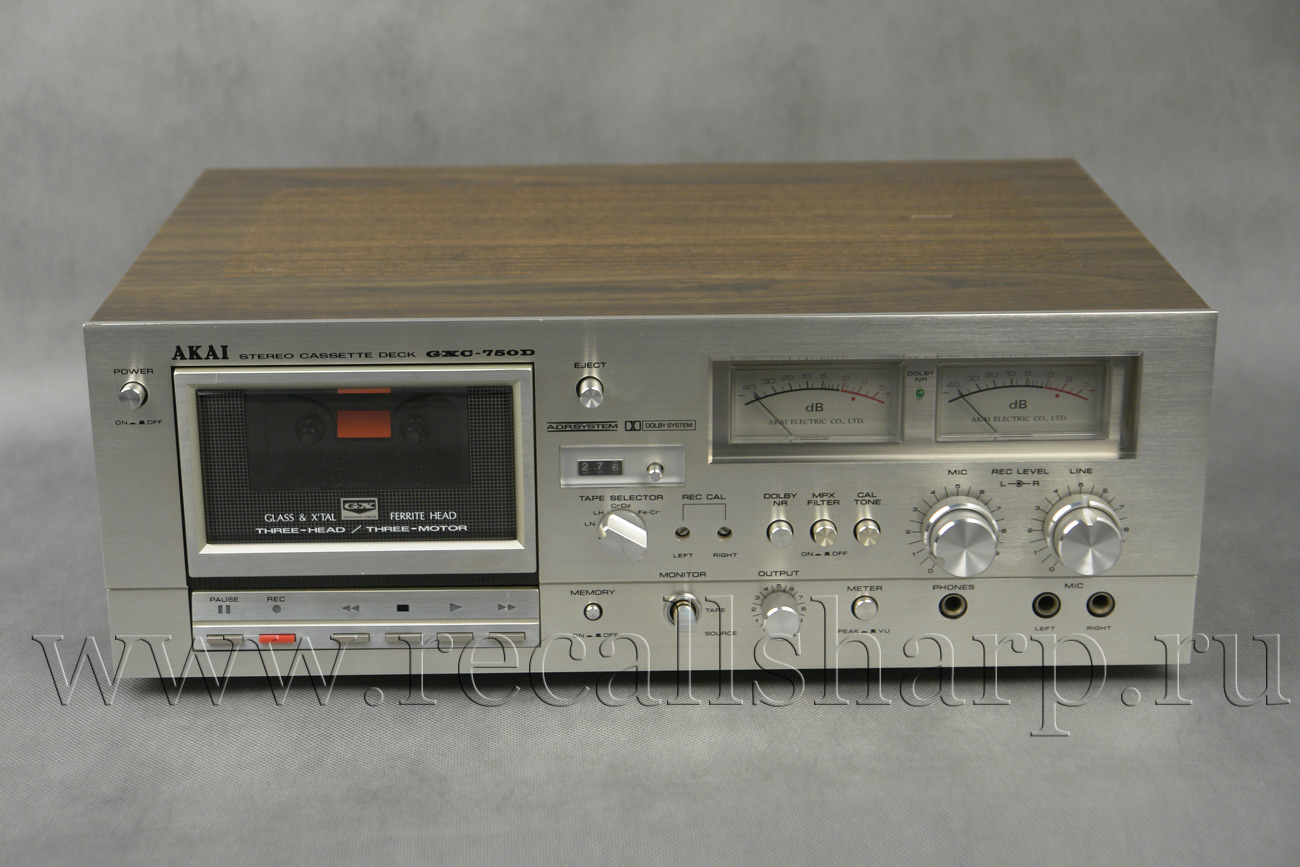

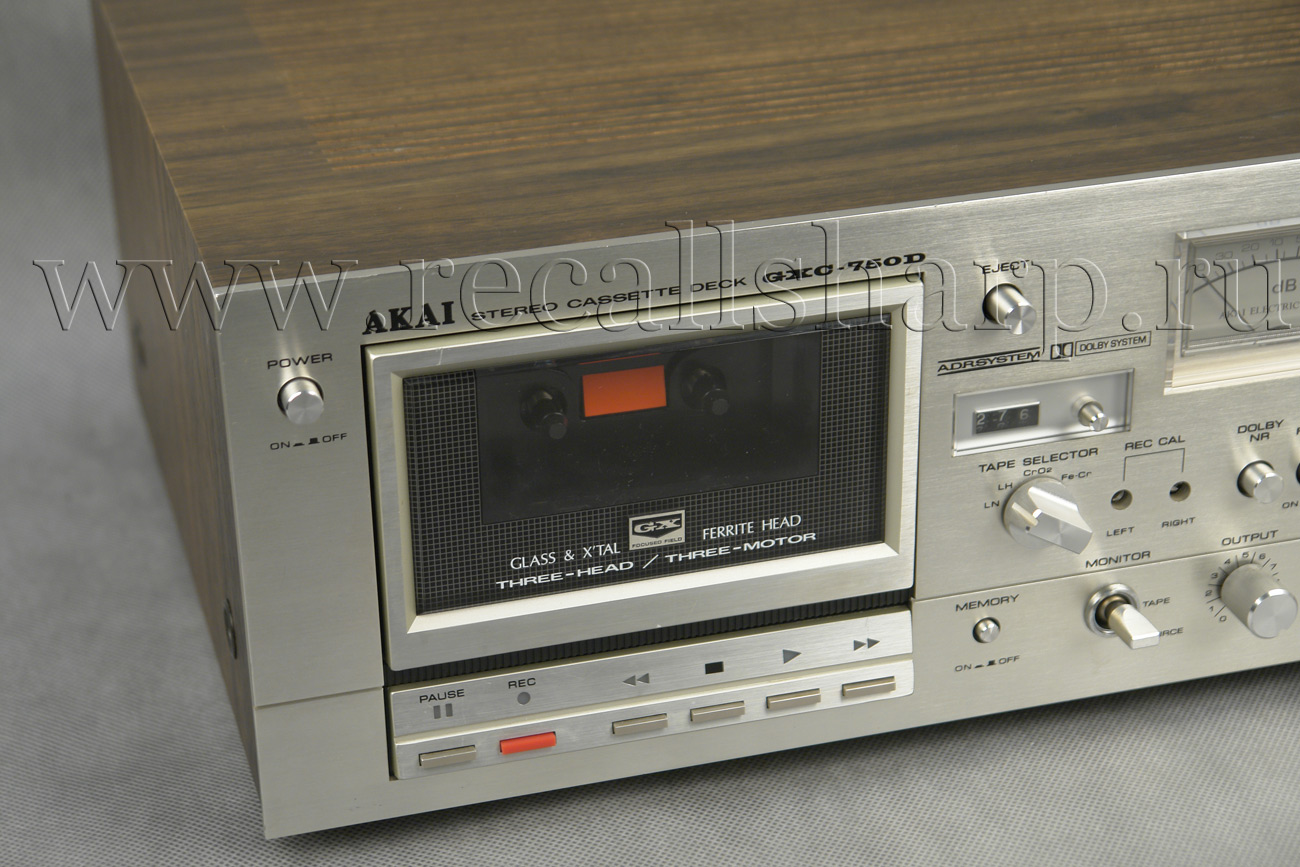

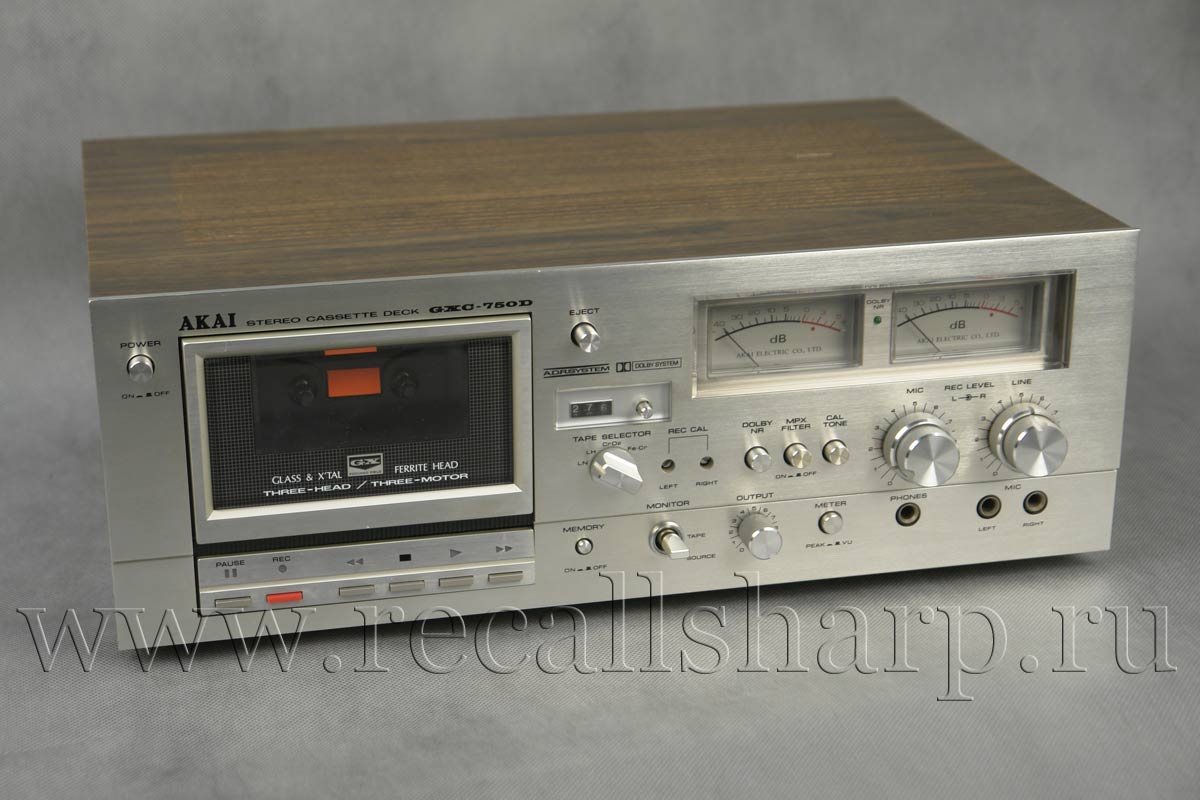

Год начала выпуска: 1978
Регион: Америка
TECHNICAL DATA
TRACK SYSTEM 4 Track, 2 channel stereo system
TAPE Philips type cassette tape
TAPE SPEED 1-7/8 ips
WOW & FLUTTER Less than 0.06% WRMS. 0.17% (DIN45500)
FREQUENCY RESPONSE
35 to 15,000 Hz ±3 dB at LN position
35 to 15,000 Hz ±3 dB at LH position
35 to 16,000 Hz +3 dB at CrO, position
35 to 18,000 Hz ±3 dB at FeCr position
DISTORTION
Less than 1.0% at LN position
Less than 1.0% at LH position
Less than 1.5% at CrO2 position
Less than 1.5% at FeCr position
SIGNAL TO NOISE RATIO
Better than 56 dB atCrO2, position (DIN 45500)
Dolby NR switch ON: Improves up to 10 dB above 5 kHz
ERASE RATIO Better than 70 dB
BIAS FREQUENCY 100 kHz
HEADS 3 head system (one GX recording/playback head and one erase head)
MOTORS 3 motor system (one DC FG servo motor for capstan drive and two DC motors for reel drive)
F.F. & REWIND TIME 60 sec, using a C-60 Tape

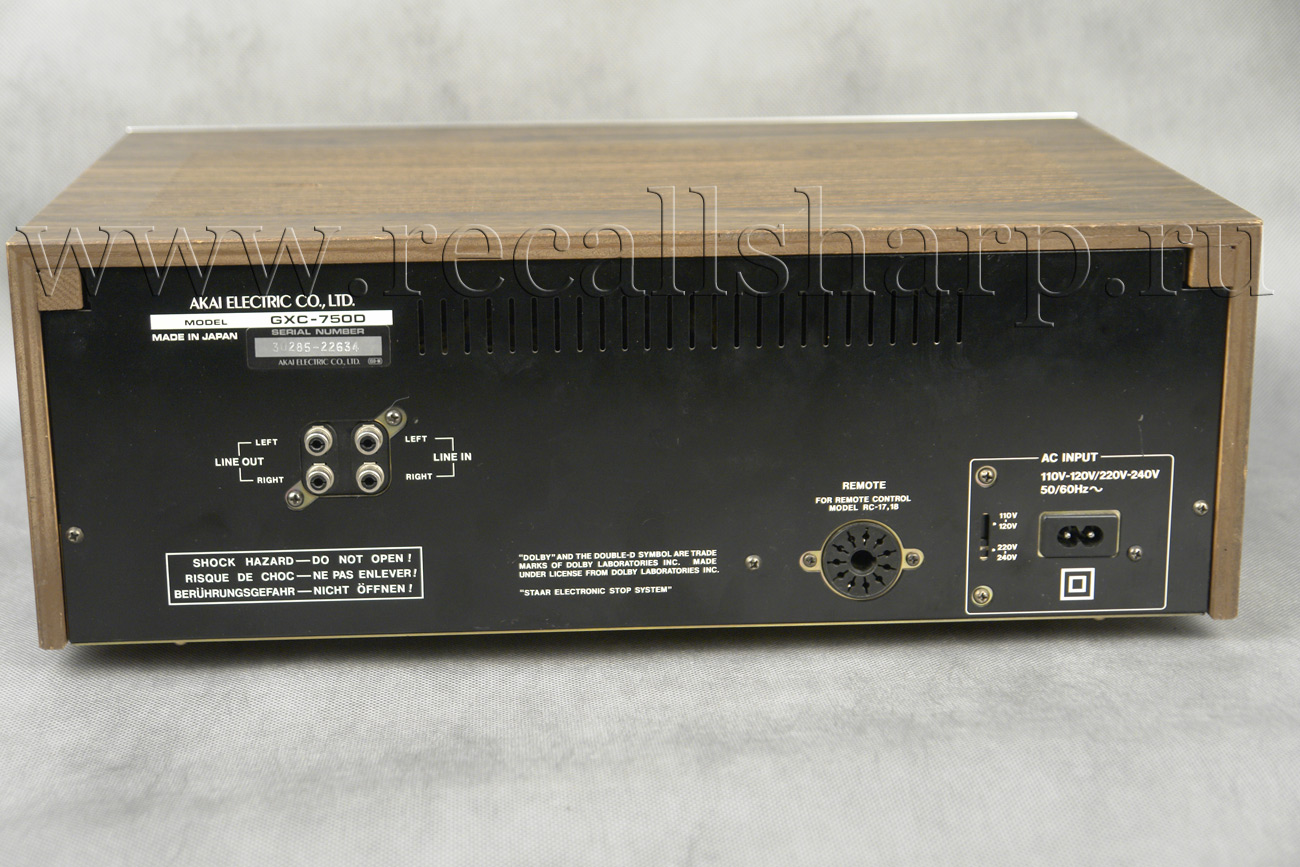

OUTPUT JACKS
Line (2): 410mV(OVU)
Required load impedance: more than 47 kohms
Phone (1): 100 mV/8 ohms
INPUT JACKS Microphone (2): 0.25 mV (input impedance 2.4 kohms)
Required microphone impedance: 600 ohms
Line (2): 70 mV (input impedance 100 kohms)
SEMICONDUCTORS Transistors: 75, Diodes: 124, FETs: 4, ICs: 18
POWER REQUIREMENTS
120V/60 Hz for U.S.A. & Canada
240V/50 Hz for Australia,
100V, 50/60 Hz for Japan
110-120V/220-240V, 50/60 Hz for other countries
DIMENSIONS 440(W) x 318 x 157(D) mm (17.3 x 12.5 x 6.2) inches
WEIGHT 9.5 kg (21.0 lbs)
NOTE:
Standard reference tapes
LN position: AKAl C-60LN, FUJI FL C-60
LH position: MAXELL UD C-60 CrO, position: TDK SA C-60
FeCr position: SONY Duad C-60
* For improvement purposes, specifications and design are subject to change without notice. * "Dolby" and the Double D symbol are trademarks of Dolby Laboratories. (Manufactured under license from Dolby Laboratories.)
|
