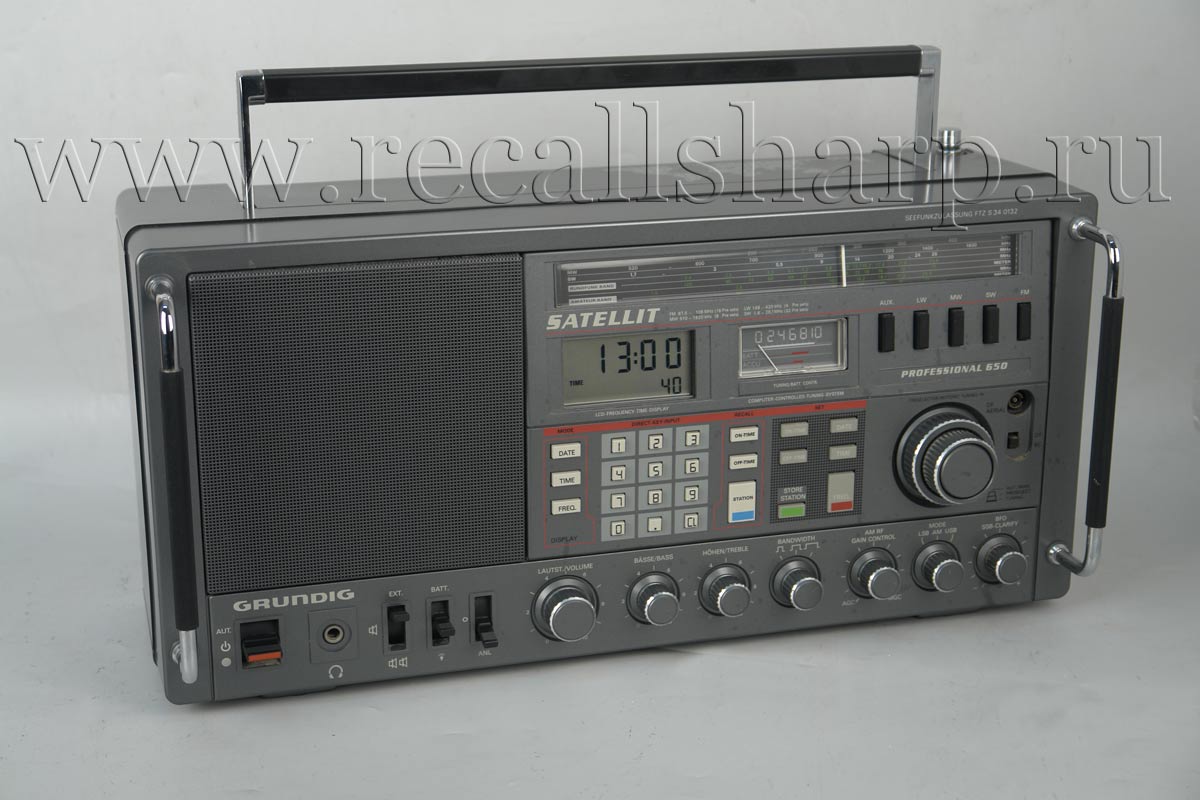

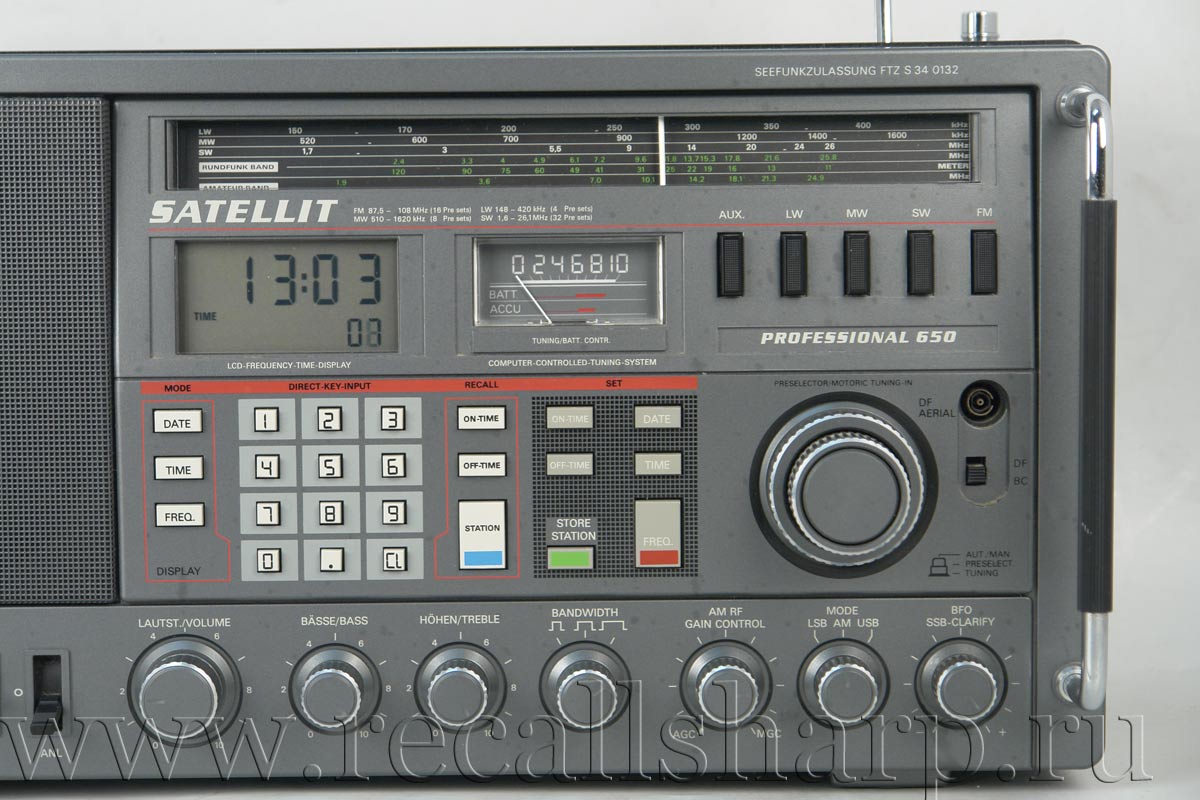

Grundig Sattelit 650 PROFESSIONAL



: 1988


Specification
Battery operation 9 V -
with 6"mono cells" 15V (IEC LR 20 or R 20) or with GRUNDIG dryfit accumulator 476
For LCD clock and memory
2 "mignon cells' 1.5V (IEC LR 6 or vr 6)
Via enternal power supply socket:
10...16V=
From mains a:
ajustable to 220...240V or 110-127V
±10%(50/60HZ)
Audio Peak power
30W

Battery life
(to DIN 45314)
AM values with the preselector not In circuit:
IEC LR 20 (alcall-mangan) AM: approx. 80 hours
FM: approx. 76 hours
IEC R 20 AM: approx. 45 hours
FM: approx. 44 hours
GRUNDIG dry fit accumulator 476 AM: approx. 21 hours
FM: approx. 20 hours
Tuned circuits
FM: 6 (4 tunable) + 3 ceramic filters
AM: 11 (3 tunable) + 2 crystal filters + 1 ceramic filter
AGC
AM: on 3 stages '
Wavebands
FM: 87.5- 108 MHz
LW: 148 - 420 kHz
MW:510 - 1620 kHz
SW: 1.6 - 26.1 MHz
1.6 - 30.0 MHz (Salellit International 650)
Receivable SW bands
Band Frequency (MHz)

160-m-amateur 1,815 - 1.890
120-m-radio 2.300 - 2.498
90-m-tropical 3.200 - 3.400
80-m-amateur 3.500- 3.800
75-m-radio 3.900 - 4.000
60-m-troplcal 4.750- 5.060
49-m-radio 5.950 - 6.200
41-m-radlo 7.100- 7.300
40-m-amateur 7.000- 7.100
31-m-radlo 9.500- 9.900
30-m-amateur 10.100 - 10.150
25-m-radio 11 650 - 12.050
22-m-radio 13.600 - 13.800
20-m-amateur 14.000- 14.350
19-m-radio 15.100 - 15.600
17-m-amateur 18.068 - 18.168
16-m-radio 17.550- 17.900
15-m-amateur 21.000 - 21.450
13-m-radio 21.450-21.850
12-m-amateur 24.890 - 24.990
11-m-radio 25.670 - 26.100
Tuning steps with knob
when turning slowly on AM (LW, MW, SW) in steps of 1kHz
on FM (VHF) in steps of 10kHz
rapid tuning on LW steps of 3 kHz
on MW steps of 5 kHz
on SW steps of 11 or 111 kHz, respectively
on FM steps of 110 kHz
Built-in aerials
telescopic aerial for VHF/FM (810 mm) and SW (1440 mm)
ferrite rod aerial for LW and MW
Terminal clamps
for external aerial and earth
Connecting sockets for
- mains lead with battery/mains switch
- headphone with 6.3 mm
Jack plug (approx. 1000 Ohm)
- cassette-/tape recorder deck or record player
[7-pin standard socket (universal)]
- external aerial (75 Ohm coaxial socket for all wavebands)
- LINE IN/OUT [two phono ("cinch") sockets]
- external loudspeaker
4Ohm
- 10... 16 V d.c. power supply
- LW DF aerial
Weight
8.5 kg (without batteries)
Dimensions
approx. 504 x 242 x 202 mm (WxHxD)
(depth Including handles)
The type plate Is located on the bottom of the sot.
