Год начала выпуска: 1973
Регион: Европа
Specifications
General:
Power Supply: 110 ... 127 V / 220 V ... 230 V AC,
50 ... 60 Hz, (max. power consumption 15 W),
External DC voltage operation S ... 16 V,
Battery operation with 6 batteries type IEC R 20 or one
accumulator dryfit-PC 476.
Fuses (to IEC 127): 125 mA / 1 A, surge resisting
Semi-conductors: 25 transistors, 14 diodes, 1 rectifier,
6 stabilizers
Output Power (ace. to DIN 45324) at 4.5 Si:
battery operation 2 W \
mains operation 4 W / nominal power
mains operation 7 W music power
Earphone Socket:
according to DIN 45318 (3.5 mm 0) for earphone 203 A
Tone Control: separate controls for bass and treble
Dimensions: 400 x 240 x 95 mm
Weight: 4.6 kg
Radio Unit:

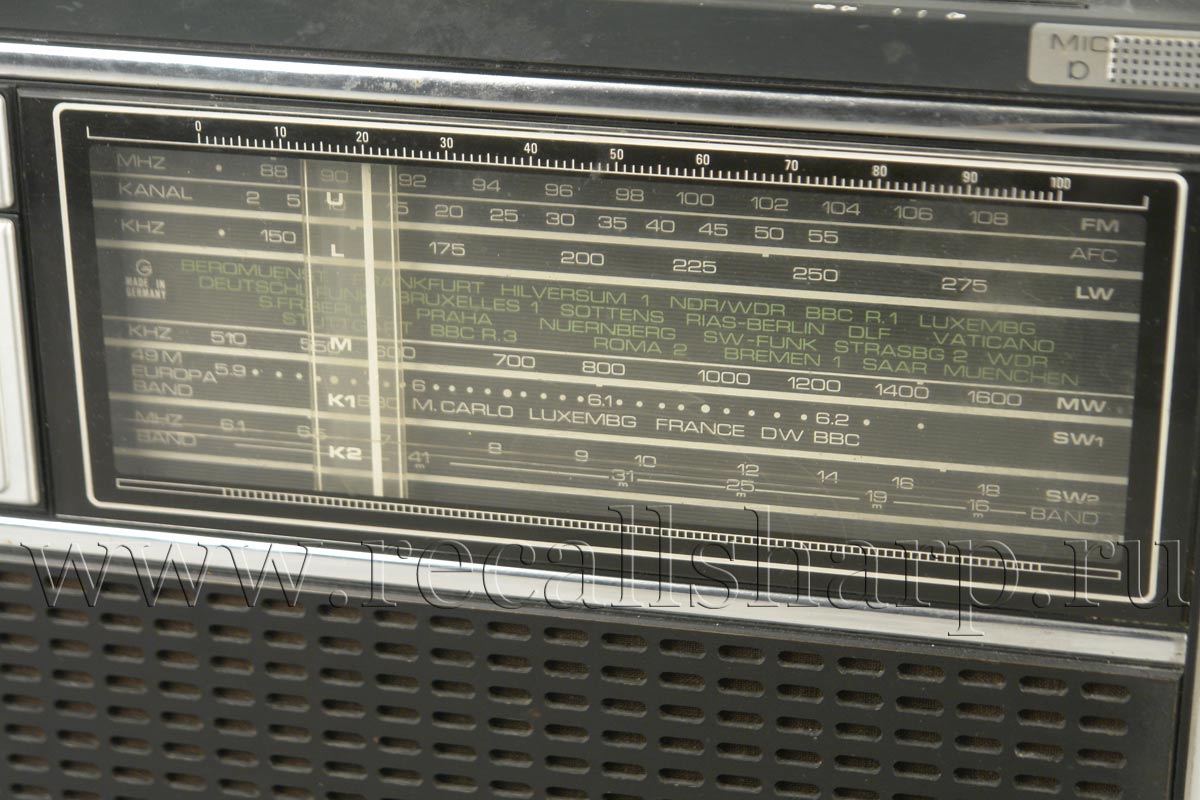

Wave Bands:
FM/VHF: 87.5 ... 108 MHz,
MW: 510 ... 1 620 kHz,
SW 1: 5.9 .. . 6.2 MHz,
SW 2: 6.1 .. . 18.5 MHz,
LW: 145 .. . 280 kHz
Circuits: 10 FM and 7 AM, 2 FM and 2 AM tunable
IF: 10.7 MHz/460 kHz
Automatic Device: automatic frequency control (AFC)
Aerial Socket: for 300 Ω FM dipole
Built-in Aerials: telescopic aerial for FM/VHF, ferrite rod
aerial for MW and LW
Battery Life: approx. 115 hrs (Varta 282) to DIN 45314
Tape Recorder Unit:
Tape Cassettes: Compact cassette (to DIN 45516)
Track: two track, International standard
Tape Speed: 4.75 cm/sec.
Built-in Condenser Microphone
Frequency Range: 60 ... 12500 Hz
Dynamic Range: > 48 dB
Wow and Flutter: ± 0,25%
Automatic Devices:
1. automatic recording level control
2. automatic switch off at tape end
3. automatic chromium dioxide switch-over Input Voltages:
microphone: 0.5 .. . 50 mV at approx. 15 kΩ
record player: 20 mV at approx. 500kΩ
Output Voltage: approx 1 mV at approx. 15 kΩ
Battery Life:
according to DIN 45525 (with Varta 282) = 22 hours
We reserve the right to alter these specifications without prior notice
|
|
|
|
|
