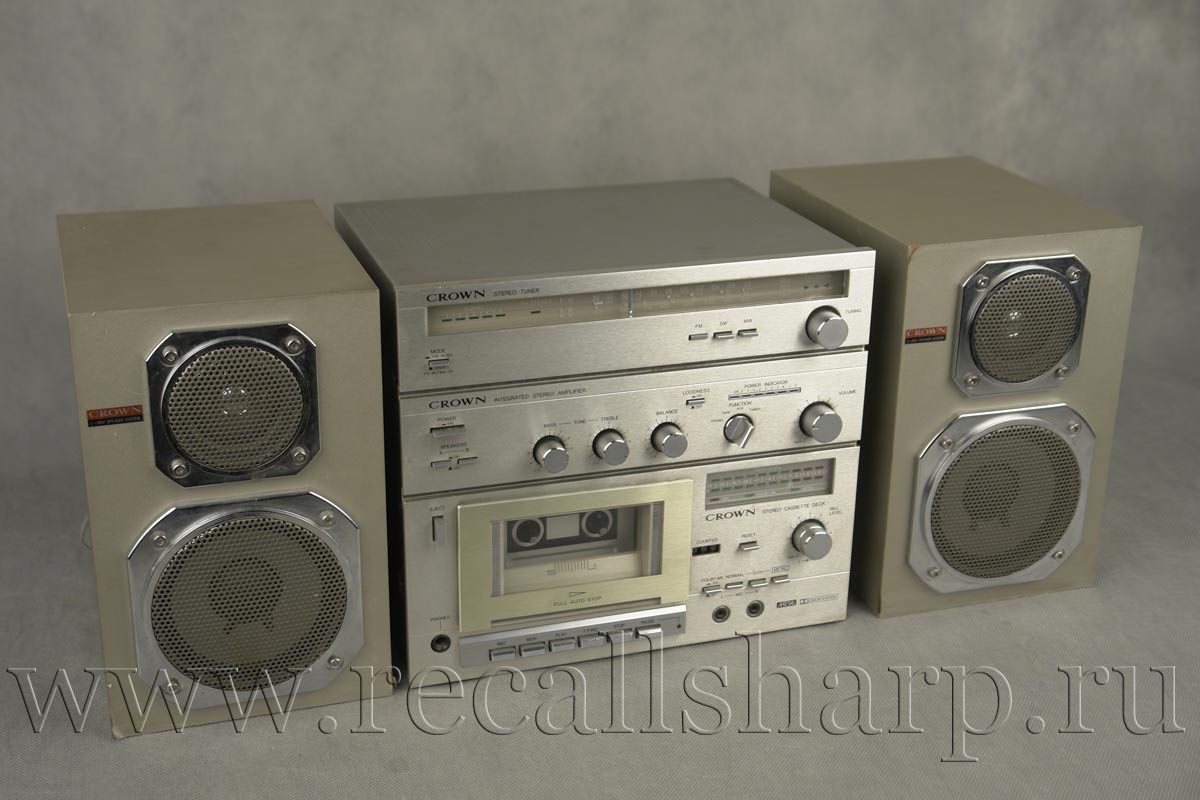

CROWN CMC-5



: 1981


Specifications
RADIO SECTION
Frequency Range:
FM; 87.5-108MHz
MW; 525-1605kHz
SW; 6-18MHz
Usable Sensitivity FM; 4μV
MW; 500μV/m
SW; 40μV/m
IF AM 455kHz
FM: 10.7MHz
FM MPX Separation FM: 30dB

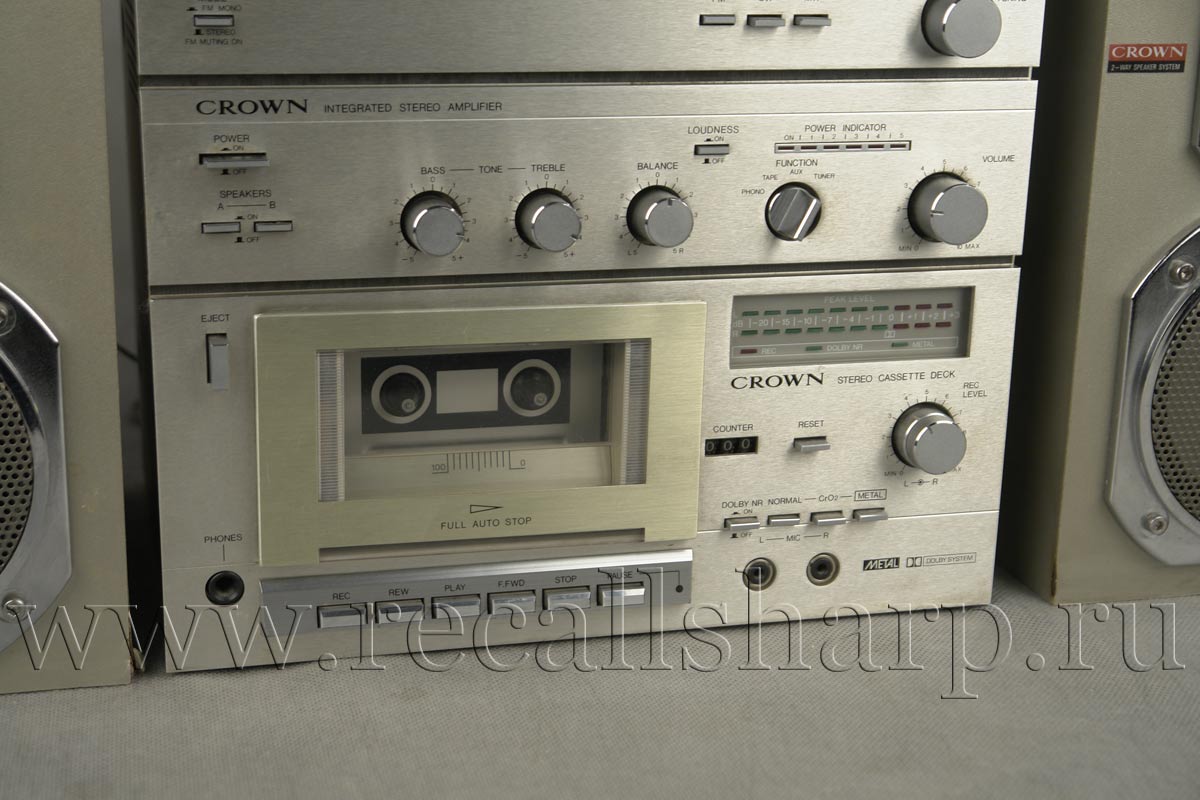

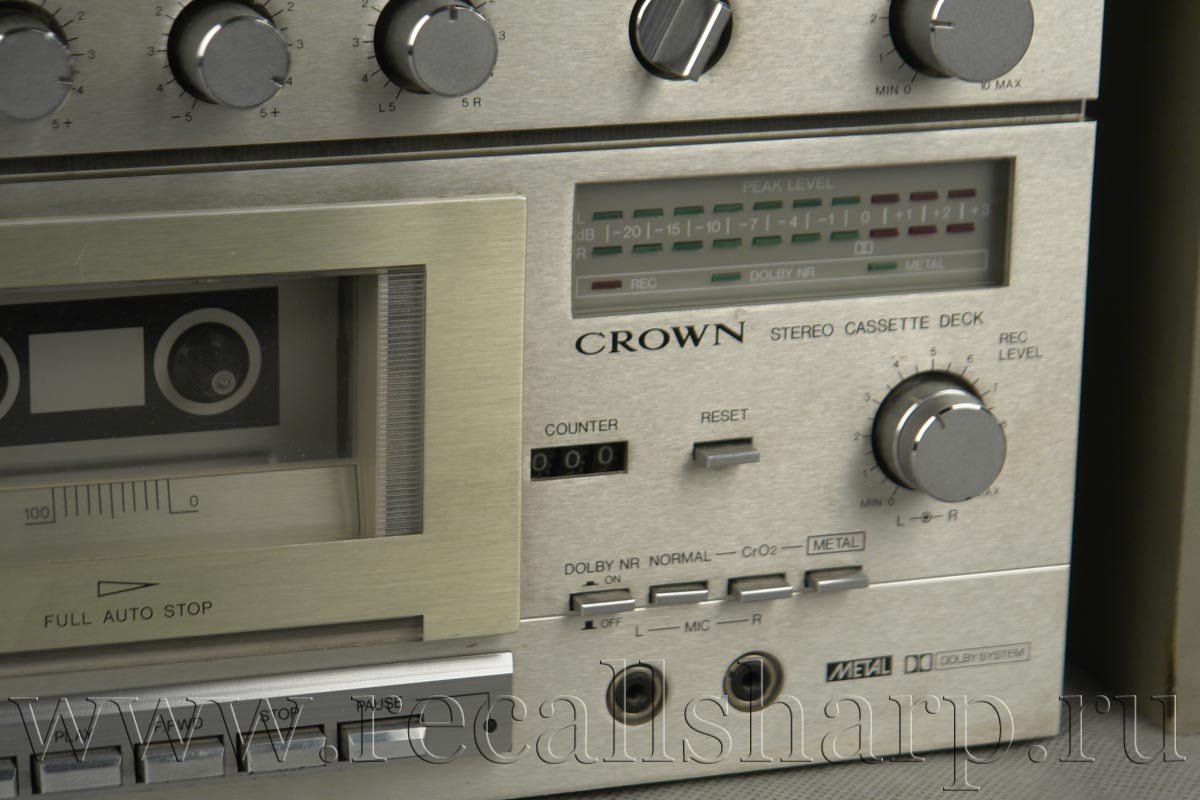

TAPE RECORDER SECTION:

Recording system; AC bias,4-track 2-channel,Stereo
Erase system AC erase

Tape speed: 4.75cm/sec ±3%

Wow&flutter : 0.08%(Play,JIS,WRMS)
FF/REW Time …... ...............................Within 100 sec(C-60)
Power output: 3.4W x2 ... (10%THD)DC

AMPLIFIER SECTION
Rated Power output: 13W /Ch ... (T.H.D.=5%)
Frequence Responce 40Hz-16kHz +2/-4.5 dB
Input Sensitivity .............................................................AUX:500mV/470kΩ
Tone Effect........................................................ ............Bass at 100 Hz 6dB
Treble at 10kHz 6dB
OTHER SECTION
Power requirement: AC;120/220V
Battery; 12V (eight- R20 size dry batteries)

Dimensions: 28.0cm(W) x 24.50cm(H) x 21.5cm(D)
Weight: 7kg

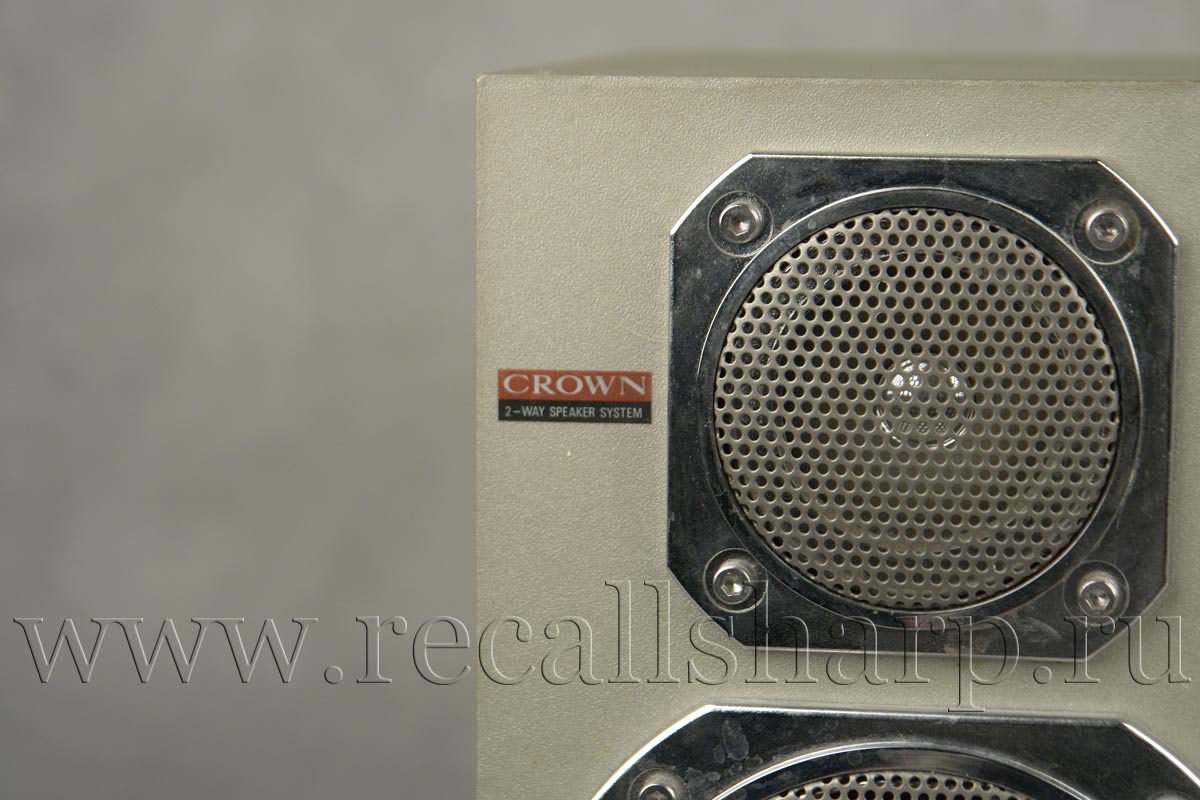

SPEAKER SYSTEM
Input Power .....................................................25W(Max.)4Ω
Dimensions: 15.4cm(W) x 24.50cm(H) x 21.5cm(D)
Weight: 1.9kg
