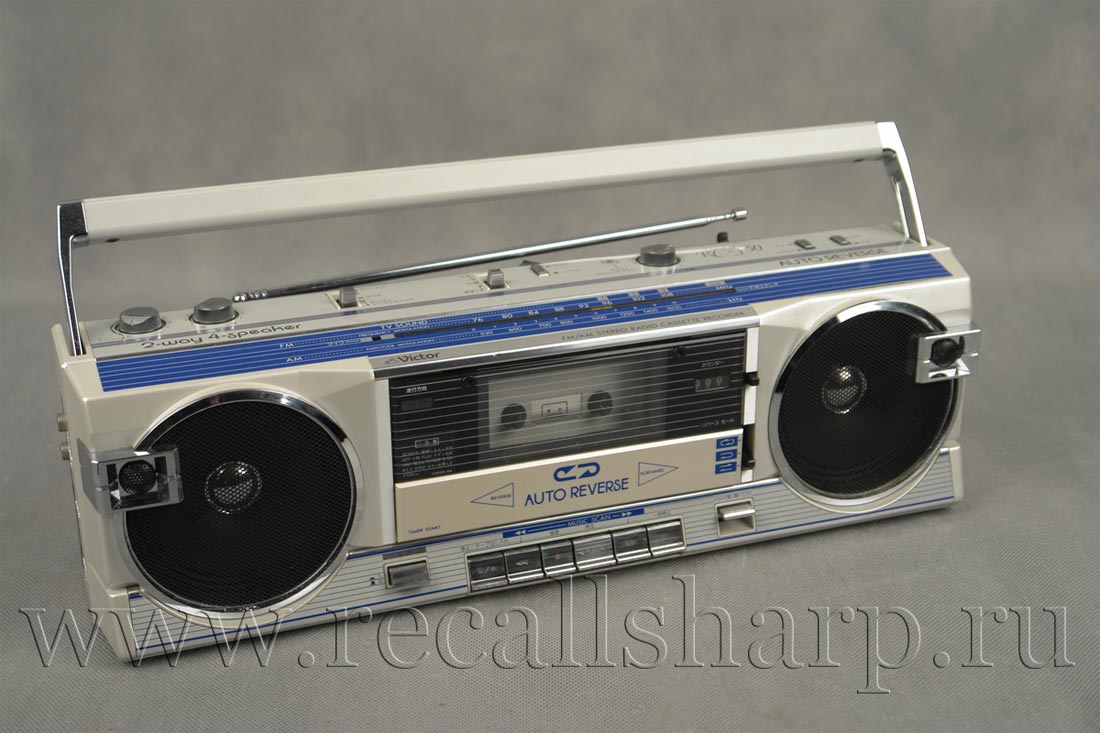

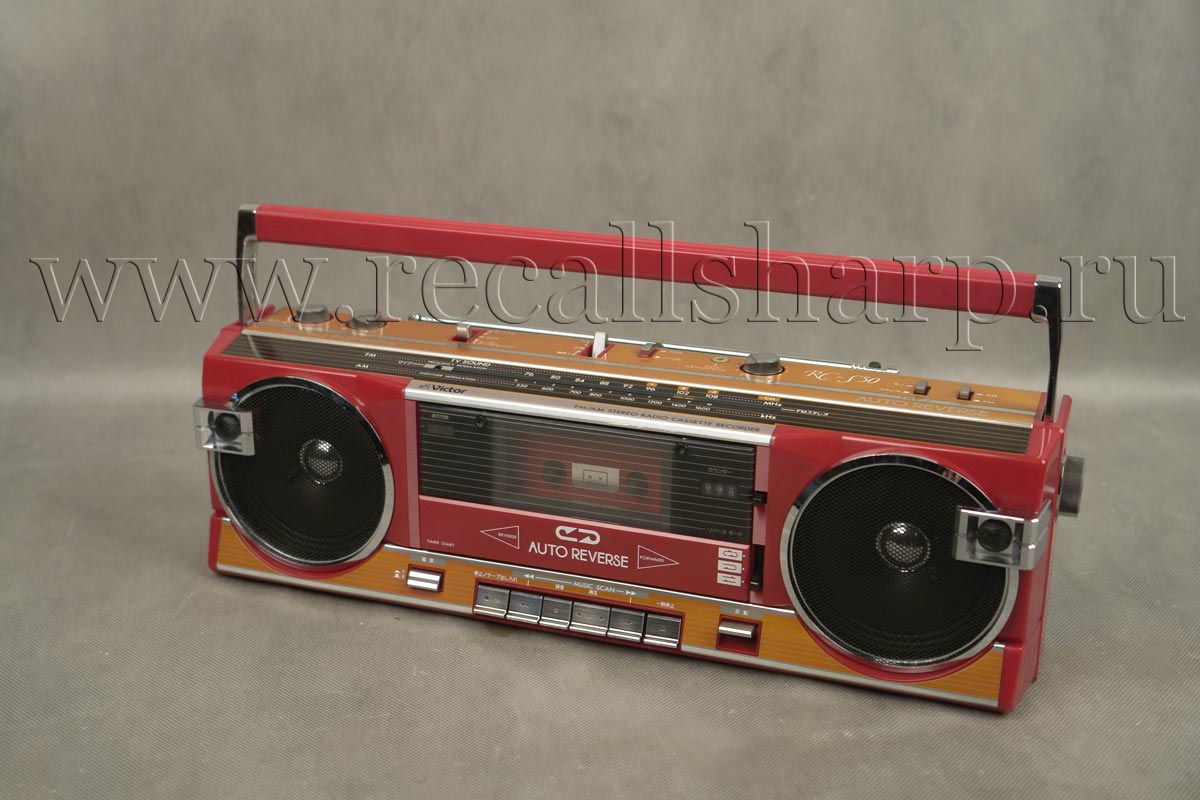

Victor RC-S50
В мою коллекцию    Сравнить

SPECIFICATIONS


TUNER SECTION
Frequency ranges:       FM 76-108Mhz,

                                     AM 540-1605kHz ,

Speakers                     10cmx2(3.2 Ω)

                                     2cmx 2

Track system: 4-Track 2-channel stereo
Frequency response:  80-14,000Hz (with chrome tape)

                                   80-13,000Hz (with normal tape)
Wow & flutter:             0.08% (WRMS)
S/N ratio:                    50dB
Rewind time:              Within 110 sec. (C-60 cassette)
Fast forward time:      Within 110 sec. (C-60 cassette)

AMPLIFIER SECTION
Power output:                   Max. 7W (3.5W +3.5W)
Input jacks:                       Mic x 2 (low impedace)

                                         Line in x2 (input level 100mV min.,

                                         impedance; 47kΩ)

                                         DC in x 1

Phono in x 2 (input level 3mV min., impedance; 47kΩ)
Output jacks: Ext. speaker x 2 (load impedance 3.2Ω)

Headphones (load impedance 8-32Ω)

Line out x 2 (300mV, impedance; less than 10kΩ)
Power supply:     DC 12V

                       Car battery through a car battery adapter

AC 100 V, 50/60 Hz

Dimensions: 443(W)x137(H)x135(D)mm
