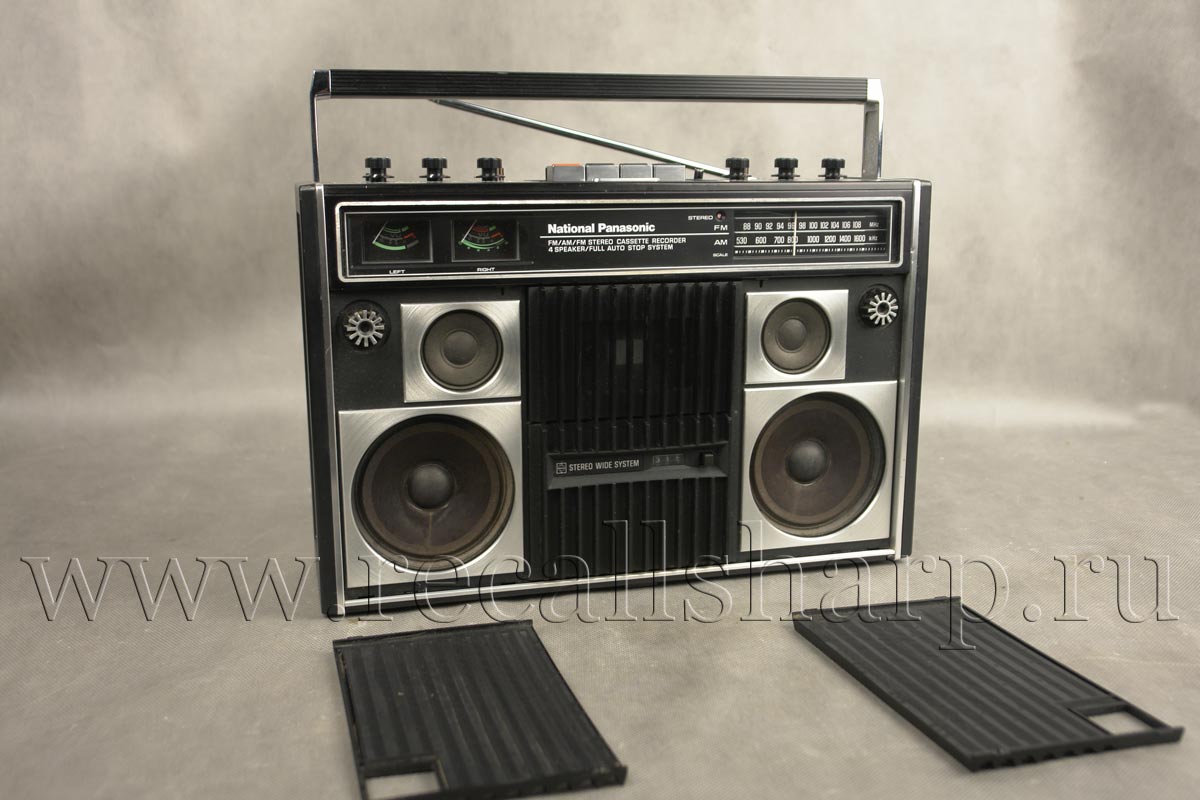

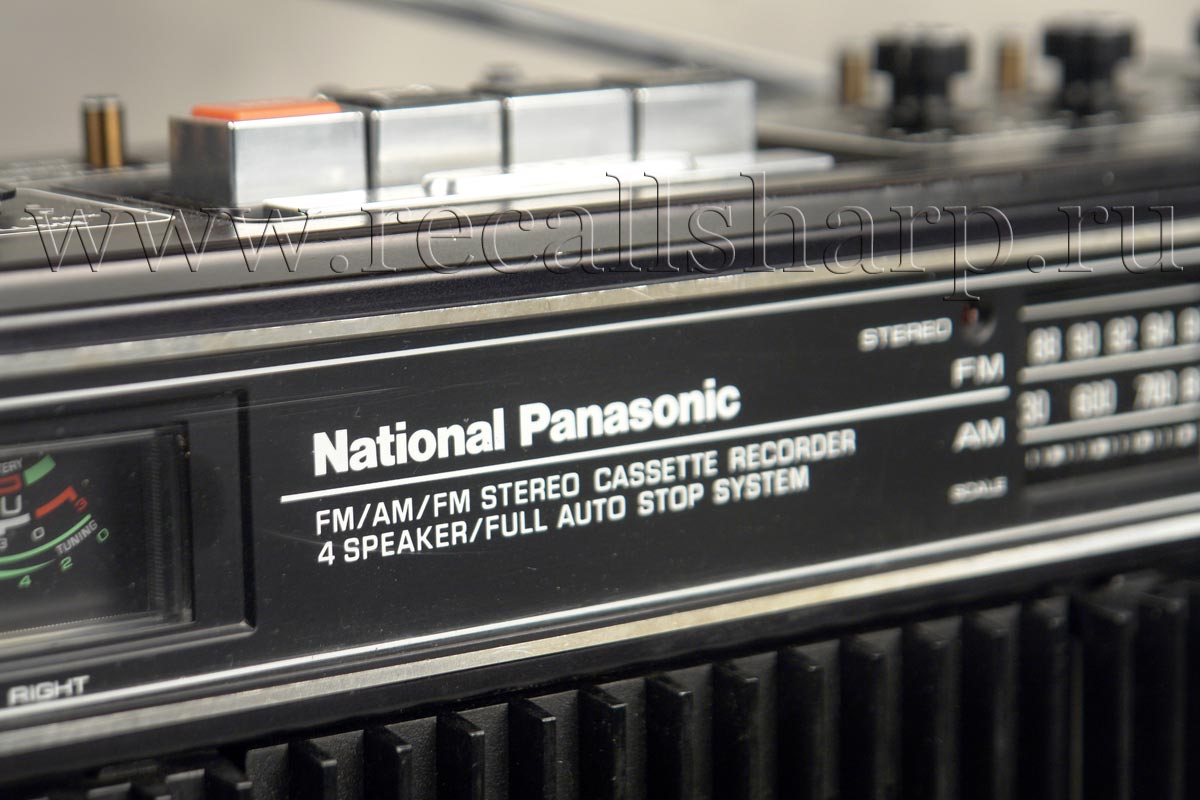

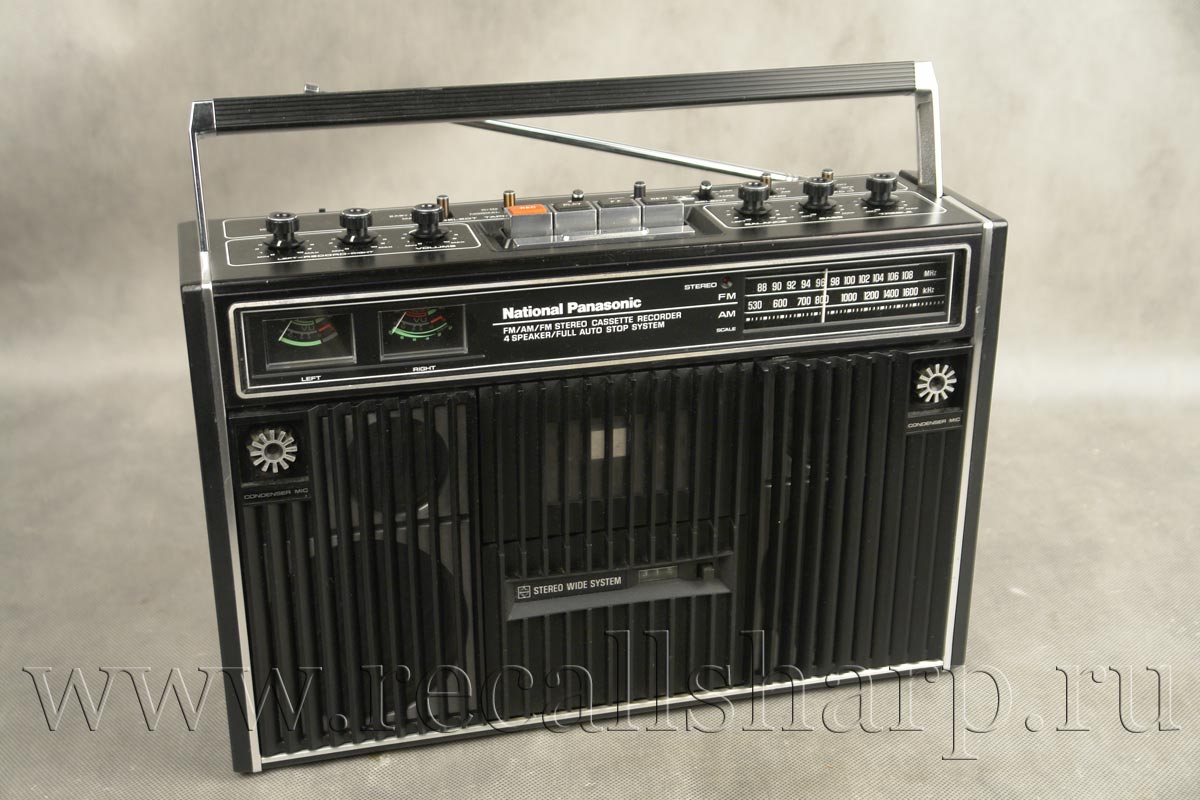

National Panasonic RS-457S



: 1975


SPECIFICATIONS

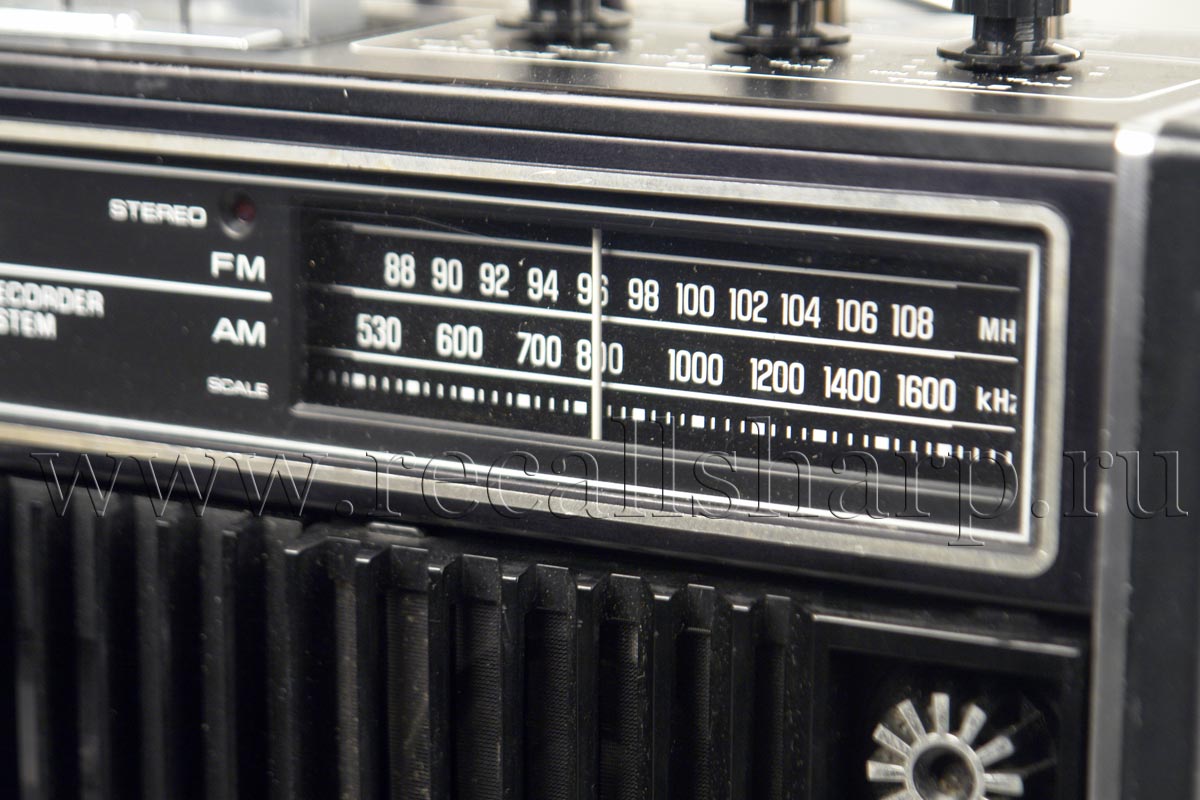

RADIO FREQUENCY RANGE: FM 87.5-108 MHz
AM; 525-1605 kHz


POWER REQUIREMENT: AC; 90-109/110-125/200-219/220-250V,50/60Hz

Power consumption; 13 W
Battery; 9 V (six-UM-1, "D" size batteries)
Car battery; with optional car battery cord RP-915
POWER OUTPUT: 6.0 W (3 Wx2)...RMS (max.)


FREQUENCY RANGE: 50-10,000 Hz (with normal tape)

50-13,000 Hz (with tape CrO2 type)

RECORDING SYSTEM: AC bias, magnet erase
TAPE SPEED: 4.8cm/s.
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds With C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback
JACKS:
INPUT; MIC; sensitivity 0.25 mV/applicable microphone impedance
200
Ω-600Ω(recommended microphone RP-8135)
MIX MIC; sensitivity 0.8 mV/applicable microphone impedance
200-600
Ω(recommended microphone WM-2298)
LINE IN; sensitivity 130 mV/47 k
Ωover

OUTPUT; LINE OUT; sensitivity 0.36 V/5.6k
Ωunder
EXTSP;8
Ω

HEADPHONES; 8Ω

OUTPUT


OTHERS; DC IN; 9V
AC IN
EXT ANTENNA and EARTH
REMOTE for start/stop
DIMENSIONS: 37.7 cm (W) x 24.6 cm (H) x 13.1 cm (D)

WEIGHT: 5.4kg without batteries
Specifications are subject to change without notice.
