SPECIFICATIONS
<RADIO>
Radio Frequency Range:
FM; 88-108 MHz
SW2; 7.0-22 MHz
MW; 525-1605 kHz
SW1 2.3-7.0 MHz
Frequency Range:
60-12,000 Hz
Recording System: DC bias,
Erasing system Magnet erase
Track System: 4-track 2-channel stereo recording and playback
Tape speed: 4.8 cm/s
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape
Power Requirement:
<GENERAL>
Power Requirement:
AC; 110-127/200-220/230-250V , 50/60 Hz
Power consumption; 38W (AC only)
Battery; 15 V (Ten "UM-1", D size batteries)
Car Battery; with optional car battery cord RP-9550
Power Output: 28W (14Wx2)…(RMS max)
60W (30Wx2)….PMPO

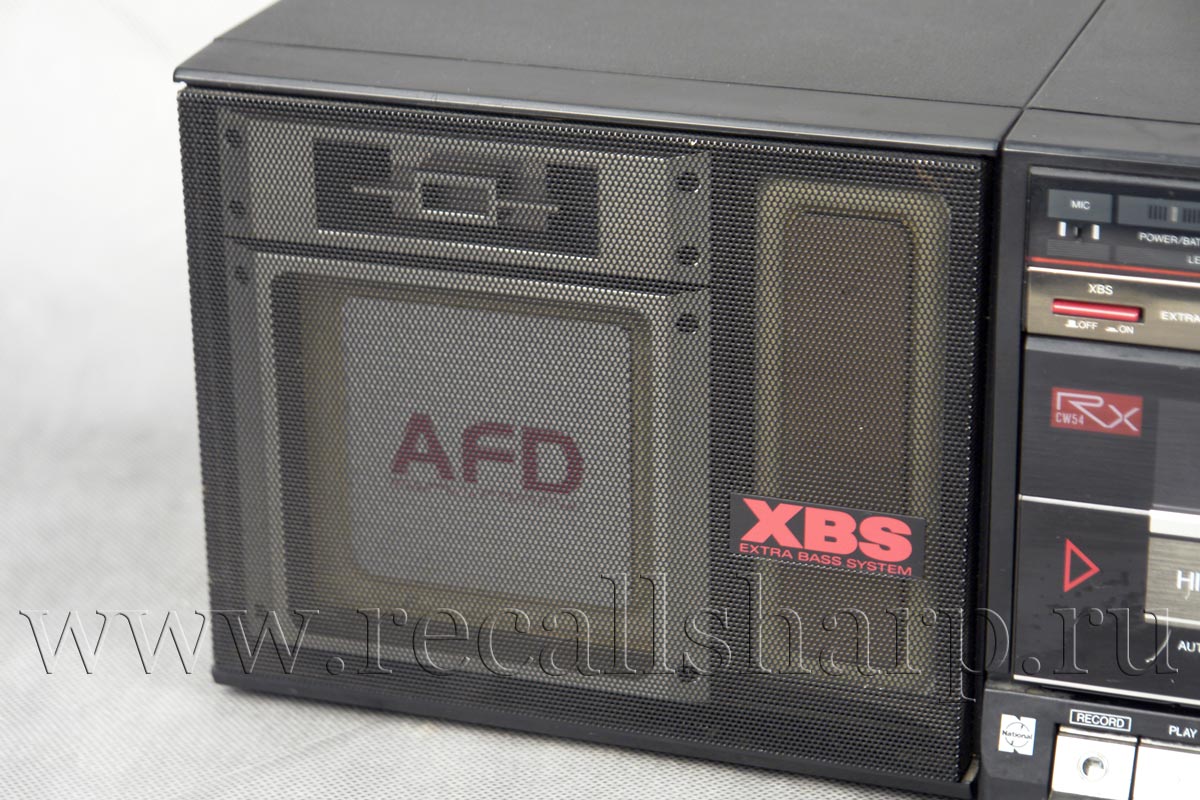

Speaker: Woofer; 10cmx10cm AFD Speaker x2
Tweeter; 2cm Speaker x2
Passive Radiator 5cmx13cm
Jacks:
Input;
MIX MIC; sensitivity 3.5 mV/applicable microphone impedance
200-600 Ohm(recommended microphone RP-V305)
CD/LINE IN; sensitivity 400 mV/50 kΩ
Output; EXT SP; 3 Ω
HEADPHONES;32Ω(8-50Ω)
Dimensions: Total Size
(WxHxD) 725x163x188 mm
Main unit
355(W)x163(H)x188(D)
Speaker Box
191(W)x163(H) x168(D)
Weight: 5.9 kg without batteries
(not included)
