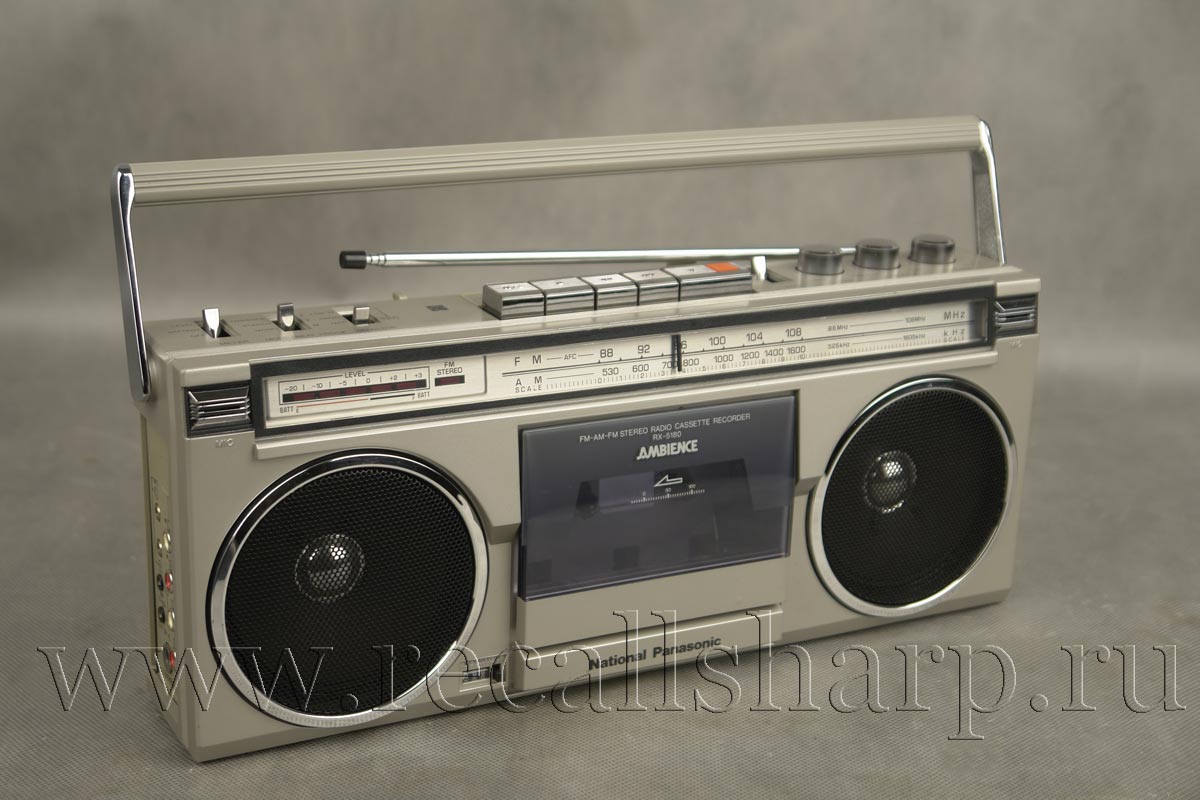

National Panasonic RX-5180



: 1981

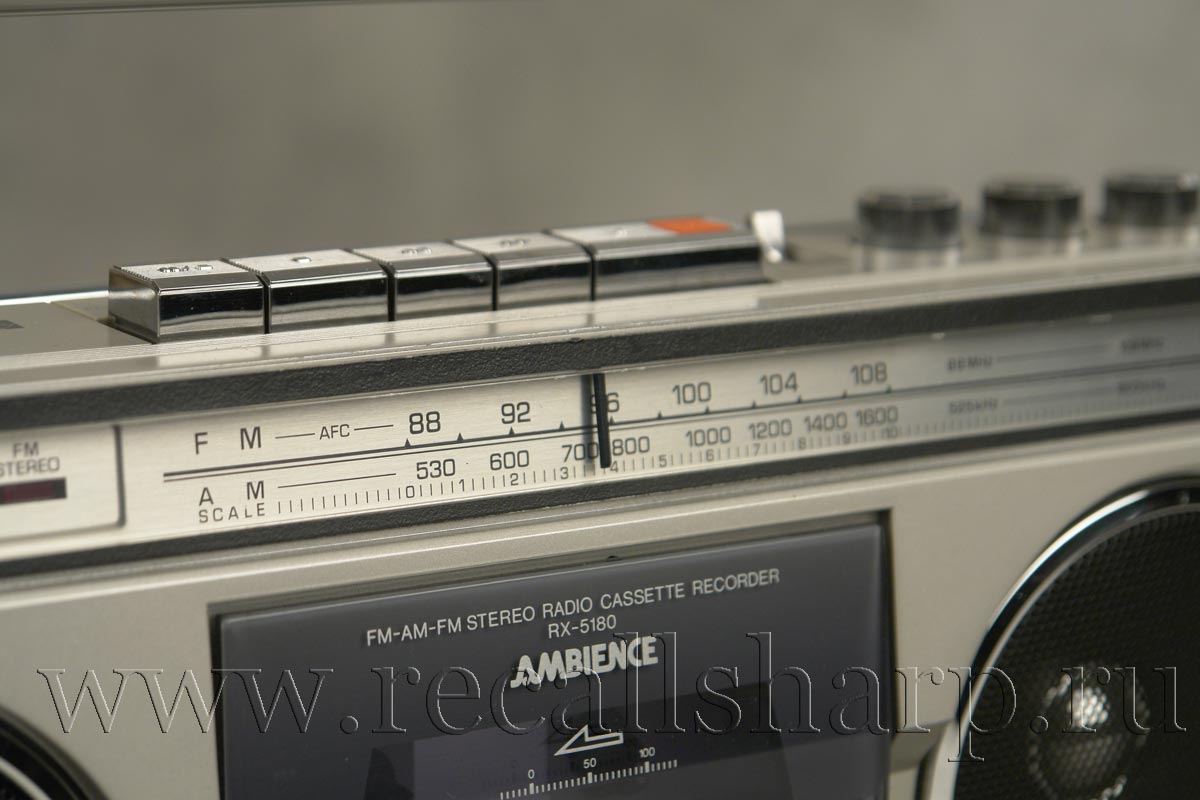

RADIO FREQUENCY RANGE: AM; 525~1605 kHz
FM 88.0~108 MHz
POWER REQUIREMENT: AC; 100~110/115~127/200~220/230~250V, 50—60 Hz.
Power consumption; 15 W
Battery; 9 V (six-UM-1 R20 size dry batteries)
Car/boat battery; with optional car/boat adaptor RP-917
POWER OUTPUT: 8.0 W (4 Wx2)...RMS (max.)
SPEAKER: 2x 10cm (4") speaker
FREQUENCY RANGE:
80~8,000 Hz normal
80-10,000 Hz FeCr
80-11,000 Hz Cr02
RECORDING SYSTEM: AC bias, Magnet erase
TAPE SPEED: 4.8 cm/s (1 7\8 ips)
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD AND REWIND TIME: Approx. 90seconds with C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback

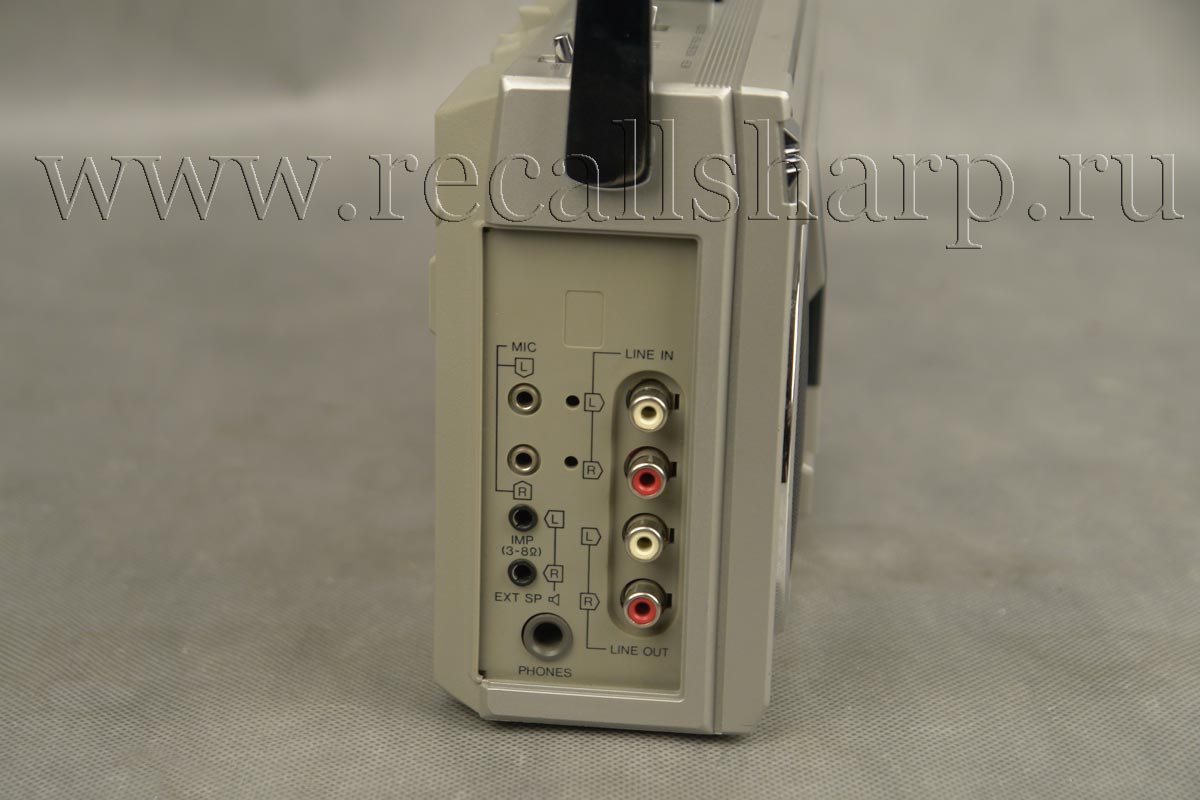

INPUT:
MIC; sensitivity 0.25 mV/applicable,
microphone impedance 200~600ohms
(recommended microphone WM-2213)
LINE; sensitivity 63 mV/470 kohms
DC IN; 9 V
OUTPUT:
LINE; 0.36V/load impedance 50k
Ω over
EXT SP; 3~8
Ω
HEADPHONES; 8Ω
OTHERS:
REMOTE; for start and stop at hand
DIMENSIONS: 35(W) x8.2cm(H) x14.4cm(D)
WEIGHT: 2.6 kg without batteries
Specifications are subject to change without notice.

:
National Panasonic RX-5180 F
National RX-5180
