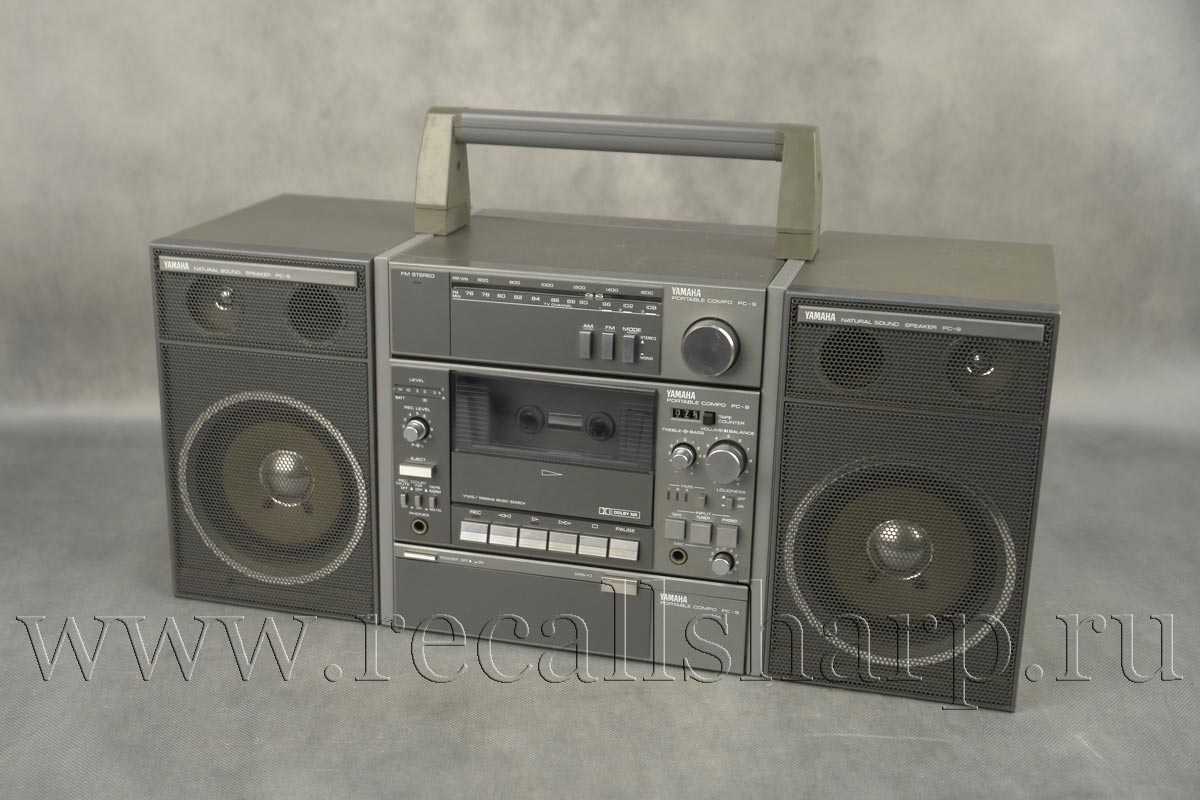

Yamaha PC-9



: 1984


Specifications Yamaha C-9

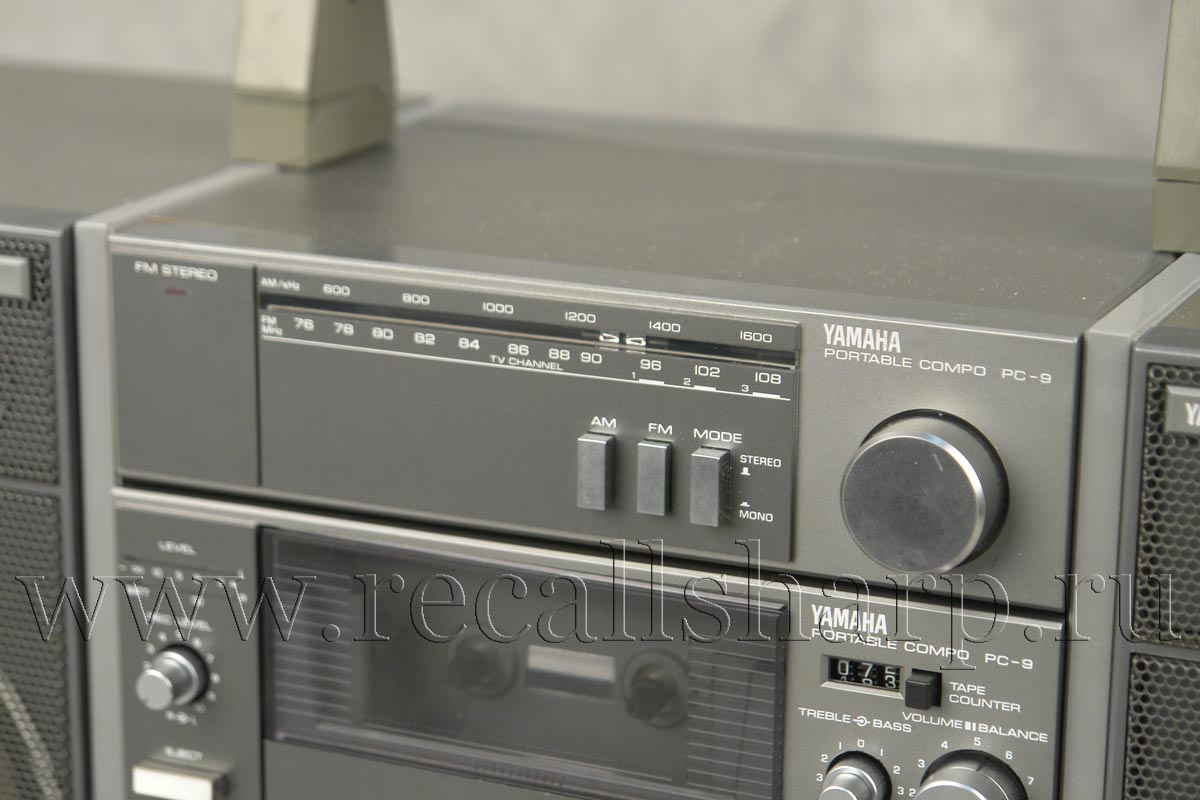

C9T TUNER SECTION

FM section

Frequency range. ............. 76 - 108 MHz

Usable sensitivity .............. 2.0μV/300Ω(mono)

Signal to noise ratio (1 μ V ANT.) .... 80 dB (mono)

Harmonic distortion (1 kHz) ....... 0.5% (mono)

Aerial input ................. 300 ohms balanced

MW section

Frequency ranqe ....... AM: 525 - 1600 kHz ,



Sensitivity .............. 300 μ V/m (MW) . .


Signal to noise ratio (10 mV/m)...... 50 dB (MW)

Aerial..................... Ferrite bar aerial and external aerial terminal

Dimensions (Approx.)...........215(W) x 205(D) x 58(H) mm

(8-1/2" x 8-1/16" x 2-5/16")

Weight (Approx) ............ 1.15 kg (2 lbs. 9 ozs.)

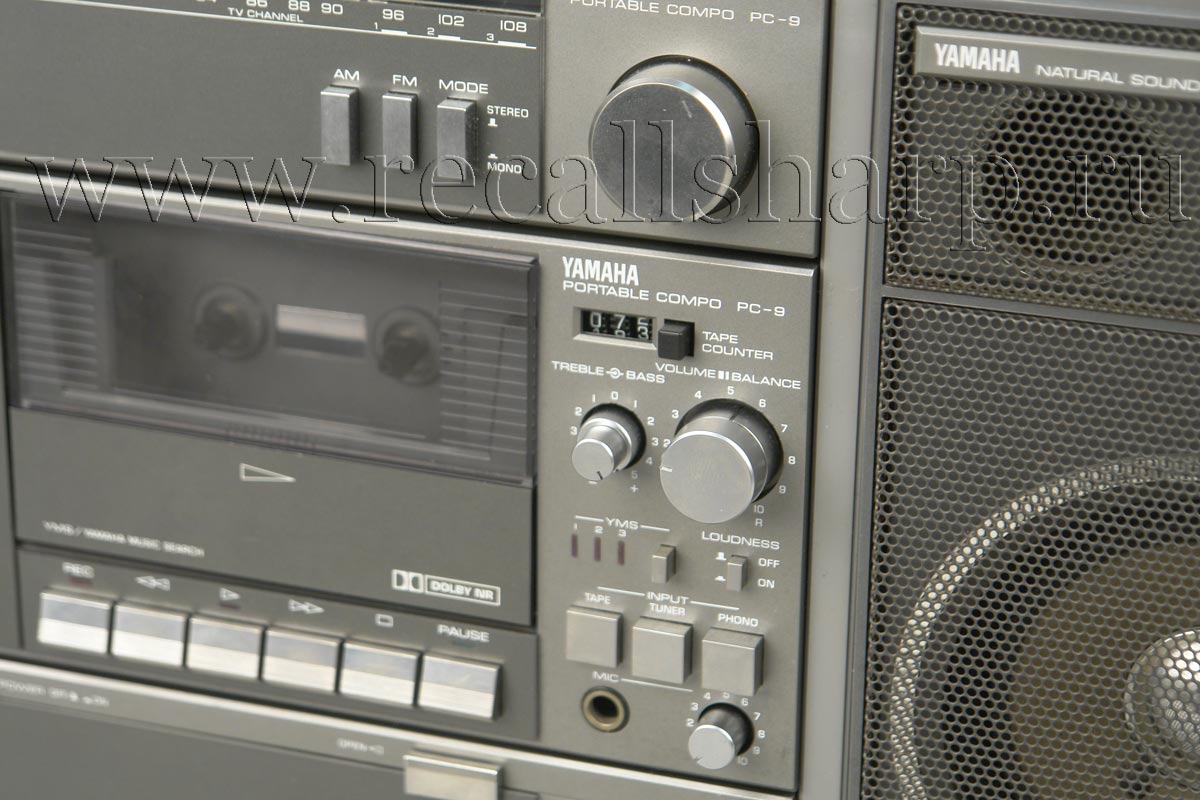

C9D CASSETTE DECK/AMPLIFIER SECTION

Cassette deck section

Tape ..................... Metal, normal tape

Recording system............. AC bias, 4-track stereo

Erasing system.................. AC erasing, 2-track

Tape speed ................. 4.75 cm/sec. (1-7/8 i.p.s.)

Rewind and fast forward time....... Approx. 110 sec. (C60)

Wow and flutter ............. 0.05% (WRMS)

Frequency response ............. 30- 17,000 Hz (metal)

. . . 30- 14,000 Hz (normal)

Signal to noise ratio(metal tape) ..... 64 dB (Dolby NR on)

. . . ... 56 dB (Dolby NR off)

Amplifier section

Output power ............. 30 W x 2 maximum music

power (at 6 ohms Ioad, AC)

Inputs . . .......MIC: 1.5 m/10 kohms

PHONO: 3.5mV/47 kohms .

.............. LINE IN: 350mV/20 kohms

Outputs ....... LINE OUT: 0.3V

.................... SPEAKER: 6-8 ohms

.................... PHONES: 8 ohms to 10 kohms

Tone control response

BASS . ..... ± 8 dB (at 100 Hz)

TREBLE . .............. ± 8dB (at 10 kHz)

Loudness control response

100 Hz/10 kHz ........... +8dB/+4dB

Signal to noise ratio ........... 76 dB (phono)

General

Dimensions (Approx.)...........215 (W) x 206 (D) x 120.5 (H) mm

(8-1/2" x 8-1/8" x 4-3/4")

Weight (Approx.) .............2.9 kg (6 lbs. 6 ozs.)

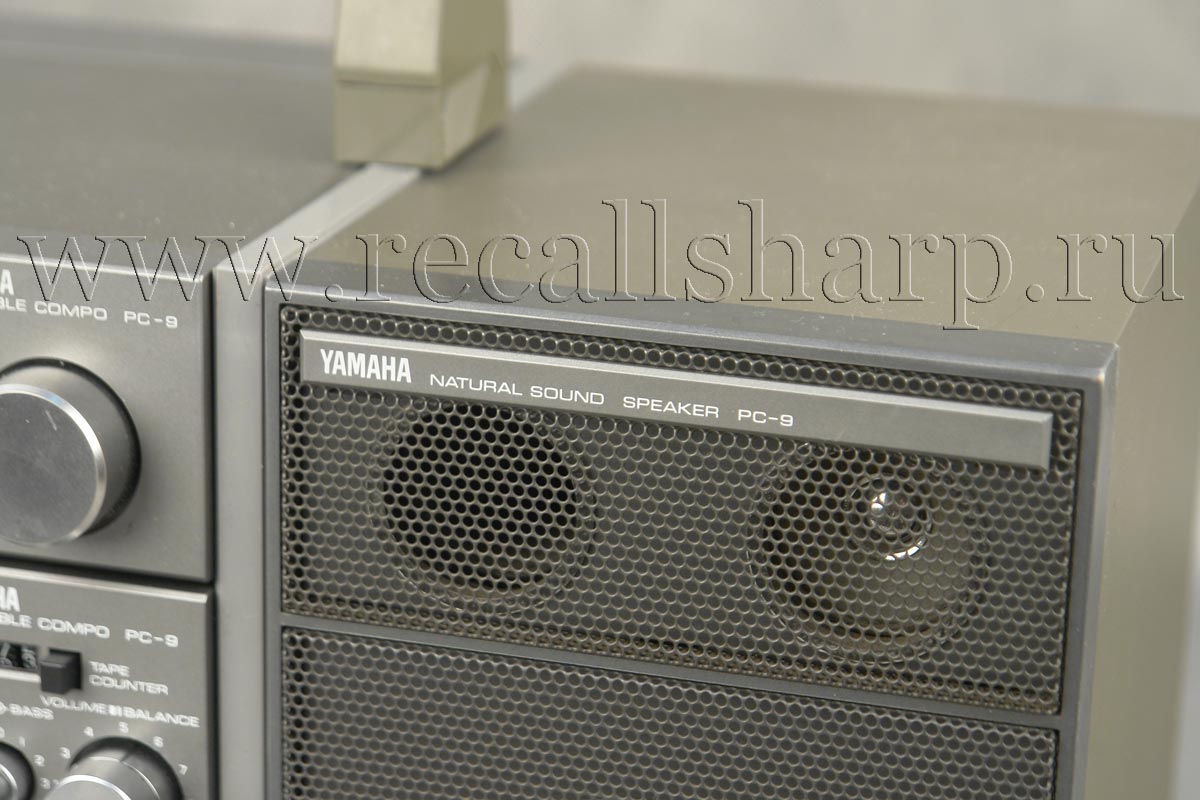

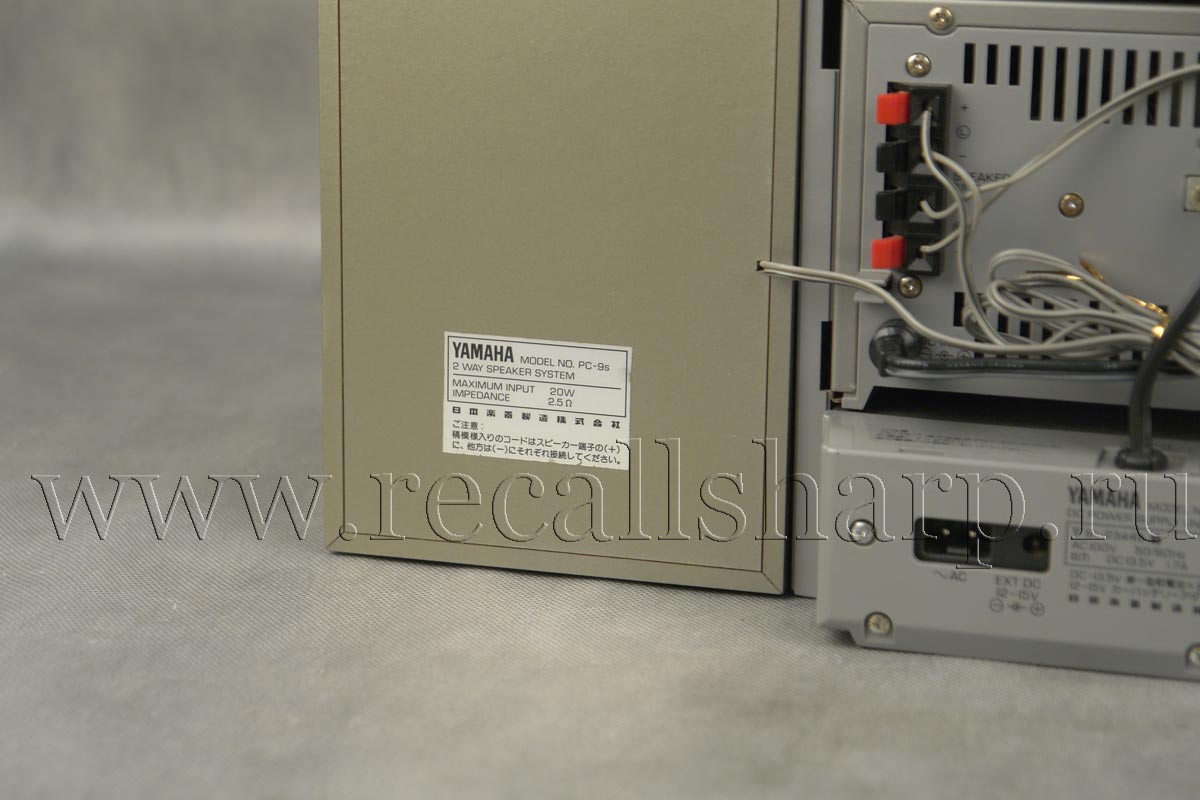

C9S SPEAKER SYSTEM

Type................... 2 way speaker system,

Tweeter 4 cm, Woofer 16 cm

Impedance ..................2.5 ohms

input power ............20 W (maximum)

Dimensions (Approx.)...........180 (W) x 180 (D) x 231 (H) mm

(7-1/16" x 7-1/16" x 9-1/8")

Weight (Approx.) ..............2.1 kg. (4 lbs. 10 ozs.) x 2

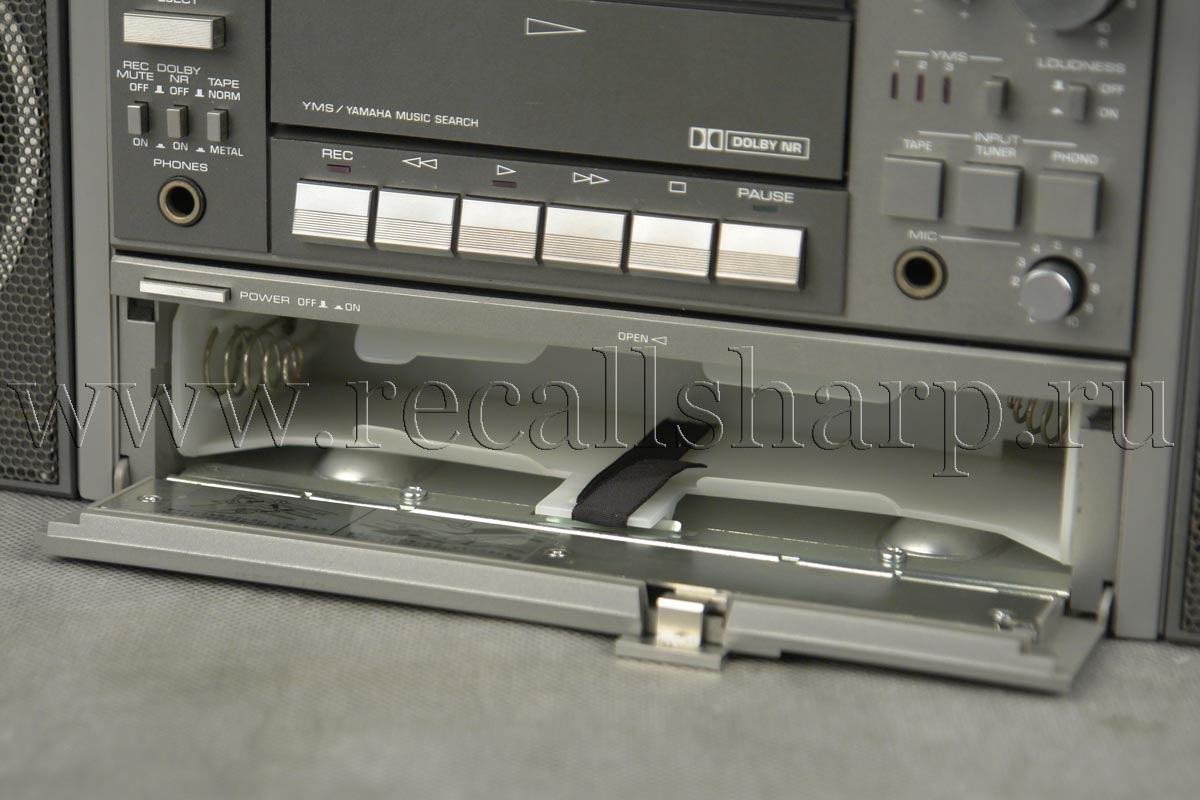

C9P POWER SUPPLY UNIT

Power requirements.............AC: 100V, 50/60 Hz 31W

. ..................DC: 12-15V 1.7A

car battery adaptor

....................DC: 13.5 V "D" (UM-1) x 9

Power consumption.............31 W

Dimensions (Approx.)...........215 W) x225 (D) x 62.5 (H) mm

(8-1/2" x 8-7/8" x 2-7/16")

Weight (Approx.) ..............3.3 kg. (7 lbs. 5 oxs.) including batteries

Total dimensions of the system C9 . . . . 597 (W) x 232 (D) x 306.5 (H) mm

(23-1/2" x 9-1/8" x 12-1/16")

Total weight of the system C9.......12.4 kg. (27 lbs. 5 ozs.) including batteries

* Specifications subject to change without notice.


:
