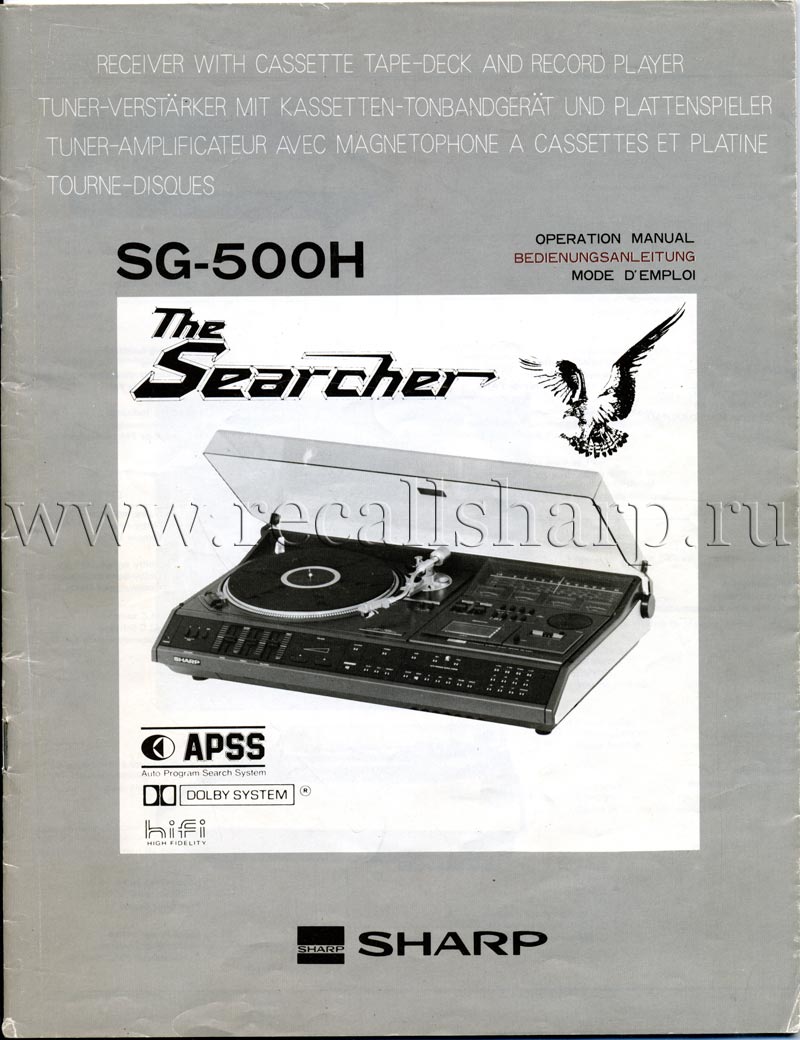

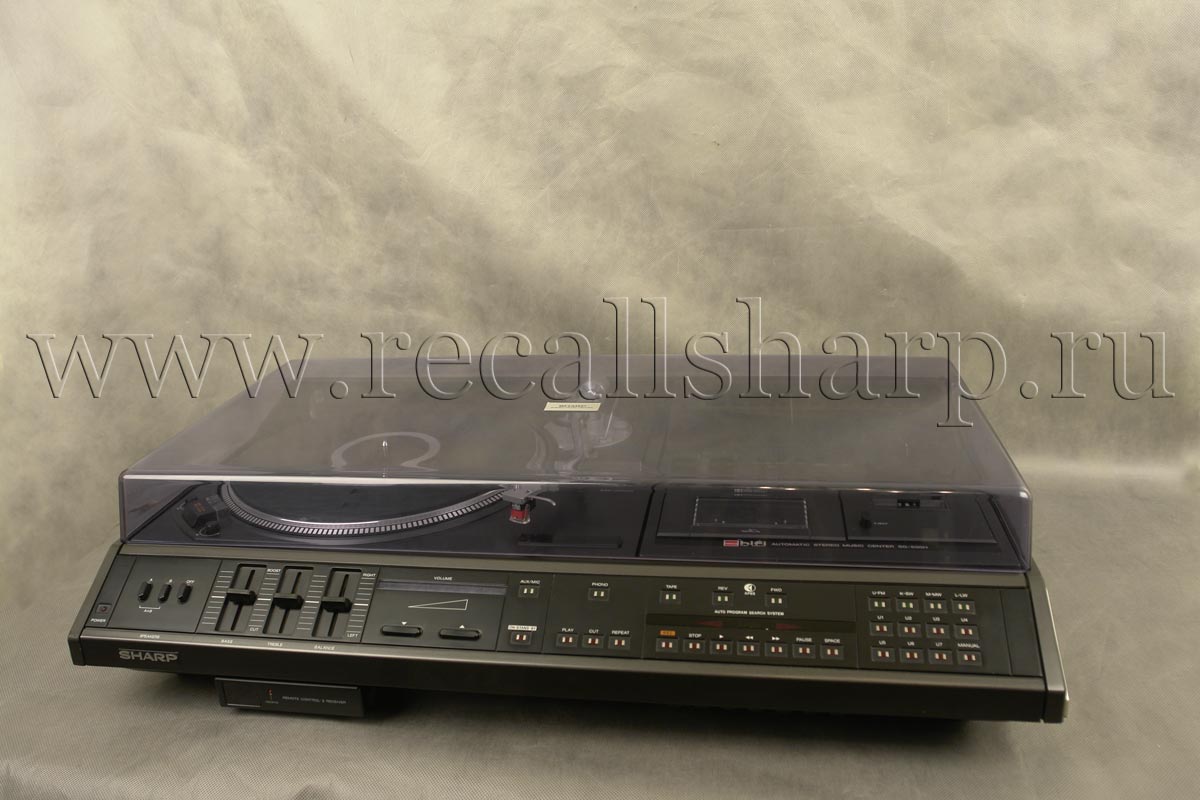

Sharp SG-500 H



: 1978


SPECIFICATIONS

TUNER-AMPLIFIER


General Description



Power source: a.c. 110/220/240 V, 50/60 Hz

Power consumption: 500 W


Semiconductor: 31-IC (Integrated circuit)



1-FET


71-Transistor


130-Diode


36-LED


Dimensions: 770 mm (Width)


183 mm(Height)


456 mm (Depth)


Weight: 25 kg


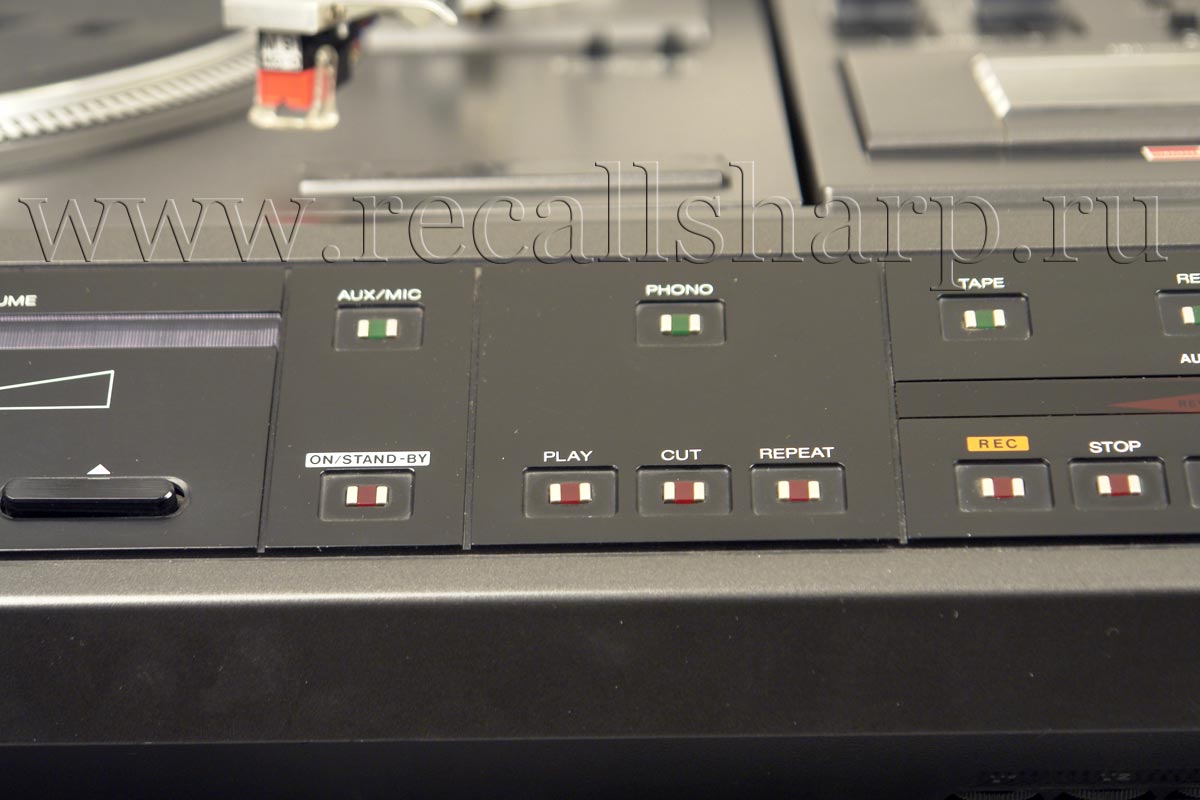

Audio section

Music power output: 2 x 80 W/4 ohms Both channels drive


(at 0.5% distortion)


Continuous power output (at 1k Hz):



2 x 45 W/4 ohms. Both channels driven, 0.5% distortion



Intermodulation distortion 0,5% at 40 W


Power bandwidth: 35 Hz - 15k Hz at 0,5% distortion


Frequency response: 20 Hz - 20,000 Hz


Channel separation: 48 dB (1k Hz)


Tone control: Bass ± 10 dB (at 100 Hz)


Treble 10 dB (at 10k Hz)


Input sensitivity and input impedance: MIC: 1mV, 10k ohms



REC/PB: 150mV, 47k ohms


Output level and output impedance:


Speaker: 4 ohms


Headphones: 8 ohms


REC/PB: 30mV/100k ohms



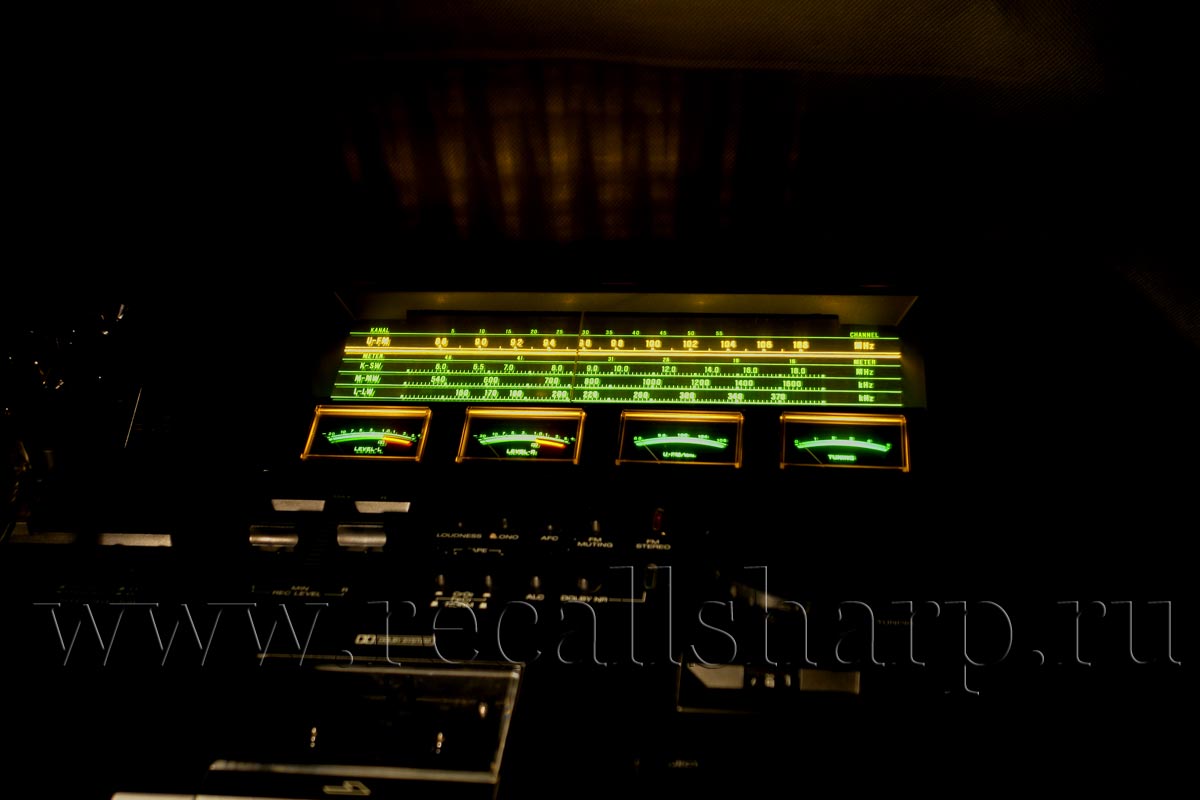

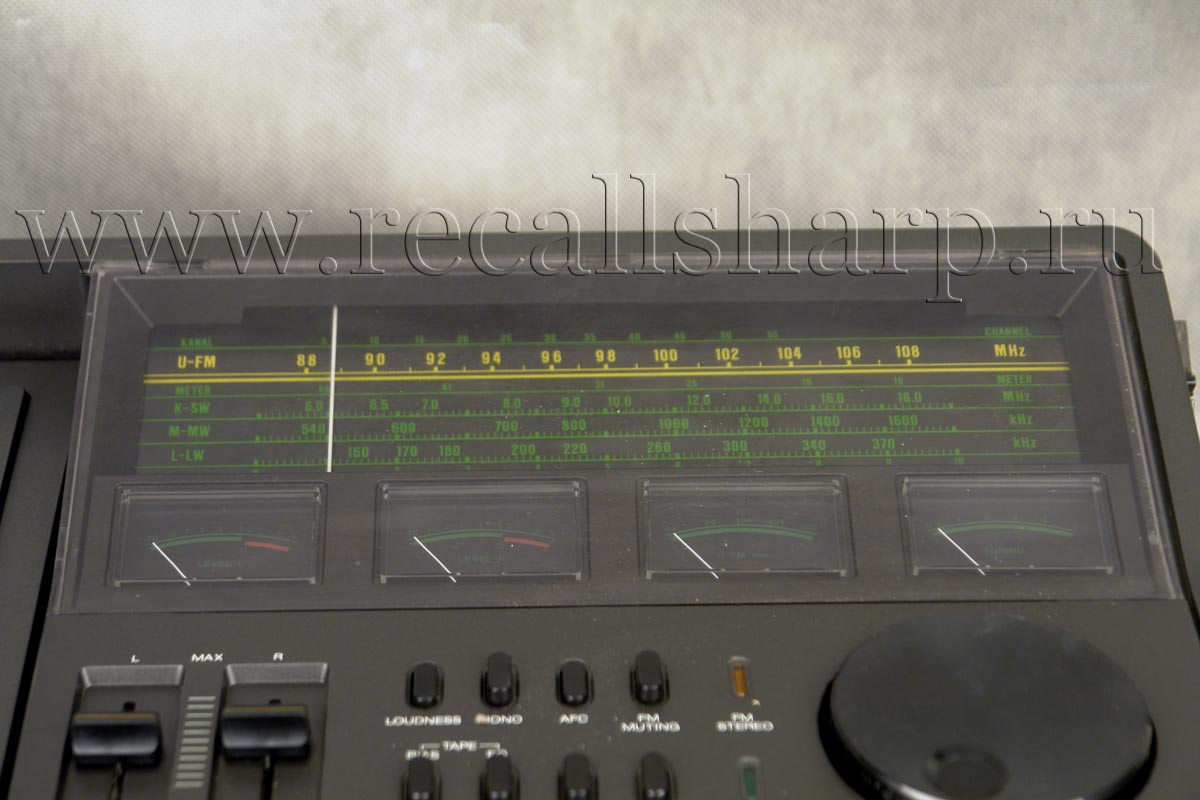

FM section


Frequency coverage: 87.6 - 108MHz


Usable sensitivity: 1.88/μV (40k Hz



deviation, S/N = 26 dB)


Harmonic distortion: 0.5%



S/N ratio: 60 dB



Stereo separation: 38 dB (at 1kHz)



AM section

Frequency coverage: LW: 150 -370kHz


MW: 520 - 1620k Hz


SW: 5.95 - 18MHz


Sensitivity: LW: 280μV/m

MW: 280μV/m

SW: 63μV


IF rejection (MW): 50 dB

Image rejection(MW): 46 dB

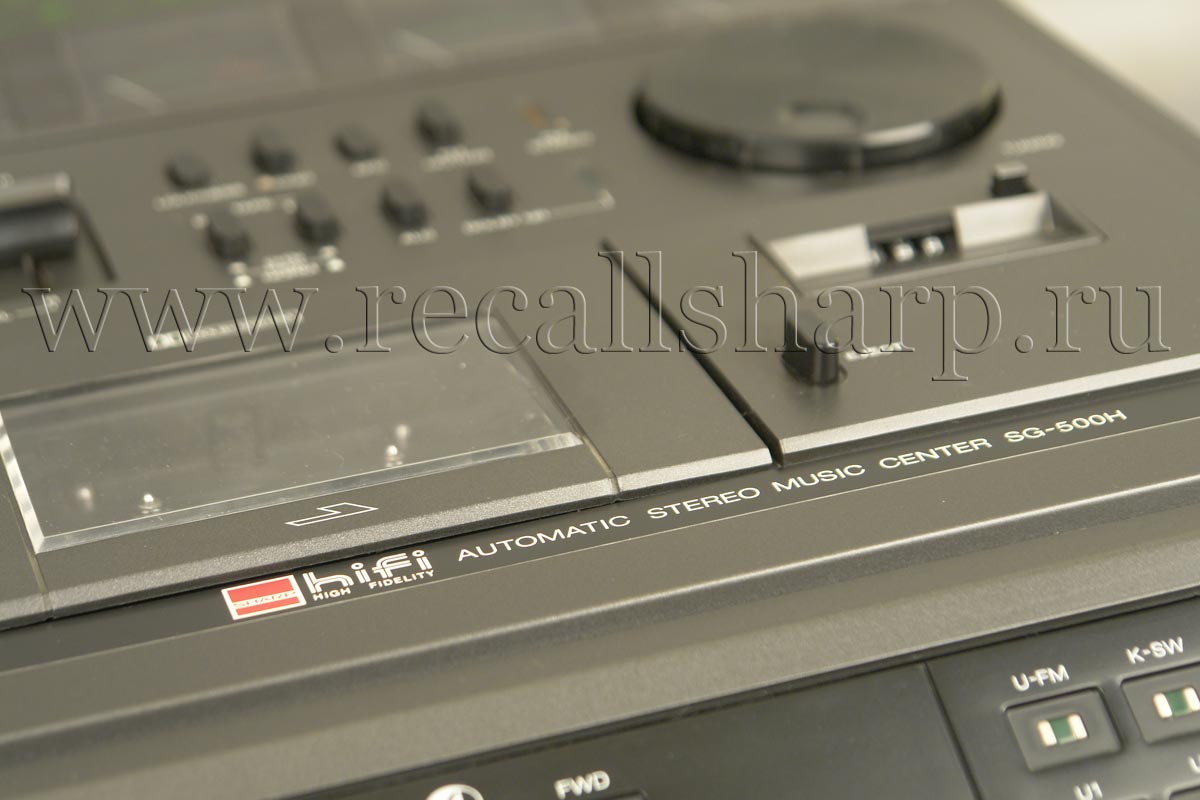

TAPE-DECK

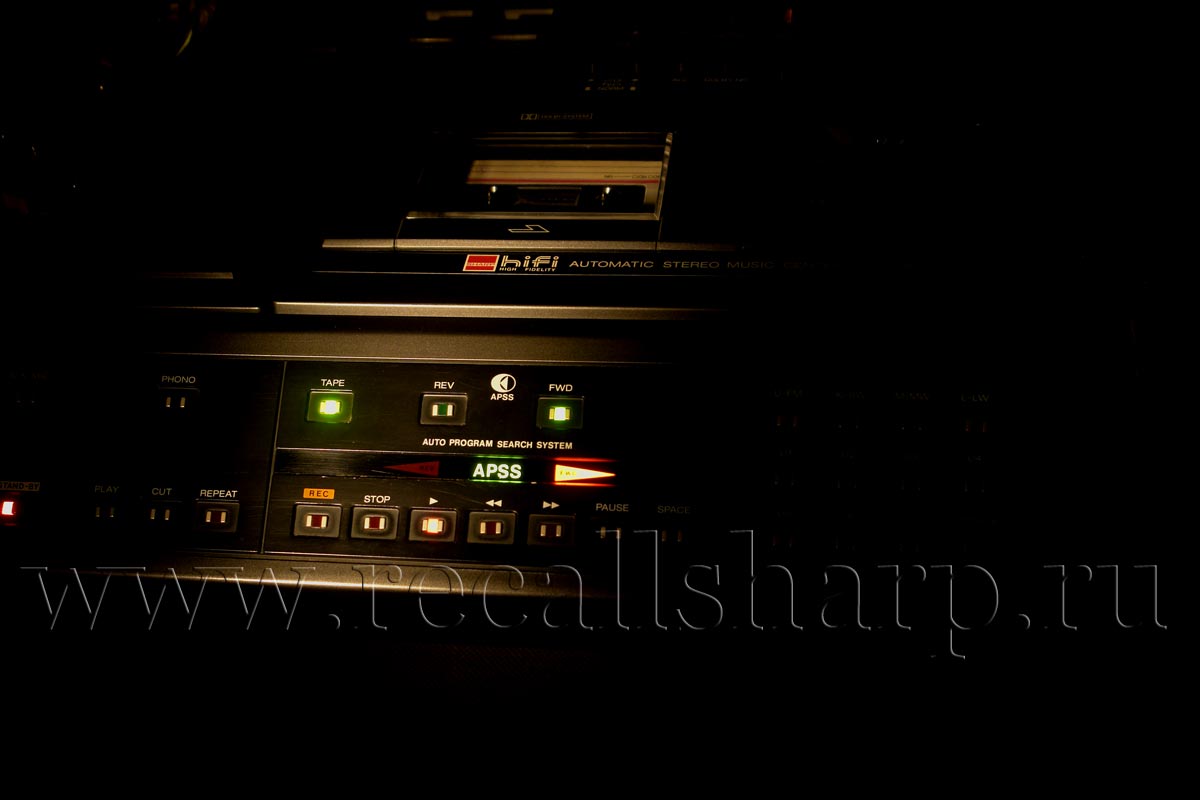

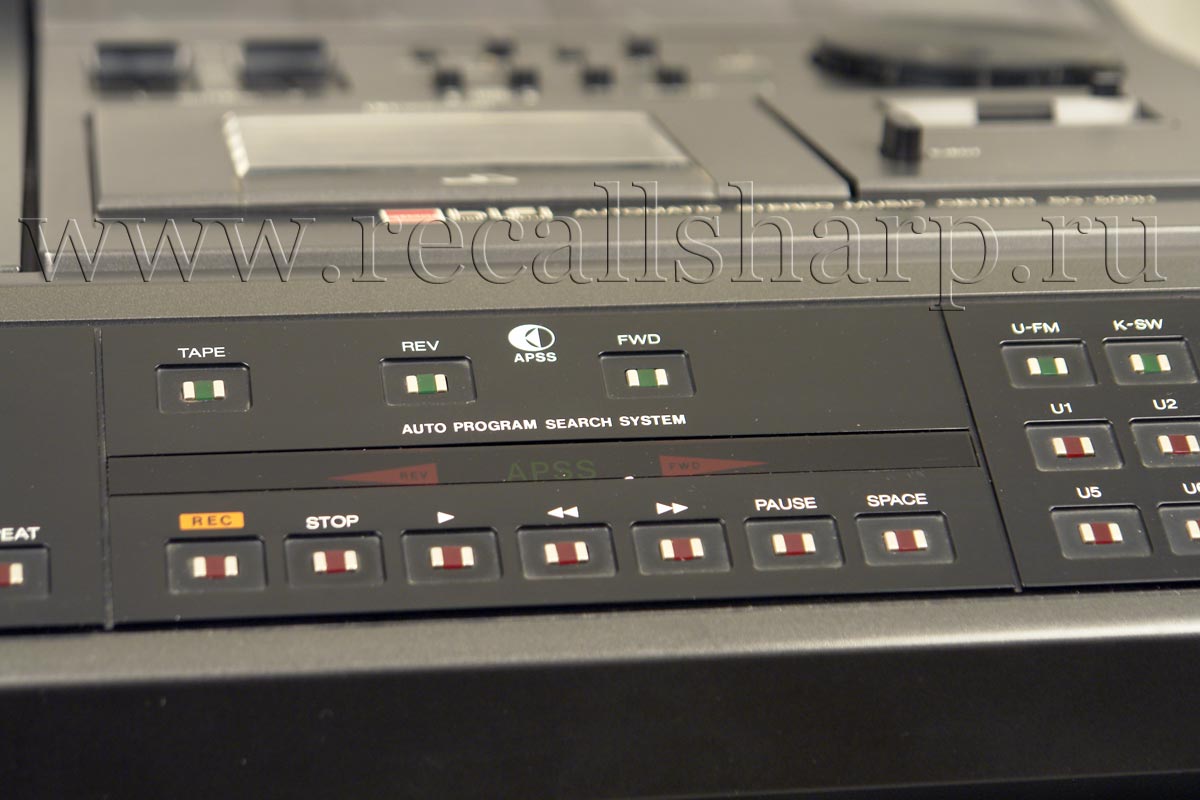

Type: 4-track 2-channel stereo cassette tape deck with APSS and Dolby N.R.system


Tape: Philips standard compact cassette tape


Semiconductors: 1LSI

19 IC

54-Transistor


48-Diode



Wow and flutter: 0.15% (DIN 45 507)

Frequency response:

Normal type; 25 - 14,000 Hz (DIN 45 511)

CrO2 tape or Fe-Cr tape; 25 - 15, 000 Hz (DIN 45 511)


Signal to Noise ratio: 54 dB

Channel Separation: 28dB(1kHz)

RECORD PLAYER

Semiconductors: 15-IC

43-Transistor

14-Diode

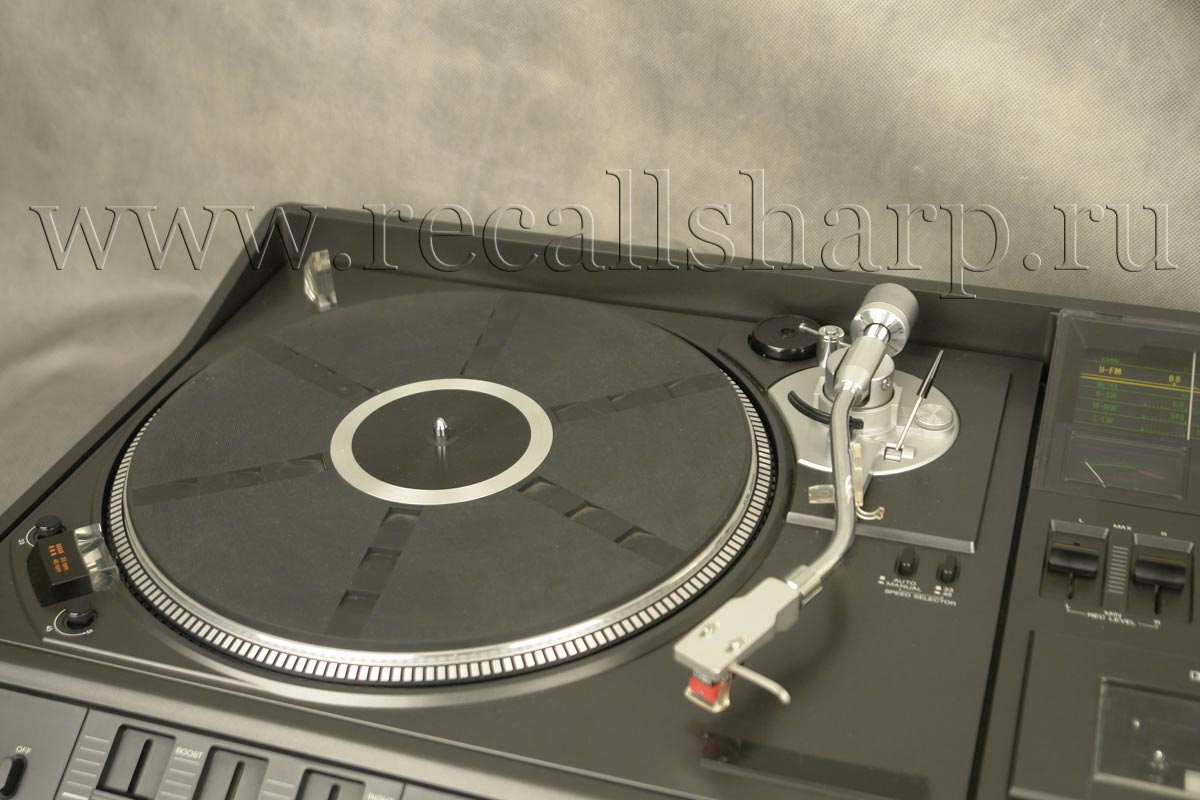

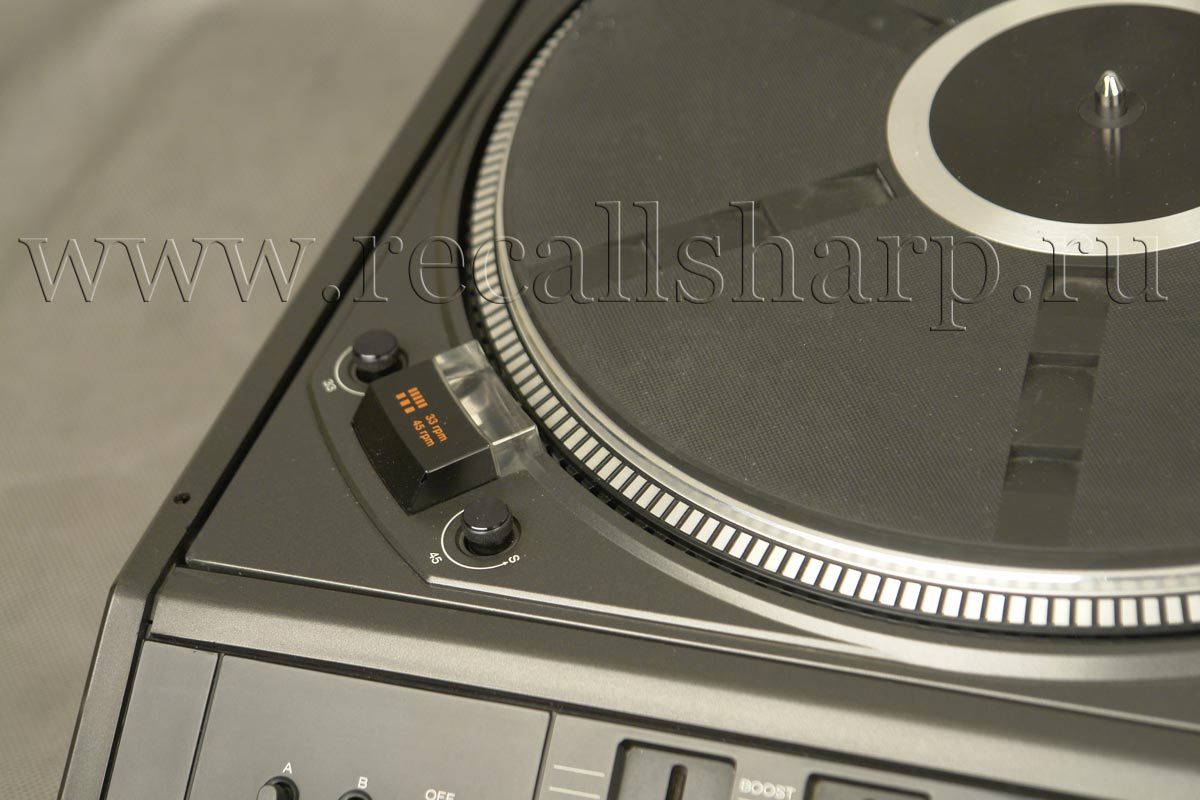

Turntable

Motor: DC servo motor with 72- pole frequency generator.

Drive system: Direct-drive system

Speed: 33-1/3 and 45 rpm

Speed control range: Within 4% (Individual control for 33-1/3 & 45 rpm)

Wow & Flutter: Less than 0.045%(WRMS)

Rumble: Better than 65 dB (DIN-B)

Turntable platter: 31 cm (12 in.) aluminum diecast with stroboscope marks

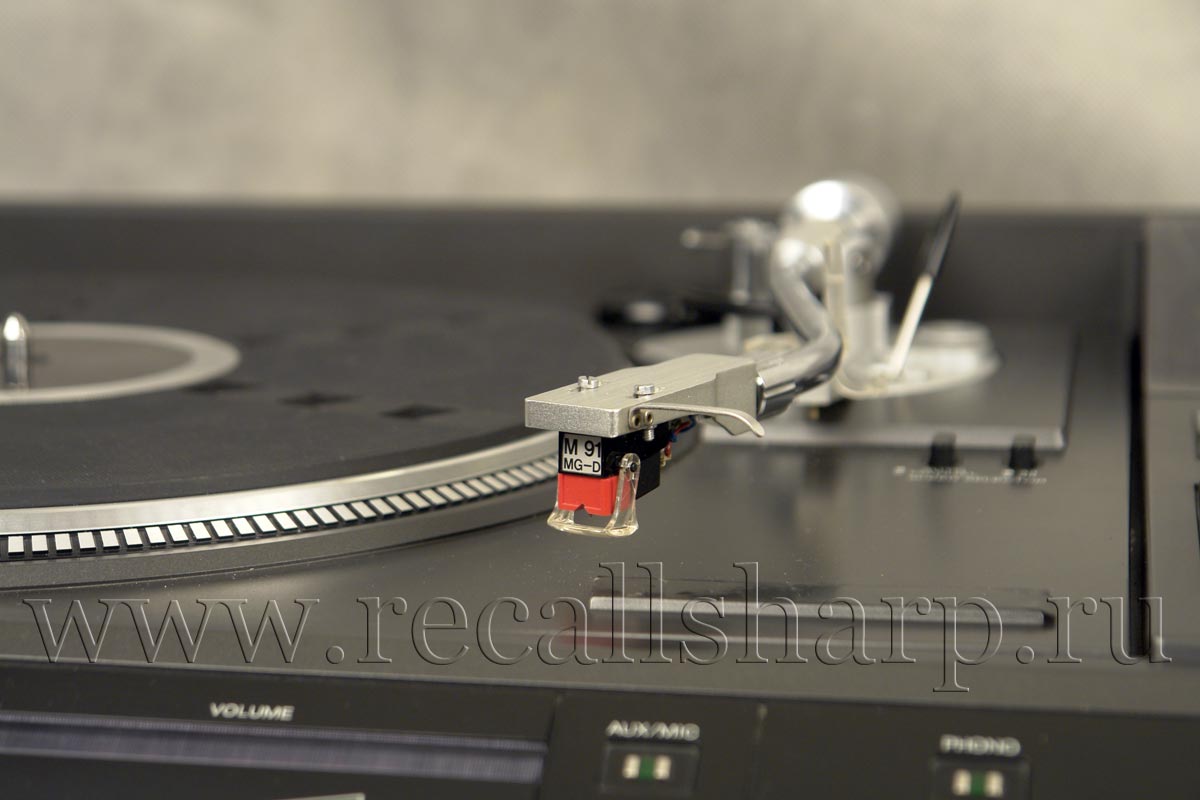

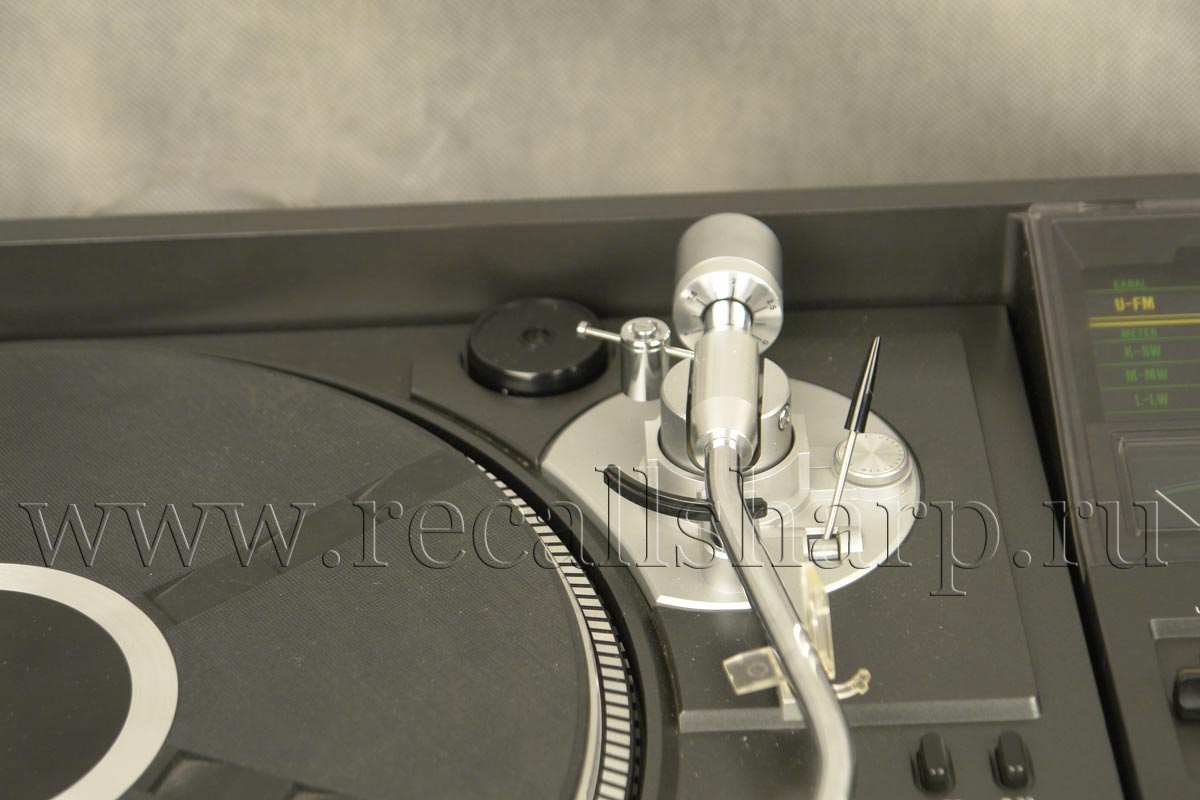

Tonearm Type: Static-balance S-shaped pipe arm

Effective length: 210 mm

Overhang: 11mm

Off-set angle: 19°

Cartridge weight range: 4 — 11 grams

Stylus pressure: 2 grams

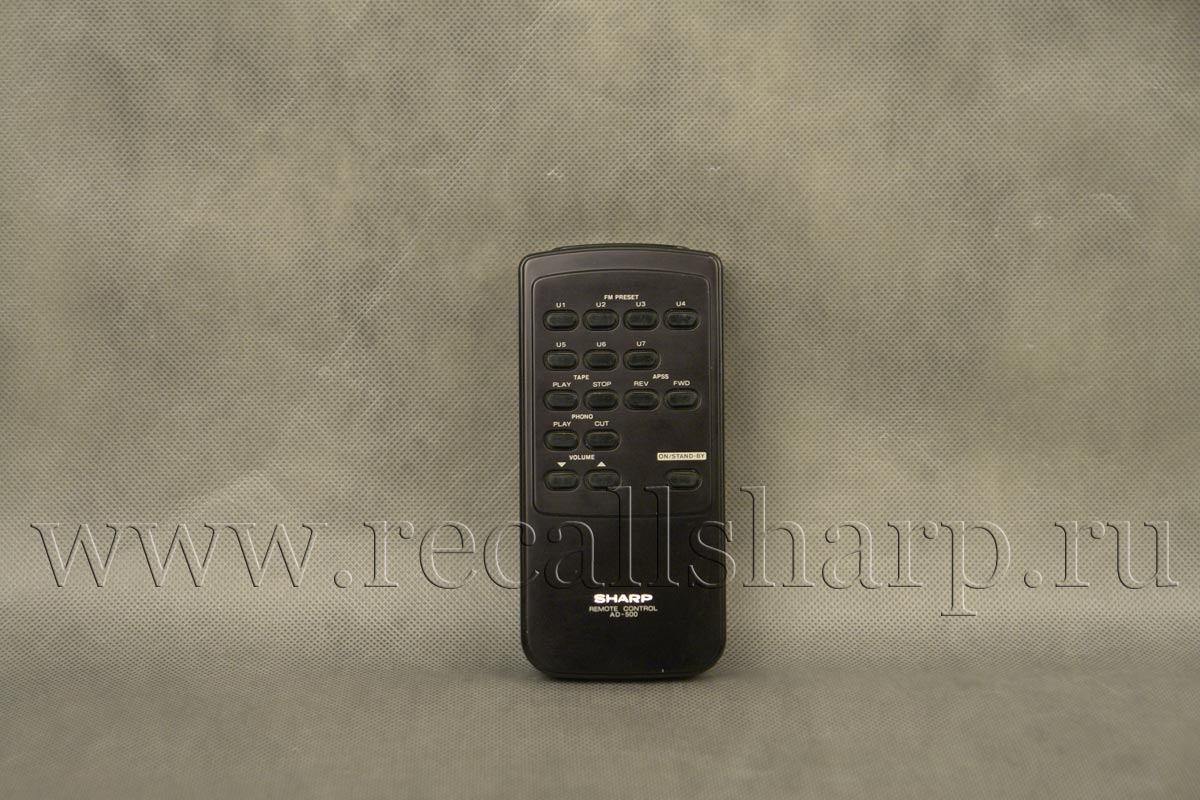

REMOTE CONTROL UNIT

Transmitter

System: Infrared transmission

Semiconductors: 1-IC (Integrated Circuit)

3-Transistor

4-Diode

3-LED (Light Emitting Diode)

Power source: Six batteries UM/SUM-3or HP-7

Weight: 155 grams (without battery)



Receiver

System: Infrared reception

Semiconductors: 3-IC (Integrated Circuit)

10-Transistor

1-FET (Field Effect Transistor)

34 Diode

1-LED (Light Emitting Diode)

1-Photosersitive Diode

Weight: 440 grams



Specifications are subject to change without prior notice.
