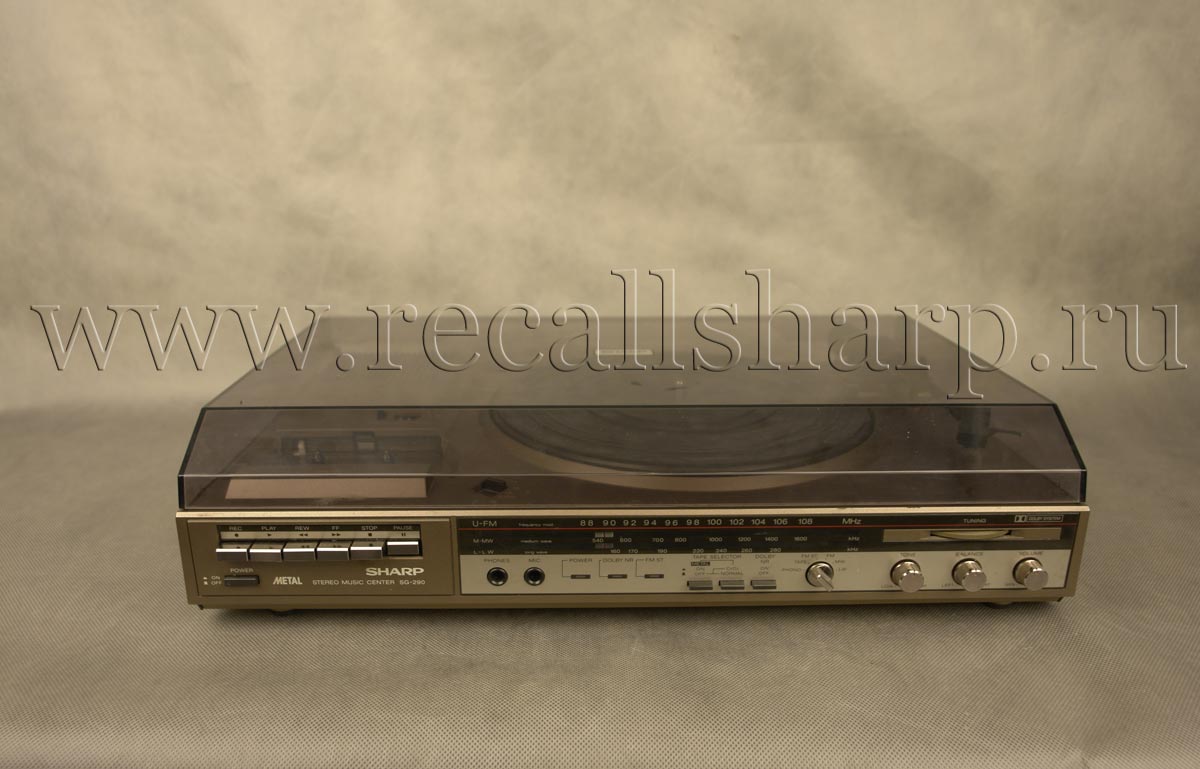

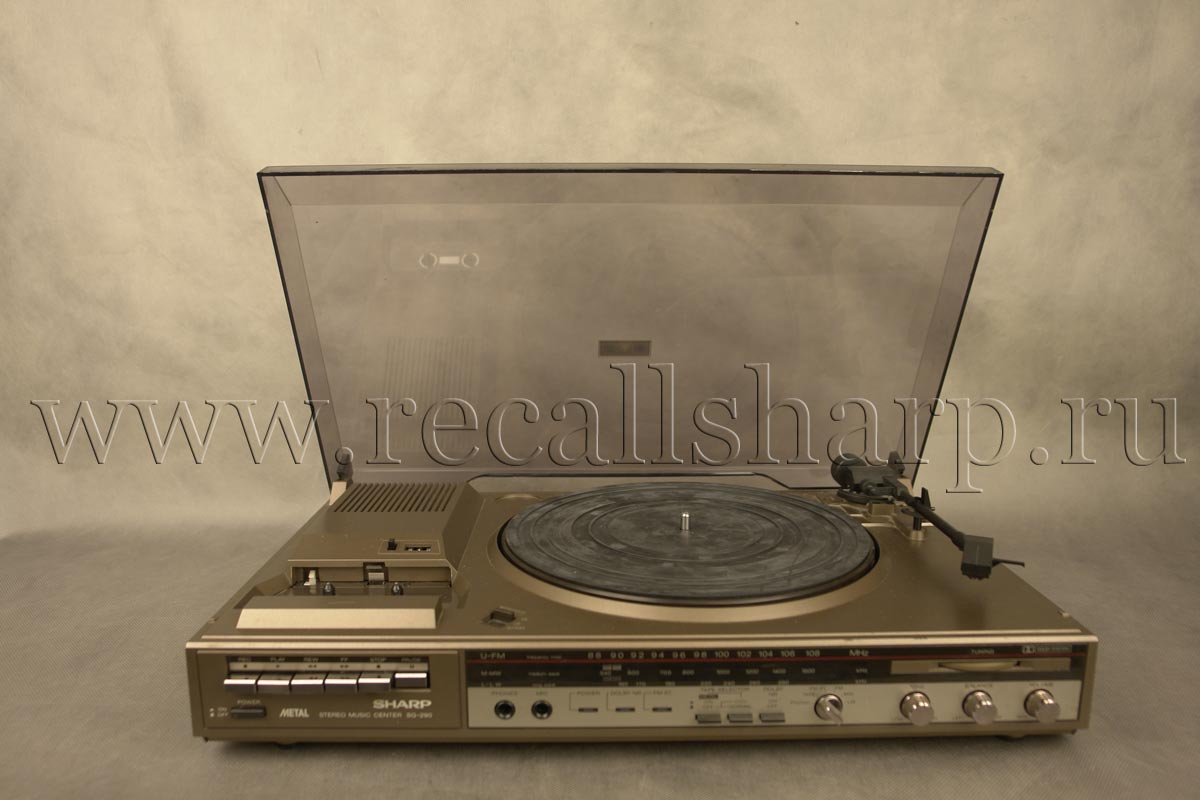

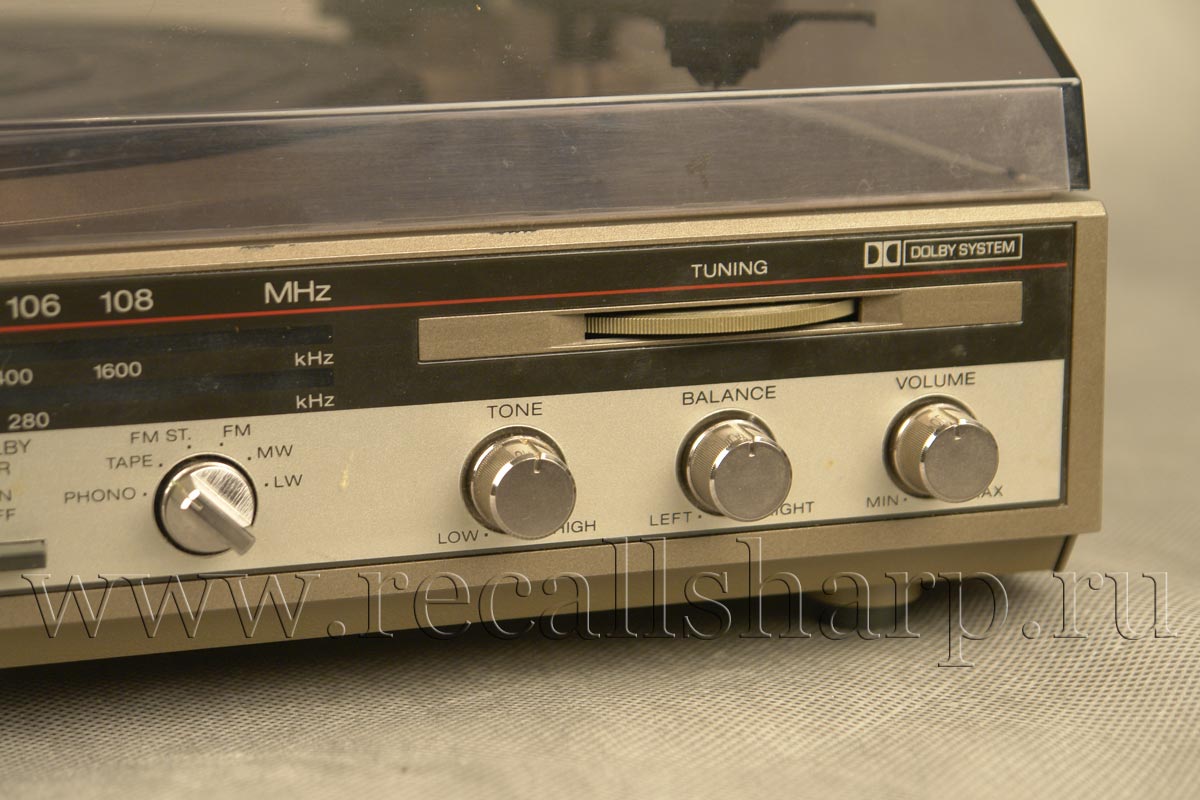

Sharp SG-290 H



: 1983


SPECIFICATIONS

GENERAL

Power source: 110/220V, 50/60HZ

Power consumption:120W

Semiconductors: 7ICs (Integrated Circuits)

15 transistors

12 diodes

3 LEDs (Light Emitting Diodes)

1 FET (Field Effect Transistor)

Dimensions: Width; 498 mm (10-19/32")

Height; 120 mm (4-23/32")

Depth; 303 mm (11-1 5/16")

Weight: 5.3 kg (11.7 lbs.)

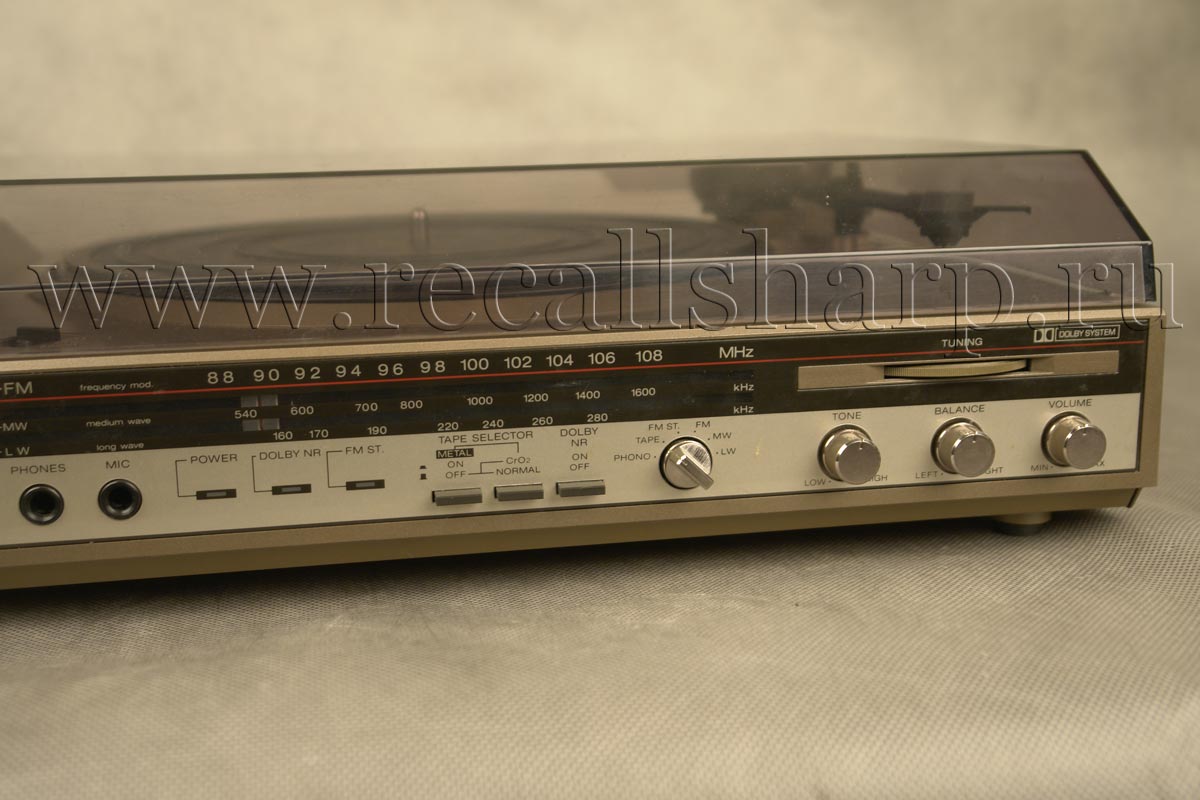

AMPLIFIER

Music power output: 2 x 20W/4ohms, at 5% T.H.D.

Continuous power output: 2 x 15W/4ohms, at 5% T. H. D.

both channels driven

Input sensitivity and input

impedance: Mic; 1 mV, 10k ohms

Loaded impedance: Speakers; 4 ohms

Headphones; 8—25 ohms

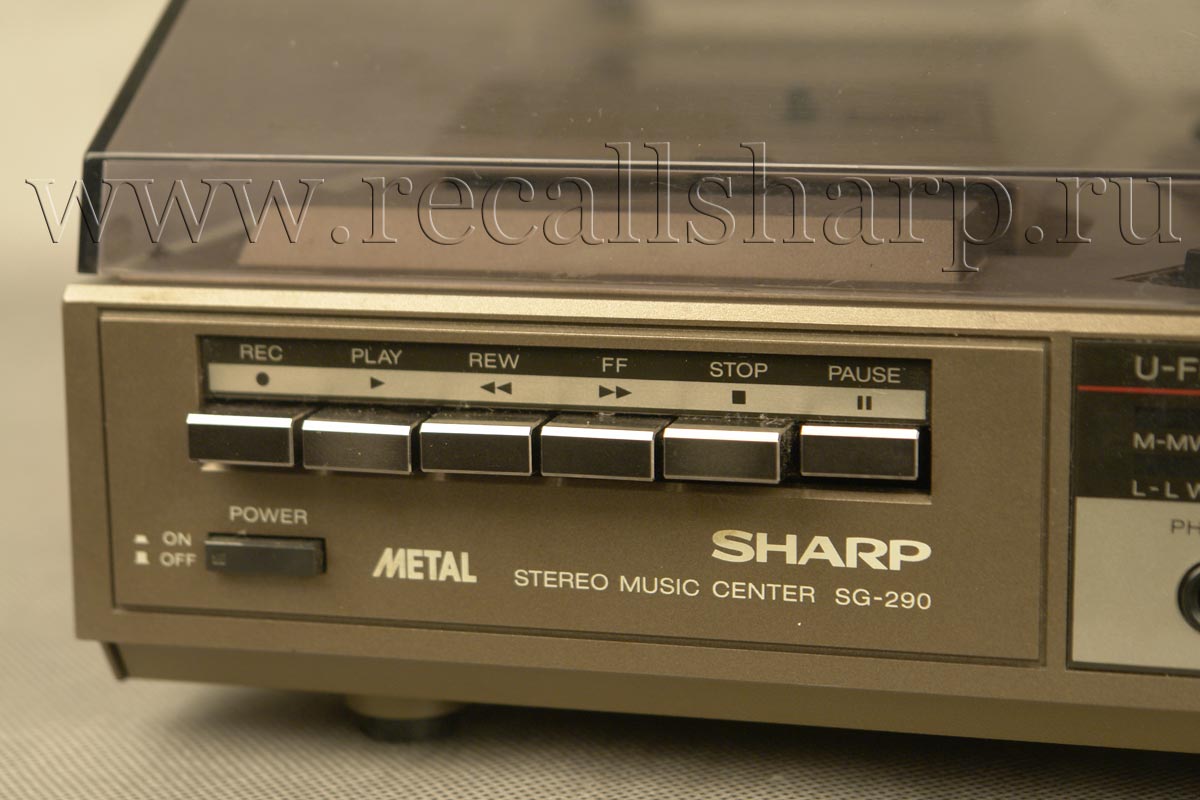

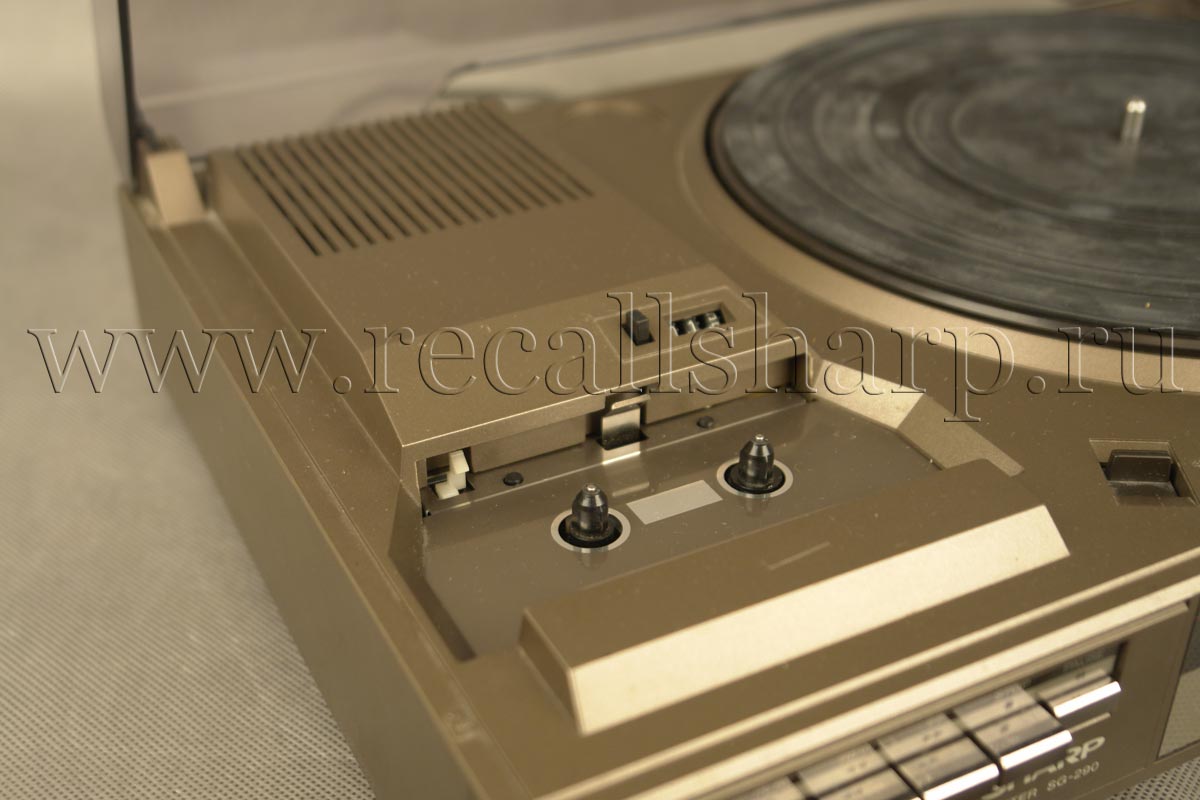

CASSETTE DECK

Type: 4-track, 2-channel stereo cassette

deck

Tape: Compact cassette tape

Bias and erasure system: AC 90kHz

Tape speed: 4.8 cm/sec. (1-7/8 ips.)

Wow and flutter:+- 0.35% (DIN)

Frequency response: Normal tape; 60Hz13000Hz

Cr02 tape; 60Hz14000Hz

Metal tape; 60Hz15000Hz

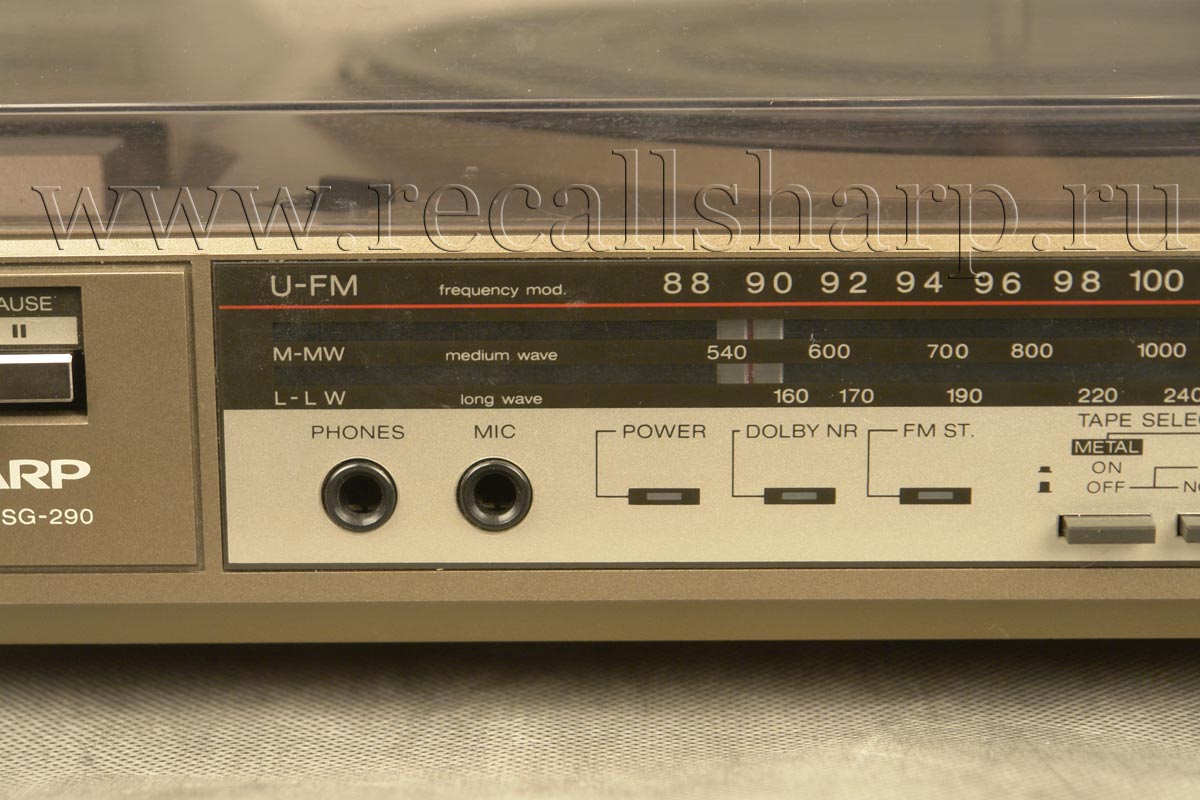

TUNER

Frequency range: FM; 87.6MHz108MHz

MW; 520kHz 1620kHz

LW; 148.5kHz285kHz

Usable sensitivity (mono); FM; 3.2μV (40kHz deviation, S/N26 dB)

MW; 350μV/m (with bar aerial)

LW; 350μV/m (with bar aerial)

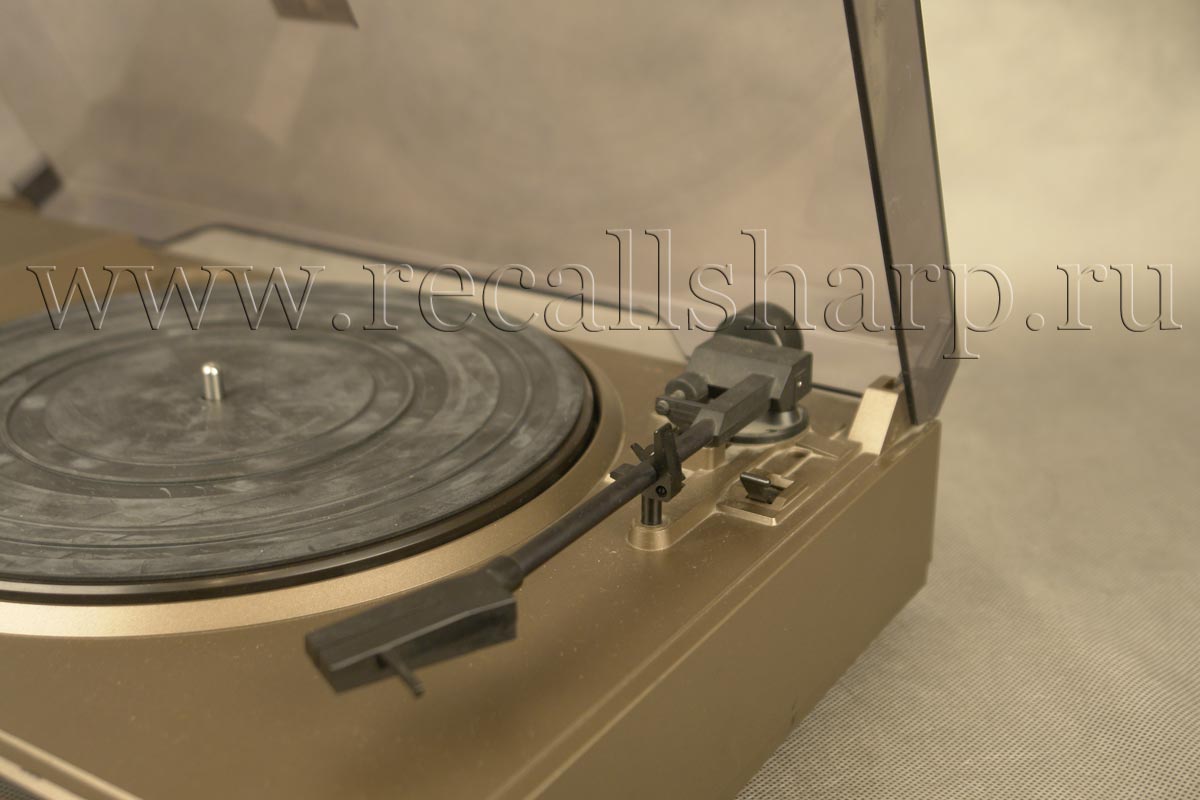

RECORD PLAYER

Type:Belt drive single player

Speed:33-1 /3 and 45 rpm

Motor: DC Motor

Tonearm:Dynamic balanced

Cartridge: Ceramic with sapphire stylus

Replacement stylus: STY-134

SHARP reserves the right to make design and specification changes for product improvement without prior notice.
