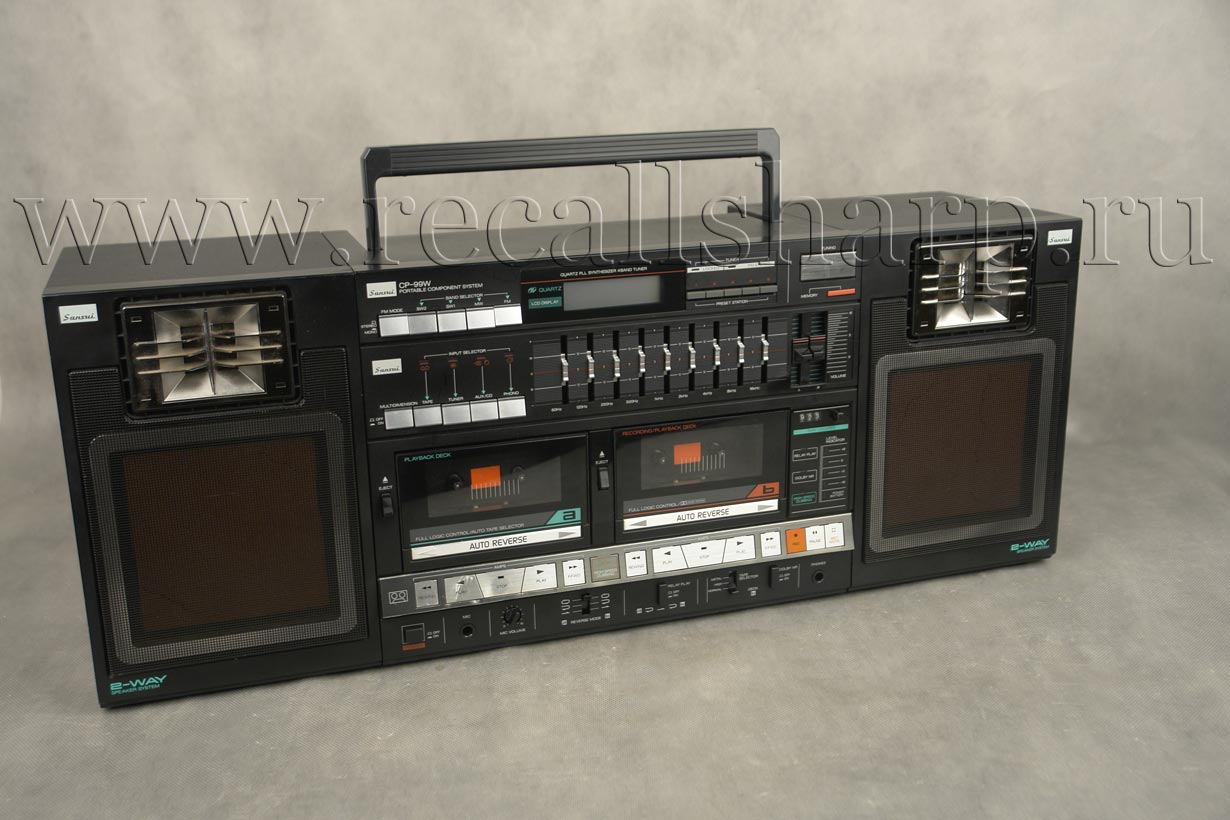

Sansui CP-99 W



: 1986


CP-99W

Audio section

Power output Min RMS both channels driven from 90-15000Hz with no more than 10%

total harmonics distortions 2 x 15 Watts8 ohm

Frequency response(at 1 watt) 40Hz-15kHz+1dB, - 3dB

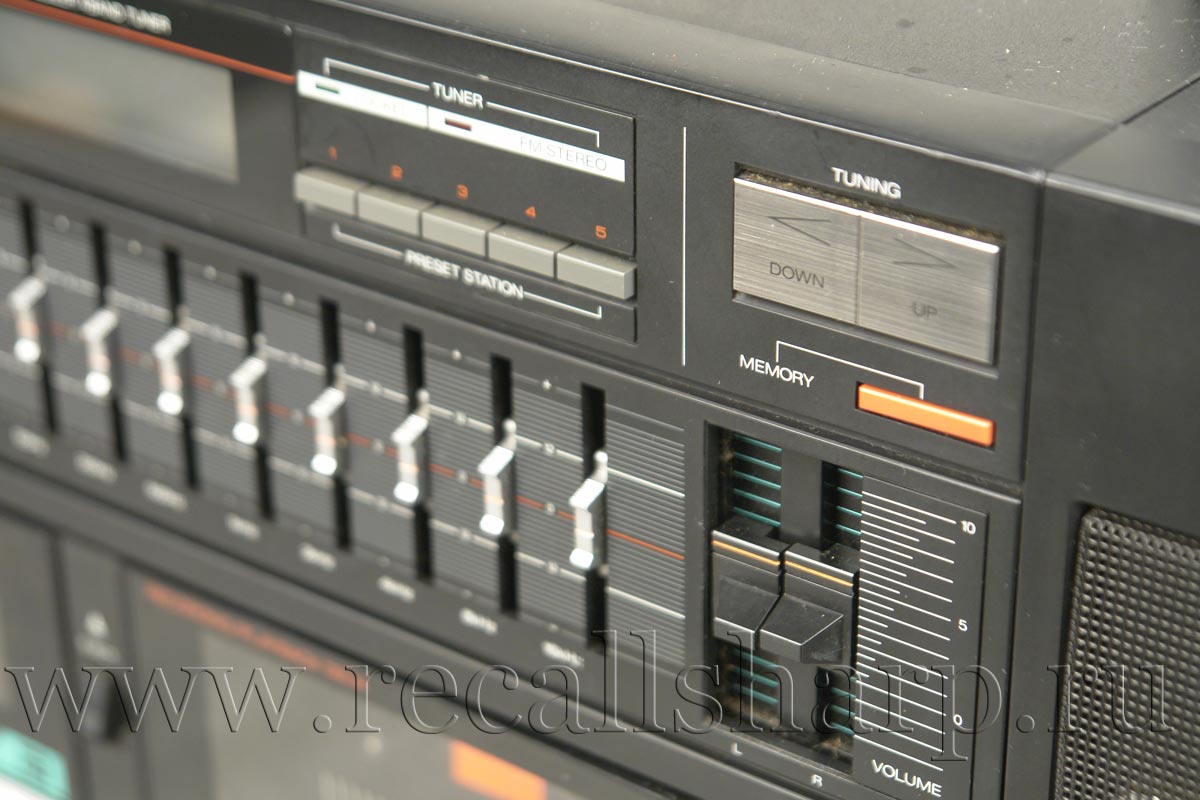

Equalizer Frequency 60Hz, 125Hz, 250Hz, 500Hz,

1kHz, 2kHz, 4kHz,8kHz,16kHz

Level variation range + 12dB

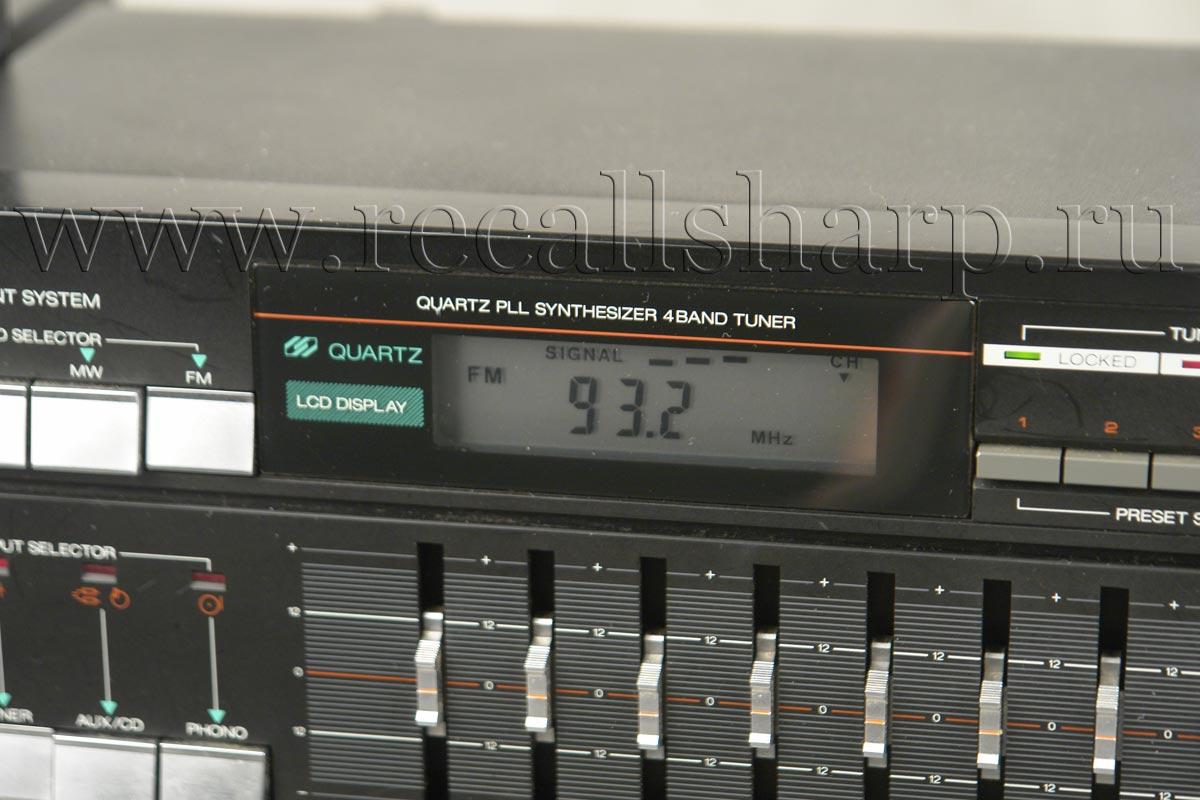

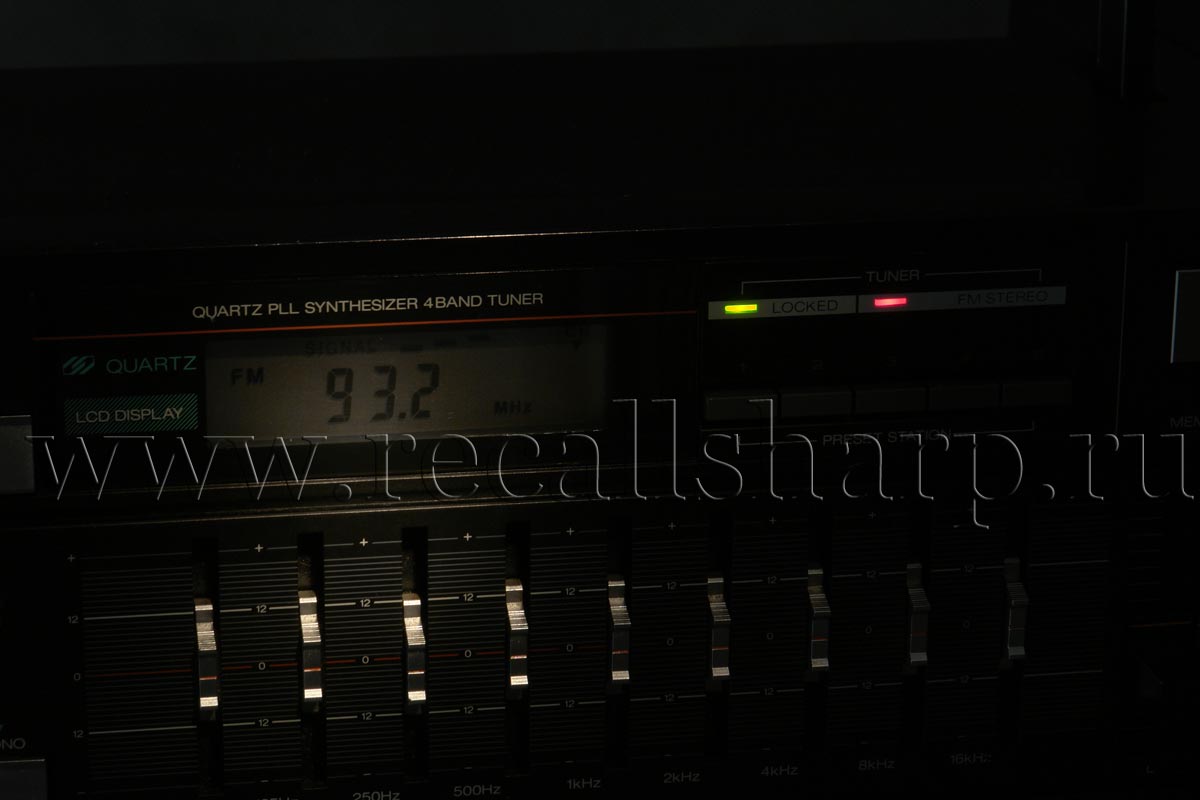

FM section

Tuning range 88- 108MHz

MWsection

Tuning range 530- 1600kHz

SW1section
Tuning range 3.2-7.3 MHz

SW2 section

Tuning range 9.5-21,75 MHz


Signal to noise ratio: Phono: 60dB

(short circuit A-network) AUX: 64dB

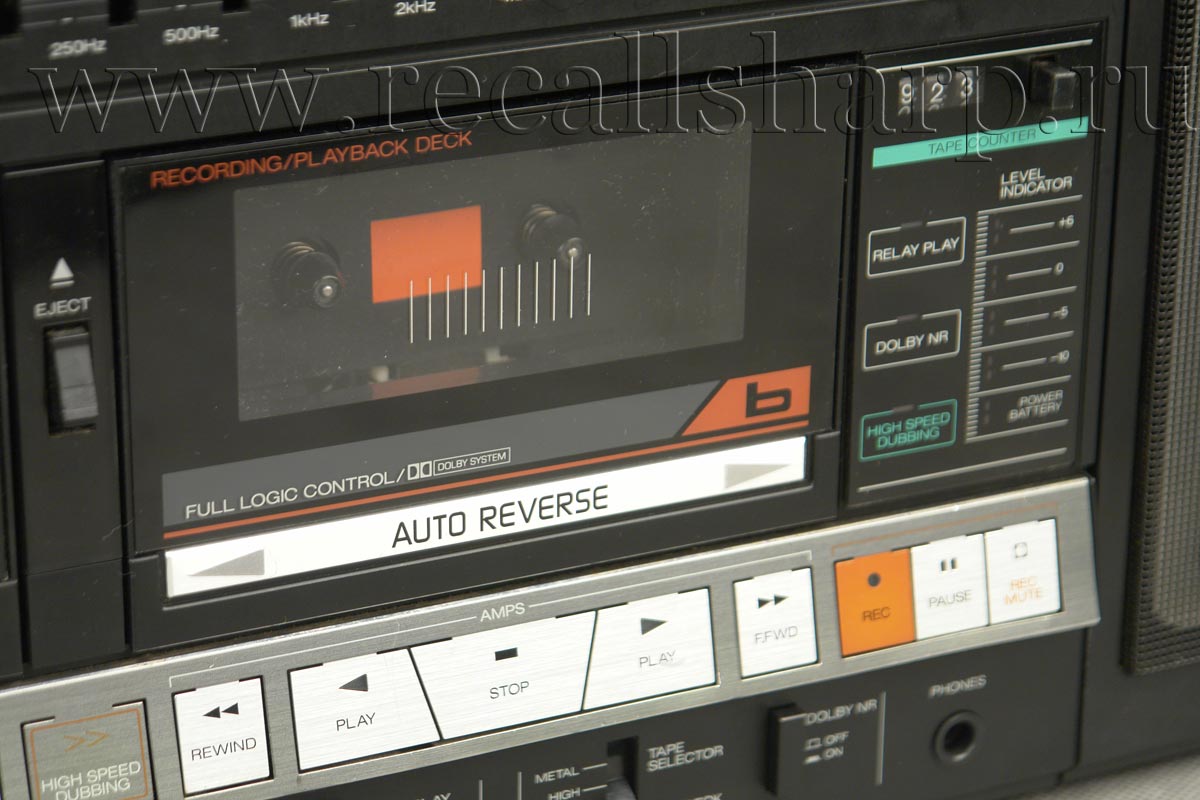

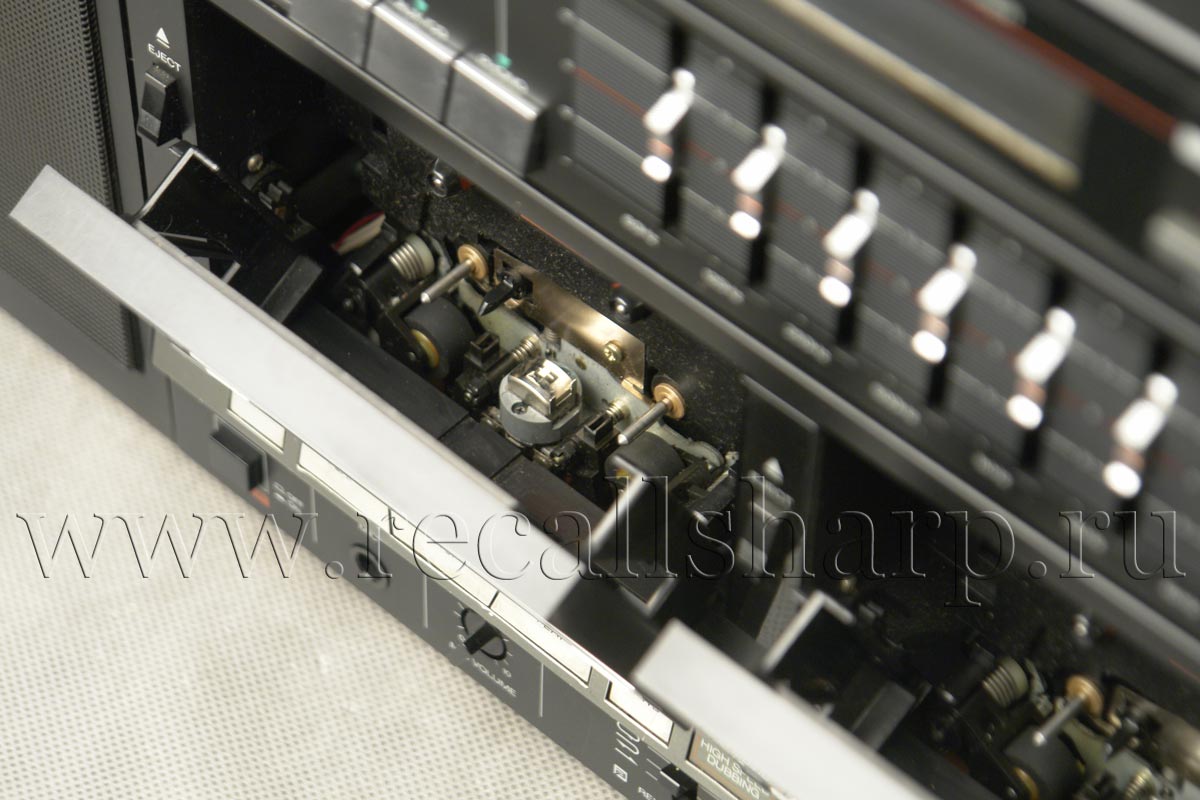

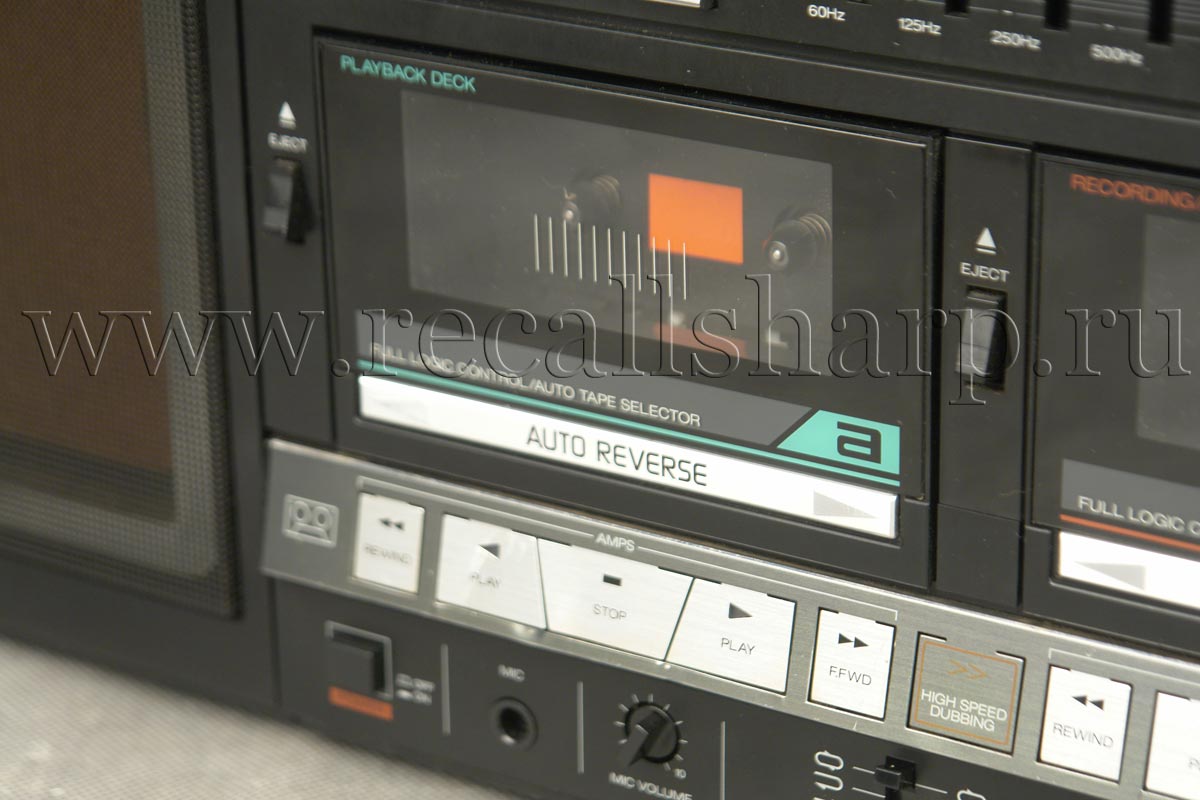

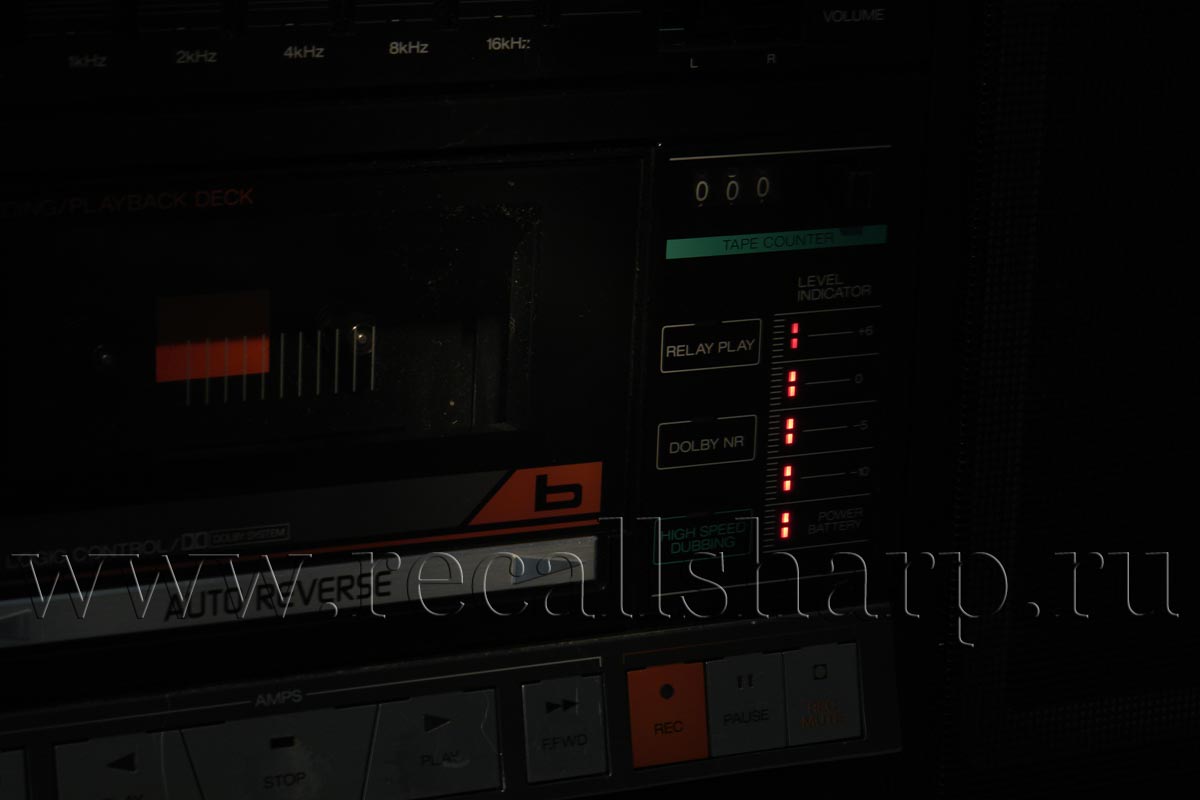

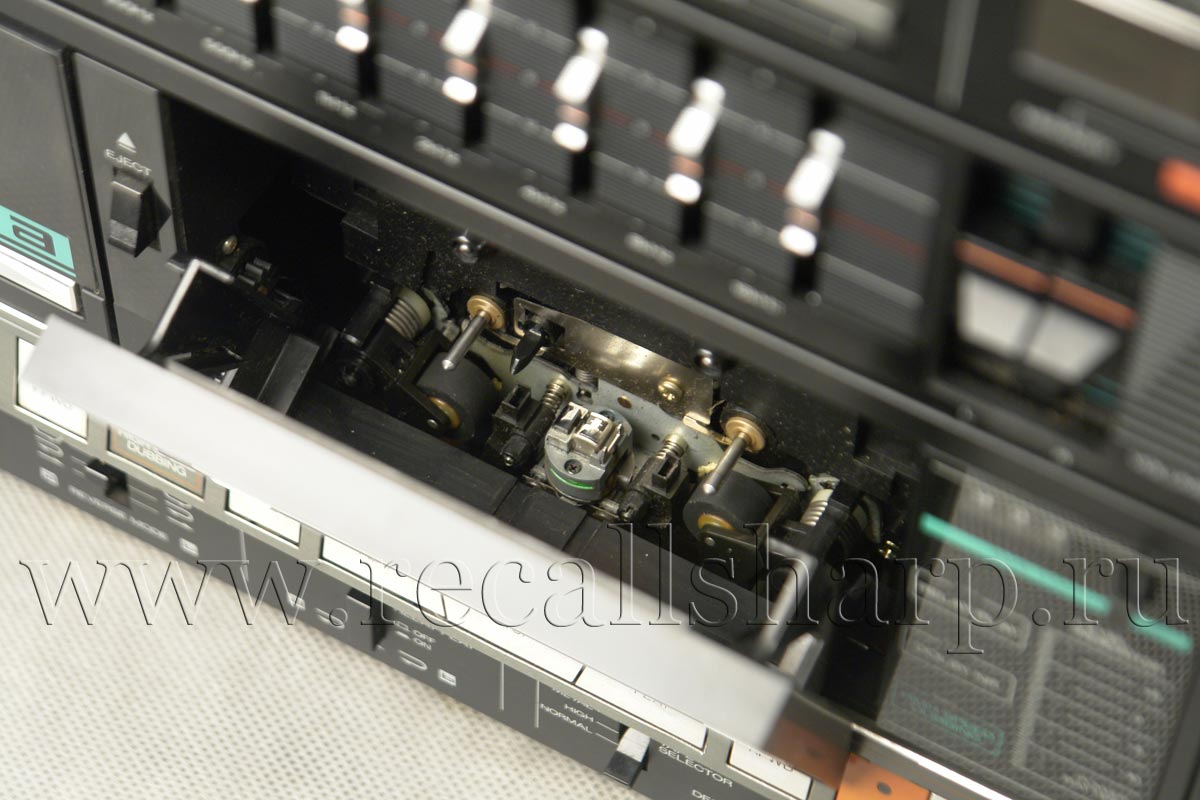

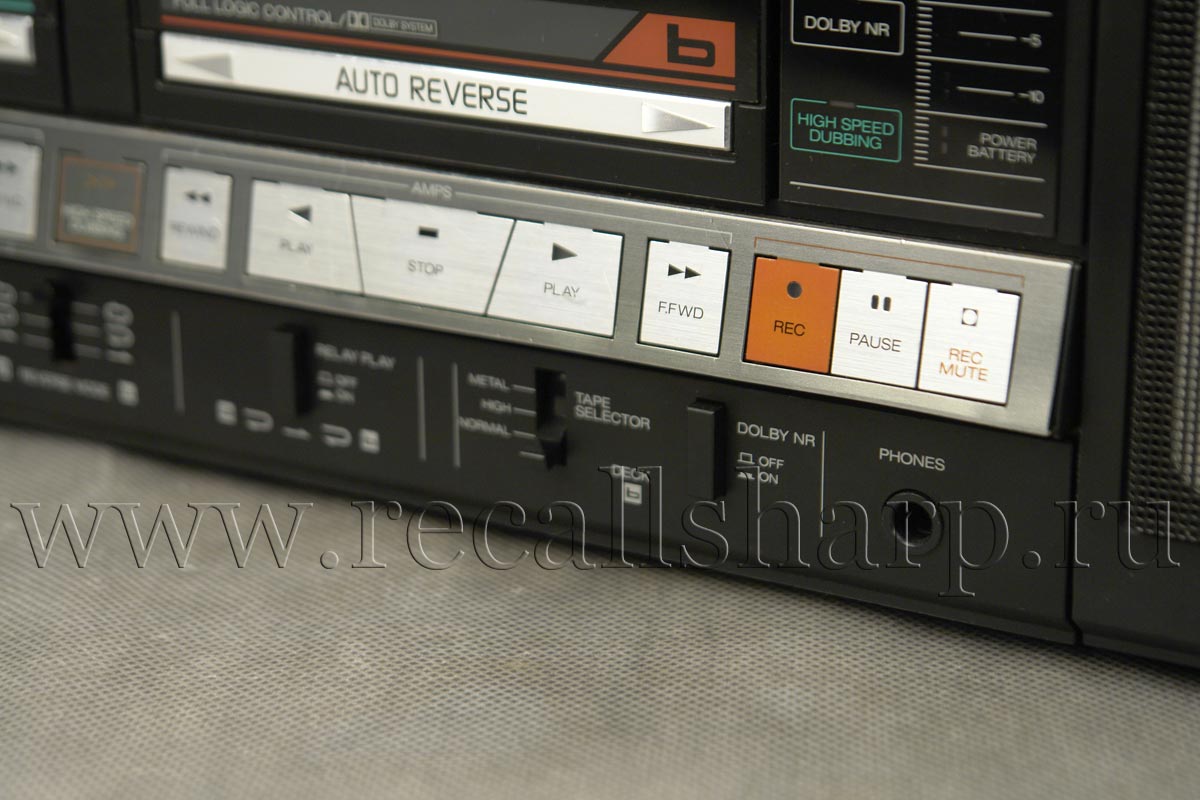

Tape section

Track format 4Track /2 channel system

Frequency response(-20VU recording/playback)

Metaltape: 60-15,000 Hz

Wow and flutter 0.1% (WRMS)

Signal to noise ratio (recording/playbackwith metal tape)

DOLBY NR on Better than 60dB(above 5 kHz)

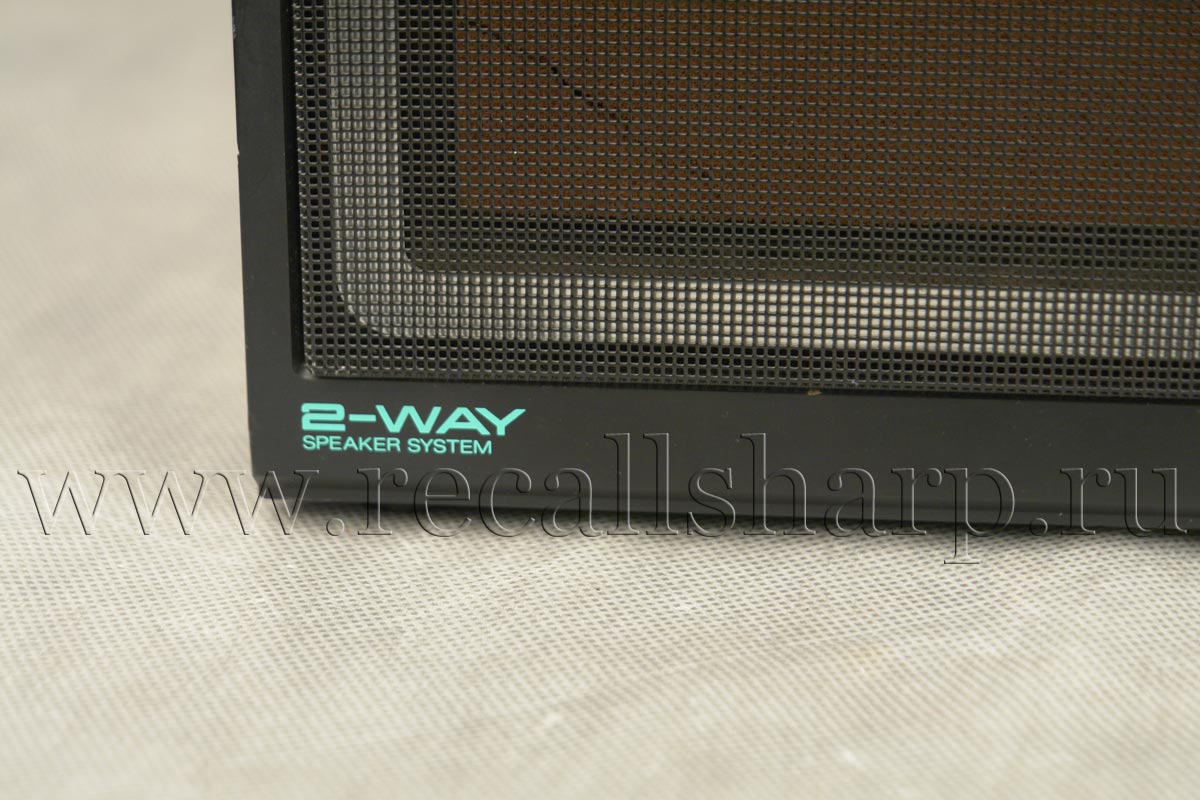

LOUDSPEAKERS CP-S99

Speakers 2-way 2 speaker type

Woofer 120 mm Cone type

Tweeter 50 mm Cone type

Impedance 8 Ohms

Max Input Power 20W

Frequency response150Hz-17000Hz(in normal listening room)

Power sources: 110/240 V, 50/60 Hz 93w or batteries

For USA& Canada120V(60Hz)
Power consumption: 93w

WxHxD: 670 x 270 x 196 mm.

Nett Weight: 9.7 kg
