Silver Shin-Shirasuno Electric Corporation. . 100 .

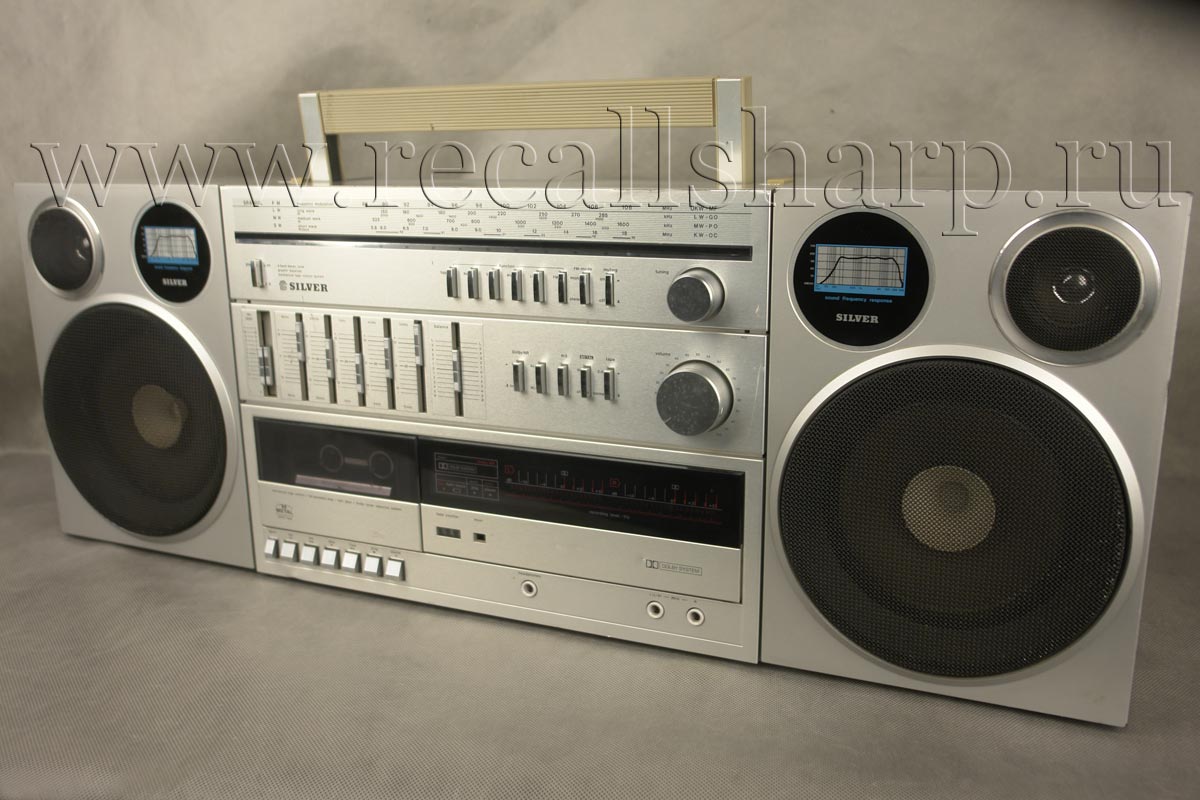

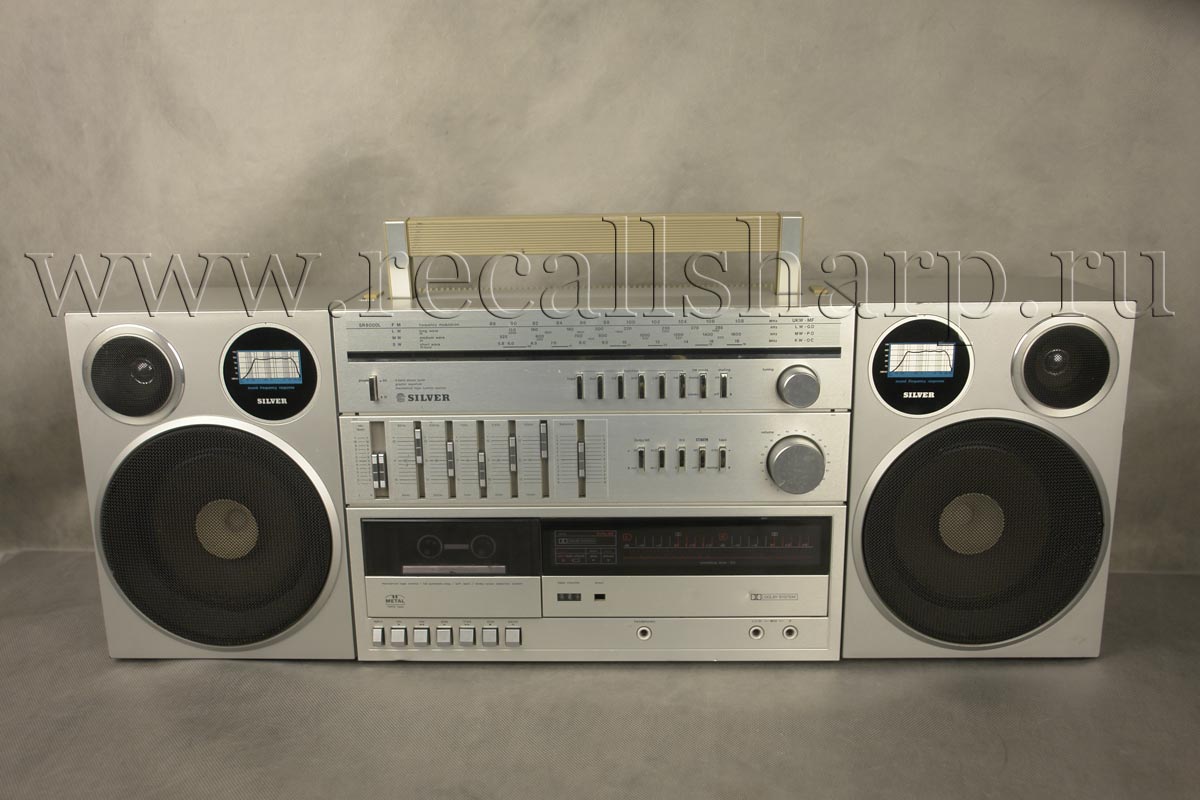

Silver SR8000 L



: 1981


Specifications

POWER SUPPLY Mains: AC 110-127V/220 - 240V

(switchable), 50/60 Hz

Batteries: DC 15V, "D"size or

flashlight batteries x 10 UM-1(A)

External DC Power: DC 12-15V

POWER CONSUMPTION 90W

POWER OUTPUT 48W total (maximum)

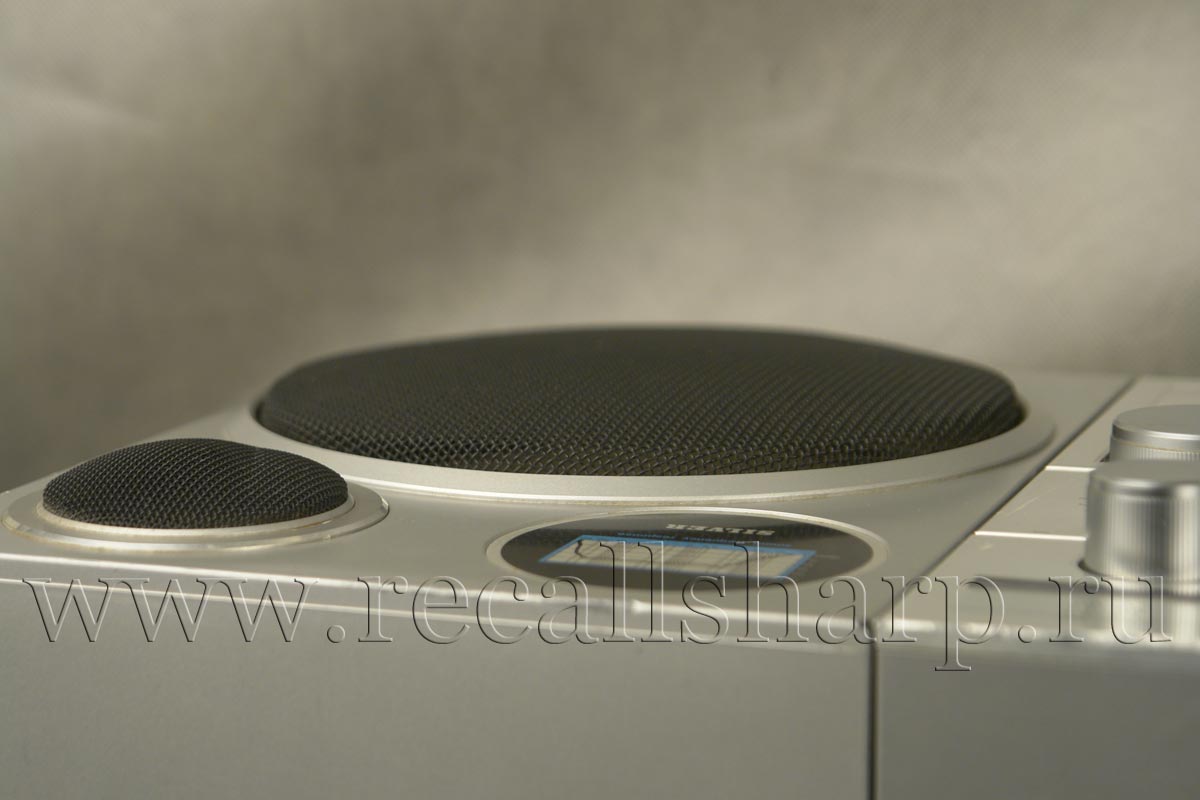

SPEAKERS

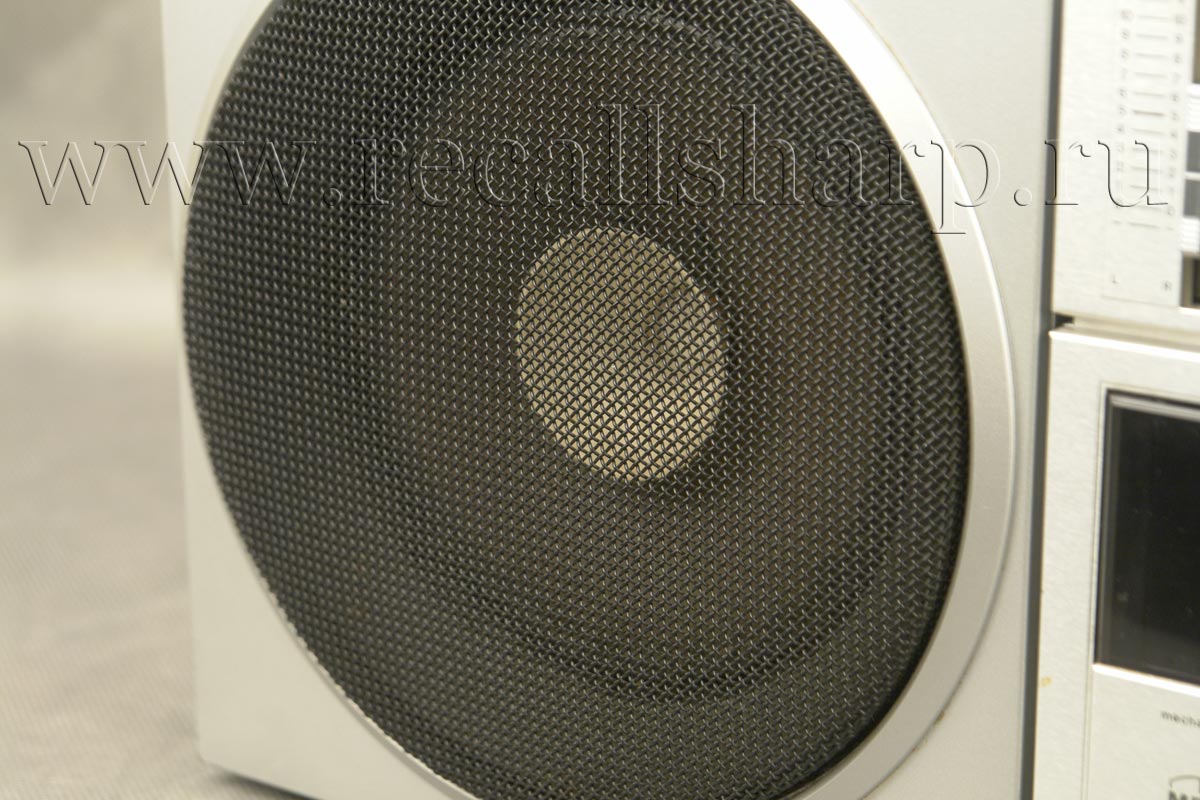

Woofer: 160 mm, 4 ohm, dynamic

2 pcs.

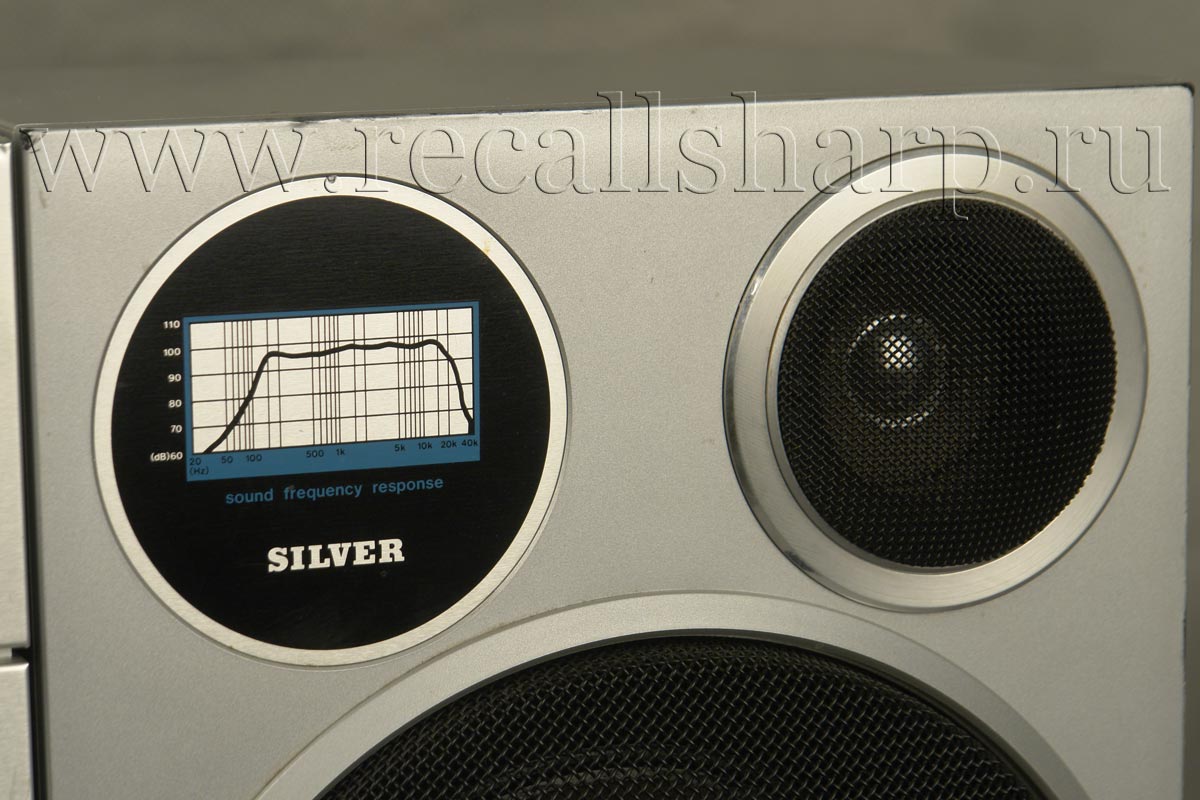

Tweeter: 50 mm, 2.5 ohm, dynamic

2 pcs.

DIMENSIONS 780(W)x282(H)x 176(D) mm

WEIGHT 11.4 kg (with batteries)

RADIO SECTION

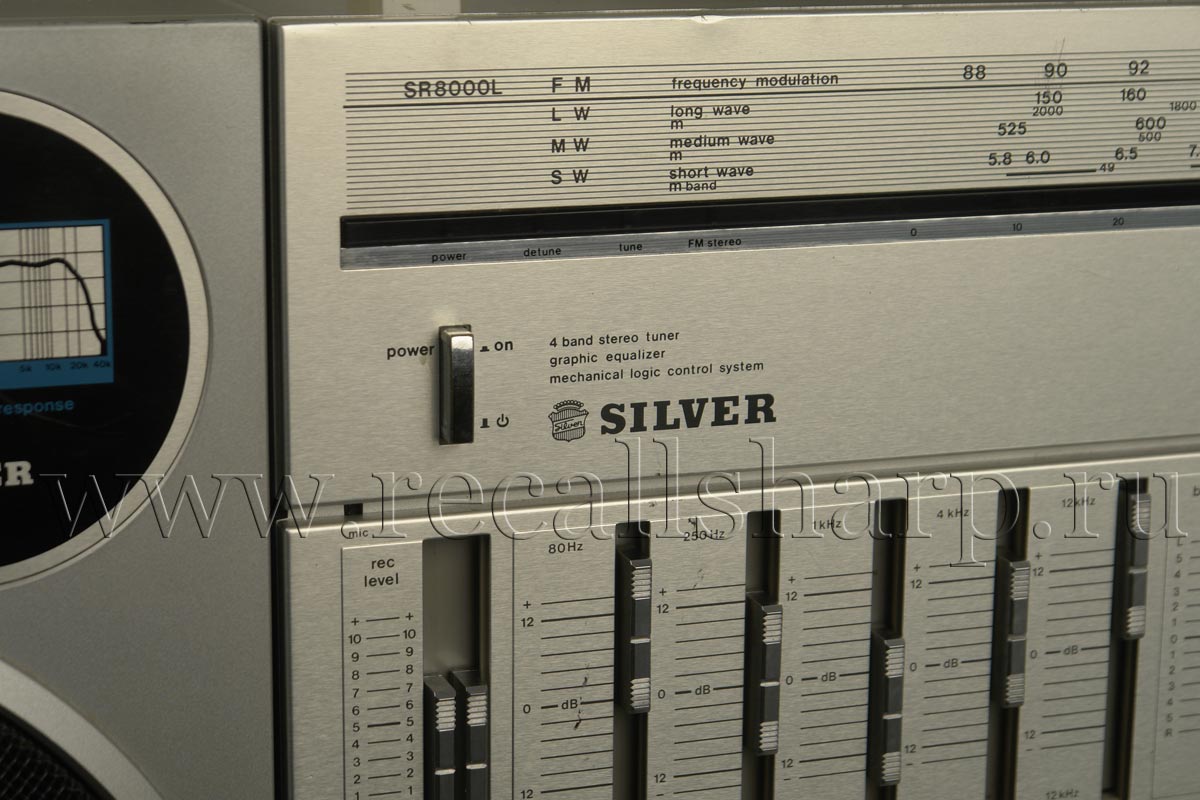

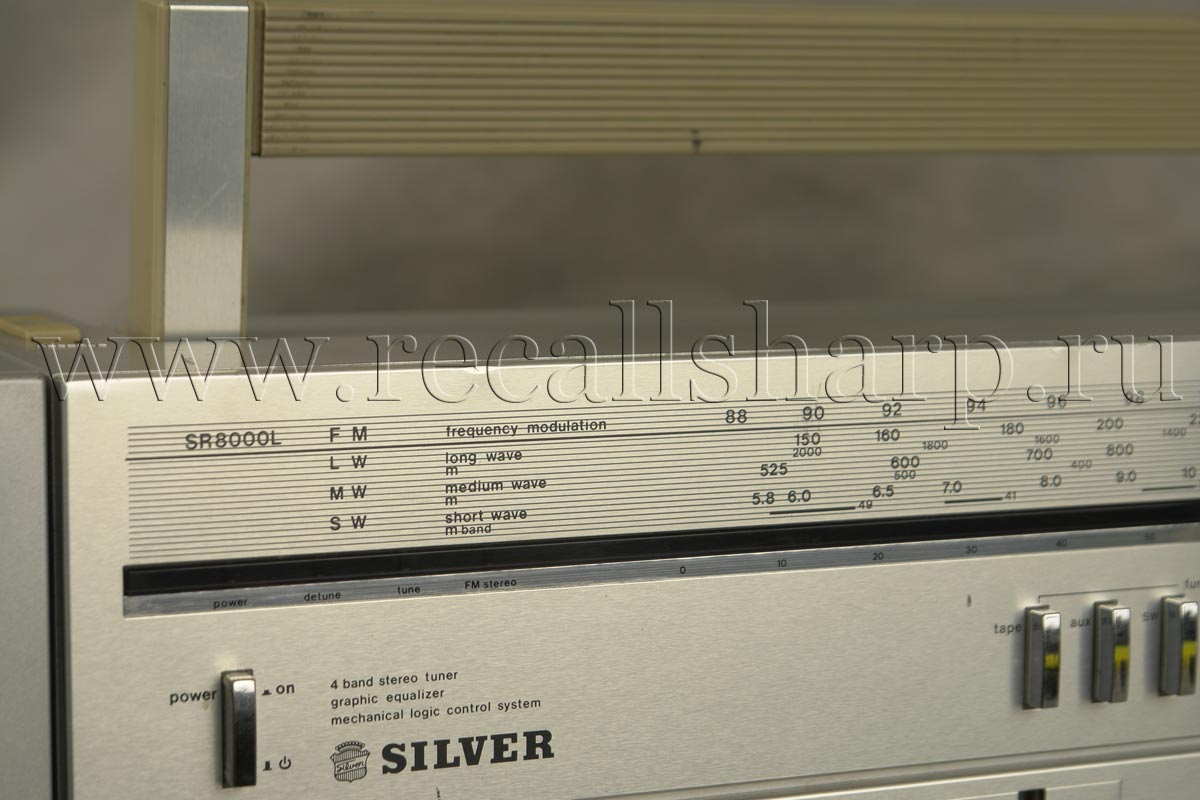

Tuning Range: FM: 87.5-108 MHz

MW: 525-1605 kHz

LW: 150-285 kHz

SW: 5.8-18 MHz

Antenna System: FM: 300 ohm balanced

external antenna and telescopic antennas

MW/LW: High-gain ferrite bar antenna


SW: Telescopic antenna and external antenna

FM Stereo Separation: 45 dB (at 1 kHz)

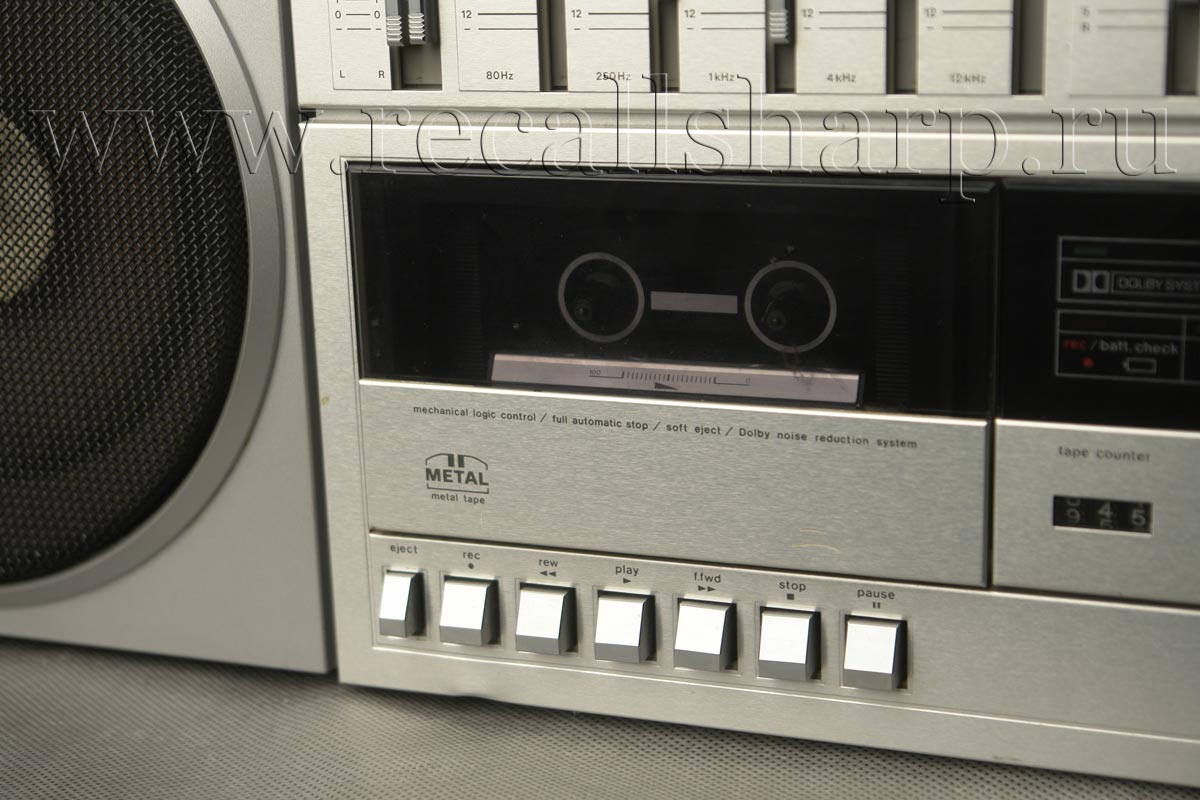

TAPE RECORDER SECTION

Type: 4-track, 2-channel stereo

or monaural

Tape Speed: 4.75 cm/sec.

Frequency Response: 40-13,000 Hz (nomal)

40-14,000 Hz (Cr02)

40-15,000 Hz (metal)

Wow and Flutter: 0.07% (RMS weighted)

Rewind Time: 90 seconds approx.with

C60 compact cassette tape

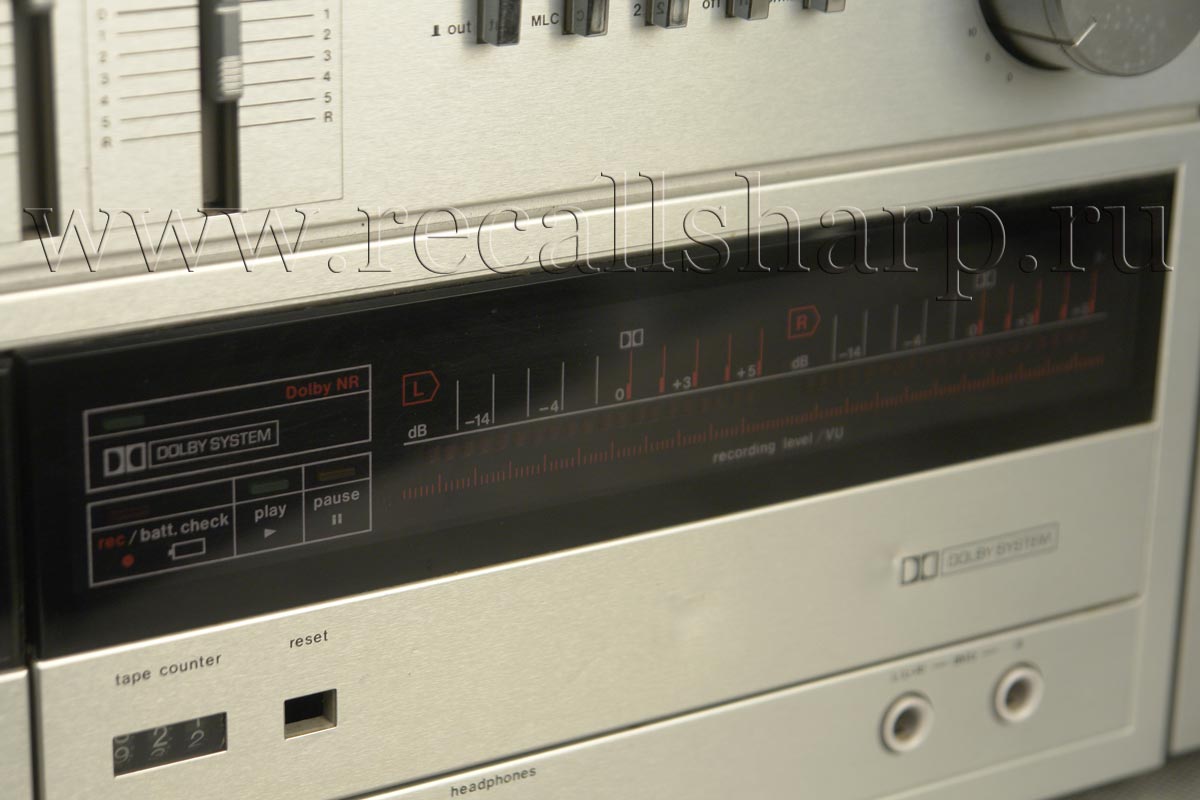

Signal to Noise Ratio: 50 dB (normal Dolby NR out),

55 dB (normal, Doby NR in)

55 dB (metal Dolby NR out),

60 dB (metal, Dolby NR in)

JACKS

Ext. Mic. (right and left): 0.1 mV/1.5 k ohm

Aux. Input: 100mV/47kohm

Tape Output: 580mV/10kohm

Headphons: 8 ohm

Specifications may be changed without notice.
