Год начала выпуска: 1982
Регион: Азия
SPECIFICATIONS

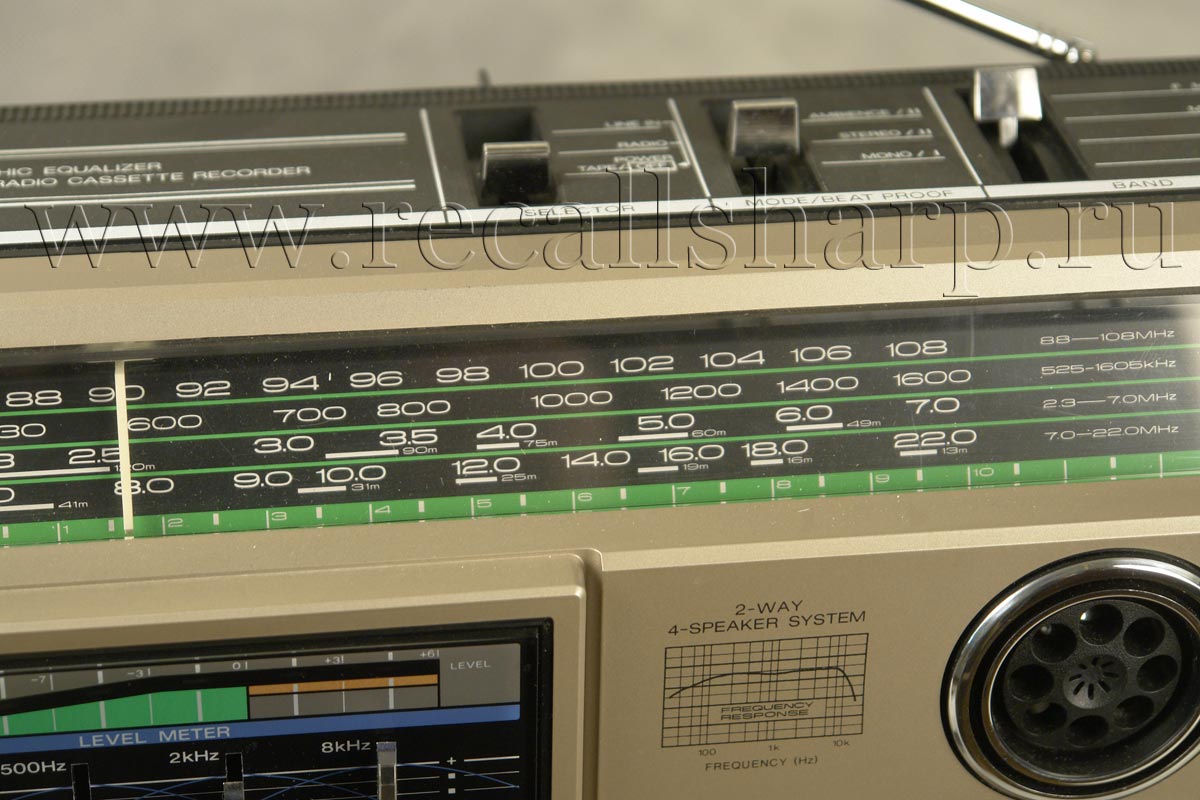

Radio Section
RADIO FREQUENCY RANGE: FM; 88-108 MHz
MW; 525-1605 kHz
SW1; 2.3-7.0 MHz
SW2; 7-22 MHz
POWER REQUIREMENT: AC; 100-110/115-127/200-220/230-250 V, 50/60 Hz
Power consumption; 23 W Battery; 12 V (eight-UM-1, D size dry batteries)
Car/boat battery; with optional car/boat adaptor
RP-952
POWER OUTPUT: 14.0 W (7Wx2).. .RMS (max.)

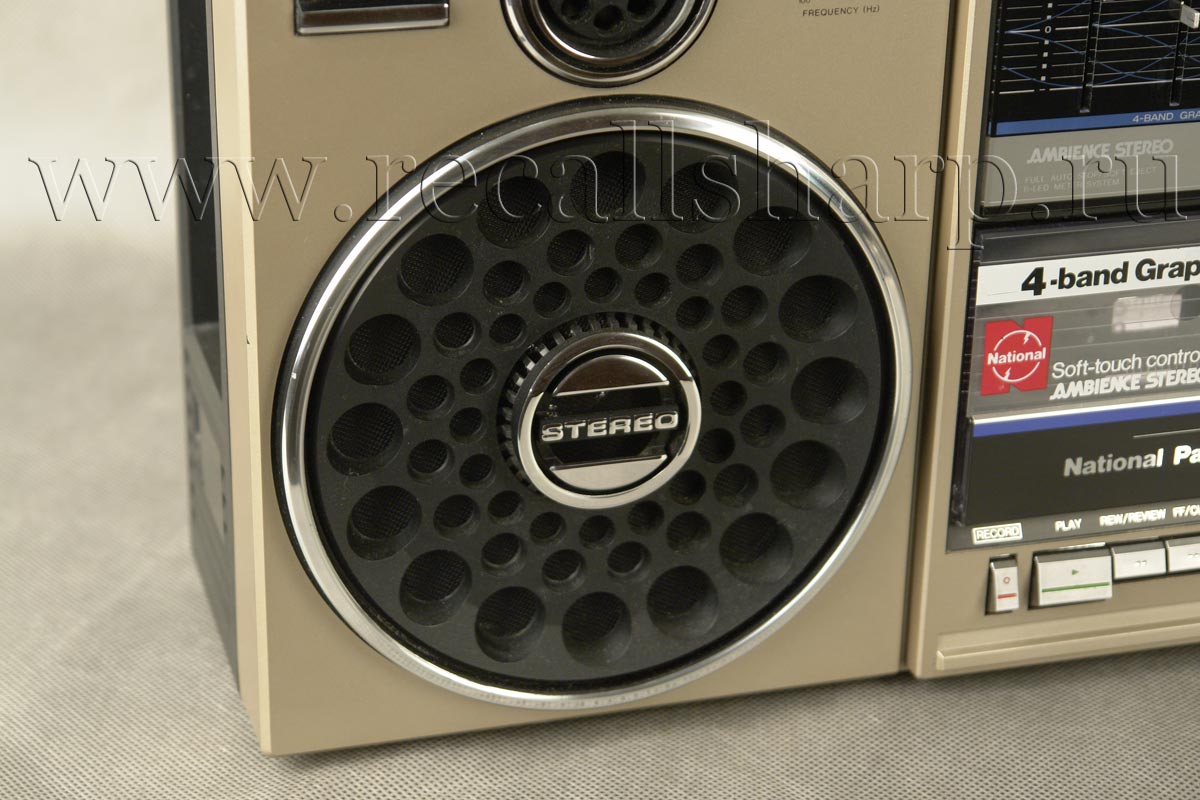

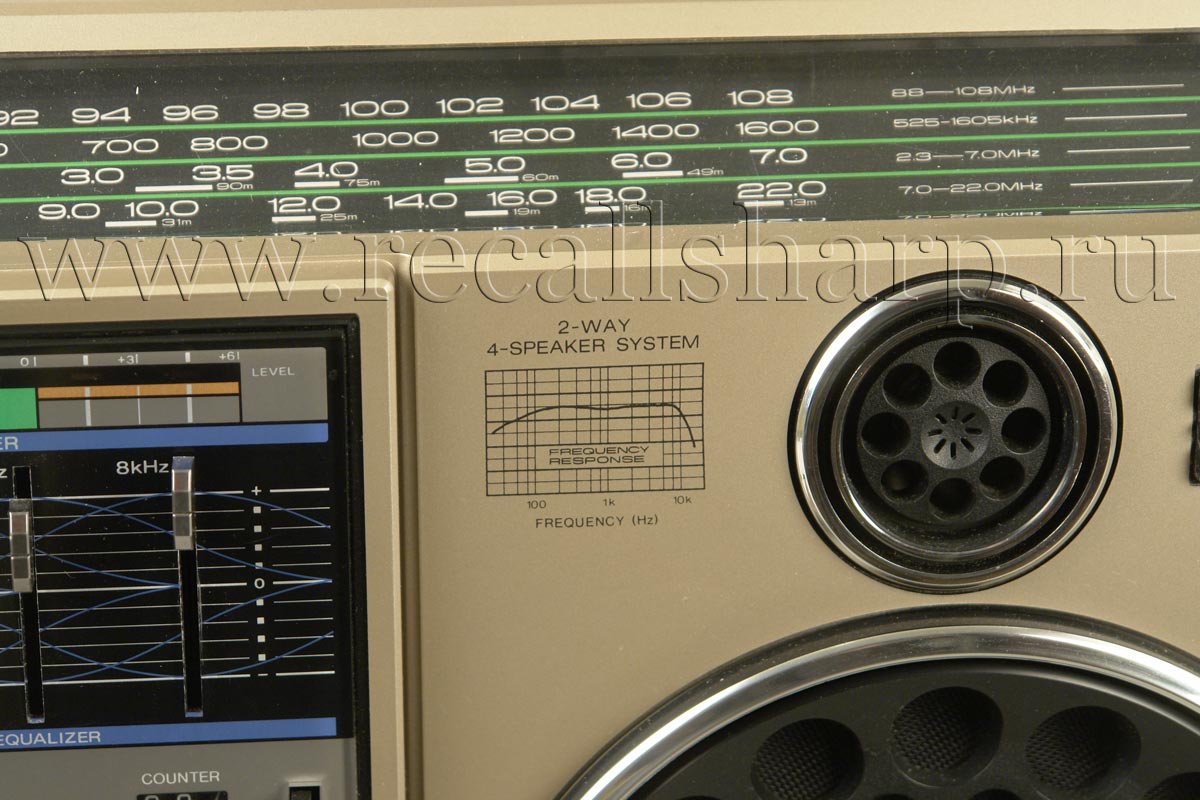

SPEAKERS: Woofer; 16 cm PM dynamic speaker
Tweeter; 4 cm PM dynamic speaker
Tape Deck Section
FREQUENCY RANGE: 50-10.000 Hz (with normal tape)
50-12.500 Hz (with tape Cr02 type)
50-14.000 Hz (with Metal tape)
RECORDING SYSTEM: AC bias, AC erase
Wow and Flutters 0.07% (WRMS)
TAPE SPEED: 4.8 cm/s
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds with C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback

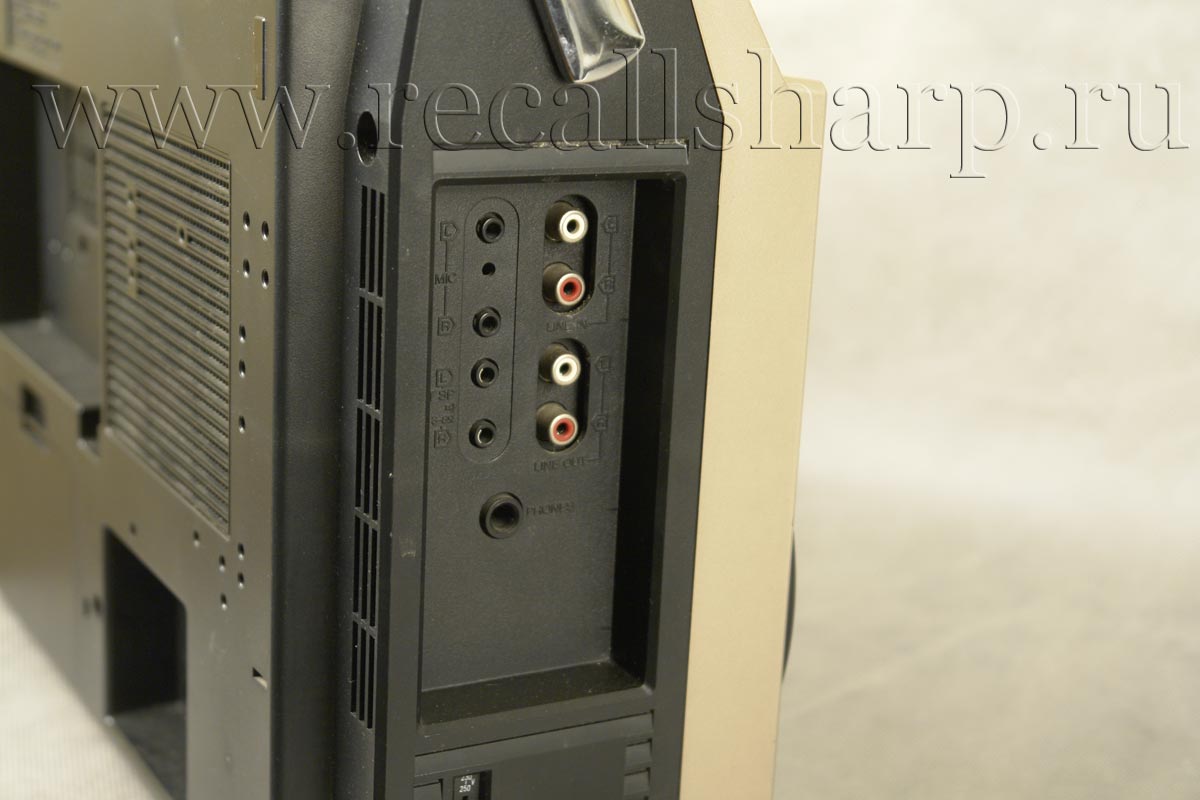

JACKS:
INPUT; MIC; sensitivity 0.26 mV/applicable microphone
impedance 200Ω-600Ω
LINE IN; sensitivity 220 mV/47 kΩ over
OUTPUT;
LINE OUT; sensitivity 0.42mV/10 kΩ over
EXT SP; 3-8Ω
HEADPHONES; 8Ω
DIMENSIONS: 50.4 cm (W)x27.4 cm (H)x 14.5 cm (D)
WEIGHT: 4.2 kg (14 lbs 13 oz) without batteries
Specifications are subject to change without notice.
|
