SPECIFICATIONS

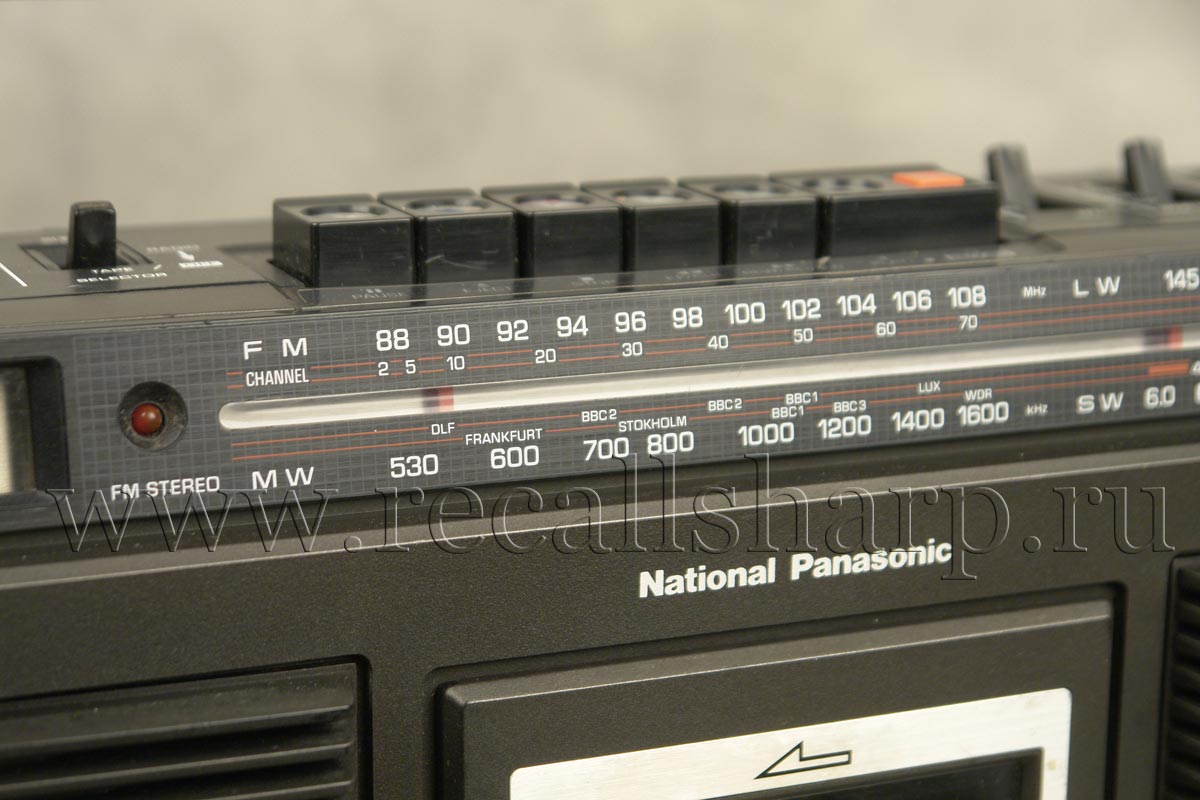

RADIO FREQUENCY RANGE: FM 87.5-108 MHz
MW; 525-1605 kHz
SW; 5.9-18 MHz
LW; 145-285 kHz
POWER REQUIREMENT: AC 110/125/220/240V, 50 Hz
Power consumption; 11 W
Battery; 9 V (six-UM-1, "D" size batteries)
Car battery; with optional car battery cord RP-9550
POWER OUTPUT: 7.0 W (3.5 Wx2)... RMS (max.)
SPEAKERS: Woofer; 12 cm PM dynamic speaker
Tweeter; 3 cm PM dynamic speaker
FREQUENCY RANGE: 50-12,000 Hz (with normal tape)
50-14,000 Hz (with tape CrO2 type)
RECORDING SYSTEM: AC bias, magnet erase
TAPE SPEED: 4.8cm/s.
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds With C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback

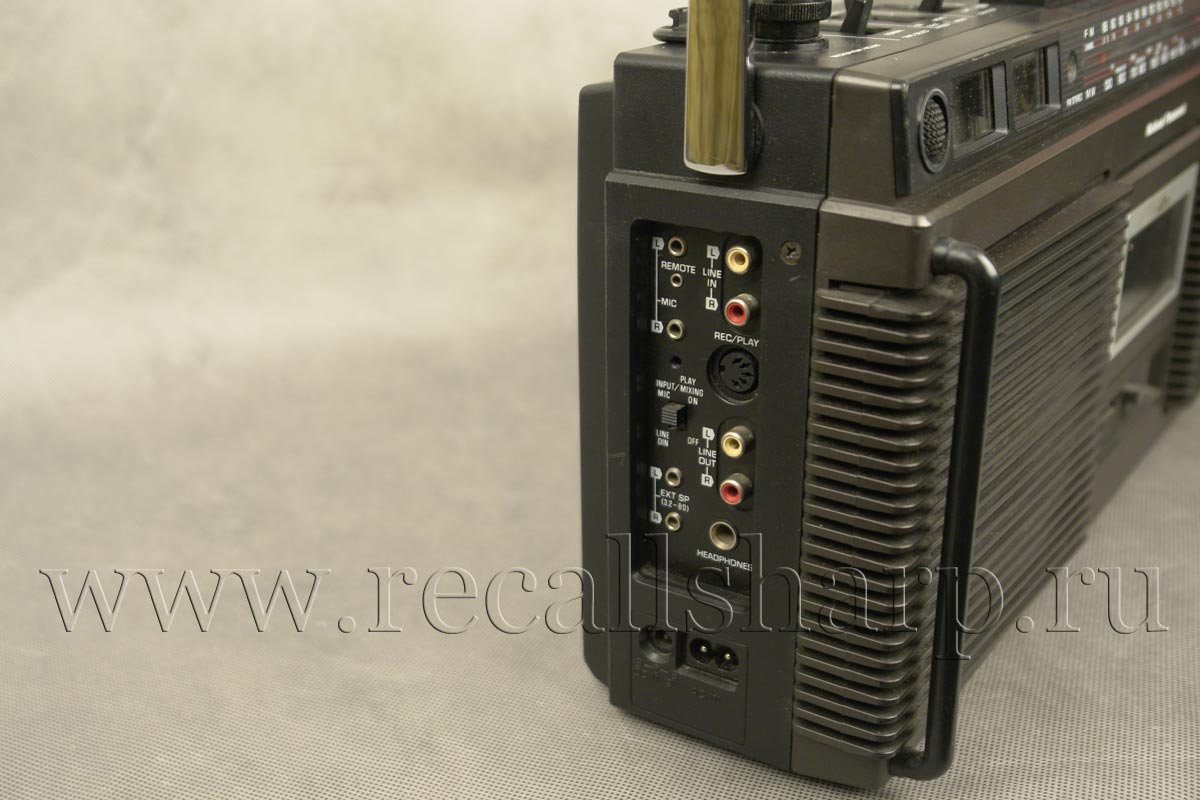

JACKS:
INPUT; MIC; sensitivity 0.25 mV/applicable microphone impedance
200Ω-600Ω (recommended microphone RP-8135)
MIX MIC; sensitivity 0.8 mV/applicable microphone impedance
200-600Ω(recommended microphone WM-2298)
LINE IN; sensitivity 130 mV/47 kΩ over
OUTPUT; LINE OUT; sensitivity 0.36 V/50kΩ under
EXTSP;3.2-8Ω
HEADPHONES; 8Ω
OUTPUT
REC/PB
OTHERS; DC IN; 9V
AC IN
EXT ANTENNA and EARTH
REMOTE for start/stop
DIMENSIONS: 51.4 cm (W) x 22.5 cm (H) x 15.2 cm (D)
WEIGHT: 5.5kg without batteries
Specifications are subject to change without notice.
