Sanyo M-X920 F



: 1980

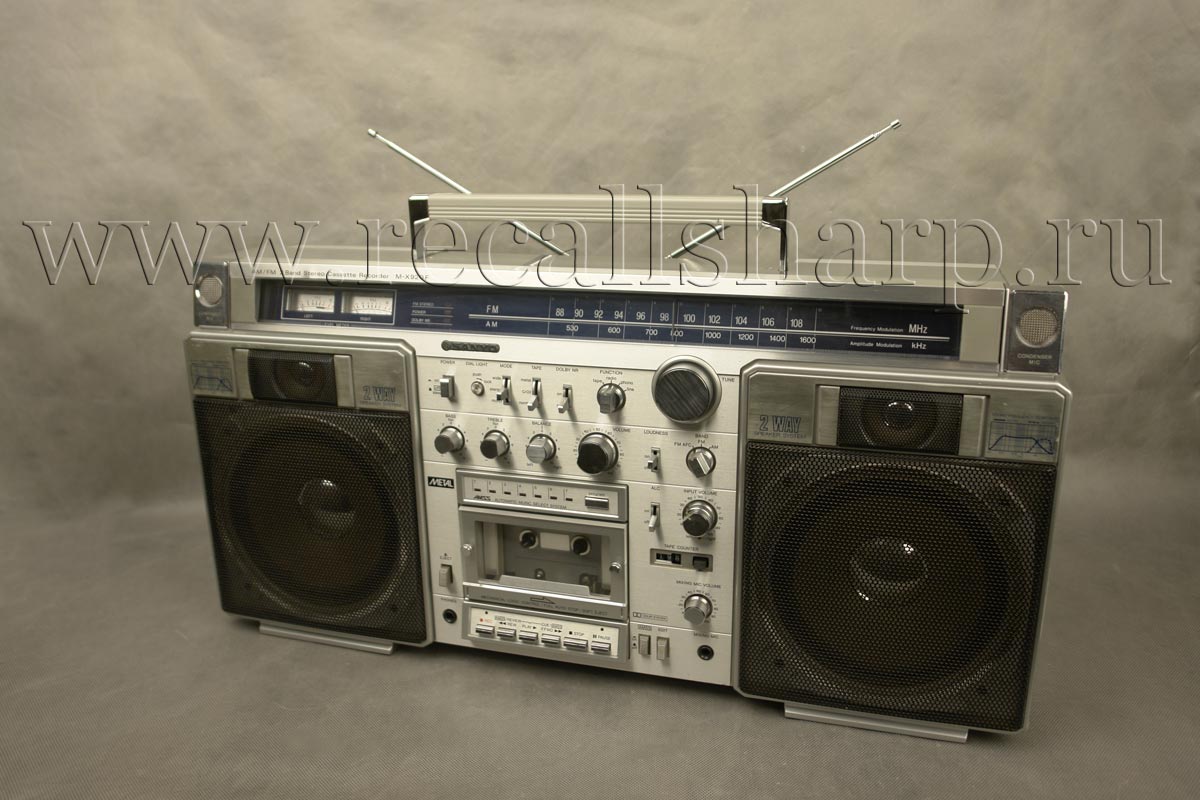

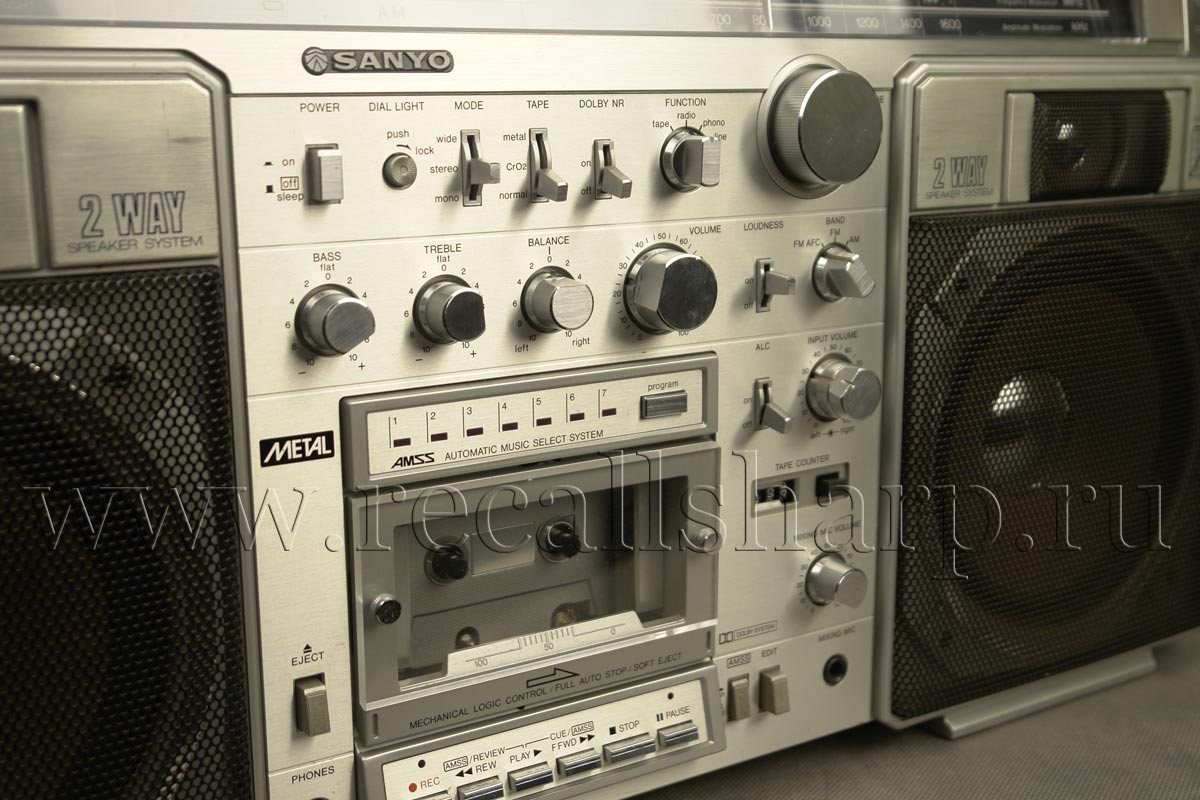

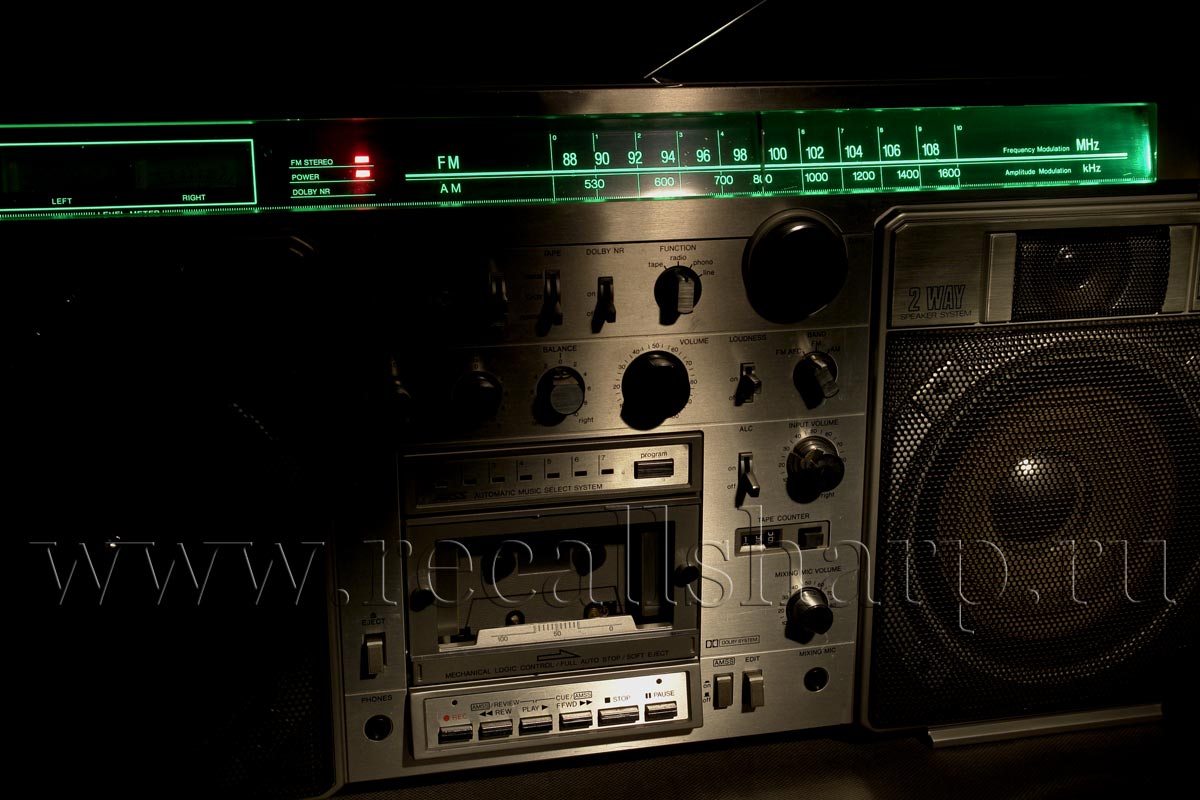

SANYO M-X920 F

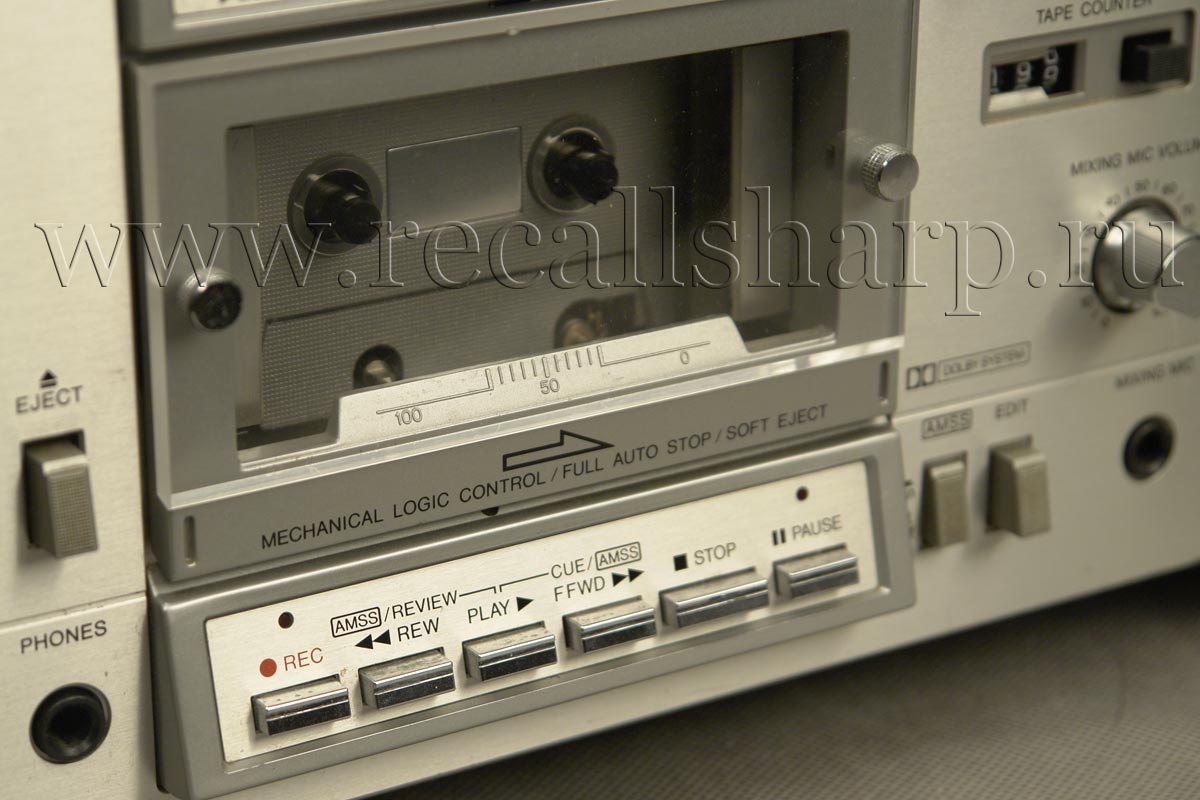

Record: AC bias/4 tracks.
Erase: AC/2 tracks.
Tape speed: 4.75cm/s
Fast forward: 100 seconds/C-60
Rewind: 100 seconds/C-60

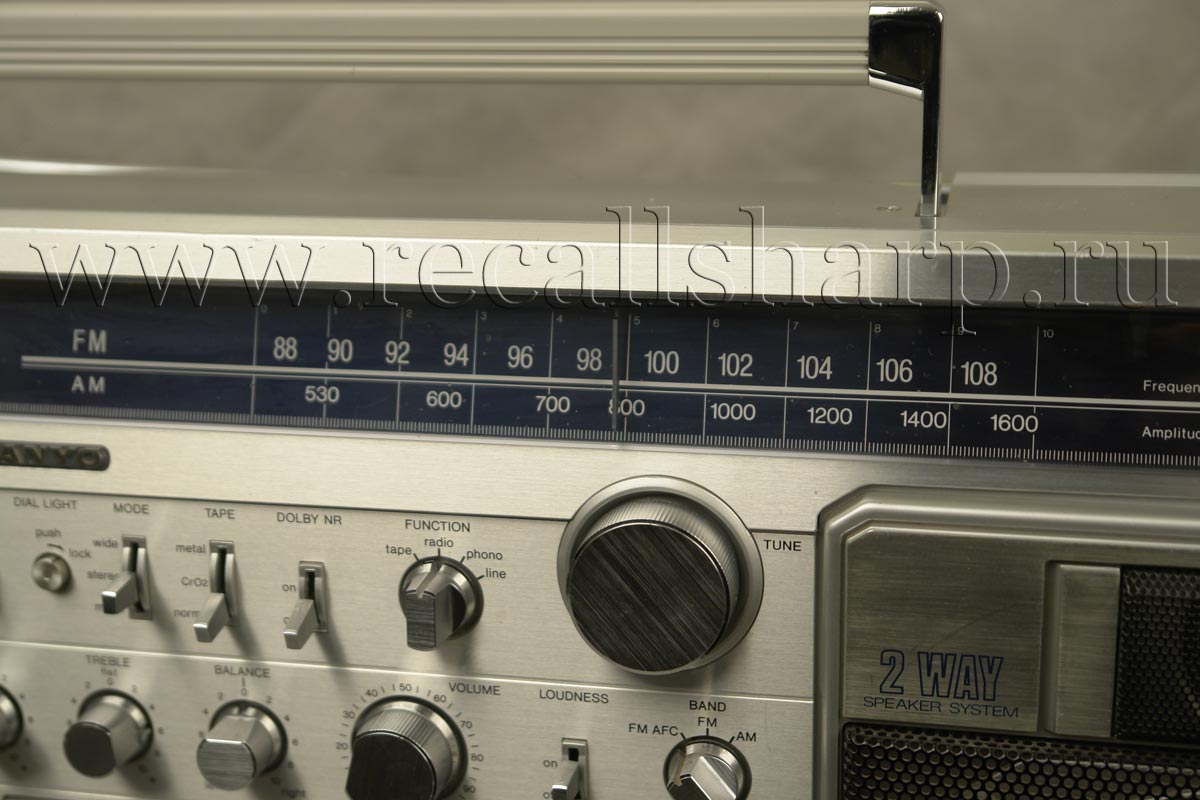

Tuner:
AM: 530-1605Khz
FM: 87.5-108 Mhz.

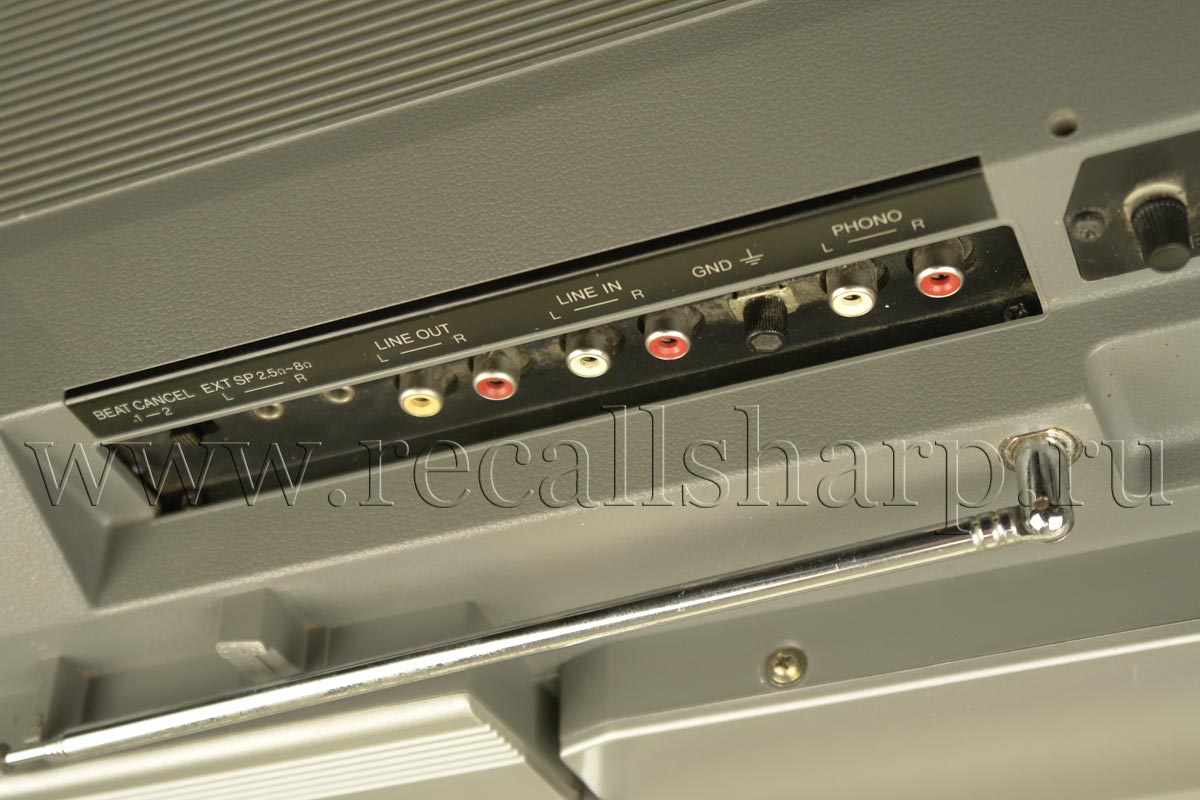

INPUT/OUTPUT

impedance/sensitivty
Microphone: 10K
Ω(0.3mV)
Phono(MM): 50K
Ω(3.0mV)
Line-In: 50K
Ω(50mV)
Line-out: 3K
Ω(0.775V)
Microphone mixer: 3K
Ω(1.0 mV)
External speaker: 2.5-8
Ω
headphone: 8
Ω
Frequency response:
Normal: 30-14000Hz
CrO2: 30-16000Hz
Metal: 30-17000Hz

Power source
DC 15V( Size D * 10)
external DC: 15V
AC: 120/200/240V 50/60Hz 23W

Audio output16W/CH with 2.5
Ω load.

Dimensions: 651mm(W)* 190mm(D)* 320mm(H)
Weight: 10.5Kg( Battery include)


:
Sanyo M-X920K
Sanyo MR-X920
