RADIO FRQUENCY RANGE: FM; 88-108 MHz
MW; 530-1605 kHz
SW1; 2.3-7 MHz
SW2; 7-22 MHz
POWER REQUIREMENT: AC;RX-5005 F .....110-115/115-127/200-220/230-250 V. 50/60 Hz
RX5005 FA .....240v, 50Hz
Power consumption; 22 W
Battery; 12 V (eight UM-1, "D" size batteries)
Car battery; with optional car adaptor RP-952
POWER OUTPUT: 25 W (12.5 Wx2)...PMPO
12 W (6 Wx2)...RMS( max. )
SPEAKER: Woofer 12 cmx2 PM dynamic speakers
Tweeter 3 cmx2
FRQUENCY RANGE: 70-11,000 Hz
RECORDING SYSTEM: AC bias, Magnet erase
TAPE SPEED: 4.8cm/s
TRACK SYSTEM: 4track 4 channel stereo

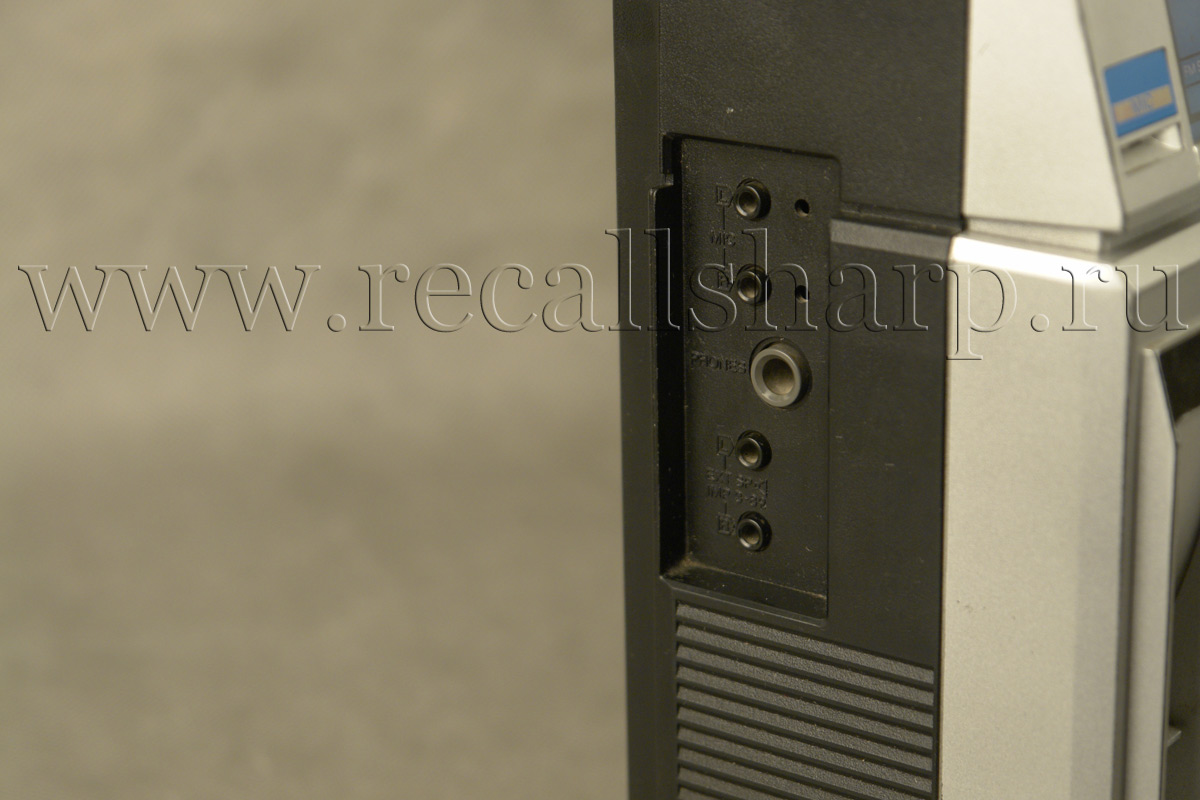

JACKS:
INPUT; MIC; sensitivity 0.25 mV/applicable microphone
impedance 200 Ω-600Ω (recommended microphone RP-8135)
OUTPUT; LINE OUT; sensitivity 0.42 V/10 kΩ
EXT SP; 3-8Ω
HEADPHONES; 8Ω
DIMENSIONS: 533 mm (W)x 241 mm (H)X139 mm (D)
WEIGHT: 3.7 kg without batteries
subject to change without notice.
