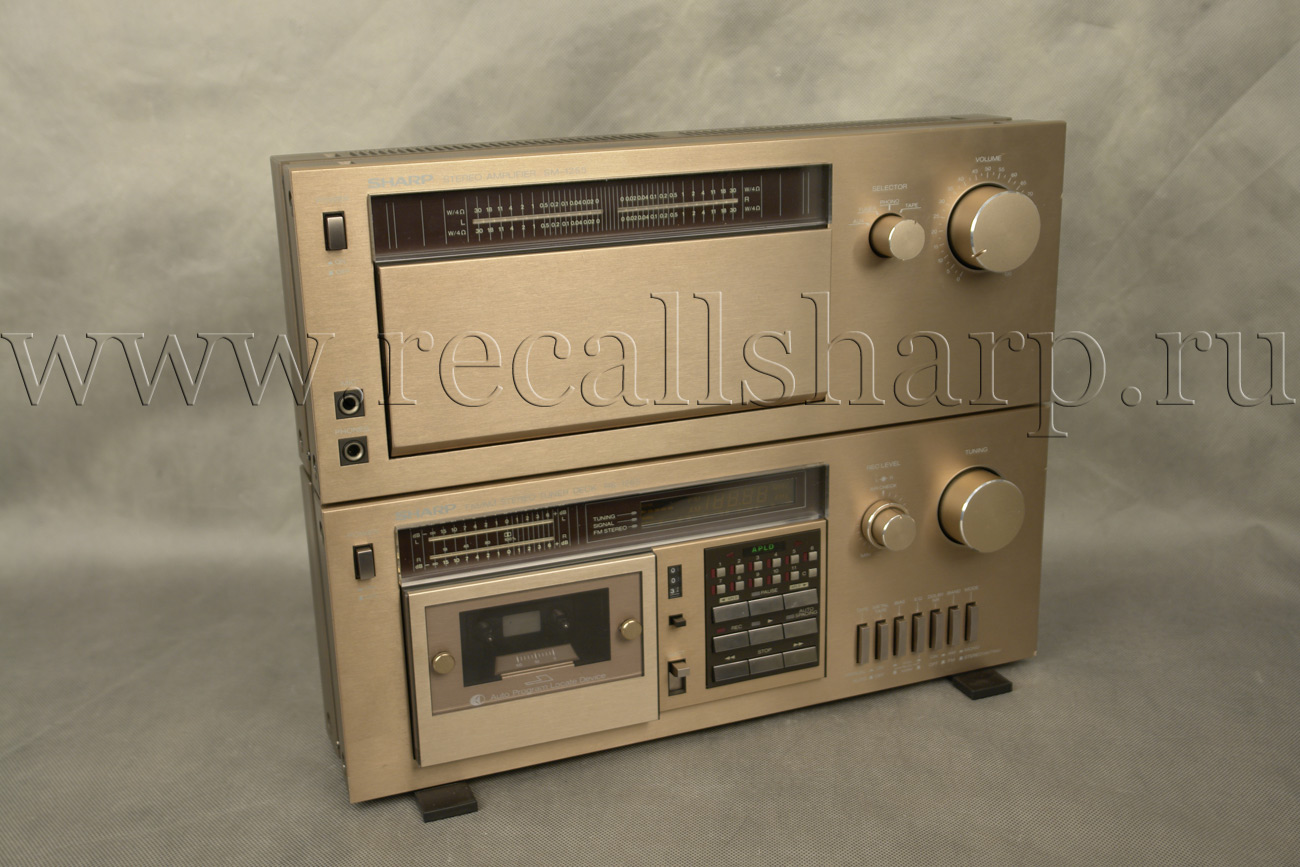

Sharp 1255 H System 5500 H



: 1979


General Description



Power source: a.c. 220 V, 50/60 Hz

Power consumption: 160 W

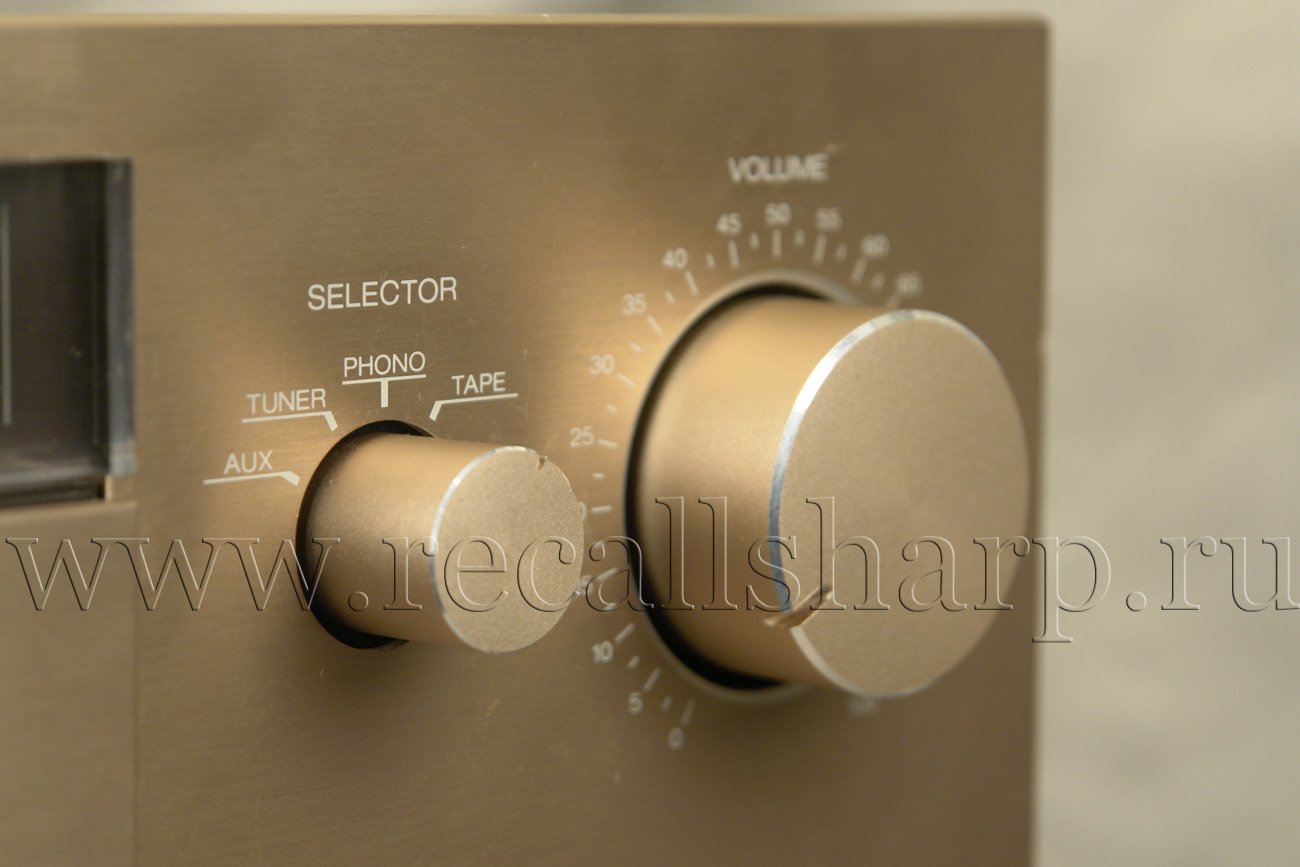

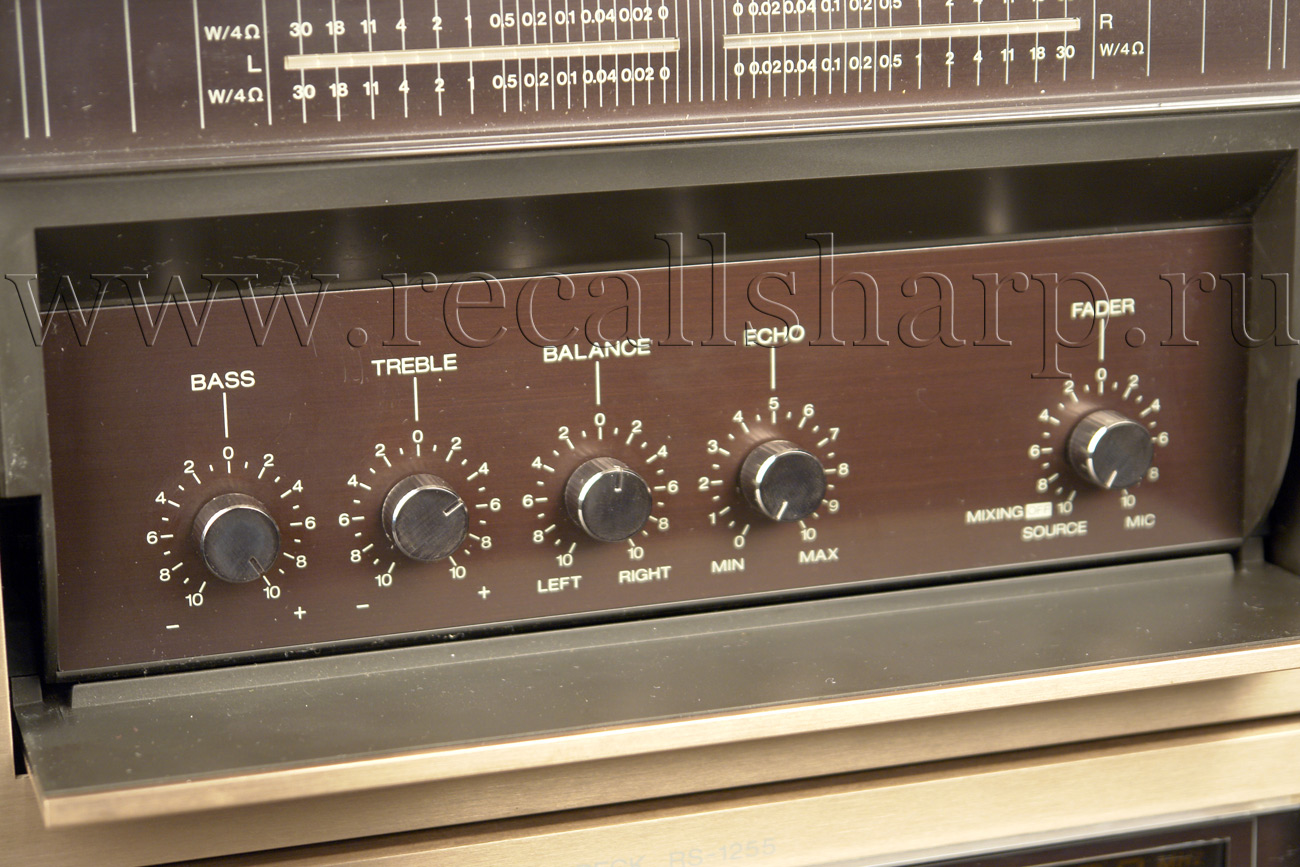

Audio section SM-1255 amp

Dimensions: 430 mm (Width)


170 mm(Height)


99 mm (Depth)


Weight: 5.4 kg


Music power output: 2 x 32 W/4 ohms Both channels drive


(at 0.8% distortion)


Continuous power output (at 1k Hz):



2 x 22 W/4 ohms. Both channels driven, 0.8% distortion






Frequency response: 18 Hz - 25,000 Hz


Channel separation: 48 dB (1k Hz)




Input sensitivity and input impedance: MIC: 1mV, 10k ohms



REC/PB: 150mV, 47k ohms


Output level and output impedance:


Speaker: 4 ohms


Headphones: 8 ohms


REC/PB: 30mV/100k ohms


STEREO TUNER DECK RS-1255 H


FM section


Frequency coverage: 87.6 - 108MHz


Usable sensitivity: 1.88/μV (40k Hz



deviation, S/N = 26 dB)


Harmonic distortion: 0.5%



S/N ratio: 60 dB



Stereo separation: 38 dB (at 1kHz)



AM section

Frequency coverage:


AM: 520 - 1620k Hz




Sensitivity:

AM: 280μV/m


IF rejection (AM): 50 dB

Image rejection(AM): 46 dB

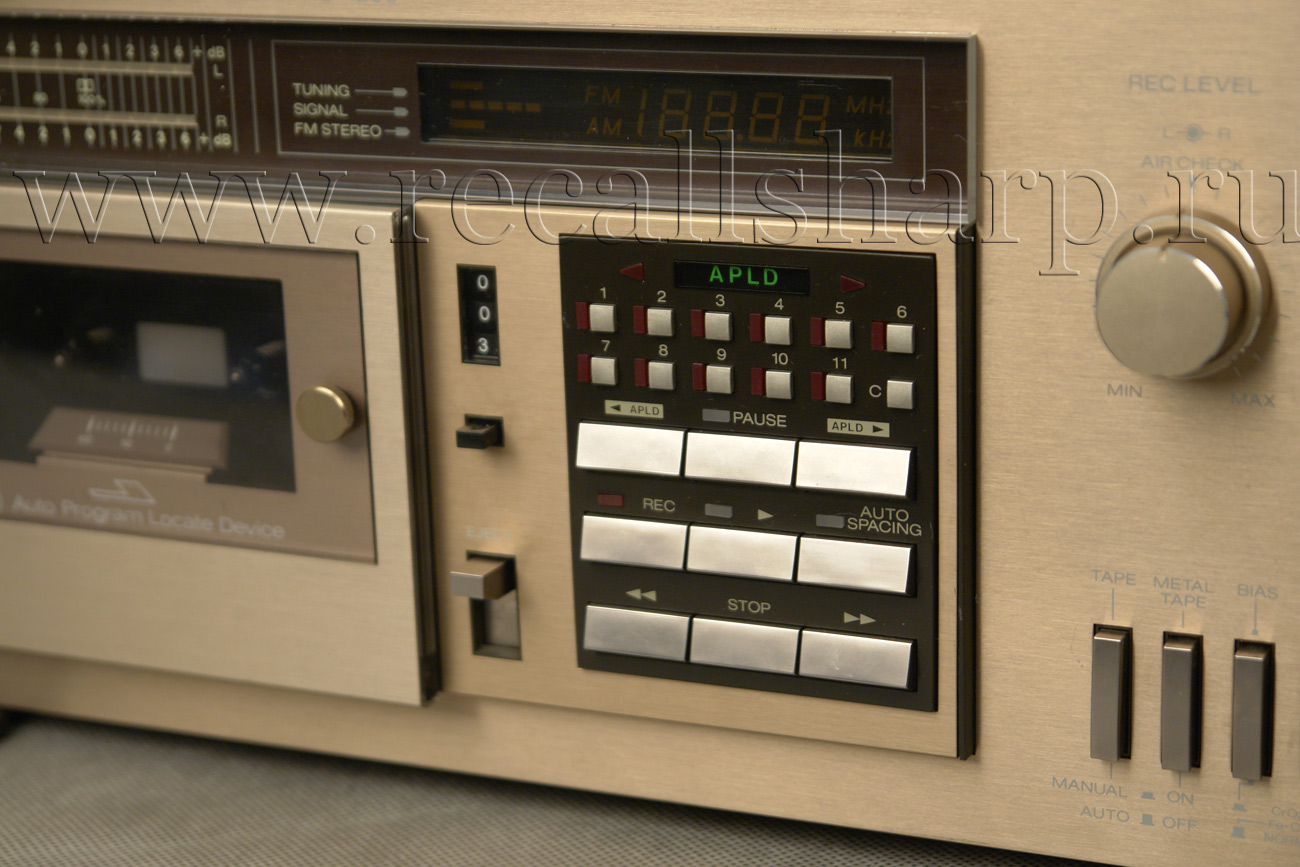

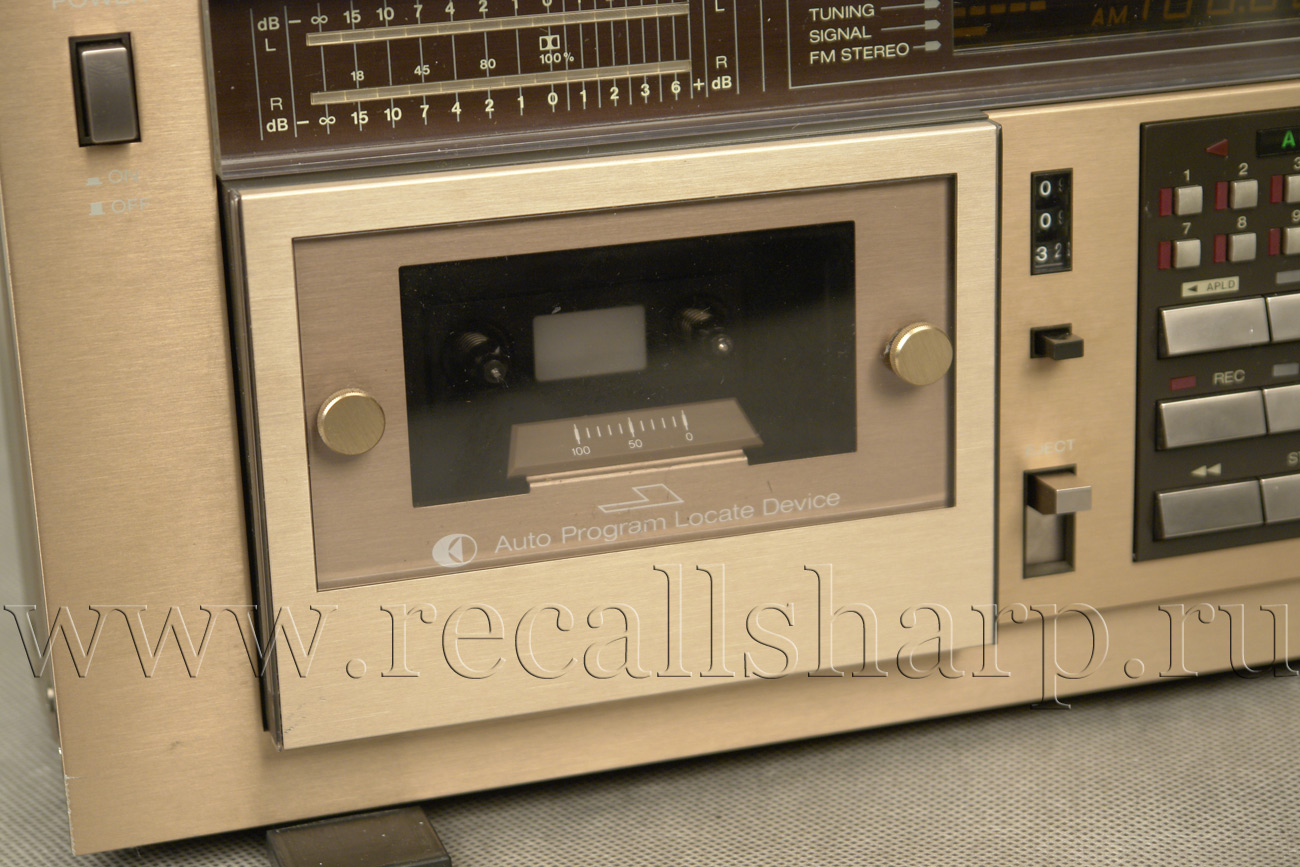

TAPE-DECK


Type: 4-track 2-channel stereo cassette tape deck with APLD and Dolby N.R.system


Tape: Philips standard compact cassette tape





Wow and flutter: 0.06% (DIN 45 507)

Frequency response:

Normal type; 40 - 13,000 Hz (DIN 45 500)

CrO2 tape ; 40 - 14,000 Hz (DIN 45 500)

Fe-Cr tape; 40- 14,000 Hz (DIN 45 500)

Metal type; 40 - 15,000 Hz (DIN 45 500)

Signal to Noise ratio: 50 dB, 60dB with DOLBY

Dimensions: 430 mm (Width)


170 mm(Height)


99 mm (Depth)


Weight: 5.0 kg

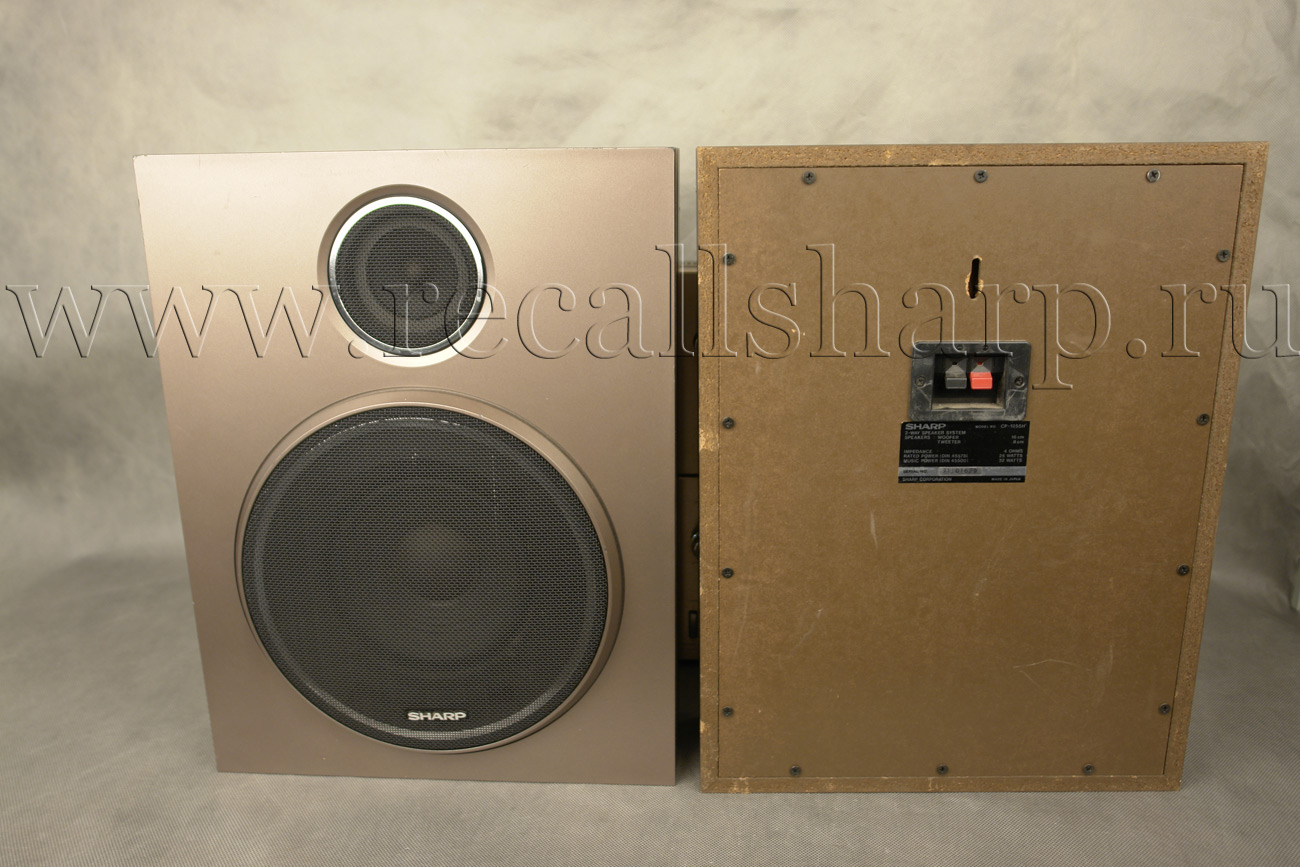

Speaker CP-1255

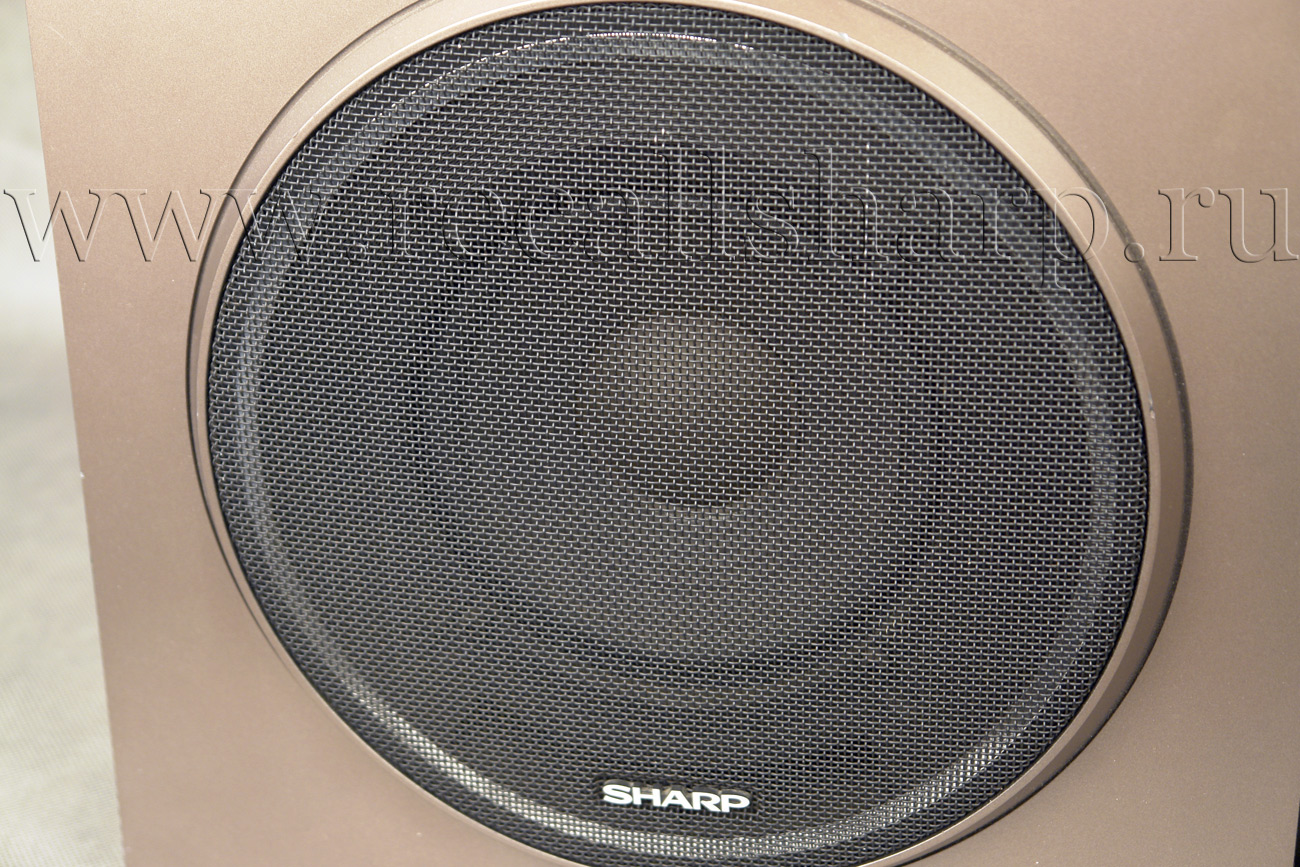

Speakers Woofer 16cm

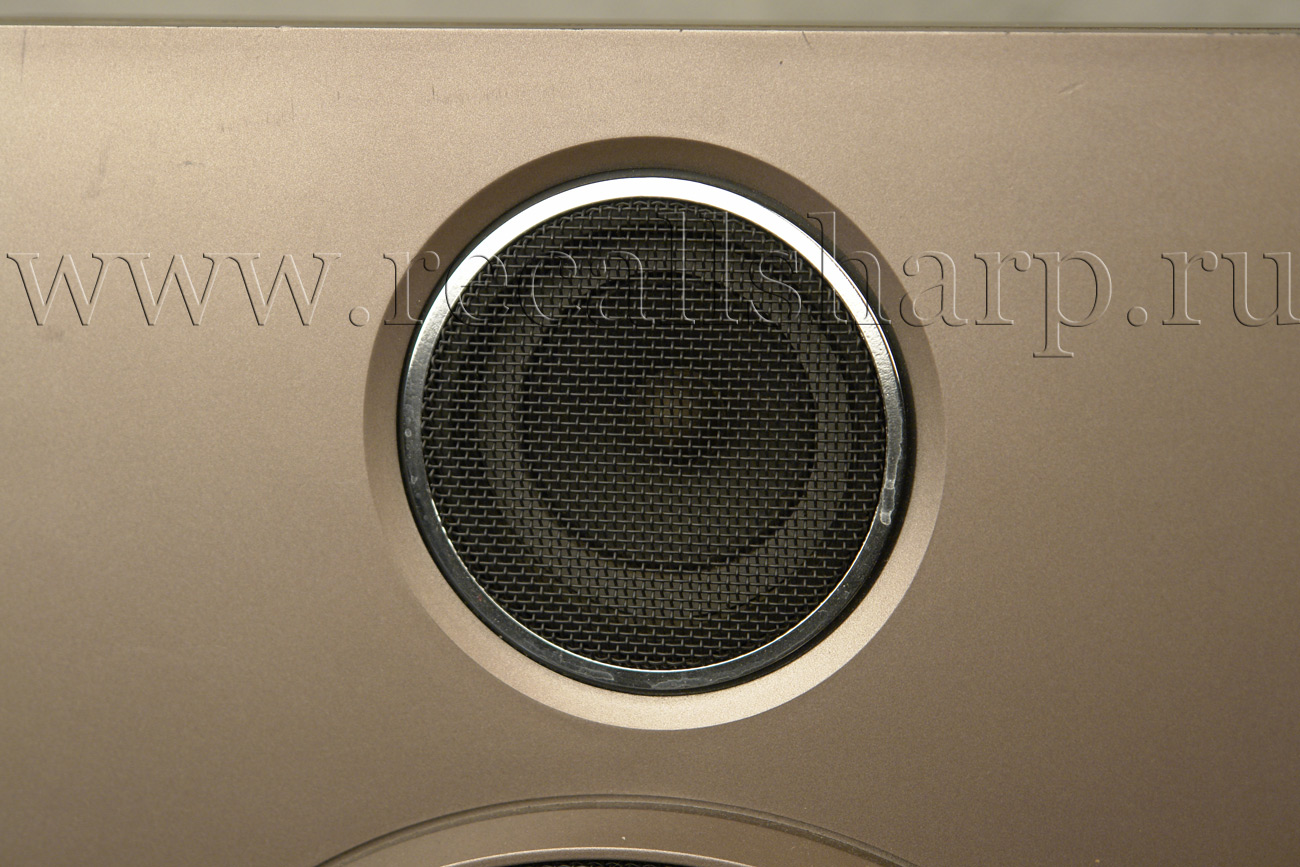

Tweeter 8cm

Power output 32 W Music power (DIN 45500)

25W Rated power (DIN 45573)

Frequency response: 65 Hz - 20,000 Hz

Dimensions: 430 mm (Width)


331 mm(Height)


99 mm (Depth)


Weight: 5.2 kg




Specifications are subject to change without prior notice.


:
