Ãîä íà÷àëà âûïóñêà: 1981
Ðåãèîí: Àçèÿ
SPECIFICATIONS
<RADIO>

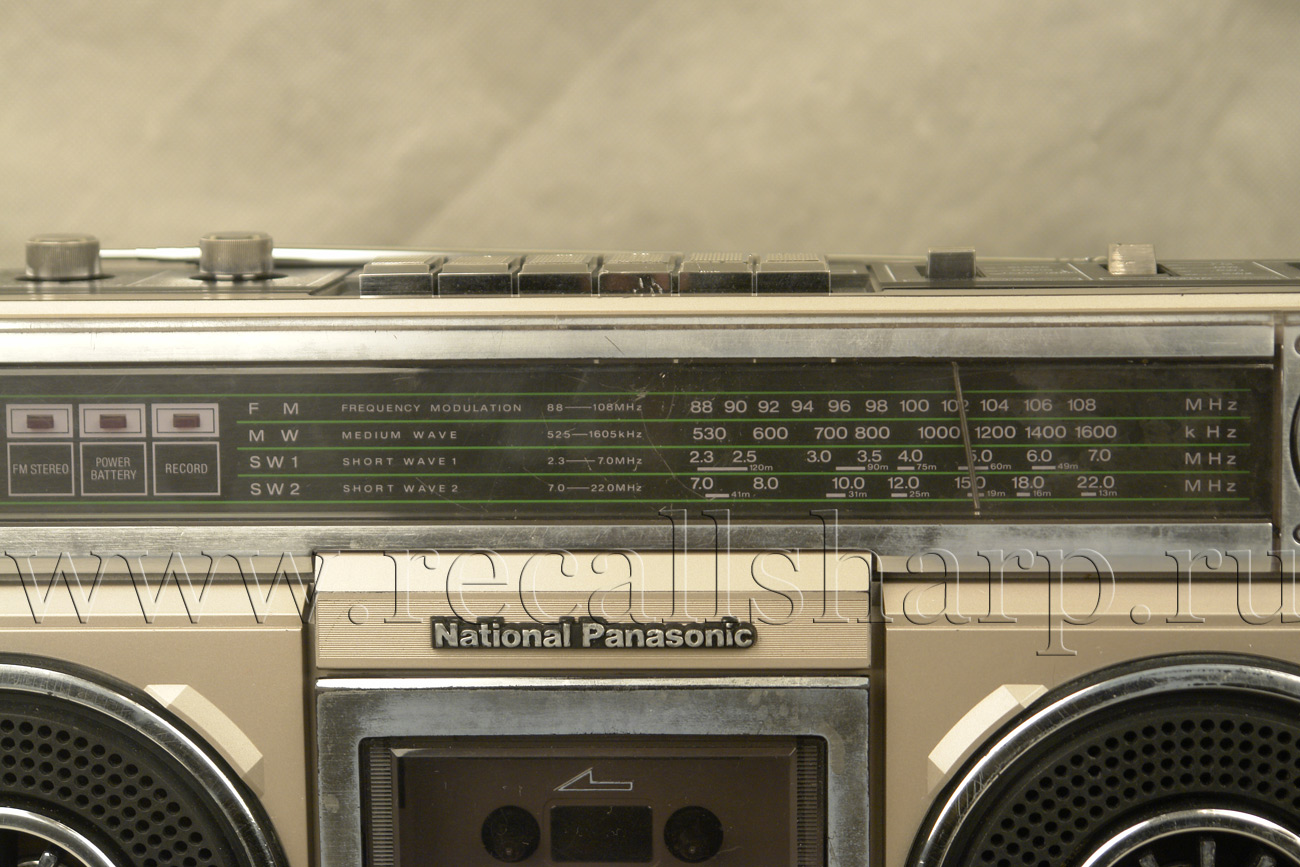

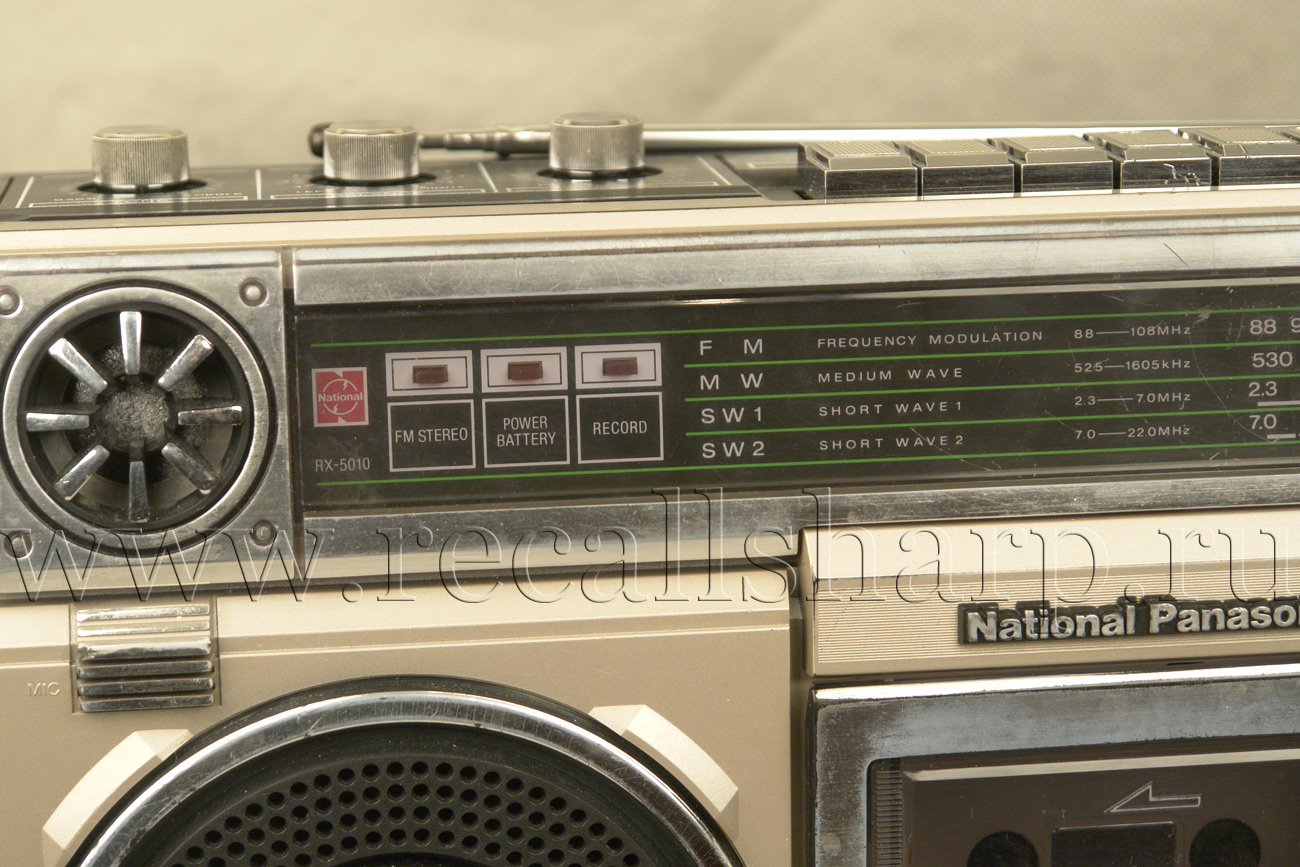

Radio Frequency Range: FM; 88-108 MHz
SW2; 7.0-22 MHz
MW; 525-1605 kHz
SW1 2.3-7.0 MHz
Frequency Range:
50-10000 Hz (with normal tape)
Recording System: DC bias,
Erasing system Magnet erase
Track System: 4-track 2-channel stereo recording and playback
Tape speed: 4.8 cm/s
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 110 seconds with C-60 cassette tape
Power Requirement:
<GENERAL>
Power Requirement:
AC; 100-110V/115-127/200-220/230-250 V, 50/60 Hz
Power consumption; 16W
Battery; 9 V (six UM-1D" size batteries)
Car Battery; with optional car battery cord RP-9550
Power Output: 7W (3.5Wx2)...RMS(max)
Speaker: Woofer 12cm PM dynamic speaker
Tweeter 3cm
Jacks:
Input;
MIC; sensitivity 0.45 mV/applicable microphone impedance
200-600 Ohm (recommended microphone RP-8135)
LINE IN; sensitivity 450 mV/47 kOhm.
Output; EXT SP; 3 Ohm
HEADPHONES; 8 Ohm
Dimensions: (WxHxD)441x241x140 mm
Weight: 3.5 kg without batteries
(not included) |
