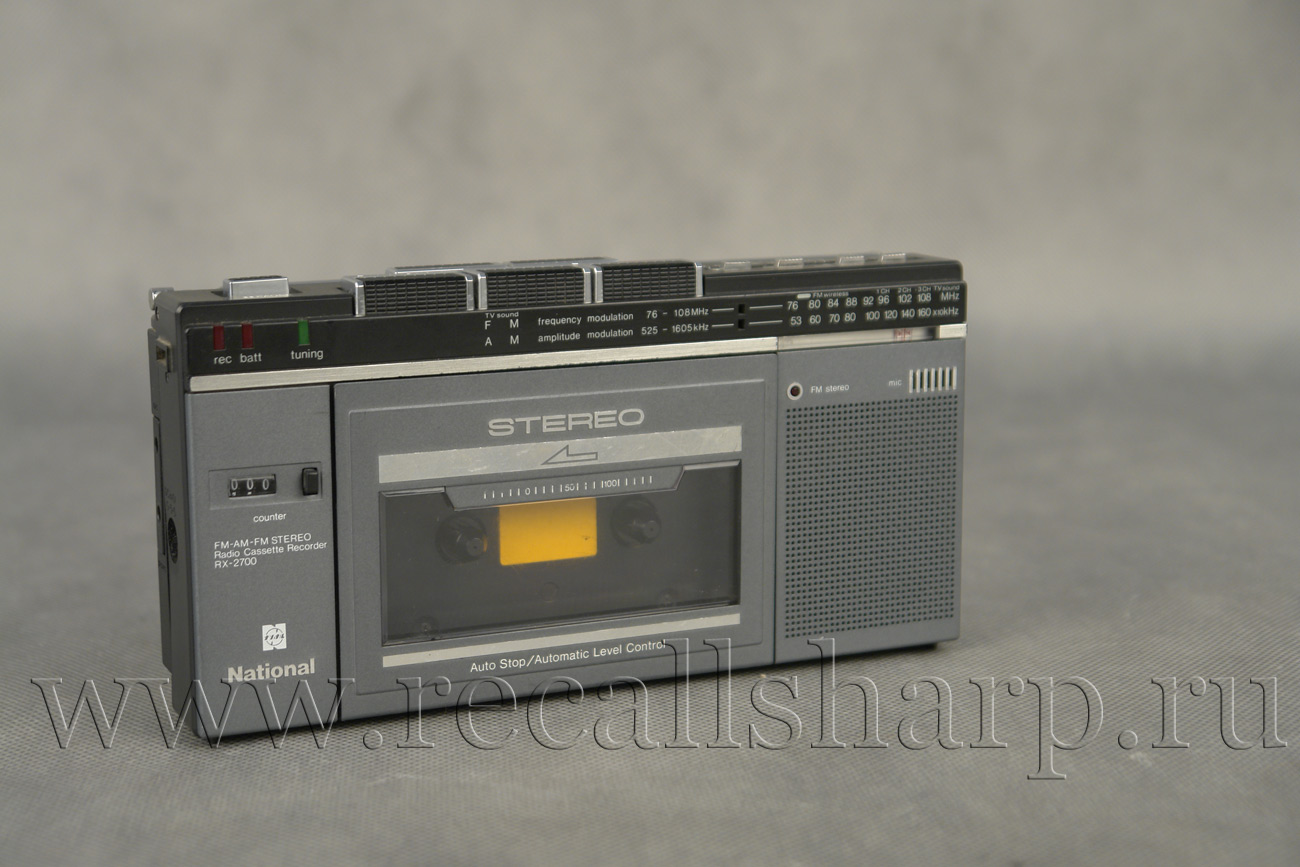

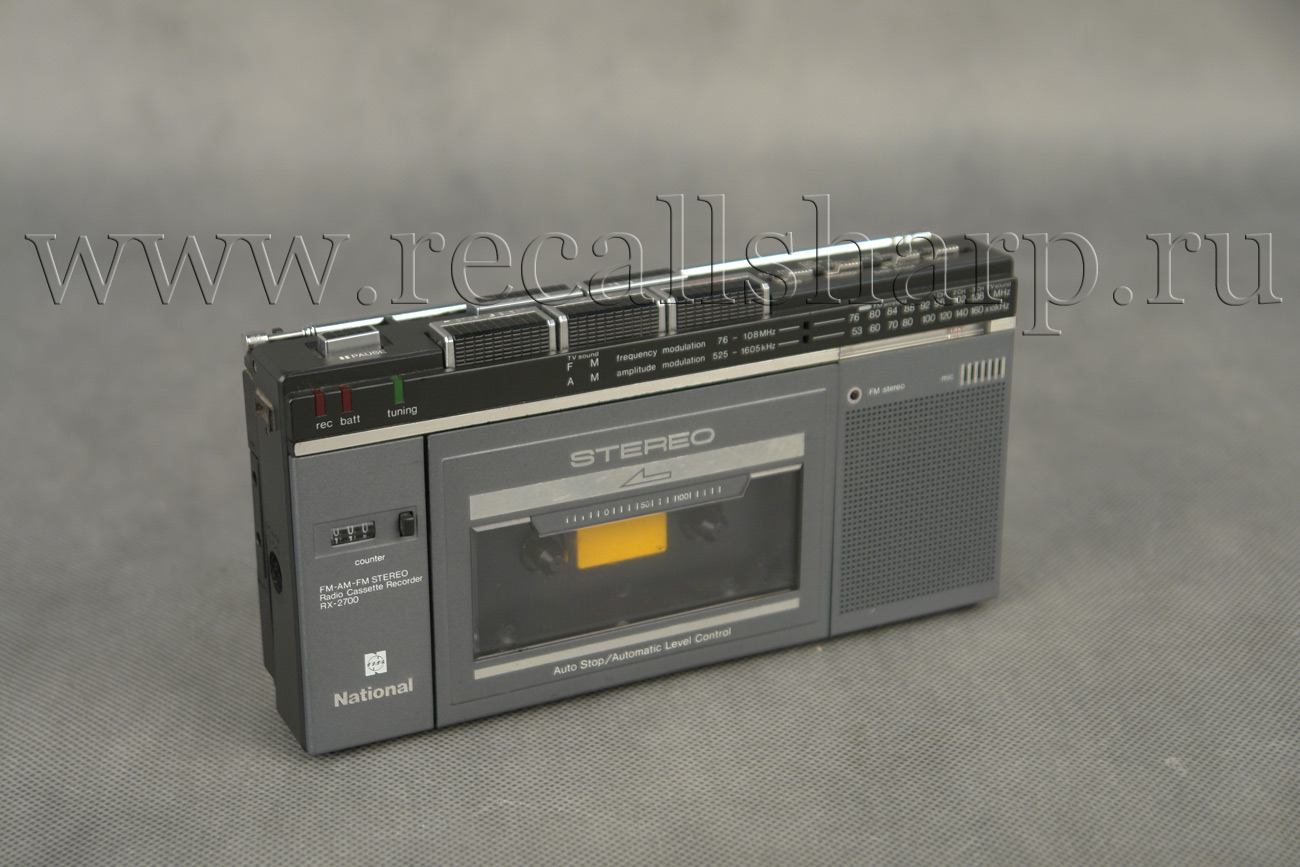

National RX-2700



: 1980


SPECIFICATIONS


RADIO FREQUENCY RANGE: FM; 76-108MHz

AM; 525-1605 kHz

POWER REQUIREMENT: AC Adaptor 100V, 50/60Hz

Power consumption; 5 W
Battery; 6 V (Four-UM-3, "AA" size dry batteries)

Power OUTPUT 500 mW(Max)

SPEAKERS: Built -in SP 5 cm PM dynamic speaker 4Ω
Headphones 2.2cmx2(32Ω)


FREQUENCY RANGE: Built -in SP; 150- 8,500 Hz (with normal tape)
Headphones ;40-13,000 Hz


RECORDING SYSTEM: AC bias, Magnet erase
TAPE SPEED: 4.8cm/s.
WOW&FLUTTER 0,4%(WRMS)
PROGRAM TIME: 1 hour with C-60 cassette tape
FAST FORWARD and
REWIND TIME: Approx. 90 seconds With C-60 cassette tape
TRACK SYSTEM: 4-track 2-channel stereo recording and playback
INPUT; MIC; sensitivity 0.25 mV/applicable microphone impedance
200Ω-600Ω
DC IN; 6V


OUTPUT HEADPHONES; 32Ω


DIMENSIONS: 190 mm (W) x 96 mm (H) x 36 mm (D)

WEIGHT: Set; 0.62 kg without batteries

Headphones; 54g

Specifications are subject to change without notice.
