Год начала выпуска: 1977
Регион: Европа
TECHNICAL DATA
Track System: 4 track, 2 channel stereo/monaural system
Reel Capacity: 18cm reel
Tape Speed: 19cm/sec and 9.5cm/sec
Wow and Flutter: Less than 0.09% WRMS
Frequency Response: 30 Hz to 25,000 Hz (±3 dB) at 19cm/sec
30 Hz to 19,000 Hz (±3 dB) at 9.5cm/sec
Distortion: Less than 1% (1,000 Hz "0" VU)
Signal-to-Noise Ratio: Better than 56 dB (measured via tape
with peak recording level of +6 VU)
Erase Ratio: Better than 70 dB
Bias Frequency: 100 kHz

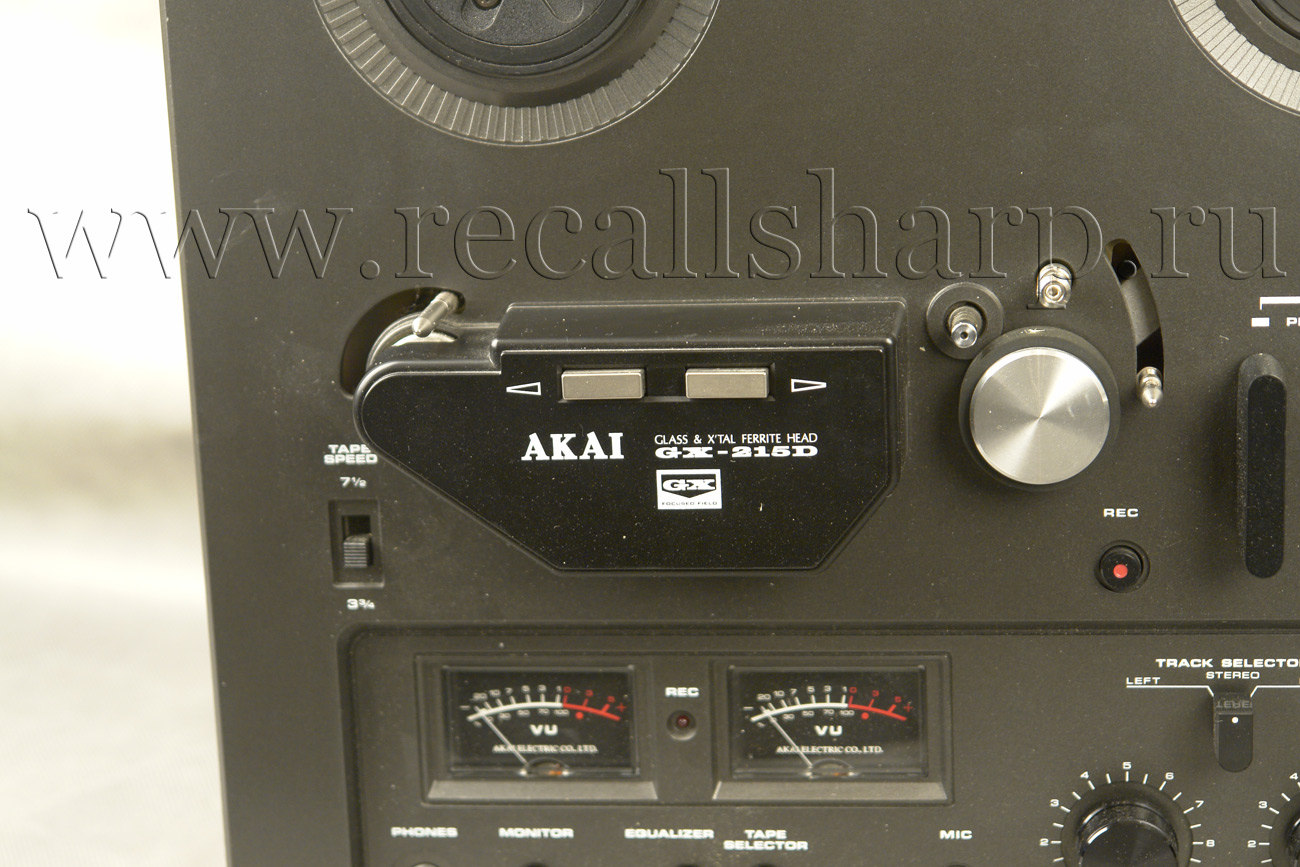

Heads: (3): 1 GX playback head, 1 GX recording head,
1 erase head
Motor: (1): 4-pole induction motor
Fast Forward and Rewind Time: 200 seconds using a 1200 ft.
tape

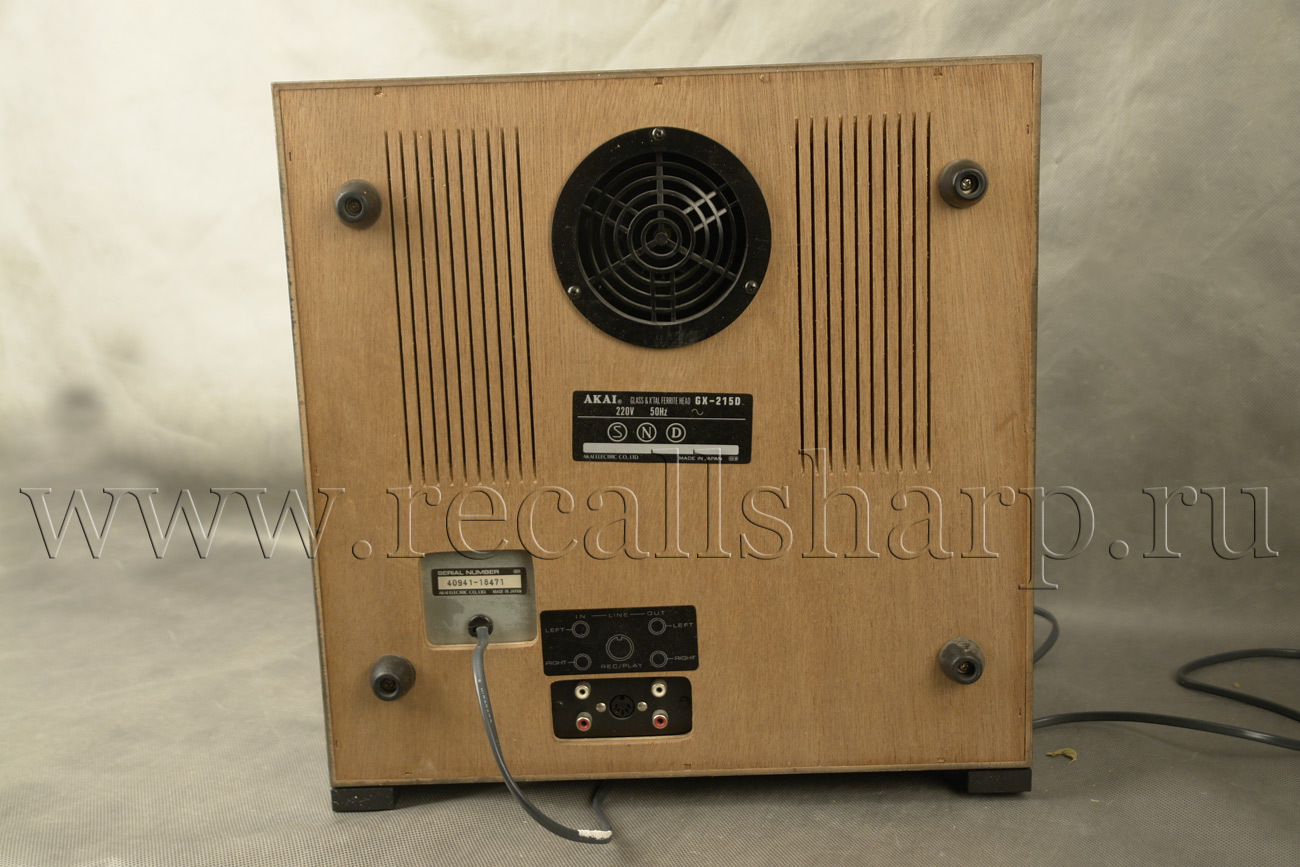

Output Jacks: Line (2): 0.775V ("0" VU). Required load
impedance: More than 50 kohms
Phone (1): 50 mV/8 ohms
Input Jacks: Microphone (2): 0.3 mV. Required microphone
impedance: 600 ohms
Line (2): 70 mV
Din Jack: Input: 2 mV Output: 0.3V
Power Requirements: 220V , 50 Hz
Dimensions: 380(W) x 390(H) x 295(D) mm
Weight: 15.7 kg. *
For improvement purposes, specifications and design are
subject to change without notice.
|
