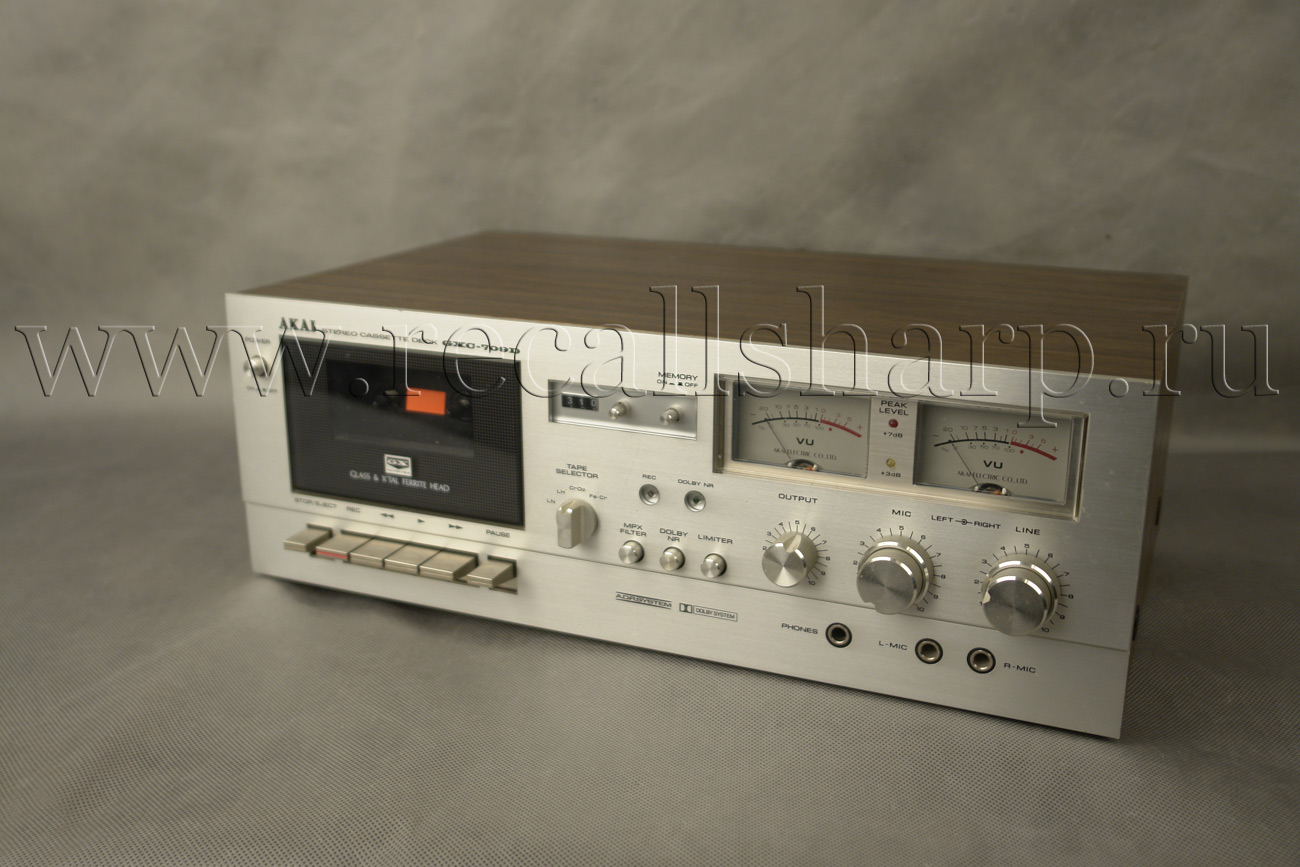

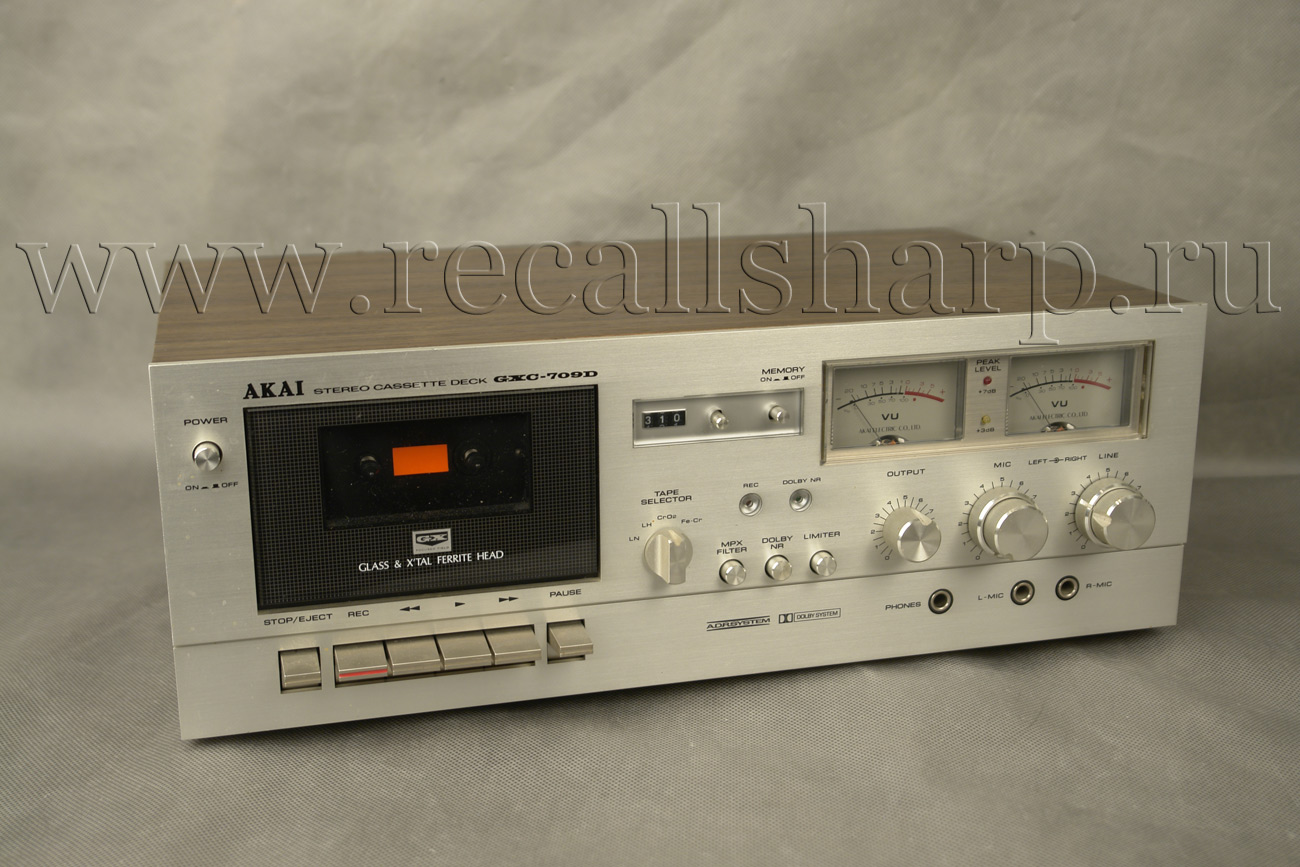

Год начала выпуска: 1978
Регион: Европа

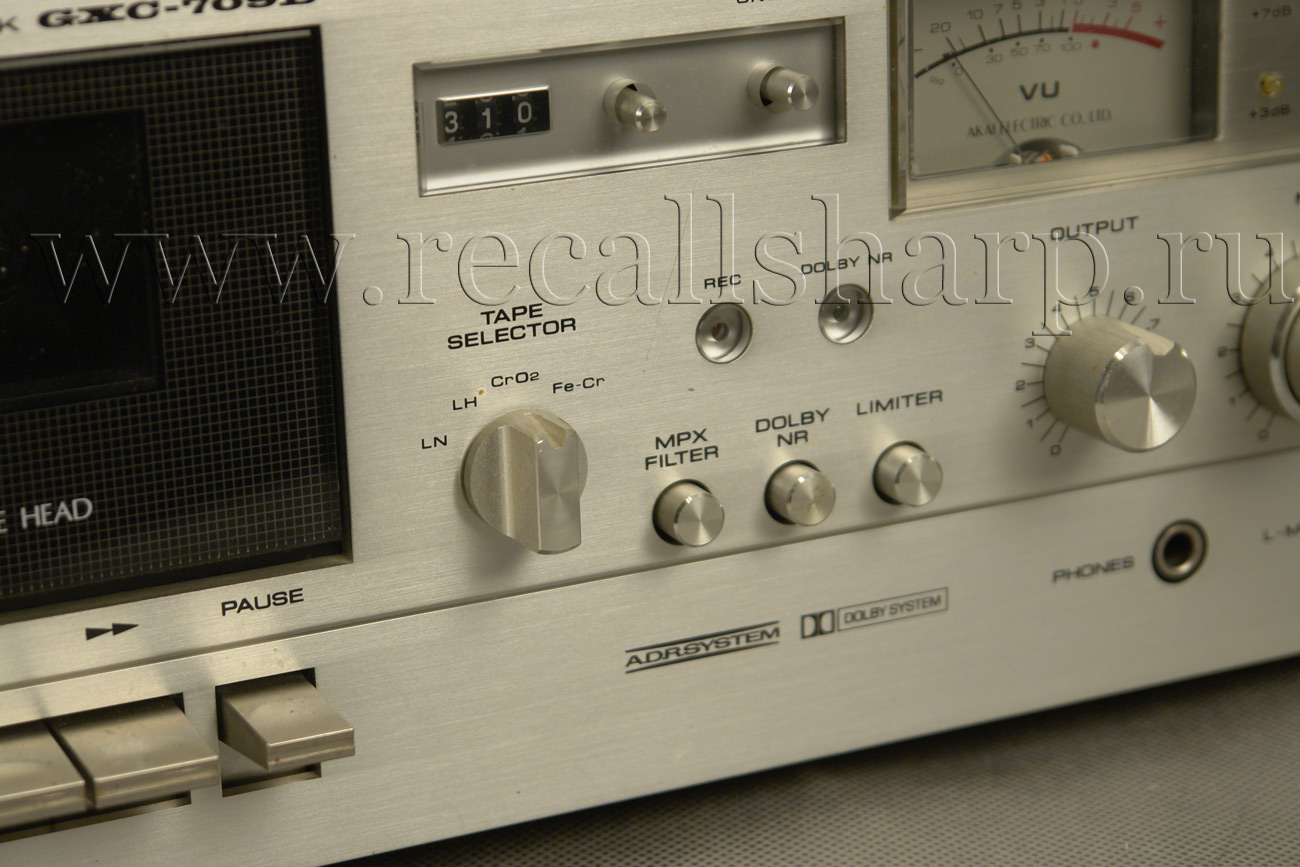

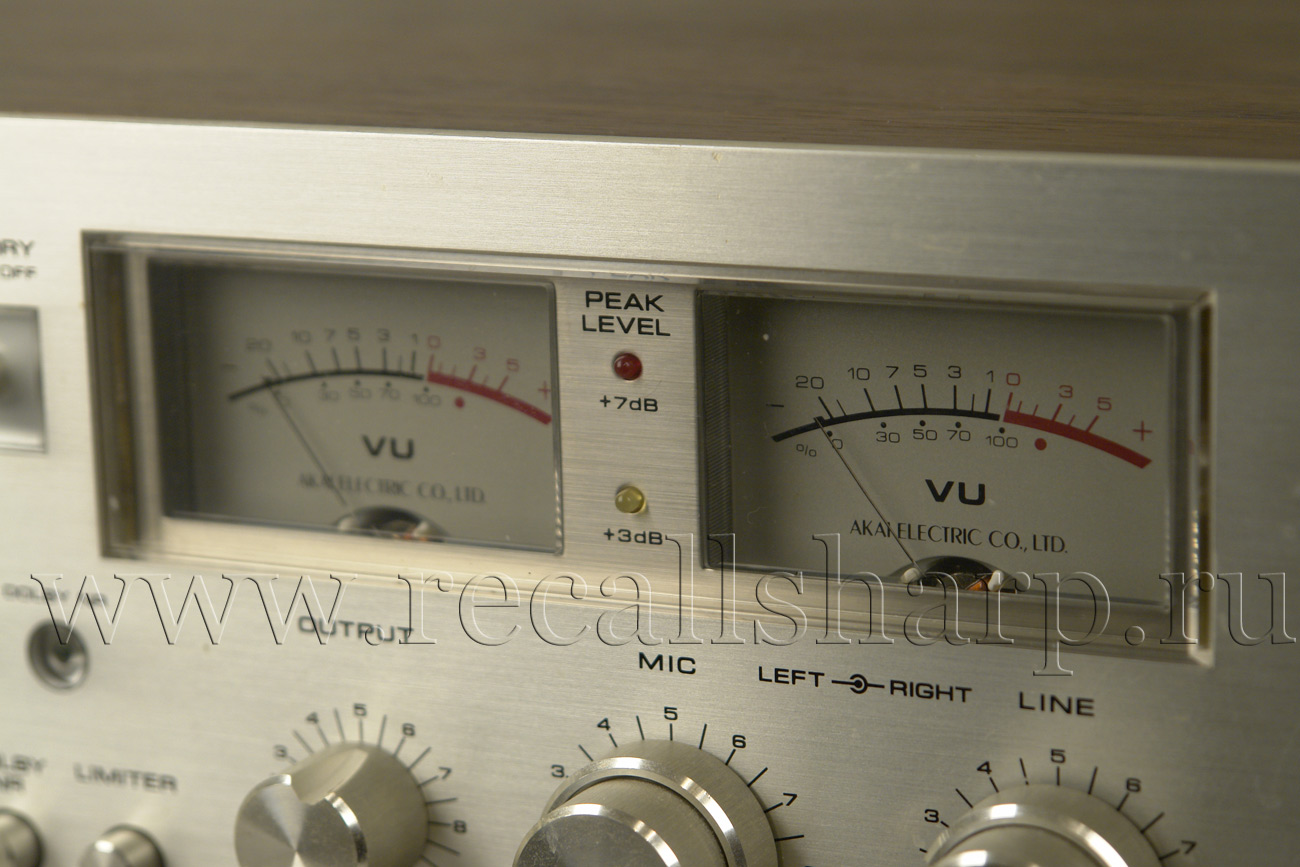

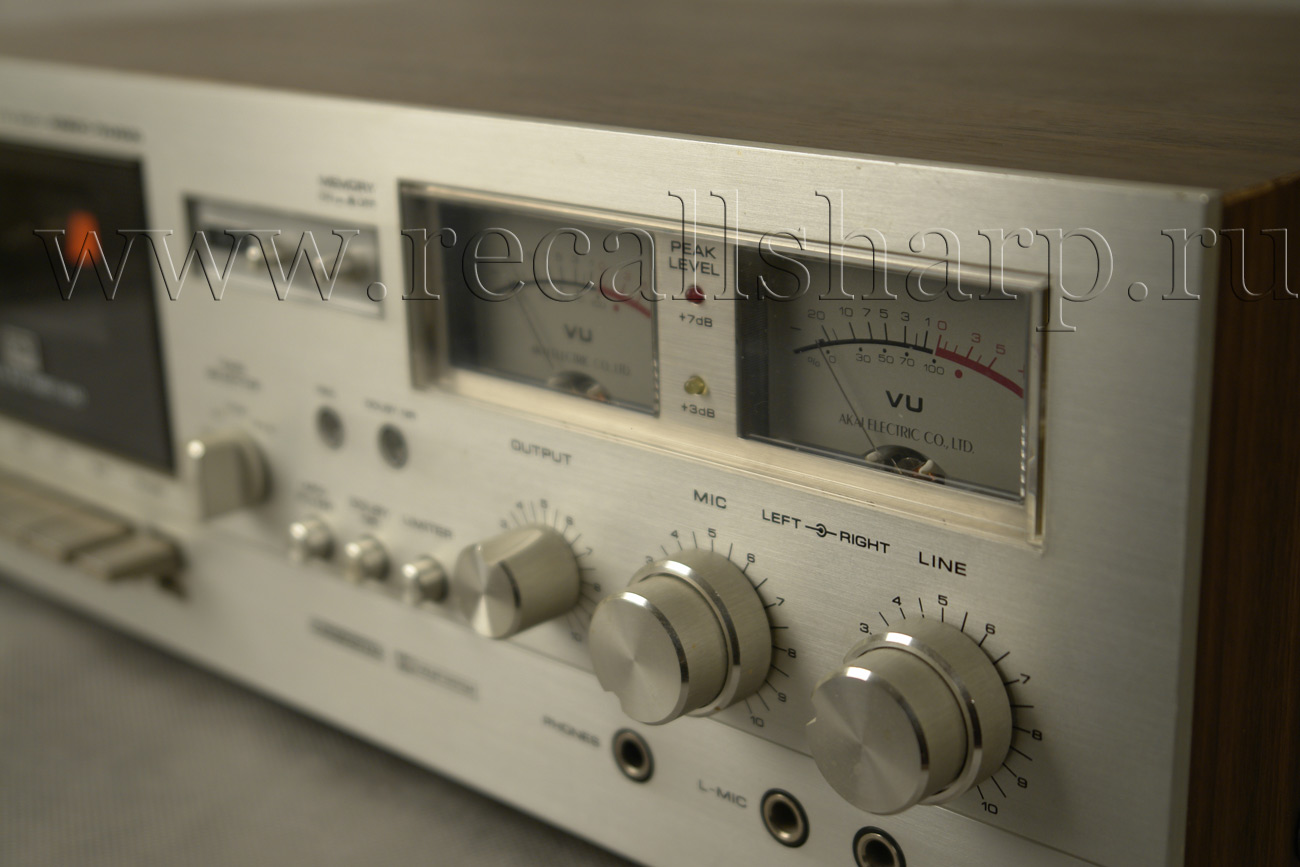

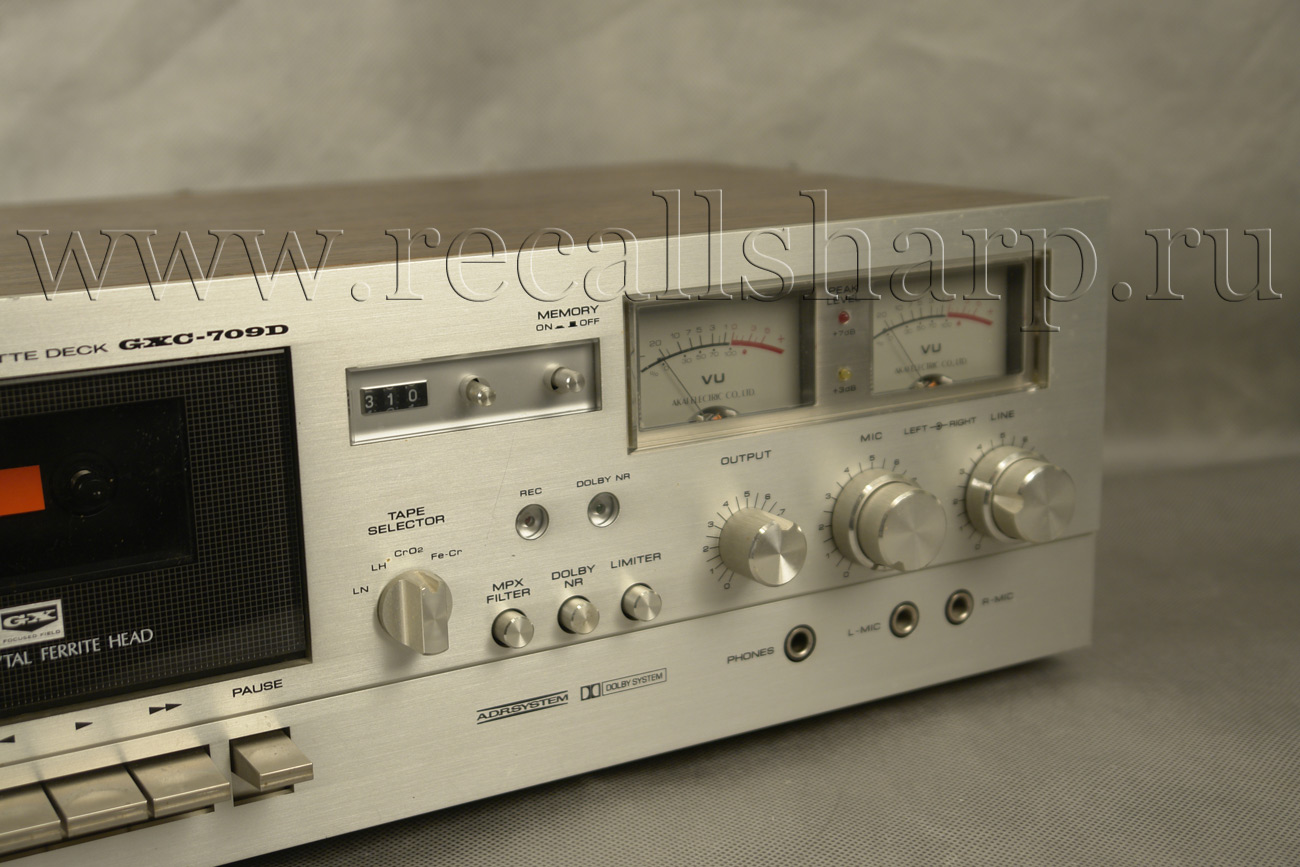

TECHNICAL DATA
TRACK SYSTEM 4 Track, 2 channel stereo system
TAPE Philips type cassette tape
TAPE SPEED 1-7/8 ips
WOW & FLUTTER Less than 0.06% WRMS. 0.18% (DIN45500)
FREQUENCY RESPONSE
35 to 14,000 Hz ±3 dB at LN position
35 to 14,000 Hz ±3 dB at LH position
35 to 15,000 Hz +3 dB at CrO2,(SA) position
35 to 16,000 Hz ±3 dB at FeCr position
DISTORTION
Less than 1.5% at LN position (1000Hz 0VU)
Less than 1.5% at LH position (1000Hz 0VU)
Less than 2.0% at CrO2 position(1000Hz 0VU)
Less than 2.0% at FeCr position (1000Hz 0VU)
SIGNAL TO NOISE RATIO
Better than 51 dB using CrO2(SA), position (DIN 45500)
Dolby NR switch ON: Improves up to 10 dB above 5 kHz
ERASE RATIO Better than 70 dB
BIAS FREQUENCY 85 kHz

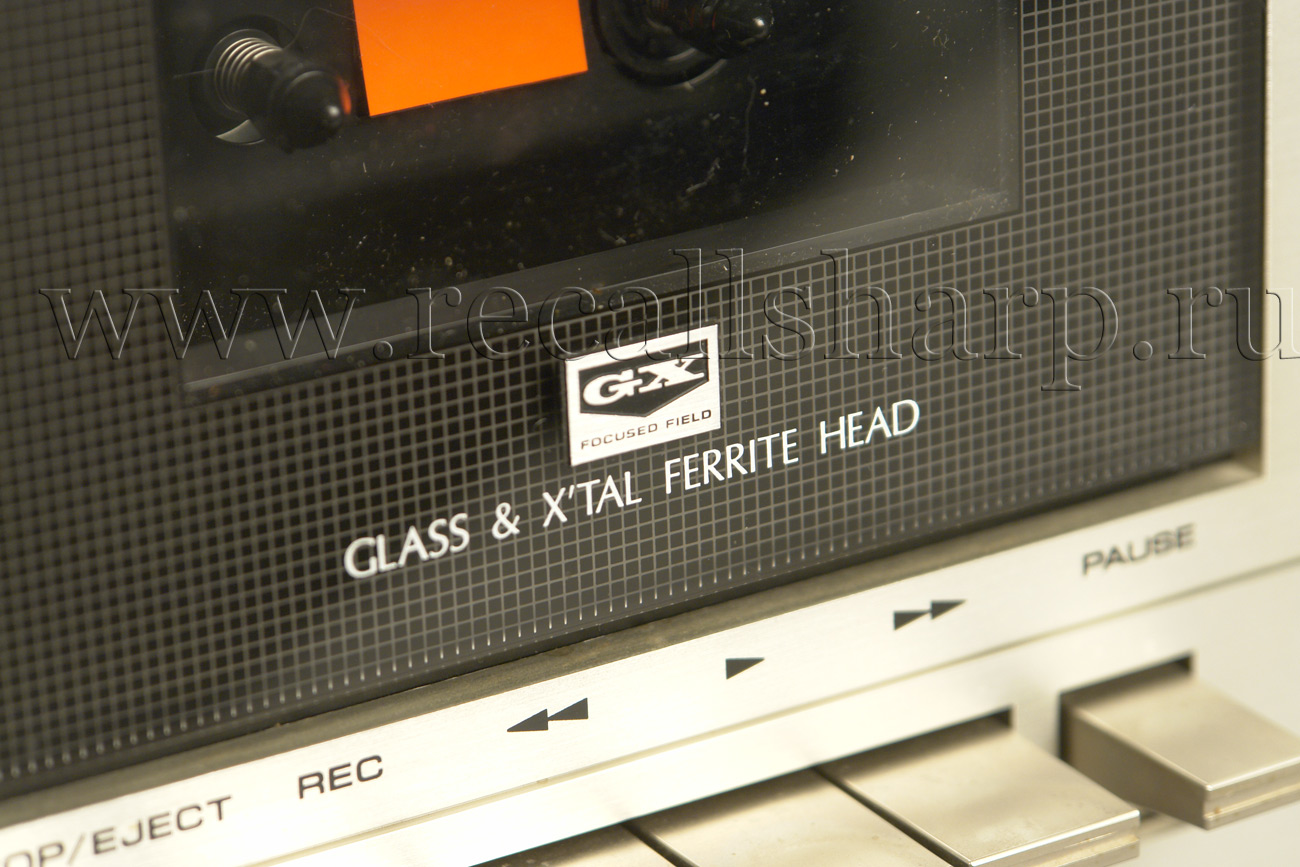

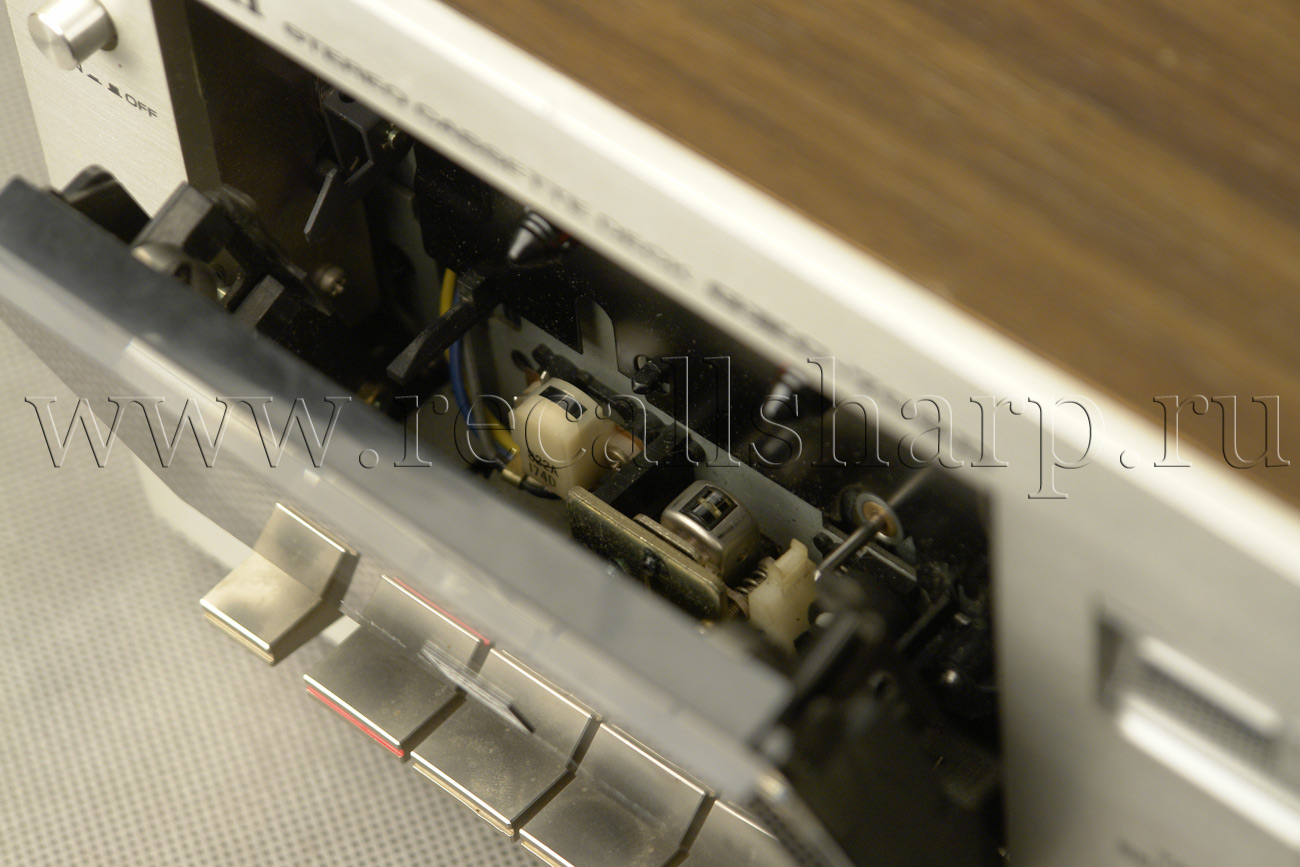

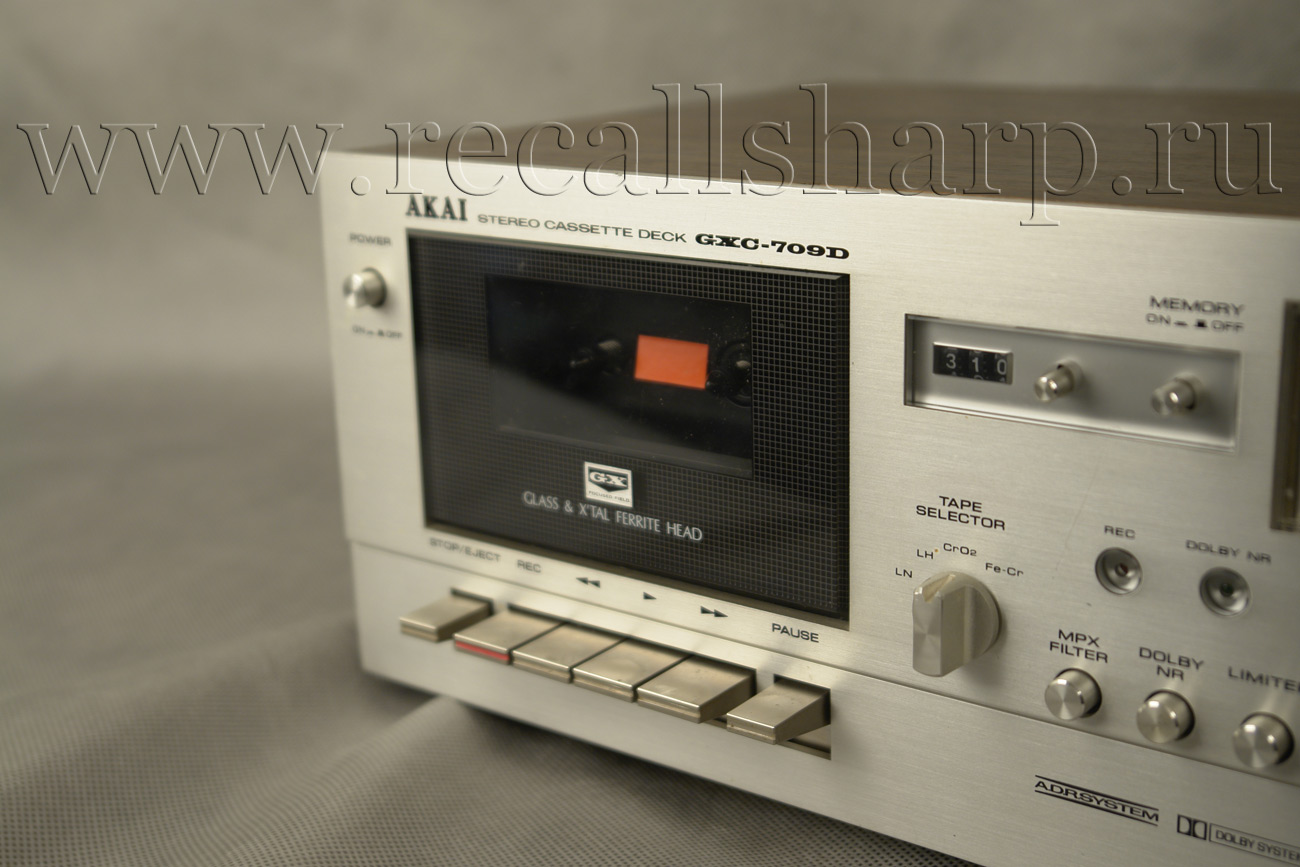

HEADS 2 head system (one GX recording/playback head and one erase head)
MOTORS 1 motor system (one DC FG servo motor for capstan drive and two DC motors for reel drive)
F.F. & REWIND TIME 100 sec, using a C-60 Tape

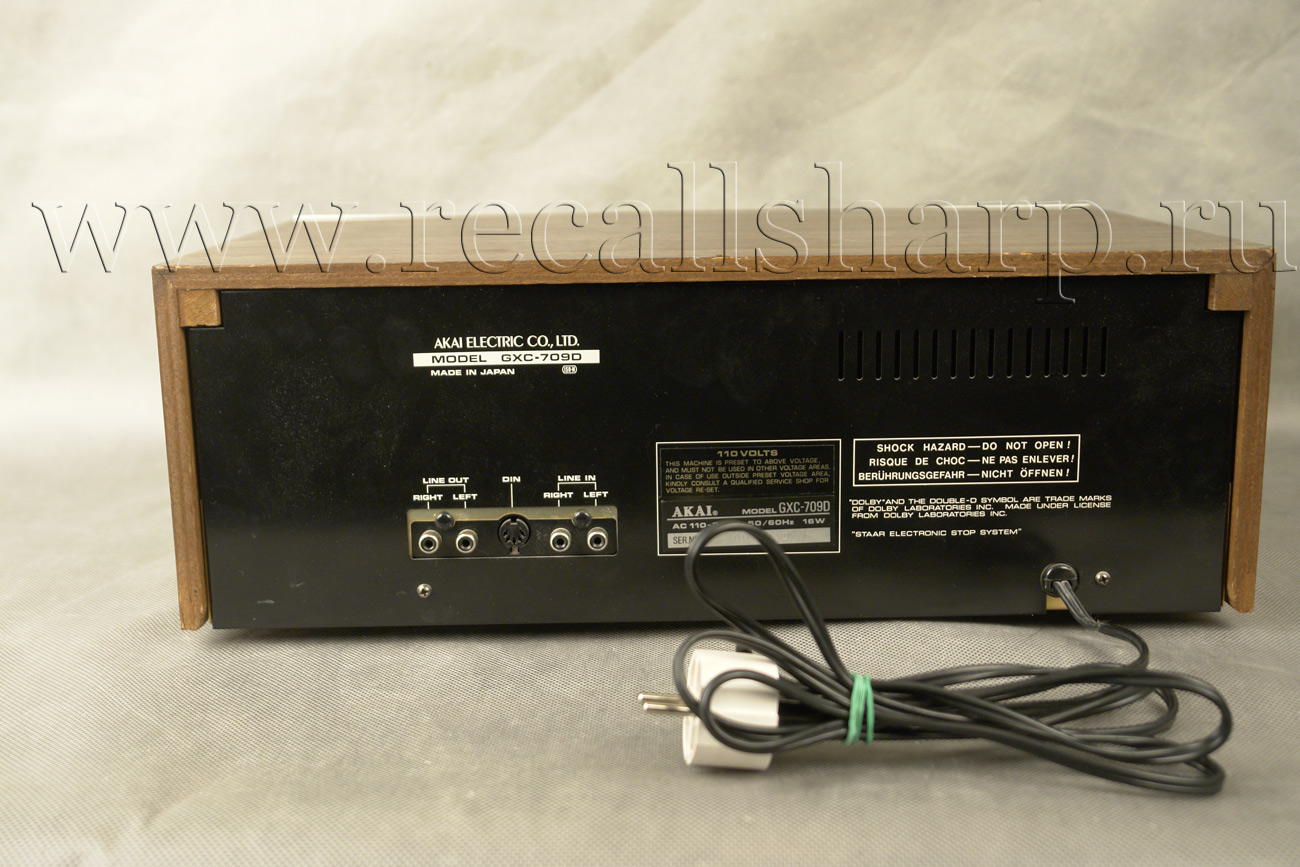

OUTPUT JACKS
Line (2): 410mV(OVU)
Required load impedance: more than 20 kohms
Phone (1): 100 mV/8 ohms
INPUT JACKS Microphone (2): 0.3 mV (input impedance 2.2 kohms)
Required microphone impedance: 600 ohms
Line (2): 70 mV (input impedance 160 kohms)
SEMICONDUCTORS Transistors: 28, Diodes: 36, FETs: 2, ICs: 2
POWER REQUIREMENTS
120V/60 Hz for U.S.A. & Canada
240V/50 Hz for Australia,
100V, 50/60 Hz for Japan
110-120V/220-240V, 50/60 Hz for other countries
DIMENSIONS 440(W) x 285(D) x 165(H)mm (17.3 x 11.2 x 6.5) inches
WEIGHT 6.5 kg (14.4 lbs)
NOTE:
Standard reference tapes
LN position: AKAl C-60LN, FUJI FL C-60
LH position: MAXELL UD C-60 CrO, position: TDK SA C-60
FeCr position: SONY Duad C-60
* For improvement purposes, specifications and design are subject to change without notice. * "Dolby" and the Double D symbol are trademarks of Dolby Laboratories. (Manufactured under license from Dolby Laboratories.)
|
