UHF13-62CH/VHF1-12CH
CD player
Sampling frequency 44.1kHz
Decoding 16 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Frequency response 20 Hz-20 kHz
Wow and flutter Less than possible measurement data
D/A converter (1 bit DAC)
Tape recorder
Track system 4 track, 2 channel, stereo
Recording system AC bias
Erasing system AC erase
Monitor system Variable sound monitor
Frequency range
Normal 30-16000 Hz (with normal tape)
Cr02 30-17000 Hz (with CrO2 tape)
Metal 30-18000 Hz (with Metal tape)
General
Power requirement
AC 100 V, 50/60 Hz,
Power consumption; 40 W
Battery 15 V (Ten UM-1, R20/LR20 batteries)
Memory back-up for computer/clock
4.5 V (Three UM-3, R6/LR6 batteries)

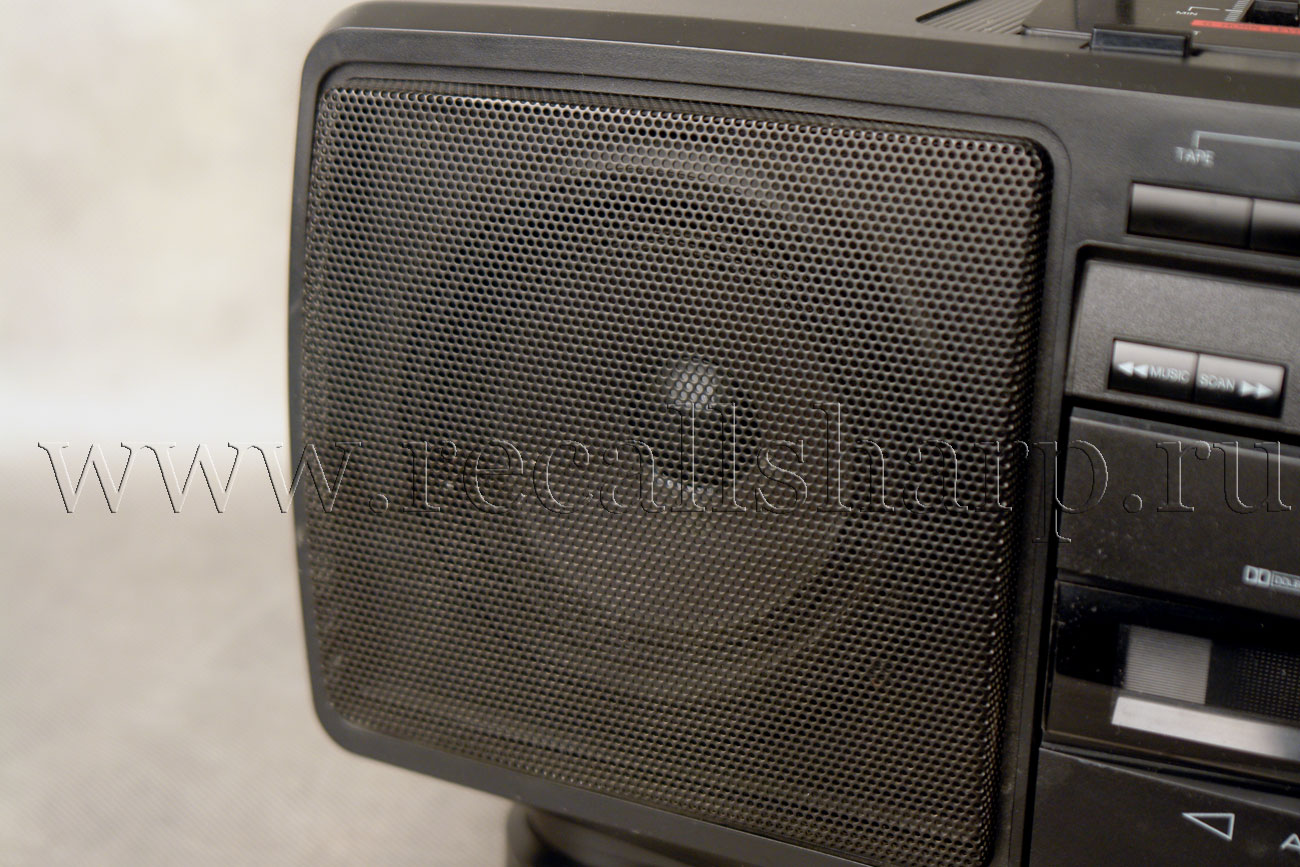

Speakers
Woofer 10 cm PM dynamic speaker 8Ω

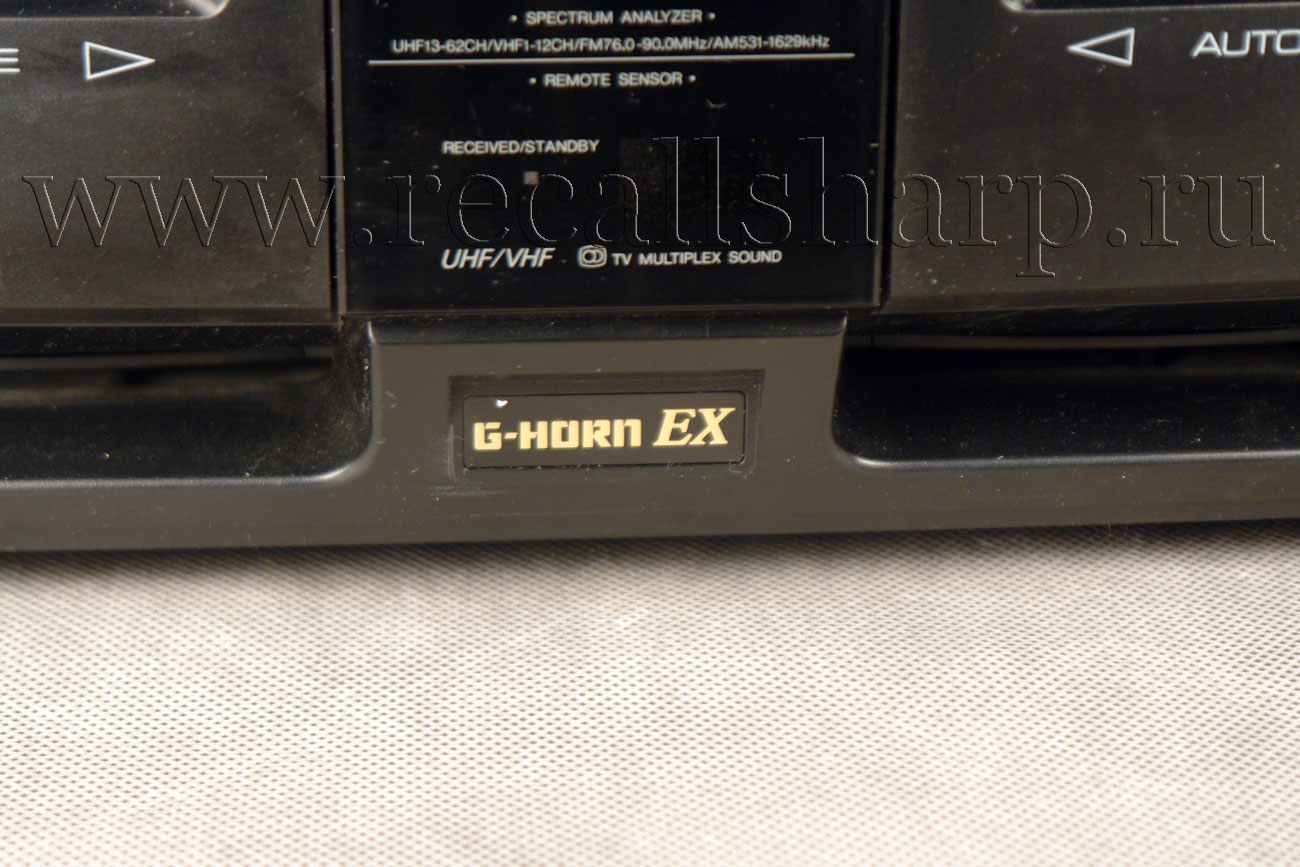

3D Super Woofer G-Horn EX
Jacks Input MIC; 2.5 mV (4.7 kΩ)
AUX; 200mV(47kΩ)
Output HEADPHONES; 32Ω
CD OUT; 1.0V(CD 0dB)
Dimensions (WXHXD) (Top panel closed) 655x255x240mm
Weight 8.5 kg without batteries
