Matsushita Electric Industrial , Ltd. (MEI), Panasonic, National, Technics Quasar, , .

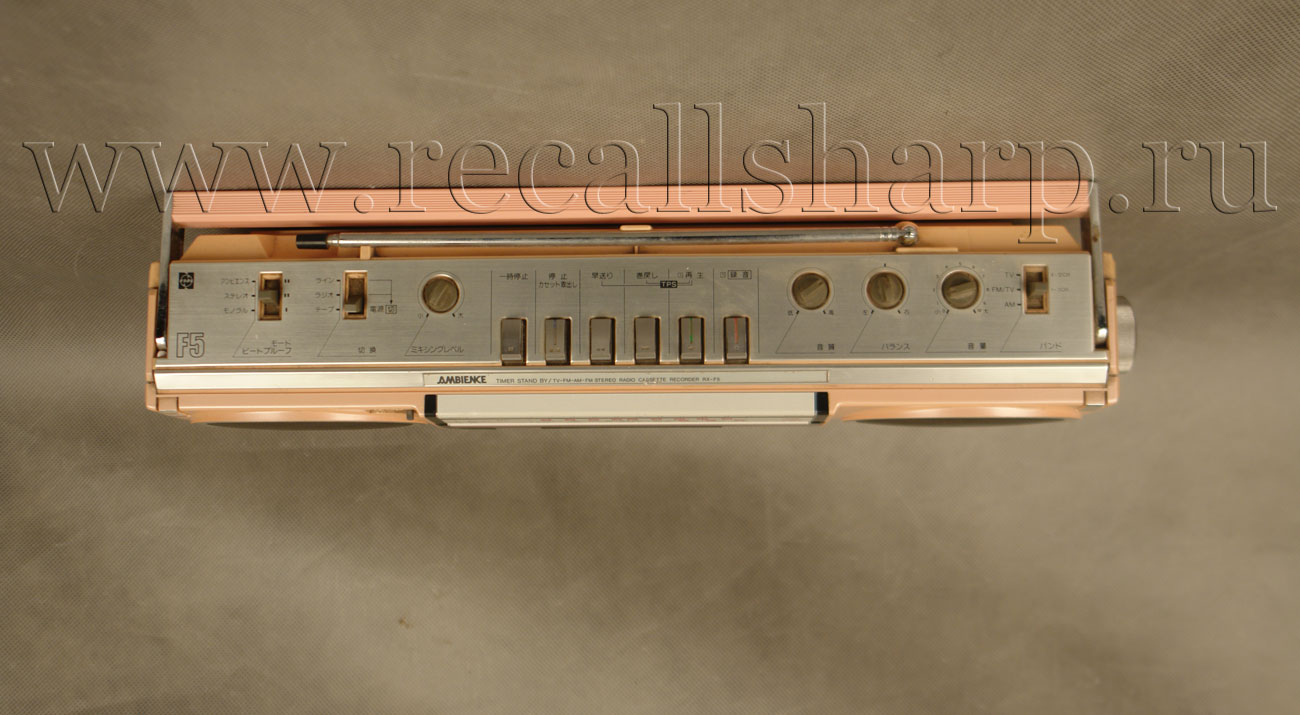

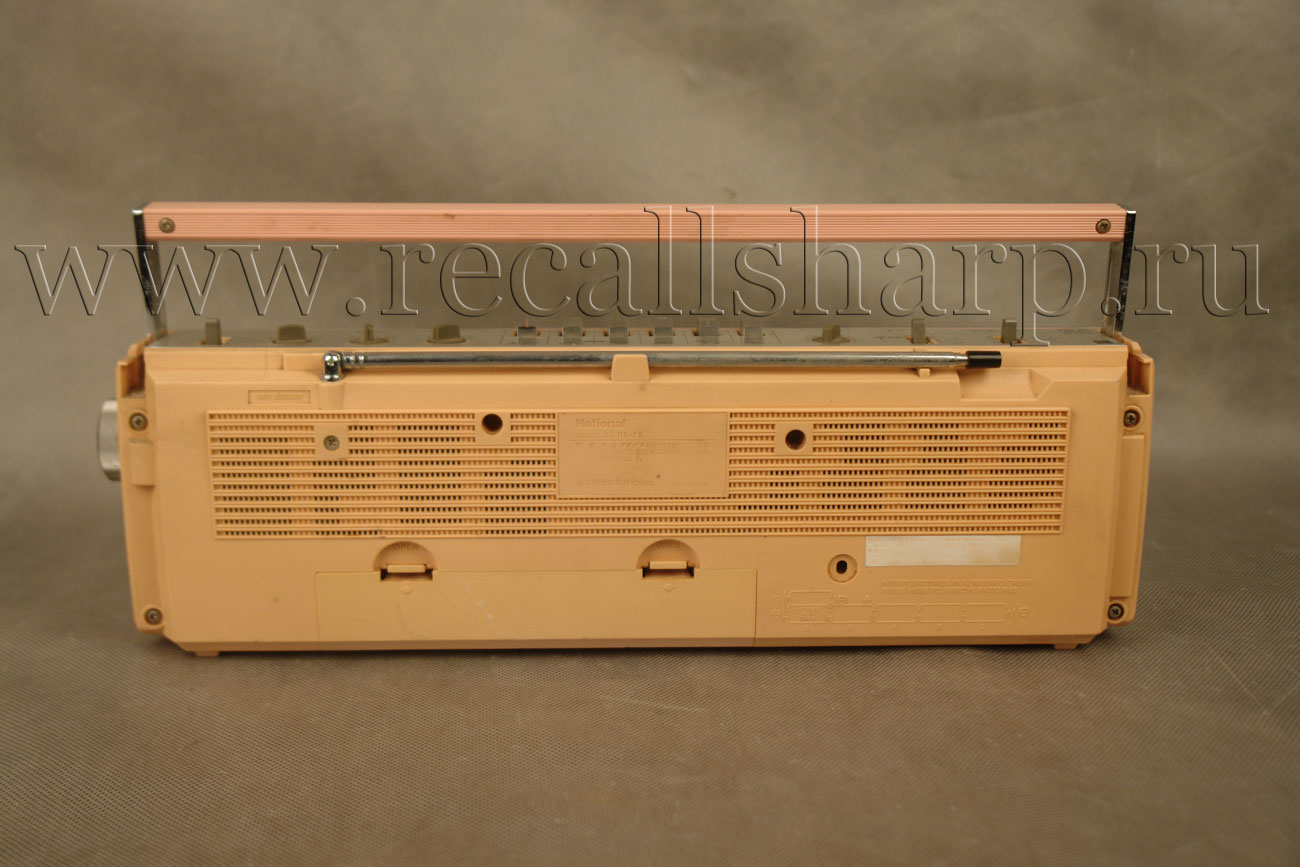

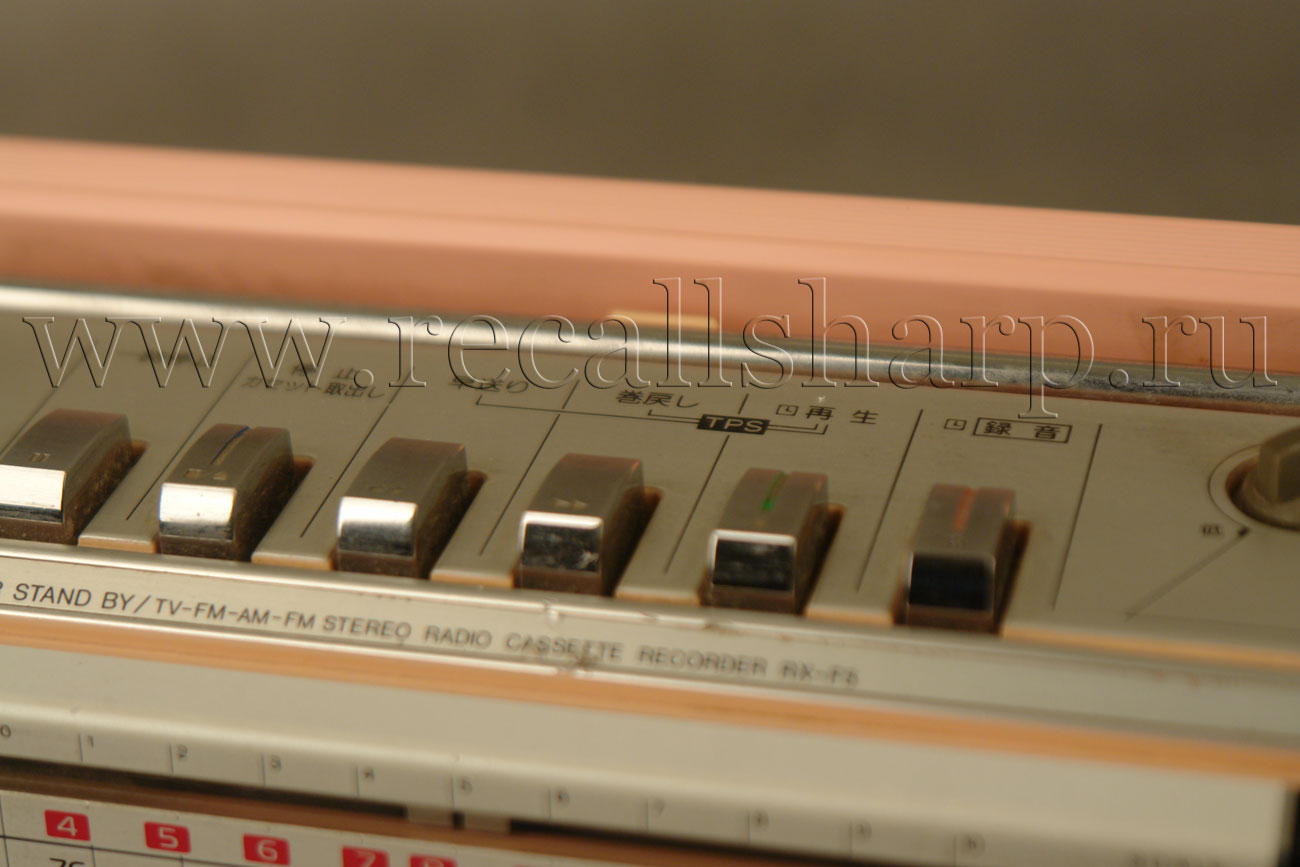

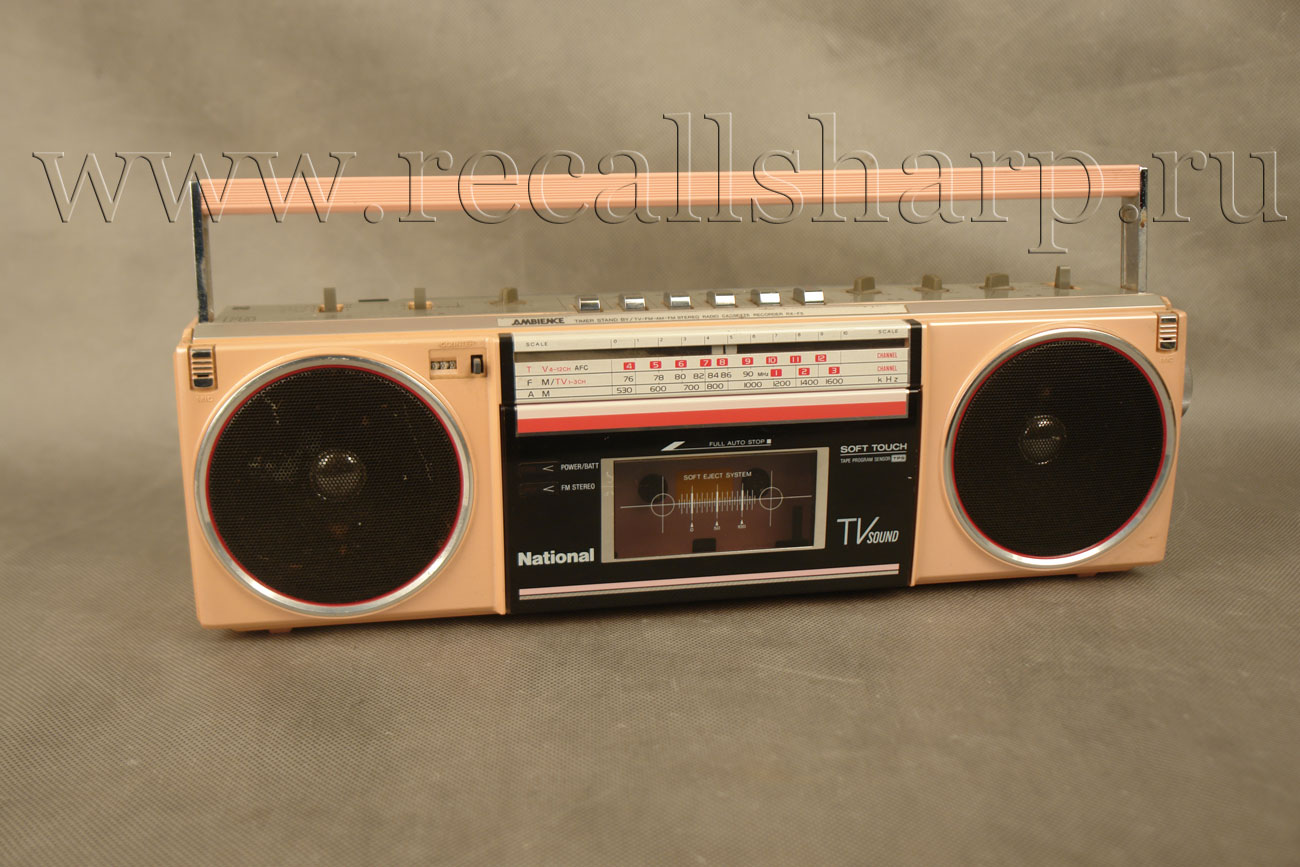

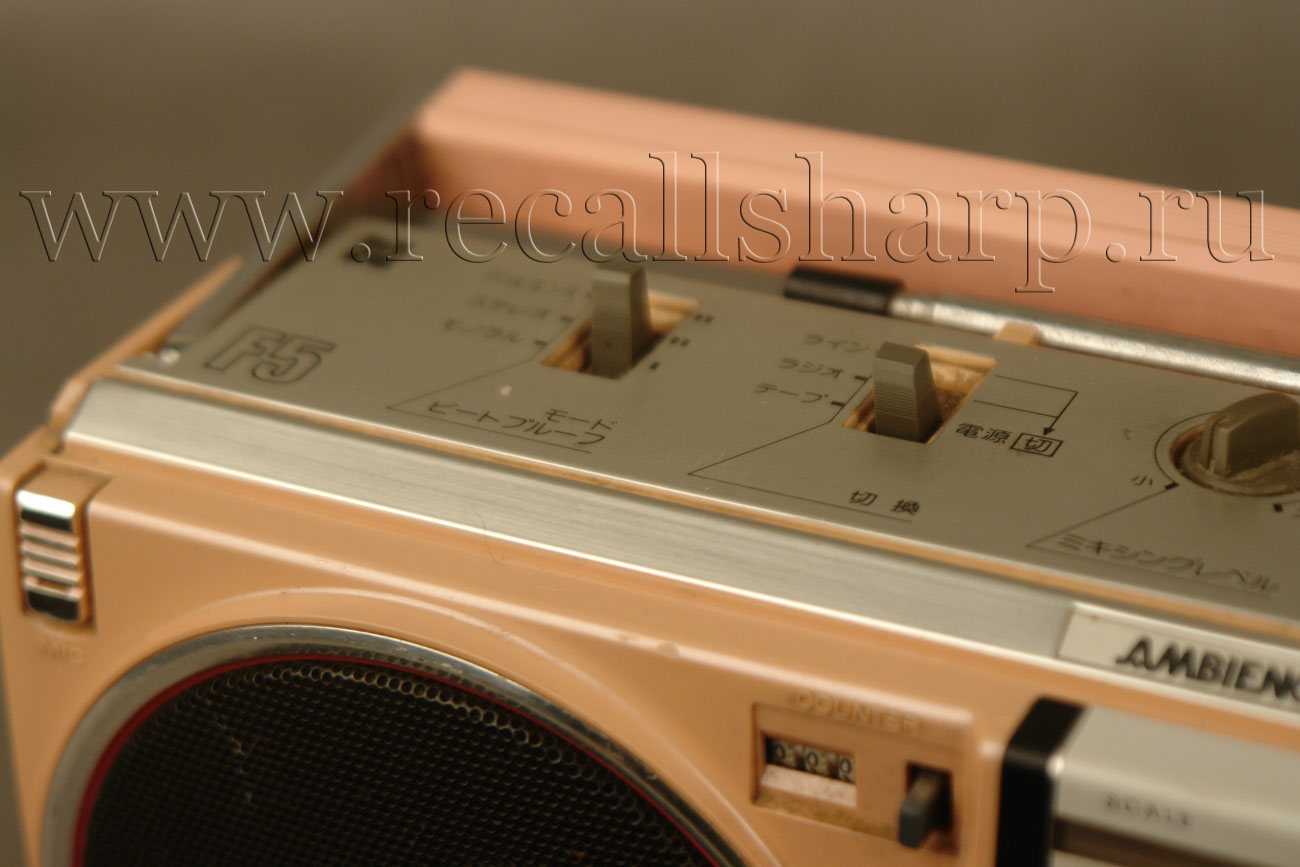

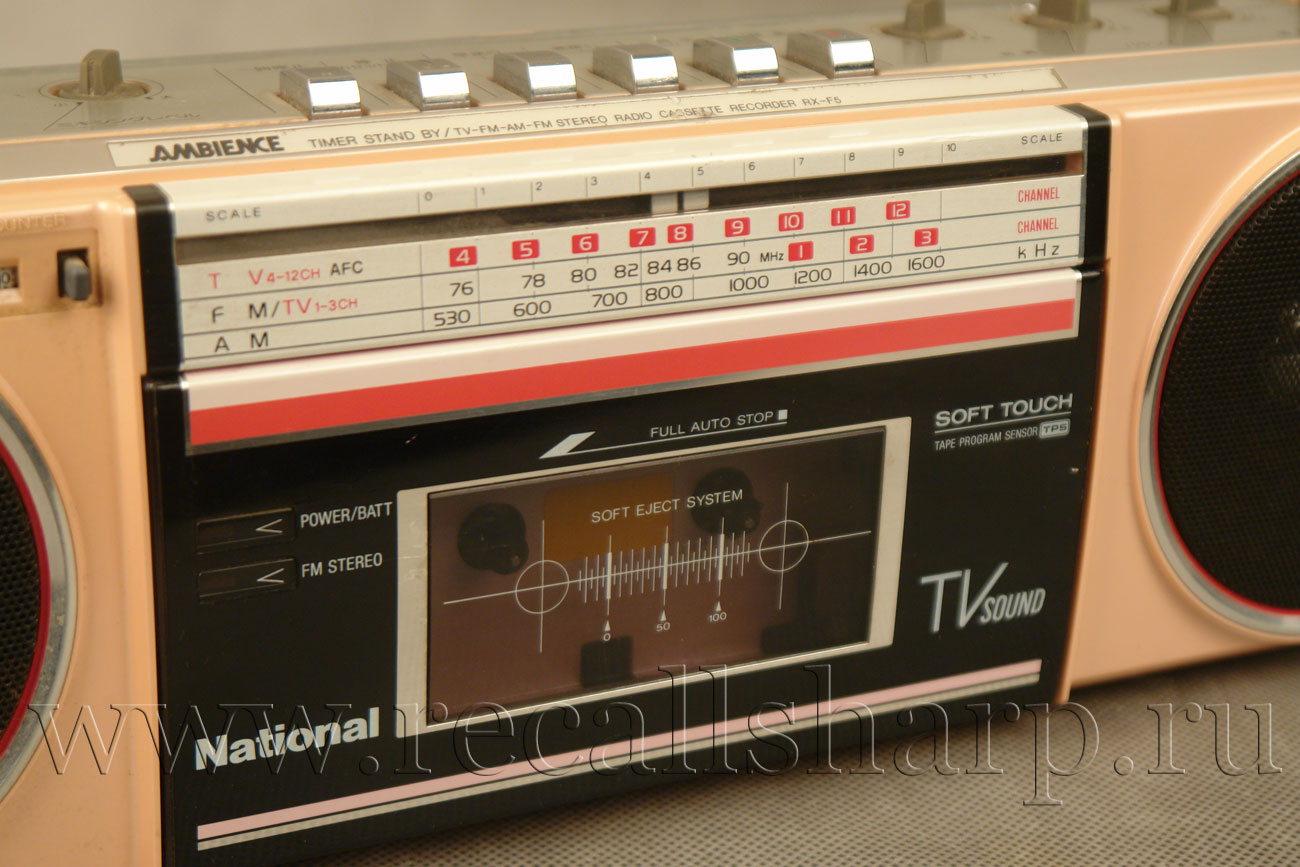

National RX-F5



: 1983


SPECIFICATIONS
RADIO FREQUENCY RANGE: FM; 76-108 MHz
AM; 525-1605 kHz
FM,TV 1-3ch
TV 4-12ch 175 -222MHz
POWER REQUIREMENT:

AC adapter only; 5 W Battery; 9 V (6 UM-2, "C" size batteries)
POWER OUTPUT:
5 W(2.5Wx2)...EIAJ/DC

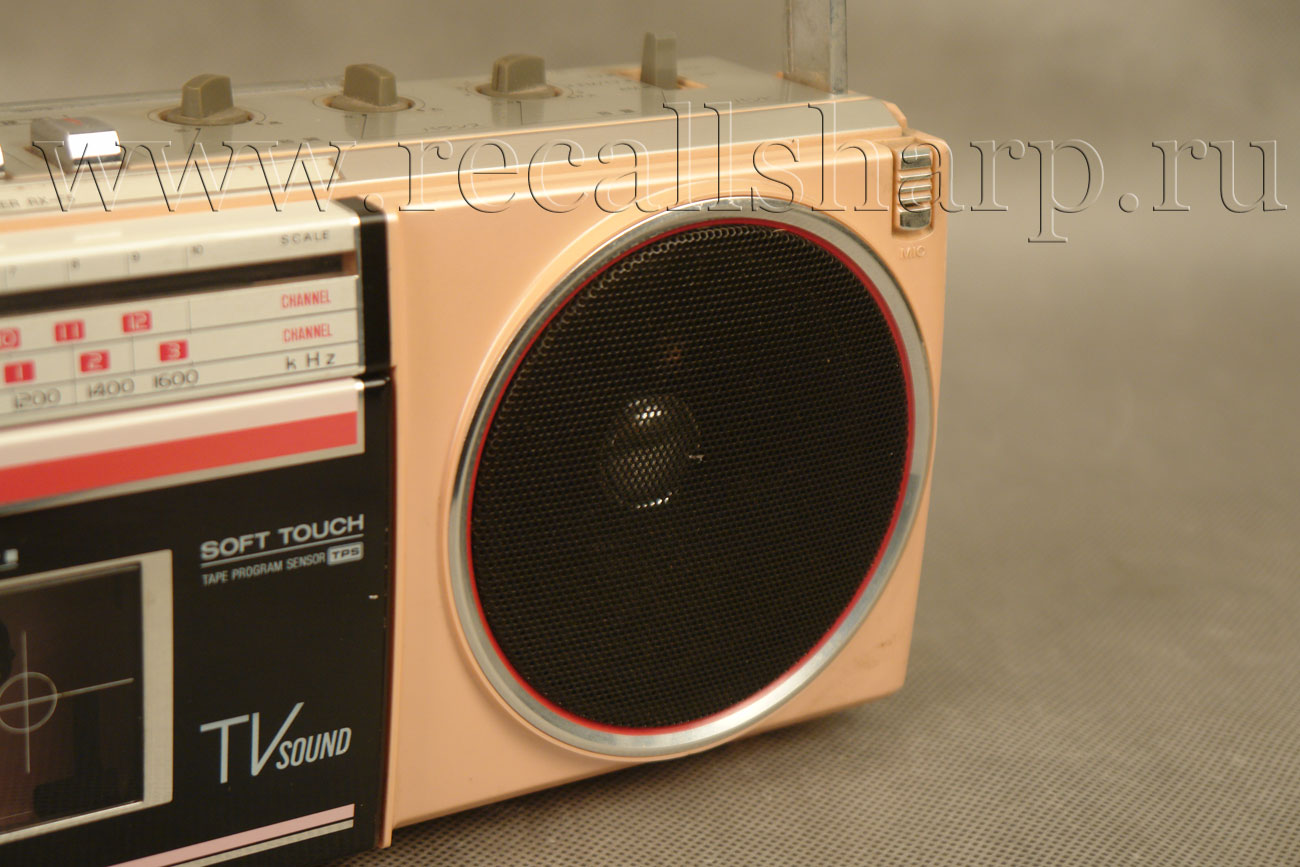

SPEAKERS:
Woofer; 10 cm PM x 2 dynamic speaker 3Ω
FREQUENCY RANGE:
100-10,000 Hz (with normal tape)
RECORDING SYSTEM: DC bias, Magnet erase
TAPE SPEED: 4.8cm/s
TRACK SYSTEM: 4-track 2-channel stereo recording and playback
Wow&flutter 0.3%(WRMS)

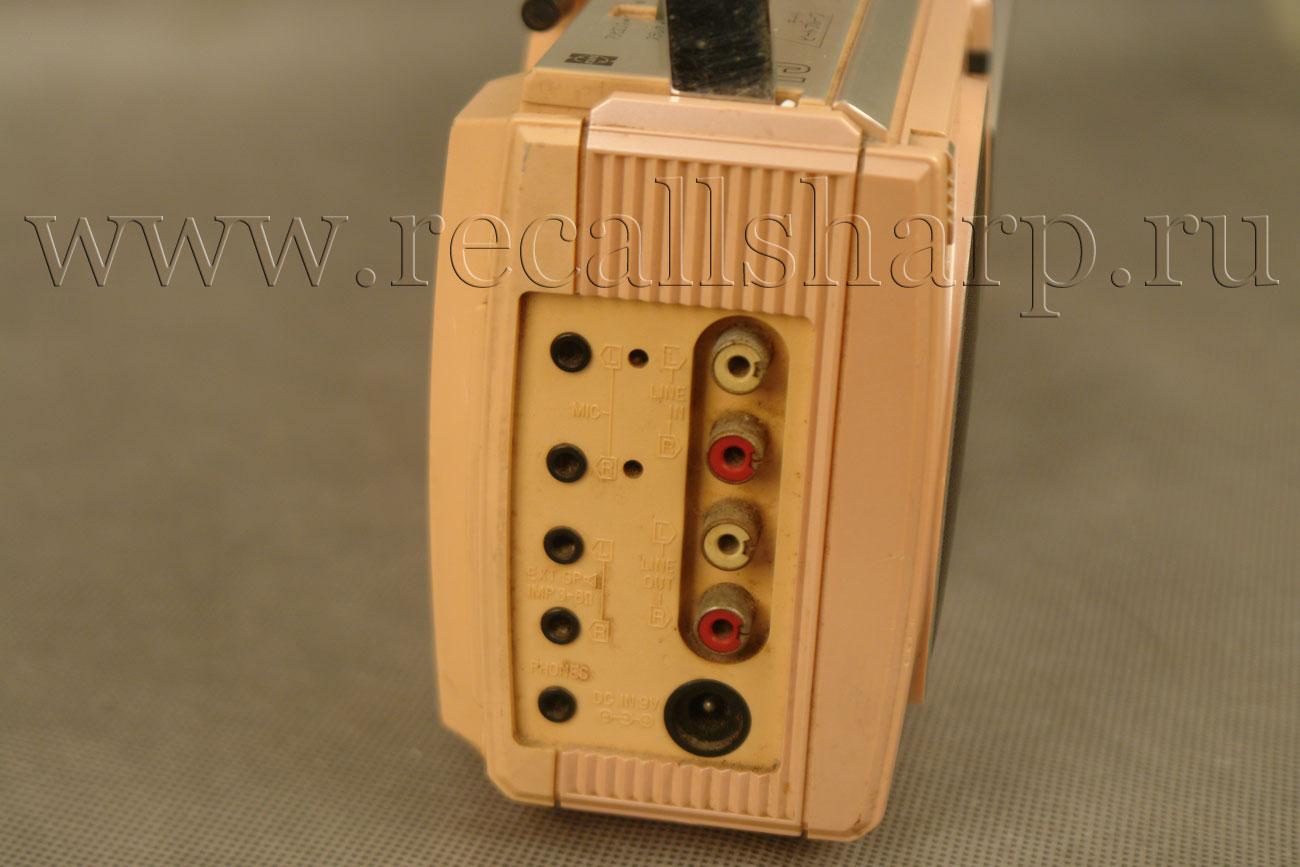

JACKS:
INPUT; MIC; sensitivity 0.26 mV/applicable microphone impedance
200Ohm-600Ohm. (recommended microphone RP-V305)

LINE IN; sensitivity 200 mV/47 kΩ

OUTPUT;
LINE OUT; sensitivity 420 mV/2.2 kΩ
EXT SP; 3-8Ω.
HEADPHONES; 32Ω

OTHERS; DC IN; 9 V

DIMENSIONS: 412 mm x 131mm x 99 mm
(W) x (H) x (D)



WEIGHT: 2.3kg with batteries

Specifications are subject to change without notice.
